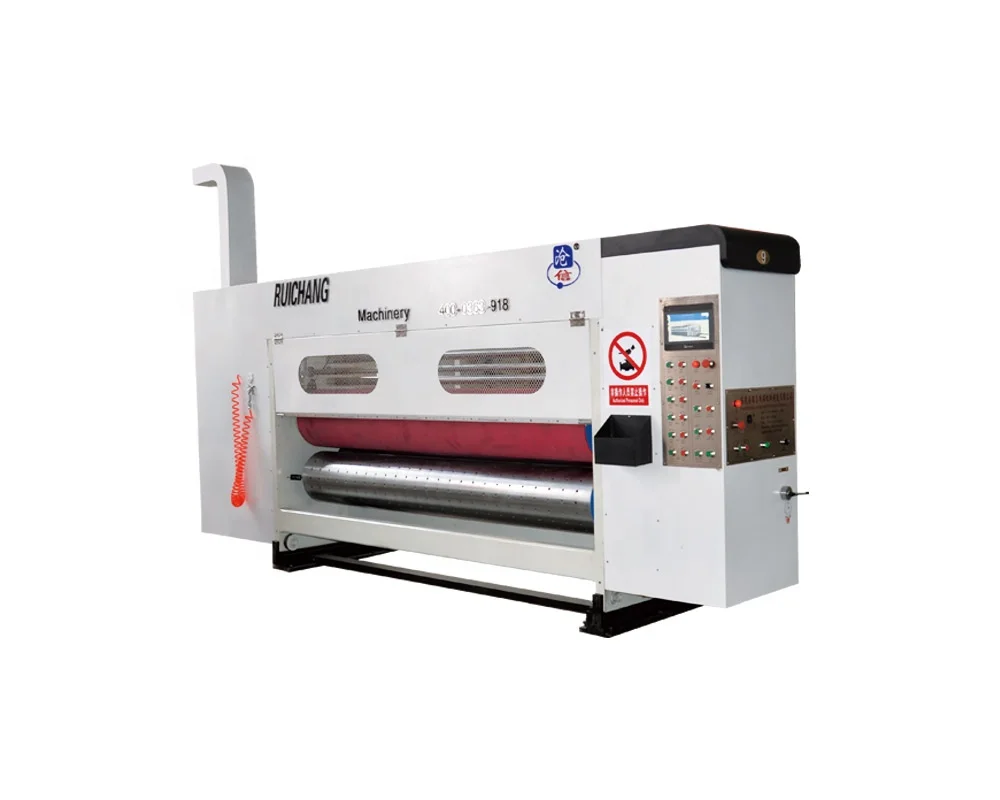

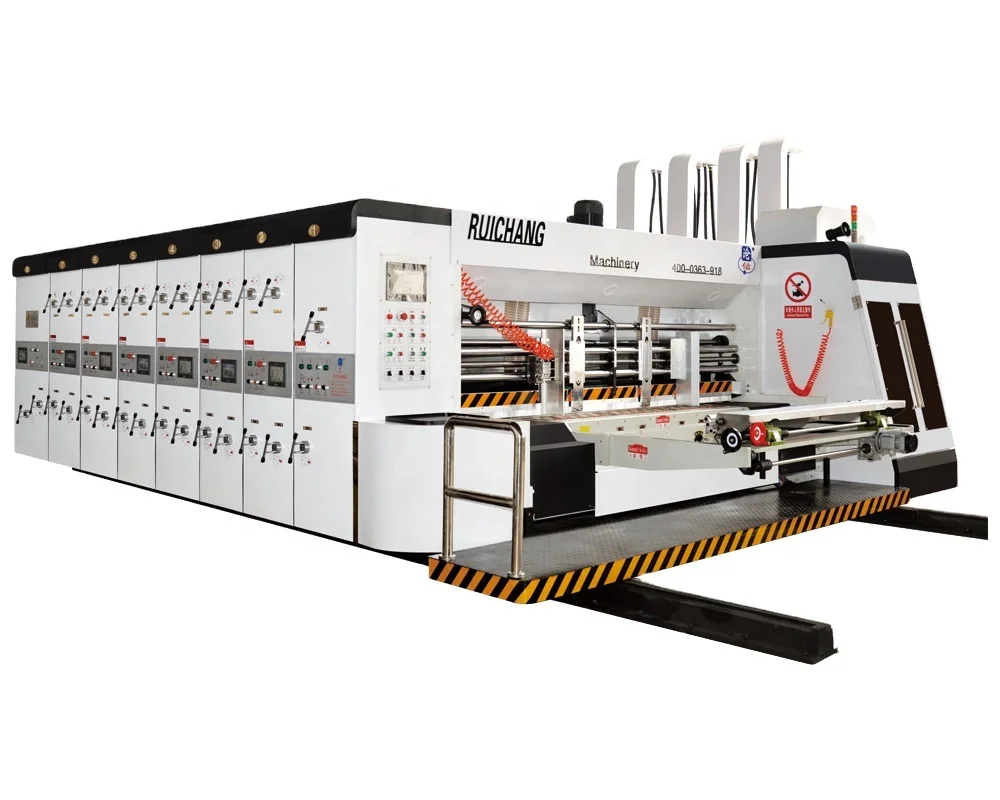

Full computer Carton box making single color flexo ink Corrugated Printing die cutting creasing machine

Established in 1996, DongGuang RuiChang Carton Machinery Manufacture Co.,LTD is a professional manufacturer of flexo print slot die cut machine. We are located in DongGuang County which is famous for packing hometown with convenient transportation to TianJin sea port. Our print slot die cut machine comply with international quality standards and are greatly accepted by customer from domestic and aboard market.

We have over 50 employees, 2 engineers for technical upgrade,1 engineer for machine design ,70% of them worked for RuiChang Machine over 10 years.

If you are interested in any of our machine, please feel free to contact us for further information, we are looking forward to forming successful business relations with clients around the world in the near future.

Looking forward to your reply!

//www.rczxjx.com.cn

 1.     Technical data

2.  Machine details

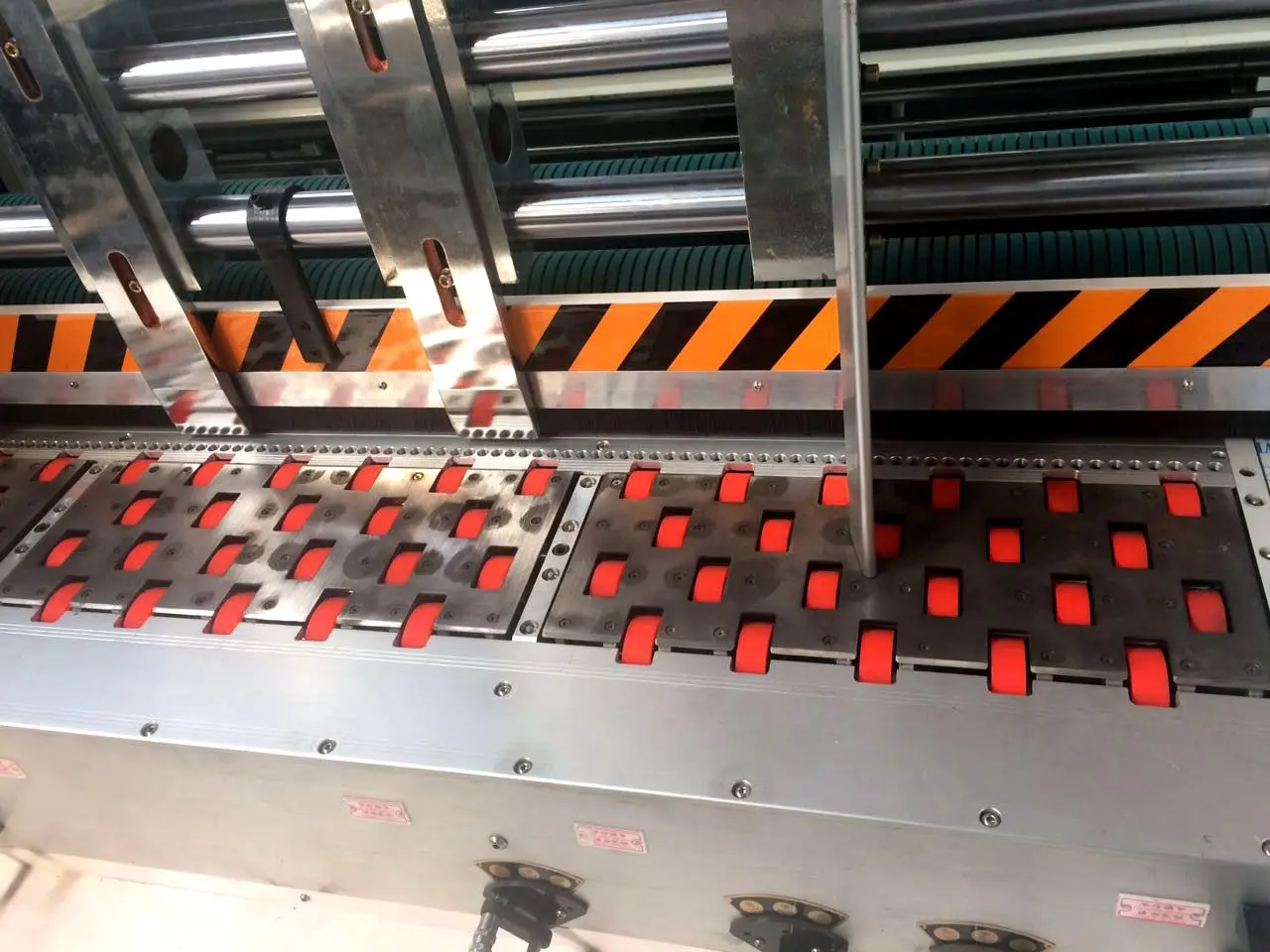

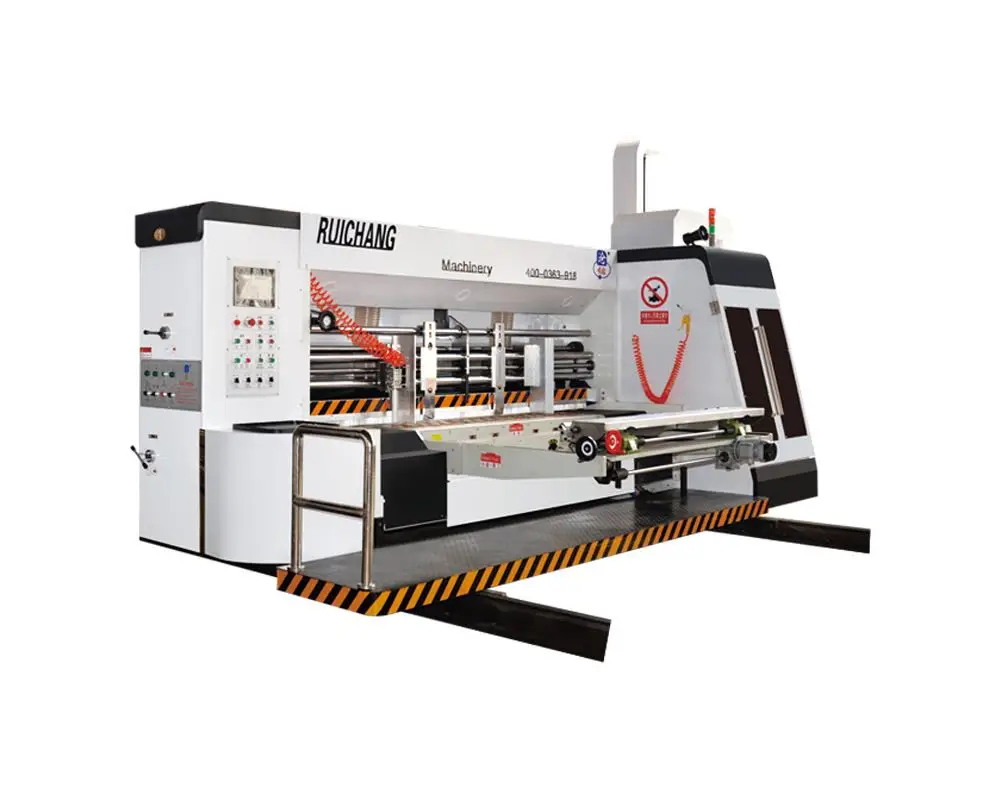

Feeder unit

Individual feeder system ,it is very steady when machine running ,and it is easier to adjust.

Touch screen available ,size input by screen or buttons based on operator needs.

Four rollers for feeding, upper two rollers wrapped with rubbers which can keep the flute in good shape, not destroyed. Dynamic balance technical for rollers.

Brush device is available ,which can clean the cardboard before printing.

Delta inventor and PLC ,touch screen operation .

Schneider contactor/ electric

Main bearing use NSK brand.

wall thickness is 50mm

working speed: 120 sheets/minute

it adopts lead edge type feeding with 7.5 kw adsorption motor.

There is protect  system for main motor(machine can not working when it is not locked for combination).

40Cr material /grinding technology for gears

Skipping feeding is available.

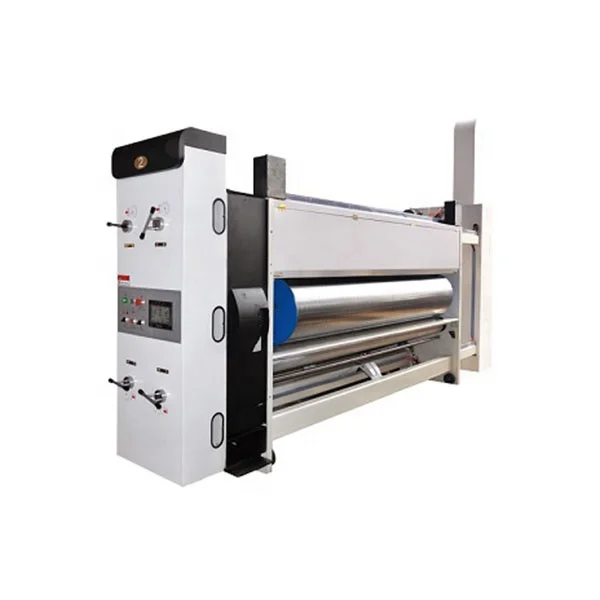

Printing unit

There is plating hung bar, it is easy to install the printing plate.

Exclusive design for the changing anilox roller and the rubber roller, if change the anilox roller and the rubber roller just need 2 hours, its save the time and the very convenient.

Auto zero with order memory function.

Touch screen operation .

Schneider contactor/ electric

NSK bearing for main transmission part

Gear adopt grinding technical for 40Cr material with thickness 50mm

Print rollers, ink roller and embossing rollers all adopt dynamic balance technical for ensure steady transmission.

Ink roller lifting automatically coordinate with feeding system. Installed wedge clutch which is good for ink distributing and washing.

Rubber roller made in JiZhou which is durable.

Ink roller adopt DaLian brand ,ink distributing is better.

Touch screen/ button adjusted on the side.

Ink automatic cycle.

LPI ranged from 200 to 280.

Die cutter unit

Touch screen and button operation .

Schneider contactor/ electric

NSK bearing for main transmission part

Gear adopt grinding technical for 40Cr material with thickness 50mm

Anvil roller and die cut roller both adopt dynamic balance technical, its gaps adjusted by motor.

Anvil made in Taiwan ,MaxDura brand,it is easy to change ,longer service life

There is grind roller above the anvil roller which can grinding the wear anvil cover

Anvil roller can move 40mm when machine is working automatically which avoid same position wear.

1.Are you manufacturer ?

Yes, we are a manufacturer with 20 year manufacturing  experience and  we have our own export company.

workshop

License and certificates

2. What is your product?

We are professional  carton making machinery manufacturer .

3.Do you have experience in packing for sea shipping?

Yes, we will wrap the machine with plastic film ,packed with steel shelf and wooden plate,then fixed in the container.

4. What we should do after we placed the order?

Seller will send a articles list and floor drawing which buyer should prepared in advance .

5.Who will install the machine when machines reached our factory?

We will send professional installer to install the machine and teach the operator how to operate and maintain the machine in customer factory ,it is free within 7 days. Buyer only need to offer return tickets and visa expenses .

6.Do you have local service ?

  Yes, we have. If customer come across the problem with the machine ,he can contact our local staff first.

Seller will go to check the machine situation once-twice in one year.

7 .what we  should do if we need spare parts for replacement ?

We will delivery some frequent spare parts along with order for emergency replacement.

We have comprehensive inventory of spare parts in our factory  to ensure quick availability for the infrequent replacement of parts required, we will delivery the spare parts by DHL when we get the spare parts information from customer side within 24 hours .
