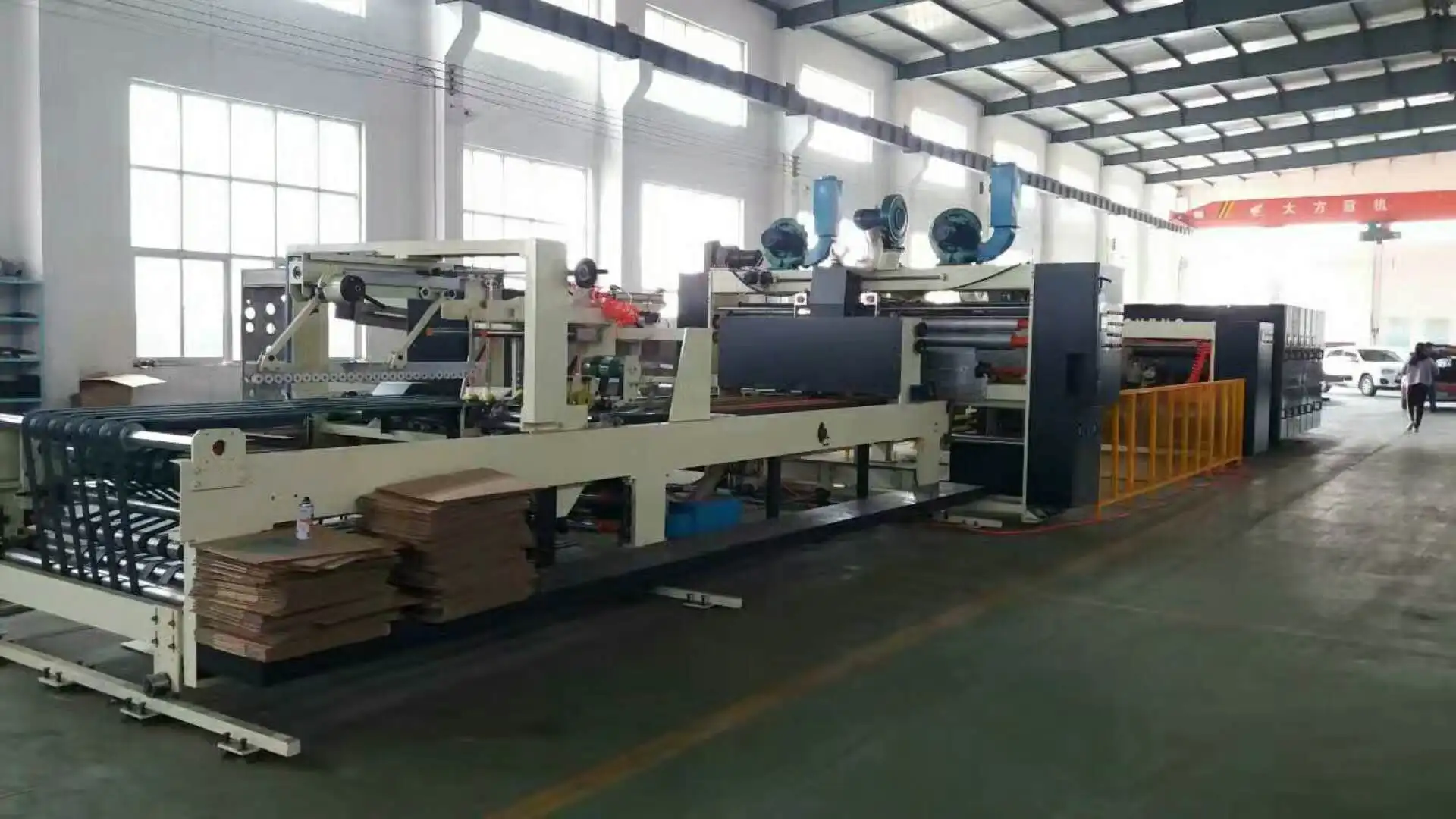

automatic flexo corrugated carton box maker printer slotter die cutter folder gluer bundling packaging inline machine
- Category: >>>
- Supplier: Dongguang A-Pack Machinery Manufacturing Co. Ltd.
Share on (1600701905225):
Product Overview
Description
Product Overview
QZDYKM2800 MODEL AUTOMATIC CARTON BOX MAKER PRINTER SLOTTER FOLDER GLUER MACHIN INLINE
This corrugated box printer slotter folder gluer inline , is the most fully automatic type machine for corrugated carton box making . PLC control , speed fast and easy operation , Can matched with automatic bundling machine . Which PP bundling machine or PE Tying machine for your choice .
FEATURES AT A GLANCE
SMOOTH OPERATION ,LOW NOISE
BOX CONVEYING MODEL USE MECHANICAL BELT TRANFER TYPE
NON-STOP ROLLER GLUING SYSTEM
SERVO COUNTER EJECTOR
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Iterm | Unit | Specifications | |
1 | Machine size(inner side) | mm | 2800 |
2 | Max. Design speed | pieces/min | 200 |
3 | Economical speed | pieces/min | 50-180 |
4 | Max. Paper Feeding size | mm | 1400×2600 |
5 | Min. Paper feeding size | mm | 320×700 |
6 | Max. Printing size | mm | 1400×2400 |
7 | Skip paper feeding size | mm | 1500×2600 |
8 | Precision of printing | mm | ±0.5 |
9 | Standard print plate thickness | mm | 7.2 |
10 | Paperboard thickness | mm | 2-10 |
11 | rint roller axial direction adjustment | mm | 2-10 |
12 | Print roller axial direction adjustment | mm | ±10 |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
