Automatic Flexo Printing Slotting Die Cutting Machine With Vibrator Stacker

Share on (1600808527982):


Price:$56,000.00 - $60,000.00

Quantity:


Product Overview

Description

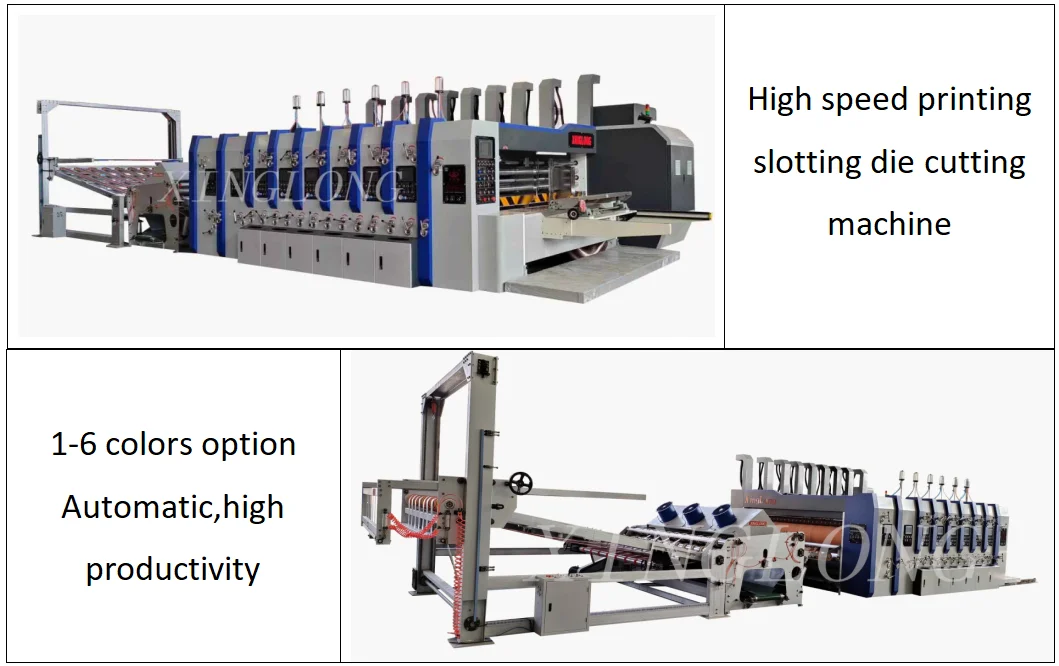

Automatic Flexo Printing Slotting Die-Cutting Machine With Vibrator Stacker Machine





Performance and Characteristics:

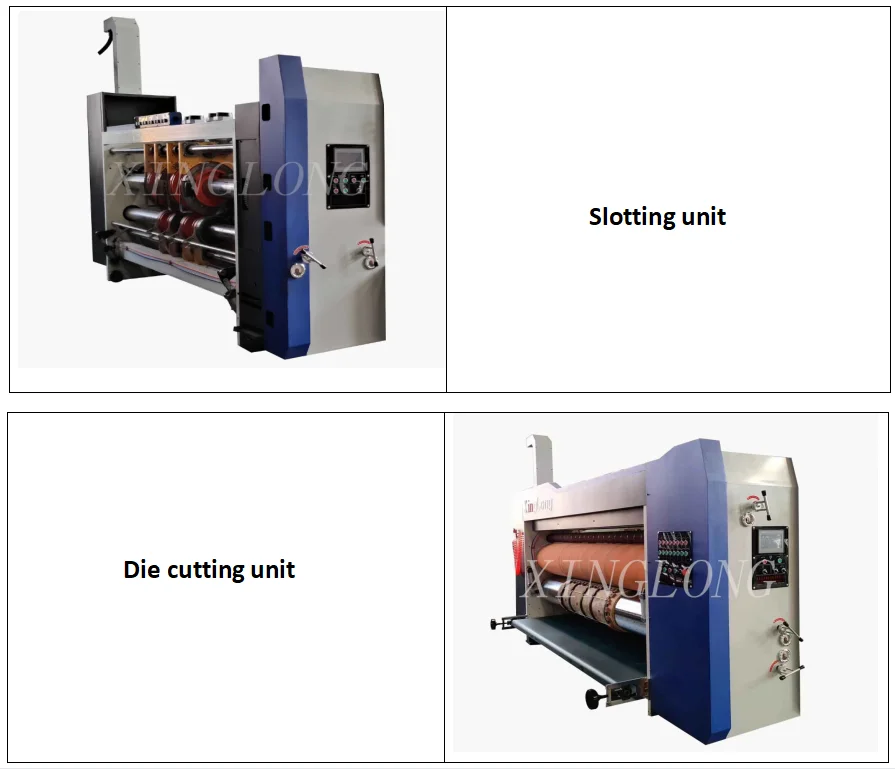

1.The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.


2.Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .


3.All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.


4.Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision


5.The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.


6.The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.


7.Motorized digital phase adjustment with automatic zero return and memories function ( options: PLC control with touch screen)

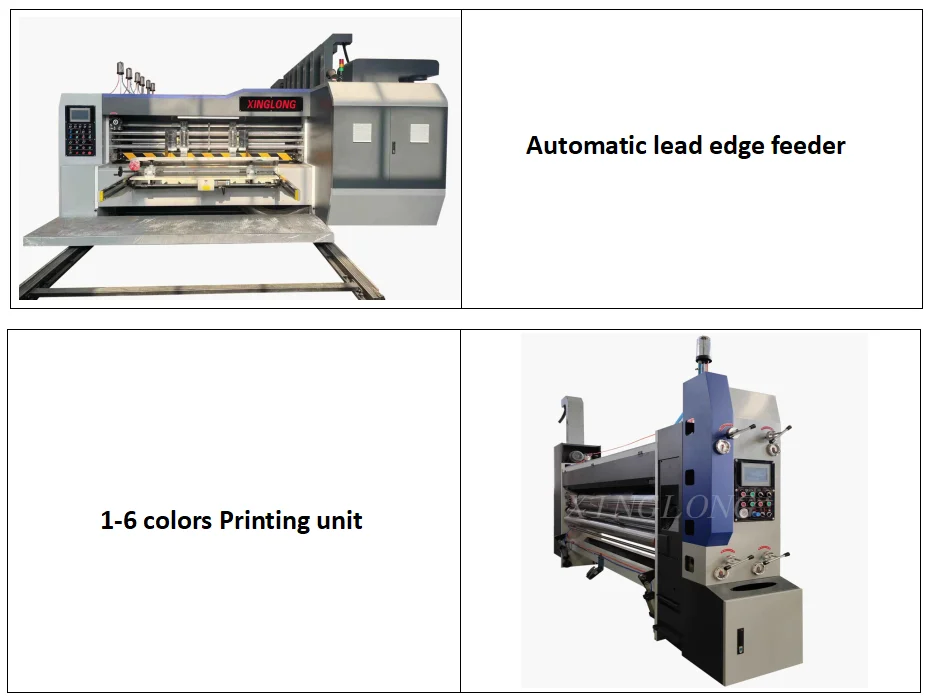

8.The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.





Technology parameters

























































































ModelAYKM922AYKM1224AYKM1426
Machine inside width(mm)240026002800
Max feeding paper siz(mm)900mm*2200mm1200mm*2400mm1400mm*2600mm
Max effective printing size(mm)900mm*2000mm1200mm*2200mm1400mm*2400mm
Min coverage size(mm)400*720mm350mm*720mm350mm*720mm
Max effective die cutting size(mm)900*2150mm1200mm*2350mm1400mm*2500mm
Design speed(pcs/min)150pcs/min150pcs/min150pcs/min
Working speed(pcs/min)100-120 pcs/min100-120pcs/min80-100pcs/min
Standard Thickness of printing plate4-6mm4-6mm4-6mm
Printing precision±0.5mm±0.5mm±0.5mm
Thickness of cardboard2-9mm2-9mm2-9mm
Walll thickness40mm40mm40mm
Main motor power15kw15kw15kw
Lpi of anilox roller200/220/250200/220/250200/220/250
