Price:$29,900.00 - $30,000.00

Quantity:


Product Overview

Description



Product Description




Specification


No.
Parameter
 Unit
Details
1
 Machine size(inner side)
mm
2600
2
 Max. Design speed
pieces/min
200
3
 Economical speed
pieces/min
100-150
4
 Max. Paper Feeding size
mm
1400×2400
5
 Min. Paper feeding size
mm
350×700
6
 Max. Printing size
mm
1400×2200
7
Skip paper feeding size
mm
1400×2300
8
 Precision of printing
mm
±0.5
9
Standard print plate thickness
mm
7.2
10
 Paperboard thickness
mm
2-10
11
Max. Die cutting size
mm
1400×2400
12
Precision of die cutting
mm
±1
13
Die cutting paperboard thickness
mm
2-10
14
Print roller axial direction adjustment
mm
±10


Lead edge feeder
SUN FEEDING
(zero pressure system can be choose)

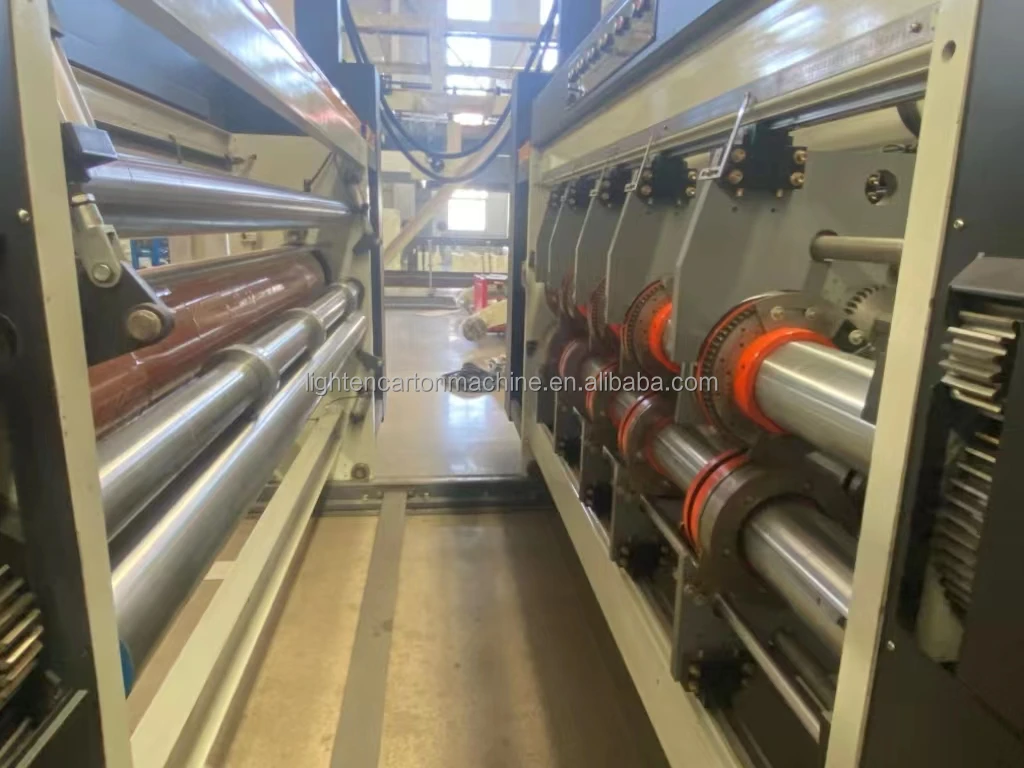

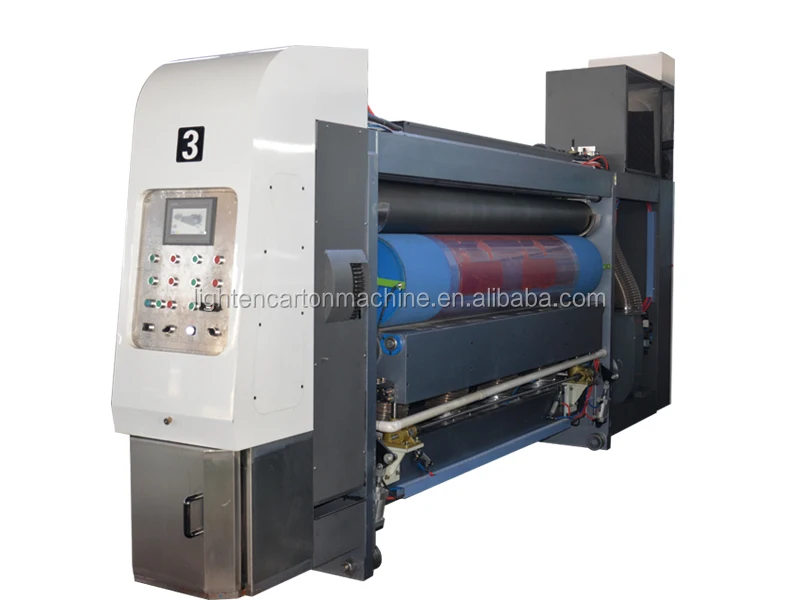

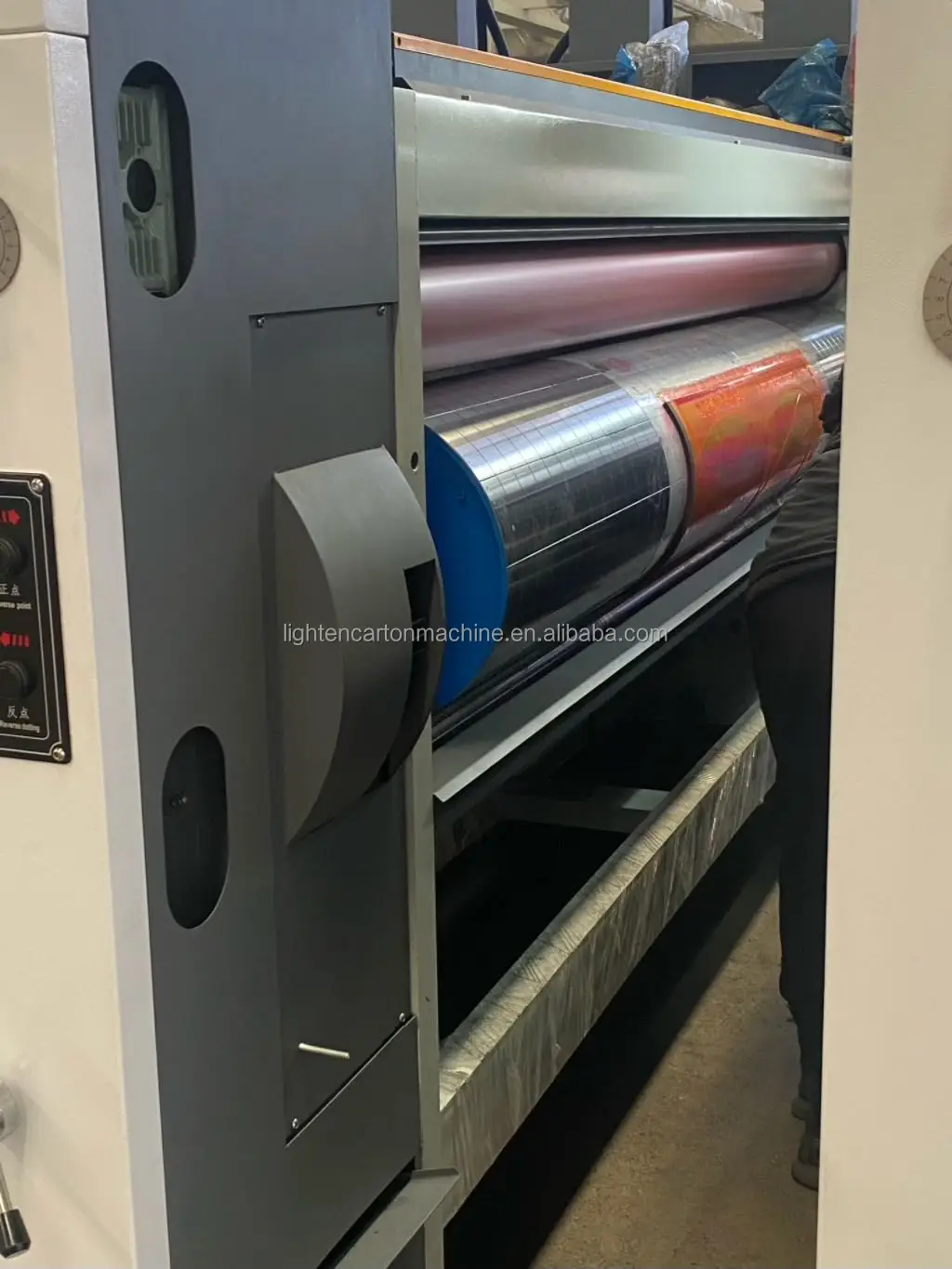

Printing part
Printing roller :metal anilox roller
(doctor blade and ceramic roller can be choose)

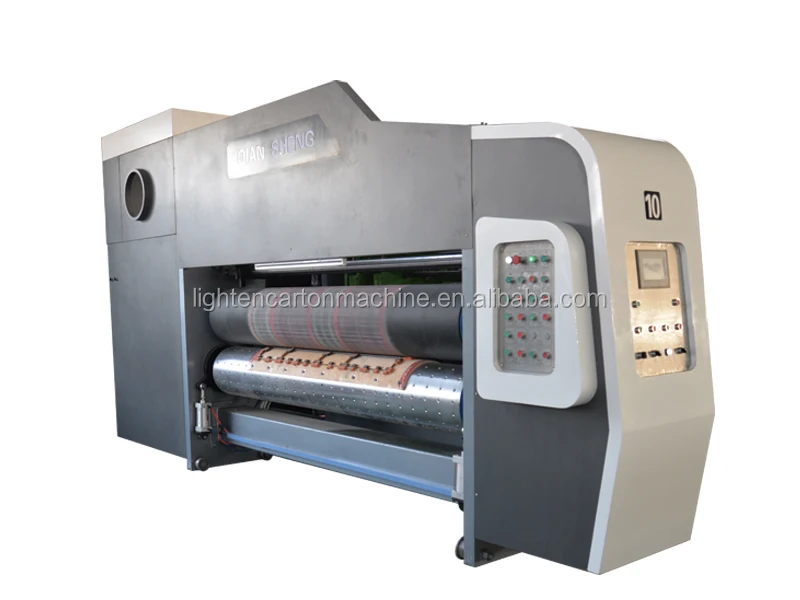

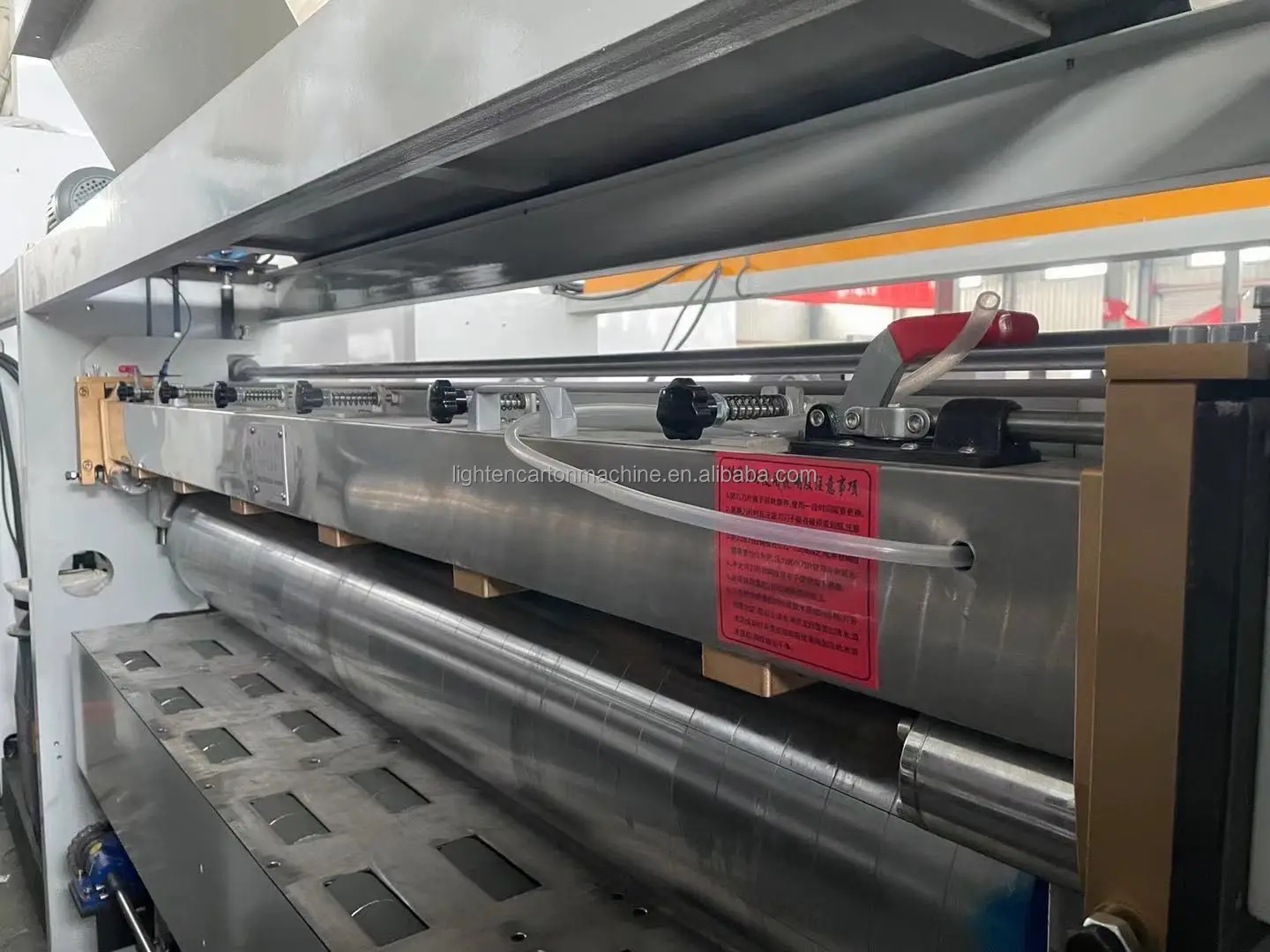

 Rotary die cutting part
The roller is plated with hard chromium on the surface of high quality steel, and it is balanced and corrected to increase its
operation stability and reliability.

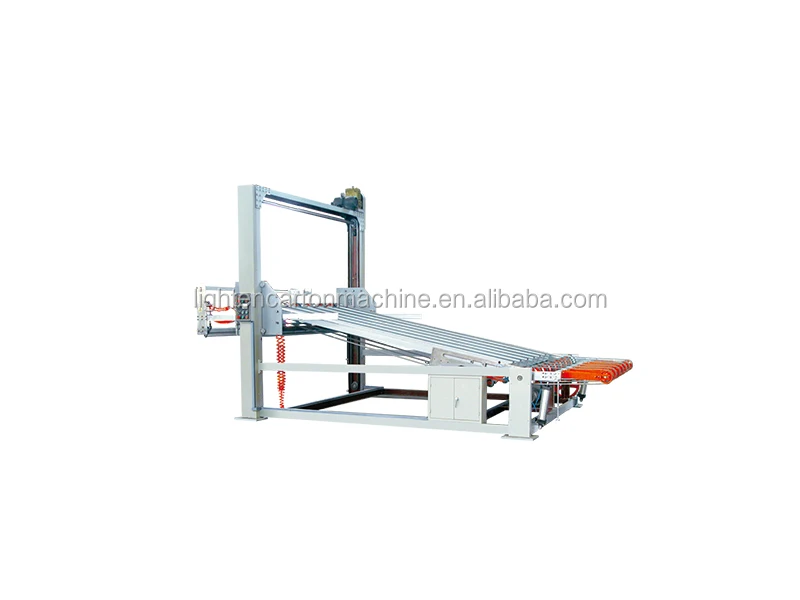

Stacker
Platform lifting
1.Strong chain drive.
2. The stack height is 1600mm.
3.Platform lift drive motor with brake function, the platform can maintain a fixed position, will not decline.

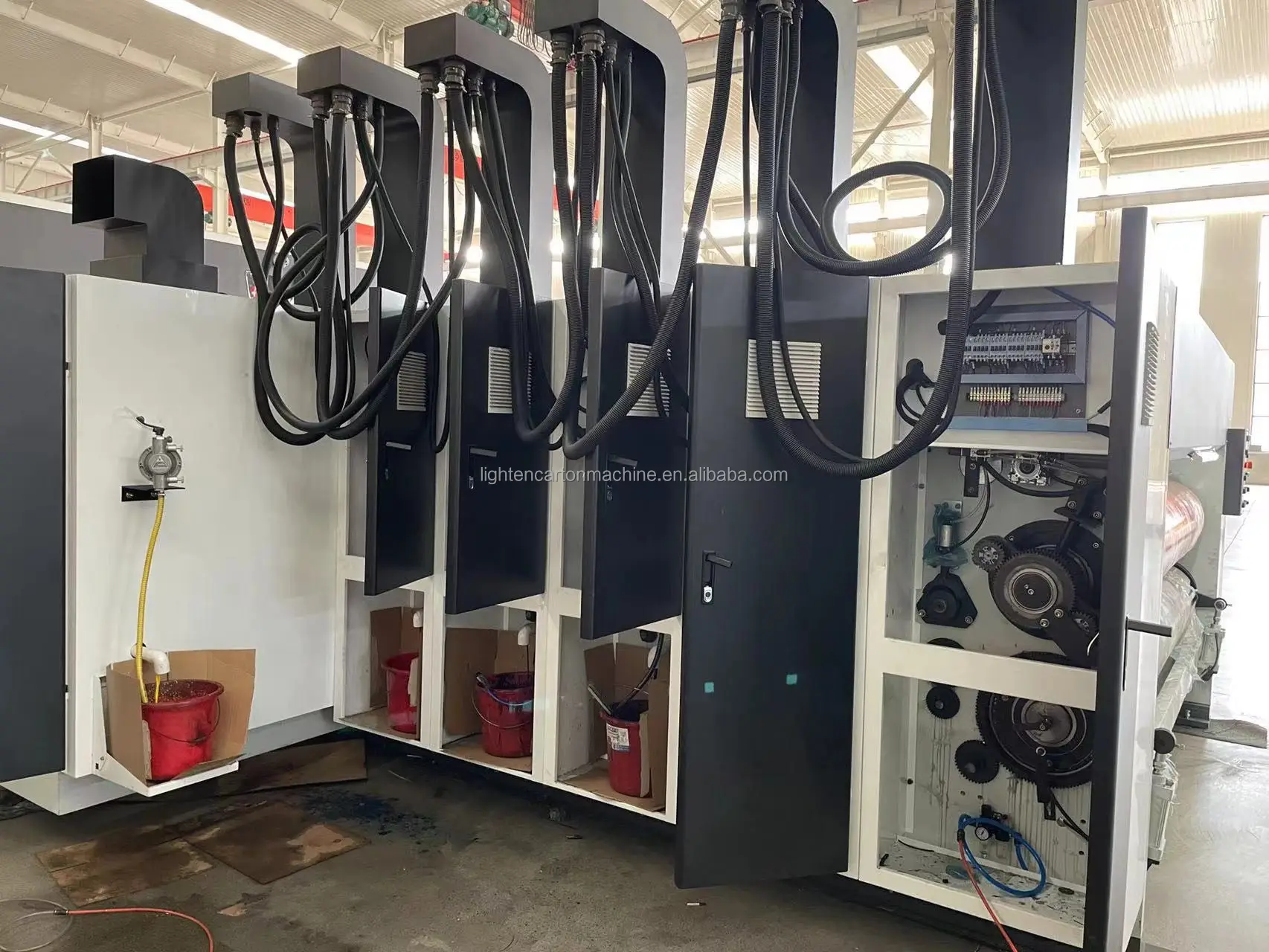

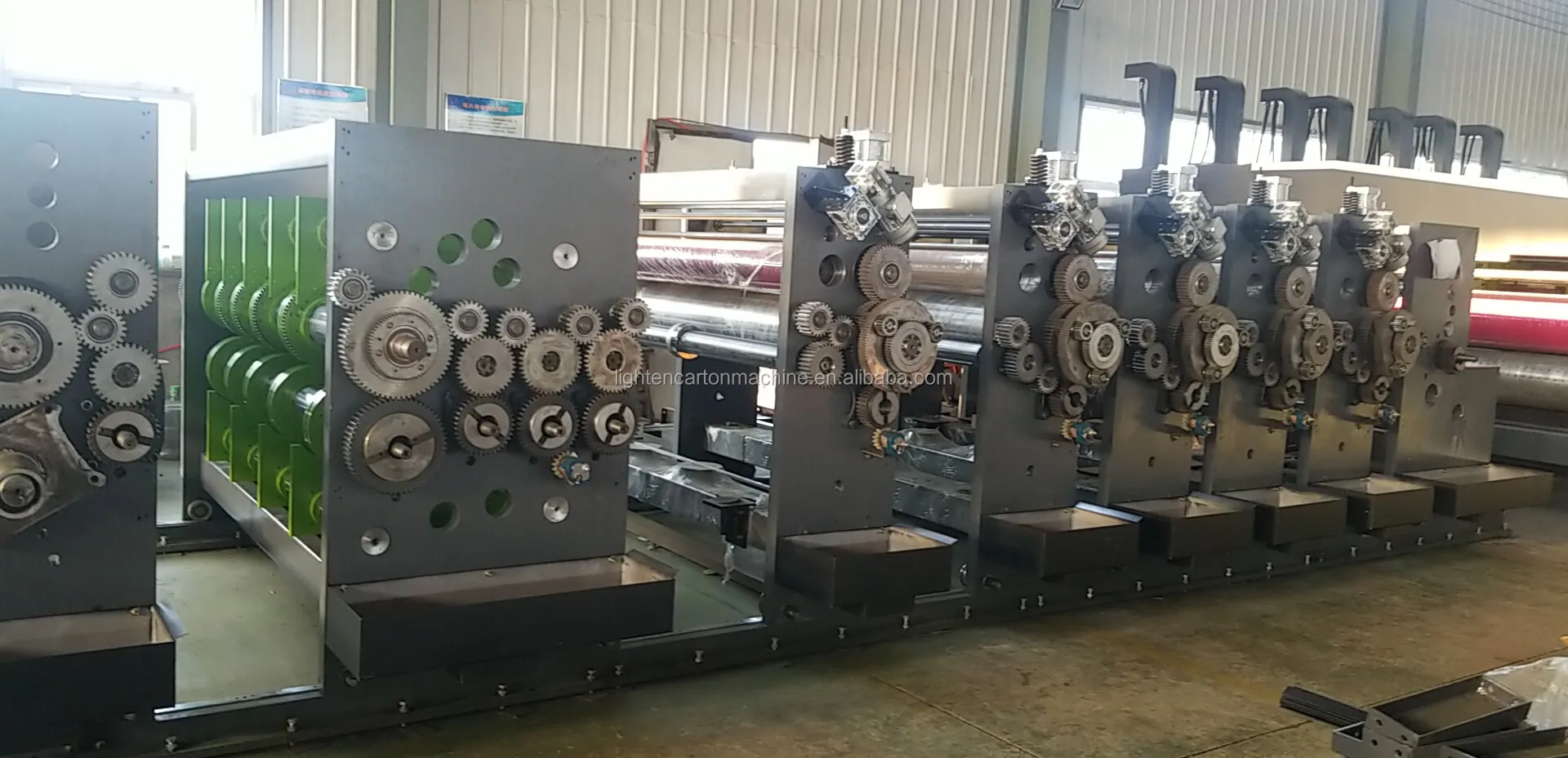

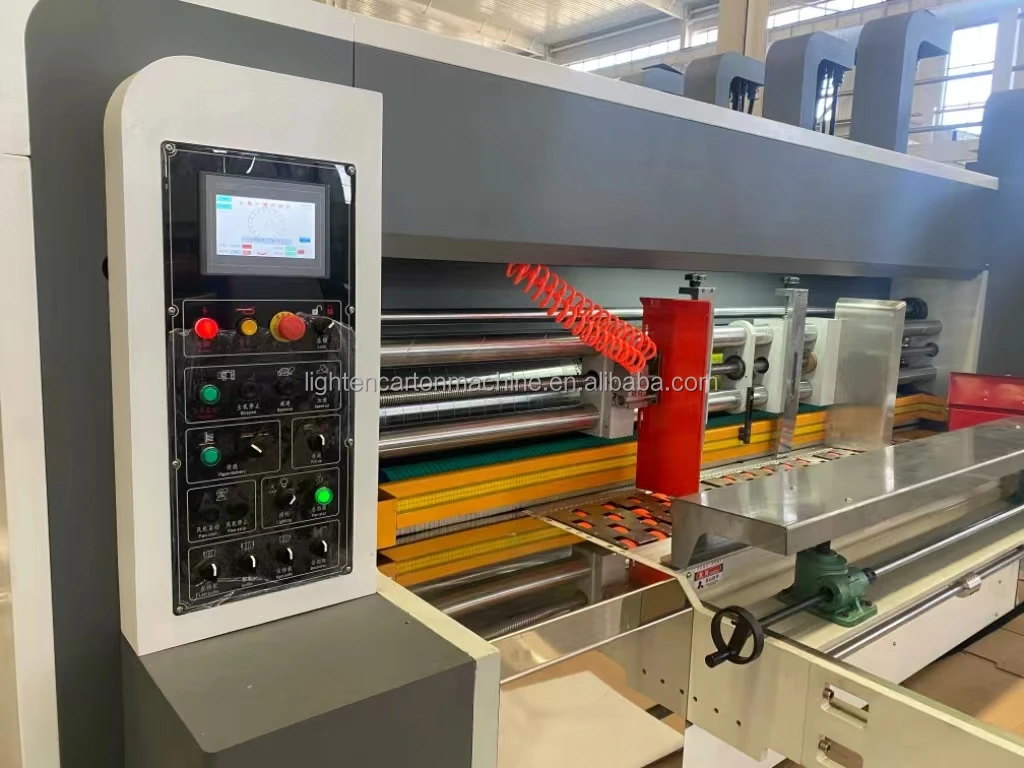

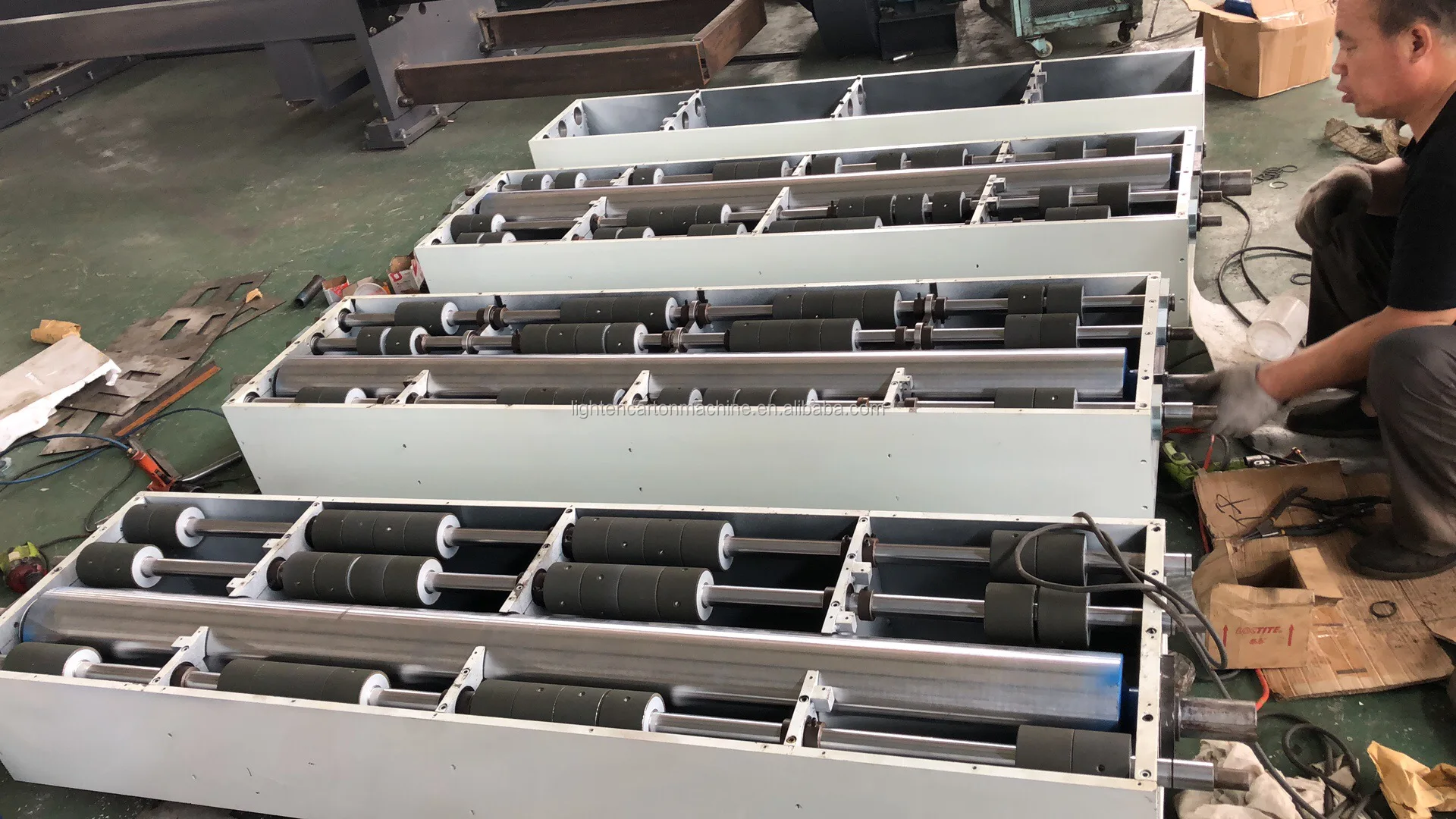

Details Images
