Product Overview
Description

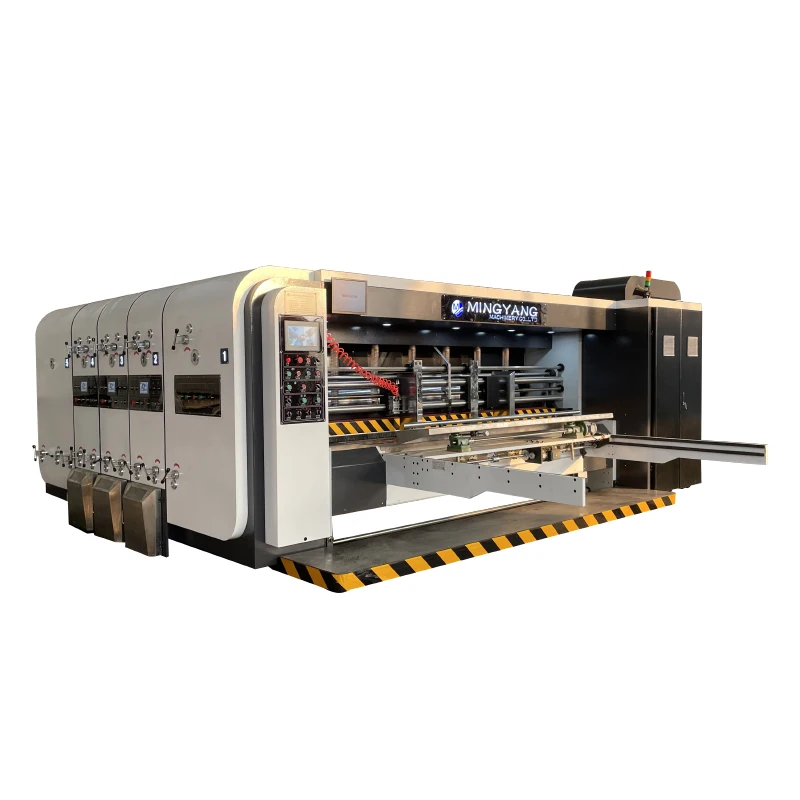

MY-1600 Flexo printing slotting die cutting machine , it is top printing ,moving units,guiding roller transfer for the whole machine.Machine operating is controlled by touch screen, electric button and hand wheel .
Remote control system available for electrical part, manufacturer can judge the working condition by internet.
Top printing ,moving units,guiding roller transfer for the whole machine.Machine operating is controlled by touch screen, electric button and hand wheel .Remote control system available for electrical part, manufacturer can judge the working condition by internet.
Type | MY-1624 | MY-1628 | MY-1632 |
Working speed( Sheet/Min.) | 120-180 | 120-150 | 100-150 |
Max paper coverage mm | 1600*2400 | 1600*2800 | 1600*3200 |
Effective printing area mm | 1600*2400 | 1600*2800 | 1600*3200 |
Min finish size mm | 450*600 | 450*600 | 450*600 |
Max slot depth mm | 400 | 400 | 400 |
cardboard thickness mm | 1.5-10 | 1.5-10 | 1.5-10 |
Feeding tolerance mm | ±1 | ±1 | ±1 |
Printing tolerance mm | ±0.5 | ±0.5 | ±0.5 |
Slot tolerance mm | ±1.5 | ±1.5 | ±1.5 |
Die cutting tolerance mm | ±1 | ±1 | ±1 |
Min.slot distance mm | 260*65*260*65 | 260*65*260*65 | 260*65*260*65 |
