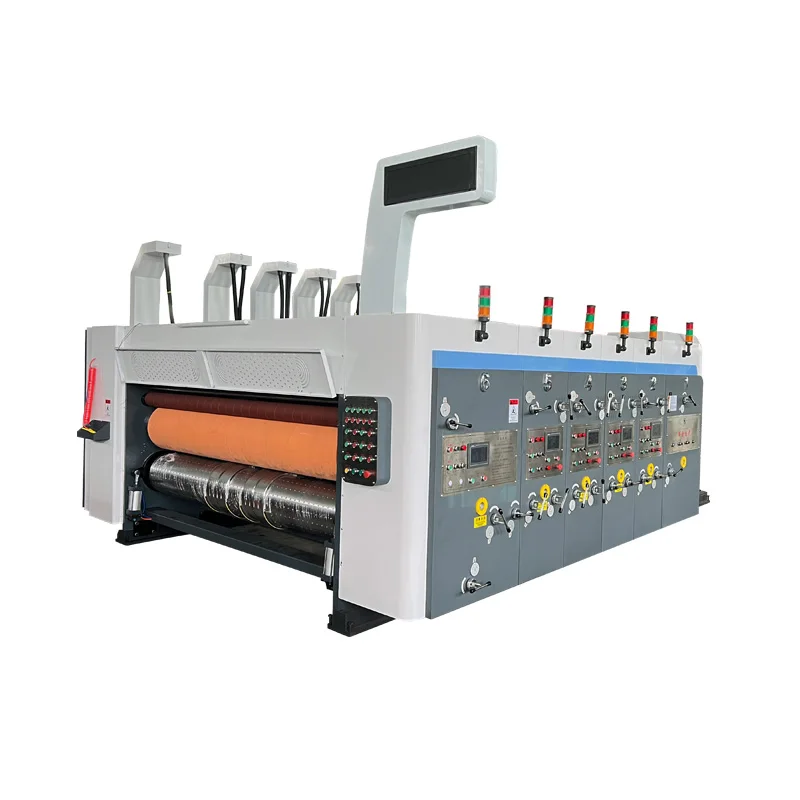

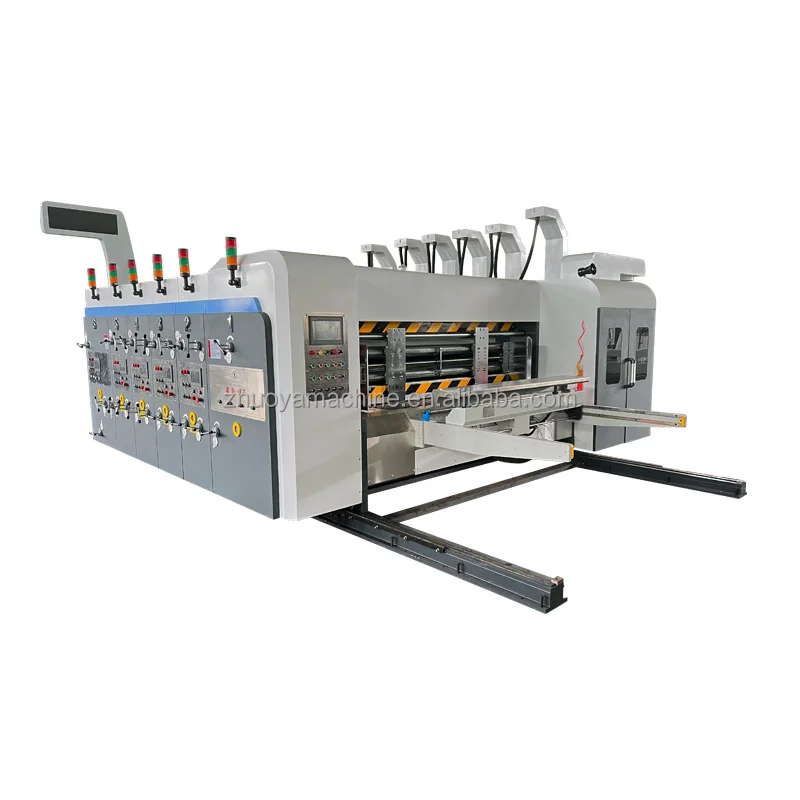

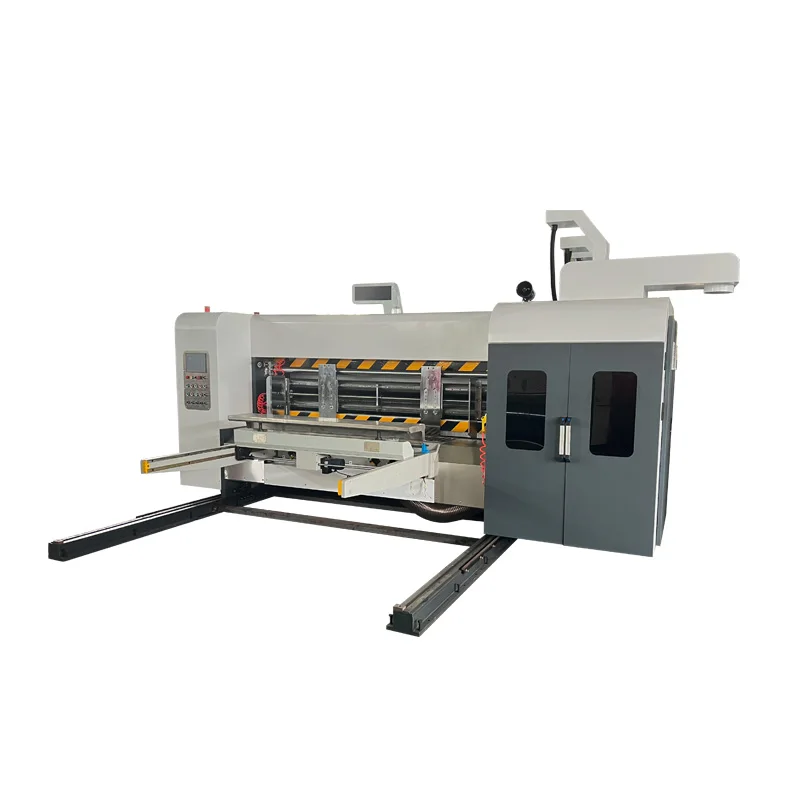

Automatic Carton Pizza Paper Box Making Machine Color Corrugated Box Printing Machine
- Category: >>>
- Supplier: Dongguang Zhuoya Packaging Machinery Manufacturing Co. Ltd.
Share on (1601020679289):
Product Overview
Description
Company name
Product description
Use and characteristics:
1. Vacuous adsorbing front feeding paper system, applicable to all kinds of flute profile.transfer smoothly;high speedly and precisely.
2. Frequency transformer devices have been adopted to use on the host, fans and phase adjustment.
3. The drive gear:20GrMnTi high frequency-quenched and carburizing done.
4. Cross-trundling roller driving system, no wear for long time using, ensure for transmission accuracy.
5. Free-keys connection style, roller connects with gear, ensure for registration accuracy
6. Blade-block can be traversed or the carton height can be adjusted, anti- collision device can ensure the safety of the machine.
7. Mechanical spray lubrication, pump circulating system for gears, make gear service life long. Auto-return function.
8. Function of storage of normal die-cutting orders, fast and efficient.
Model | 900 | 1224 | 1424 | 1624 | |
Max machine speed (pcs/min) | 300 | 250 | 180 | 150 | |
Max feeding size (mm) | 900*2400 | 1250*2700 | 1450*2800 | 1660*2700 | |
Max printing size(mm) | 880*2000 | 1200*2400 | 1400*2400 | 1600*2400 | |
Min feeding size(mm) | 280*680 | 350*680 | 360*680 | 420*680 | |
Max depth of slotting (mm) | 230 | 300 | 300 | 410 | |
Die cutting size (mm) | ≤±1.5 | ||||
Tinted precision (mm) | ≤±0.4(4 colors ) | ≤±0.5(4 colors ) | |||
Printing plate thickness (mm) | 7.2 | ||||
Feeding thickness (mm) | 2.5-12 | ||||
Min slotting interval (mm) | Normal | 160*160*160*160 | |||
Reverse | 300*60*300*60 | ||||
