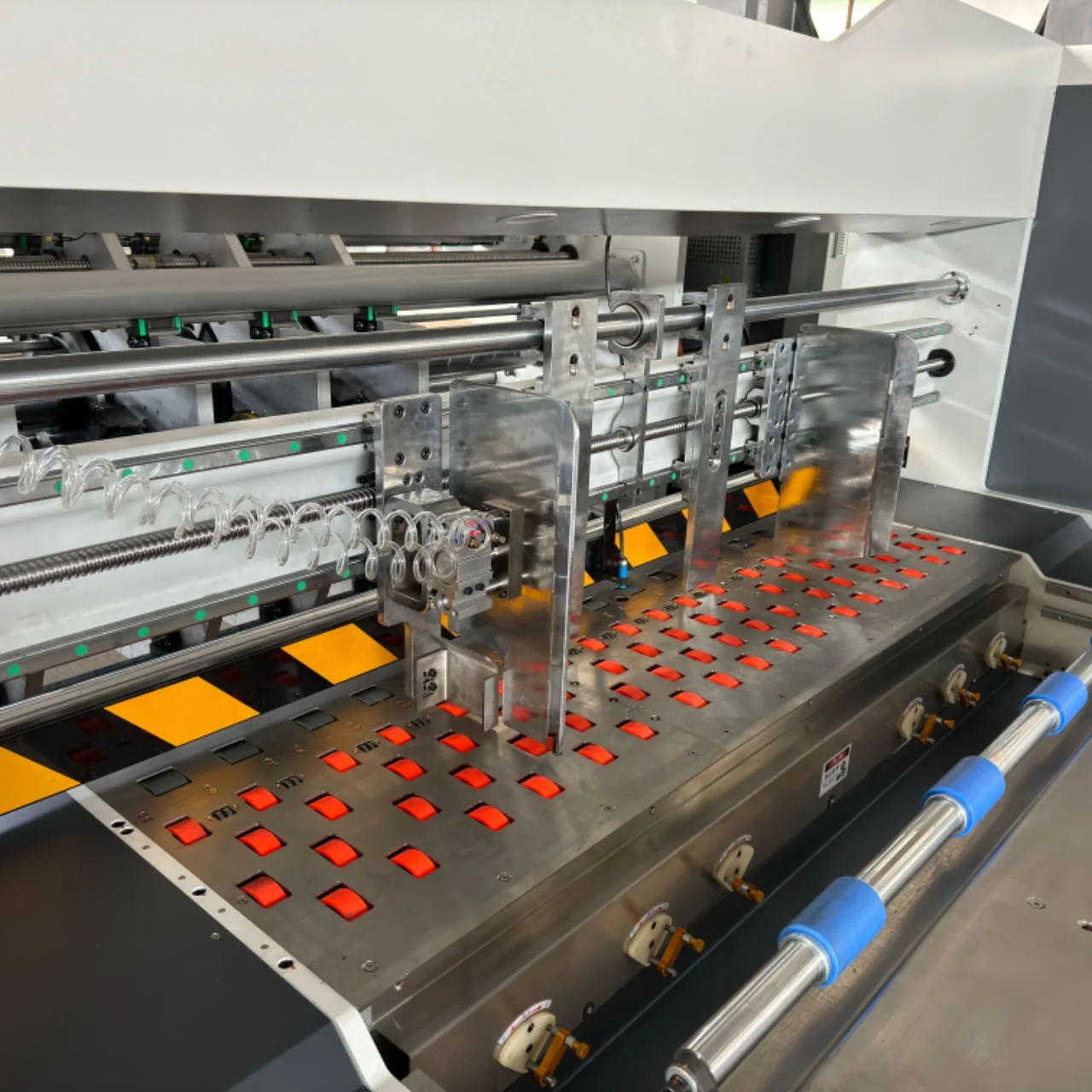

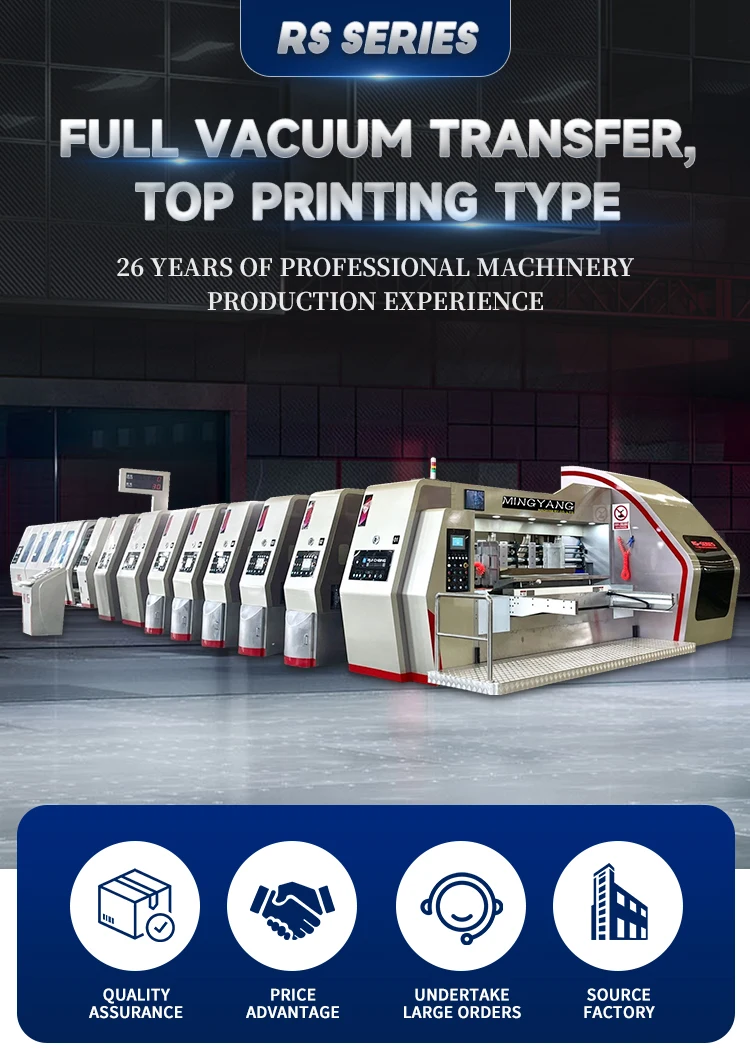

Vacuum Transfer High Speed Printing Slotter Die Cutter Machine
- Category: >>>
- Supplier: CangZhou MingYang Machinery Co. LTDCangZhou LTD
Share on (1601055319383):
Product Overview
Description

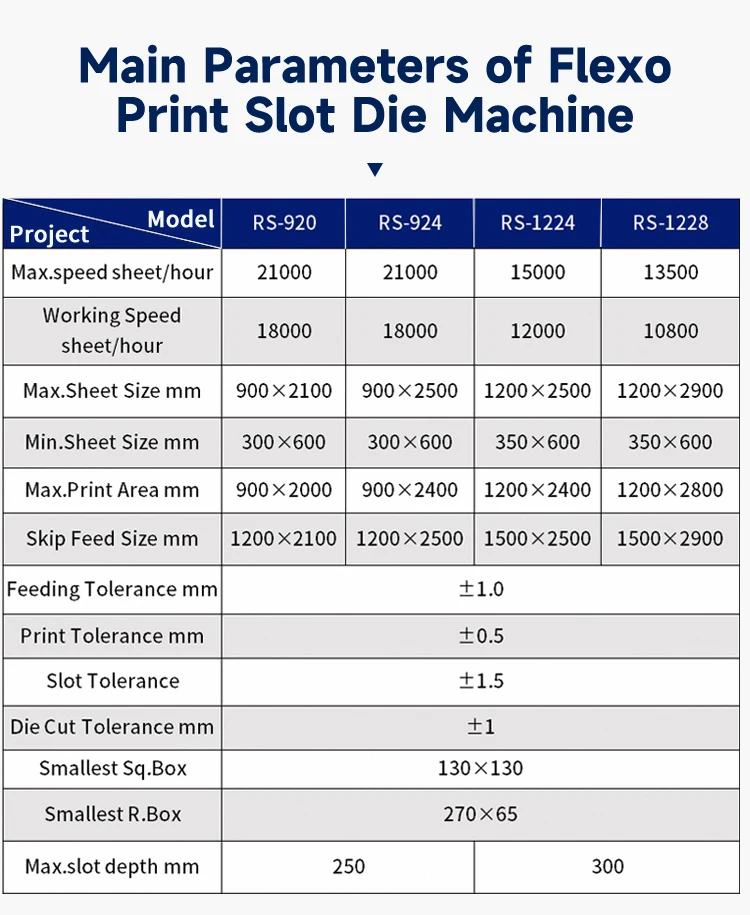

Main Parameters of Flexo Print Slot Die Machine | ||||||||
Project/Model | RS-920 | RS-924 | RS-1224 | RS-1228 | ||||
Max.speed sheet/hour | 21000 | 21000 | 15000 | 13500 | ||||
Working Speed sheet/hour | 18000 | 18000 | 12000 | 10800 | ||||
Max.Sheet Size mm | 900×2100 | 900×2500 | 1200×2500 | 1200×2900 | ||||
Min.Sheet Size mm | 300×600 | 300×600 | 350×600 | 350×600 | ||||
Max.Print Area mm | 900×2000 | 900×2400 | 1200×2400 | 1200×2800 | ||||
Skip Feed Size mm | 1200×2100 | 1200×2500 | 1500×2500 | 1500×2900 | ||||
Feeding Tolerance mm | ±1.0 | |||||||
Print Tolerance mm | ±0.5 | |||||||
Slot Tolerance mm | ±1.5 | |||||||
Die Cut Tolerance mm | ±1 | |||||||
Smallest Sq.Box | 130×130 | |||||||
Smallest R.Box | 270×65 | |||||||
Max.slot depth mm | 250 | 300 | ||||||

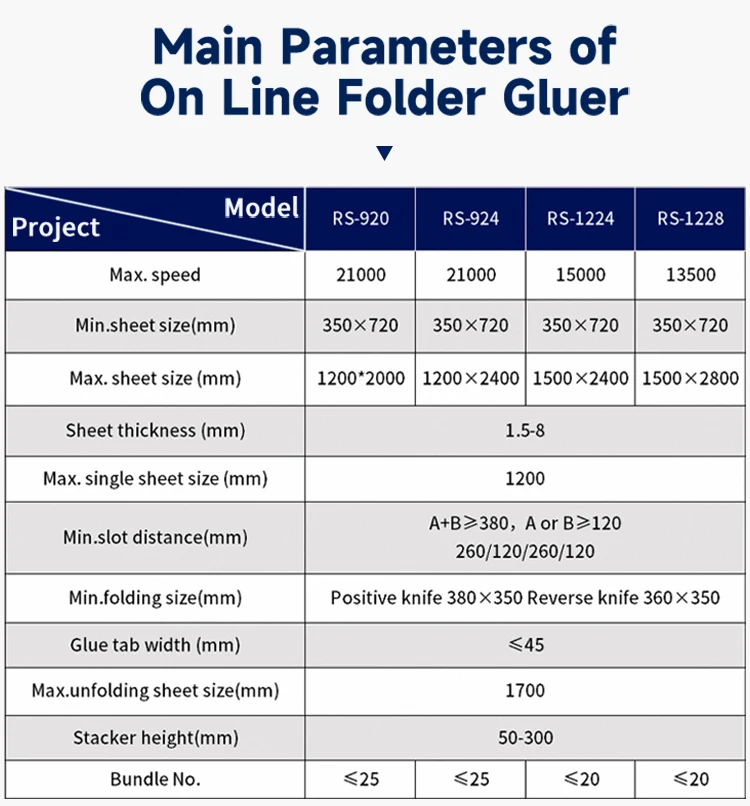

Main Parameters of On Line Folder Gluer | ||||||||
Project/Model | RS-920 | RS-924 | RS-1224 | RS-1228 | ||||
Max. speed | 21000 | 21000 | 15000 | 13500 | ||||
Min.sheet size(mm) | 350×720 | 350×720 | 350×720 | 350×720 | ||||
Max. sheet size (mm) | 1200*2000 | 1200×2400 | 1500×2400 | 1500×2800 | ||||
Sheet thickness (mm) | 1.5-8 | |||||||
Max. single sheet size (mm) | 1200 | |||||||
Min.slot distance(mm) | A+B≥380，A or B≥120 260/120/260/120 | |||||||
Min.folding size(mm) | Positive knife 380×350 Reverse knife 360×350 | |||||||
Glue tab width (mm) | ≤45 | |||||||
Max.unfolding sheet size(mm) | 1700 | |||||||
Stacker height(mm) | 50-300 | |||||||
Bundle No. | ≤25 | ≤25 | ≤20 | ≤20 | ||||
