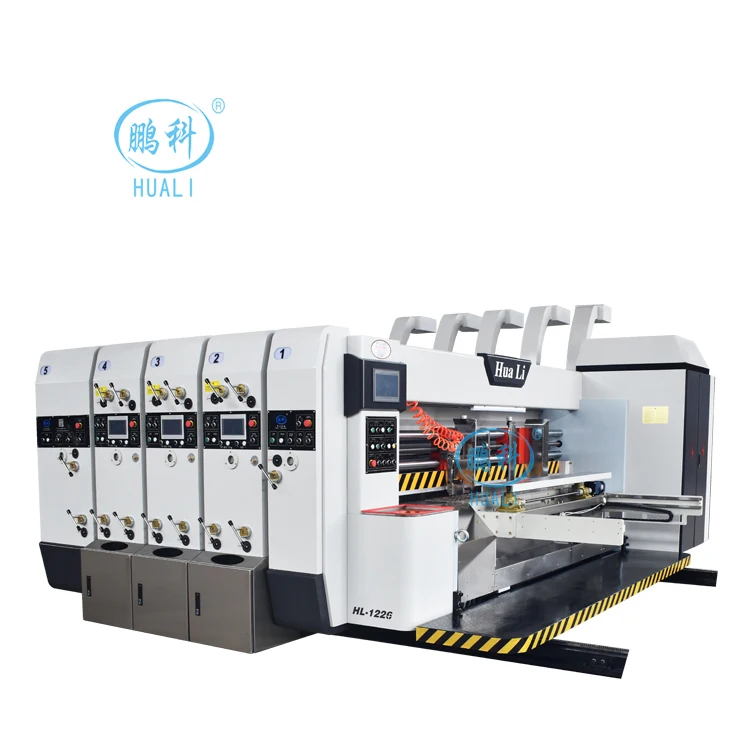

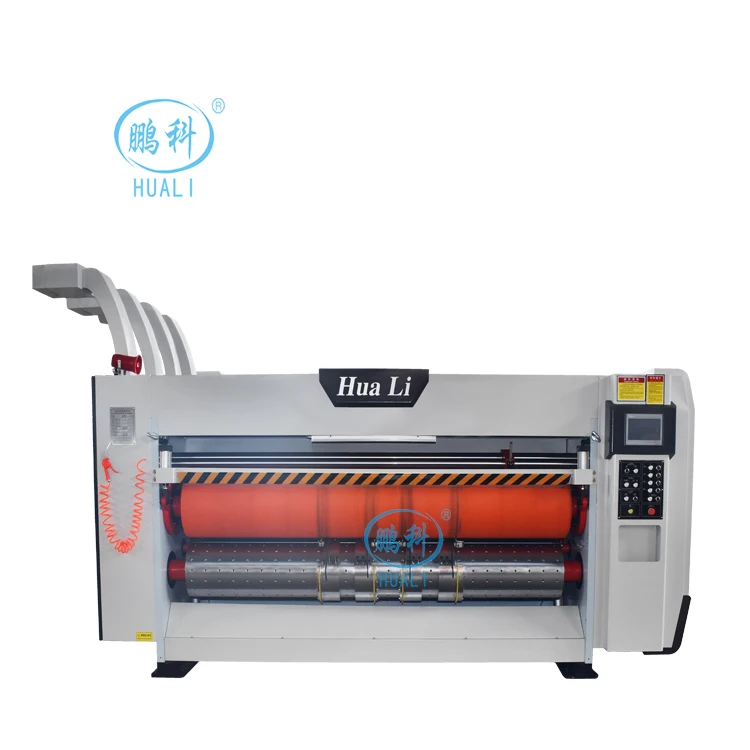

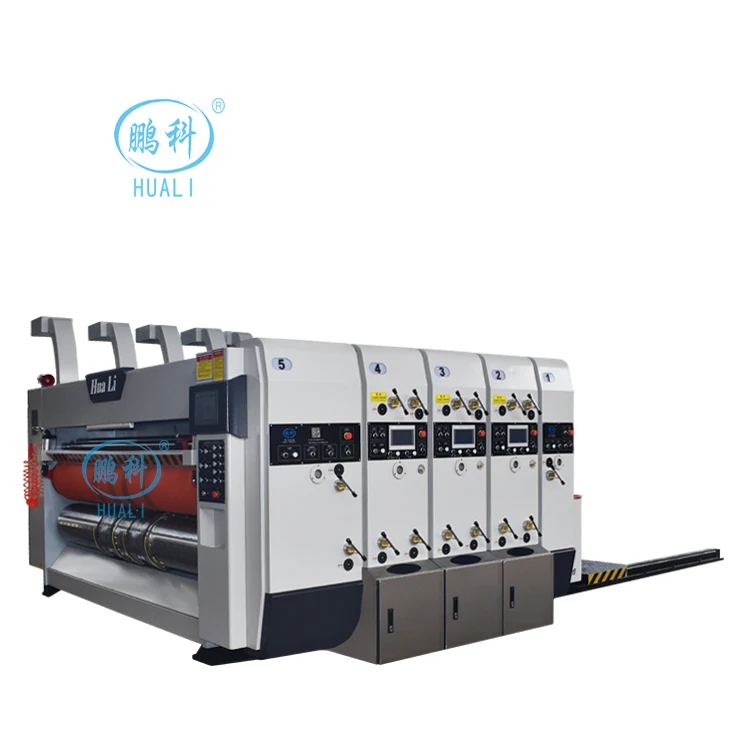

Carton box packing machine corrugated box making machine paper box printing machine

Product Overview

Description

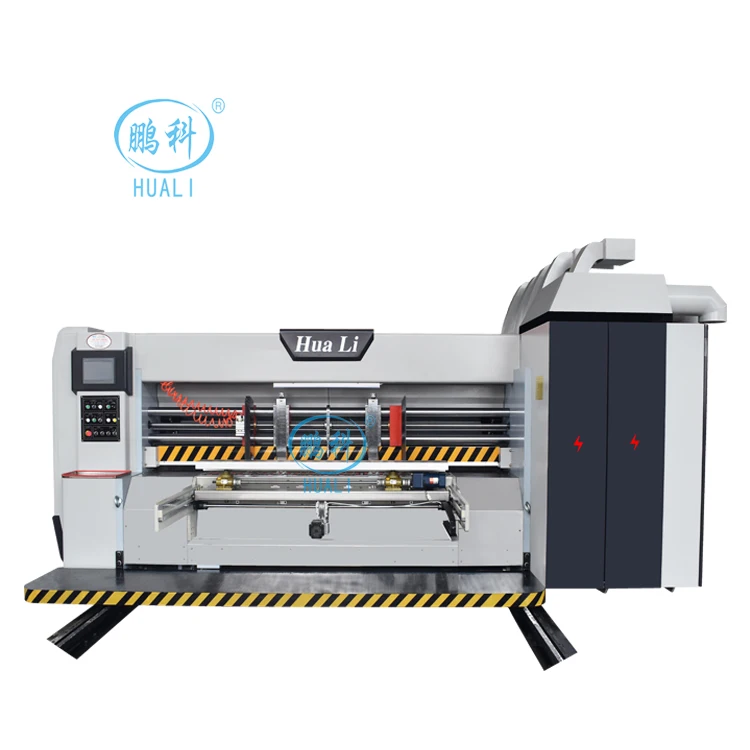

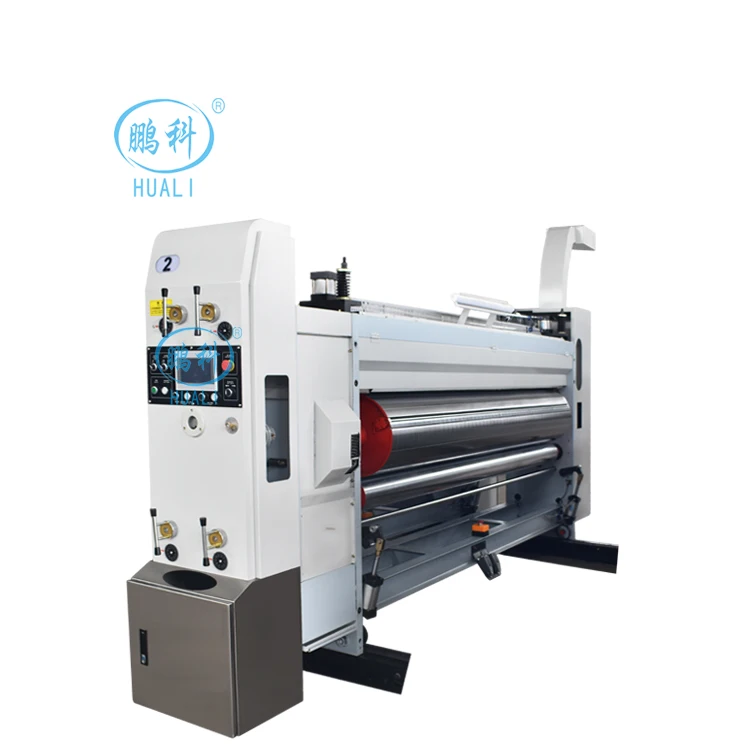

Carton box packing machine corrugated box making machine paper box printing machine

About our printing machine



1    Whole machine electric parts was choice the domestic famous brand, good quality and steady.



2    Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digit controlled grinder.



3    All the transmission axles and rollers are made by high-quality steel, and processed through temper and dynamic balance ; plated with rigid chrome and grinded surface.



4    All the transmission gears was used the 45# alloy steel, which is grinded after heat-treatment, and it was made by rubbing, it still maintains the high topping precision.



5    The whole machine undergoes the spray lubrication, intuitionist show setting, setting the double oil pipe balance system.

automatic carton making machine	920	1224	1426	1628
Max speed (pcs/min)	120	120	120	120
Feeding precision(mm)	±1
Min sheet size(mm)	300*600	420*600	450*600	450*600
Max sheet size(mm)	860*2100	1150*2500	1350*2700	1500*2900
Skip sheet size|(mm)	1200*2100	1500*2500	1800*2700	2000*2900
Max printing area(mm)	900*2000	1200*2400	1400*2600	1600*2800
Printing precision(mm)	±0.5
Plate thickness(mm)	7.2
positive  knife Min slotting distance                                                                                                negative knife	130*130*130*130	140*140*140*140	150*150*150*150
	230*65*230*65	230*70*230*70	240*75*240*75
Max slot depth	230	300	360	400
	increase the blade, increase  the slot depth
Slotting precision(mm)	±1
Max die cutting size(mm)	2000	2400	2600	2800
Die cutting precision(mm)	±1
