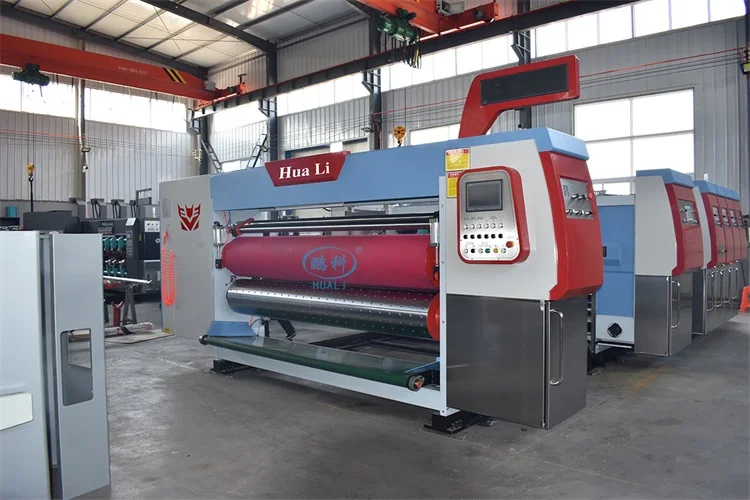

Multifunctional Full Automatic carton box Flexible printing Rotary Die Cutting Machine
- Category: >>>
- Supplier: Dongguang County Huali Carton Machinery Factory
Share on (1601074227091):
Product Overview
Description
Multifunctional Full Automatic carton box Flexible printing Rotary Die Cutting Machine
1.It is suitable for single ,double ,or more layers corrugated carton producing
2.It can divide paper ,cut sides ,press mark at one time
3.The main wallboard adopts high quality Cast iron ,high precision processing
4.Drive roller adopts high quality 45#steel ,hard chromium plating and the surface treated by lapping finish

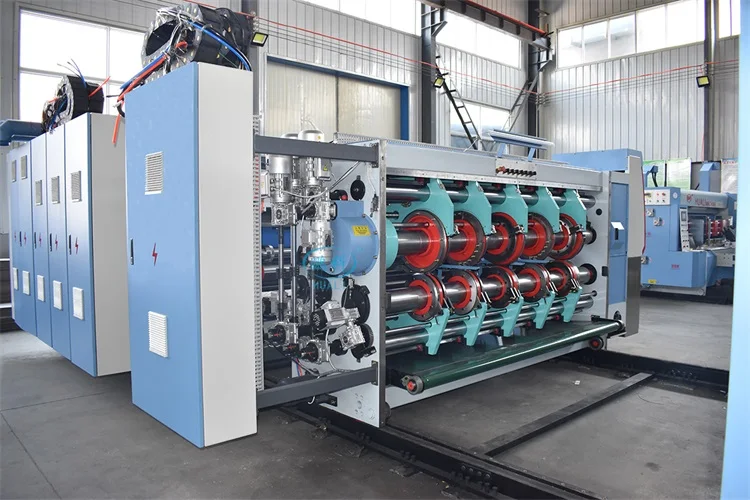

5.The blades are made in qingdao ,Bowl type design ,the blades are sharp and durable
Hand wheel ,turn the machine convenient ,can adjust size ,convenient and fast
6.The blades are made in qingdao ,adopt high quality steel material ,processed by
forging technology ,high frequency quenching ,Bowl type design ,the blades are sharp and durable
Color group of Multifunctional Full Automatic carton box Flexible printing Rotary Die Cutting Machine |
to be configured according to user’s needs | |||
2 |
Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard(the maximum interval 11mm) | ||
3 |
Width of machine inside | 2600mm | 2800mm | 3000mm |
4 |
max.paper size | 1200×2400mm | 1400 ×2600mm | 1600×2800mm |
5 |
Max.printing size | 1200×2300mm | 1400 ×2500mm | 1600×2600mm |
6 |
Skip feeding paper | 1400×2400mm | 1600 ×2600 | 1800×2800 |
7 | positive knife Min.paper size negative knife | 350×720mm 350×740mm | 400 ×720mm 400 ×740mm | 450 ×720mm 450 ×740mm |
8 |
Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
9 |
Design speed(piece/min) | 180pcs/min | 150pcs/min | 150pcs/min |
10 |
Economic speed(piece/min) | 80-160pcs/min | 80-130pcs/min | 80-100pcs/min |
11 |
Tinted precision | 4( color) ±0.5mm | 4( color) ±0.5mm | 4( color) ±0.5mm |
12 |
Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
13 |
Max.slotting depth | 7×300mm | 7×350mm | 7×400mm |
increase the blade, increase the slot depth | ||||
14 | positive knife Min. Slot distance negative knife | 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 260×90×280×80mm |
15 |
Max.die-cutting size | 1200×2300mmmm | 1400×2500mm | 1600×2700mm |
16 |
Printing plate diameter(contain plate thickness) | 405mm | 480mm | 530mm
|
