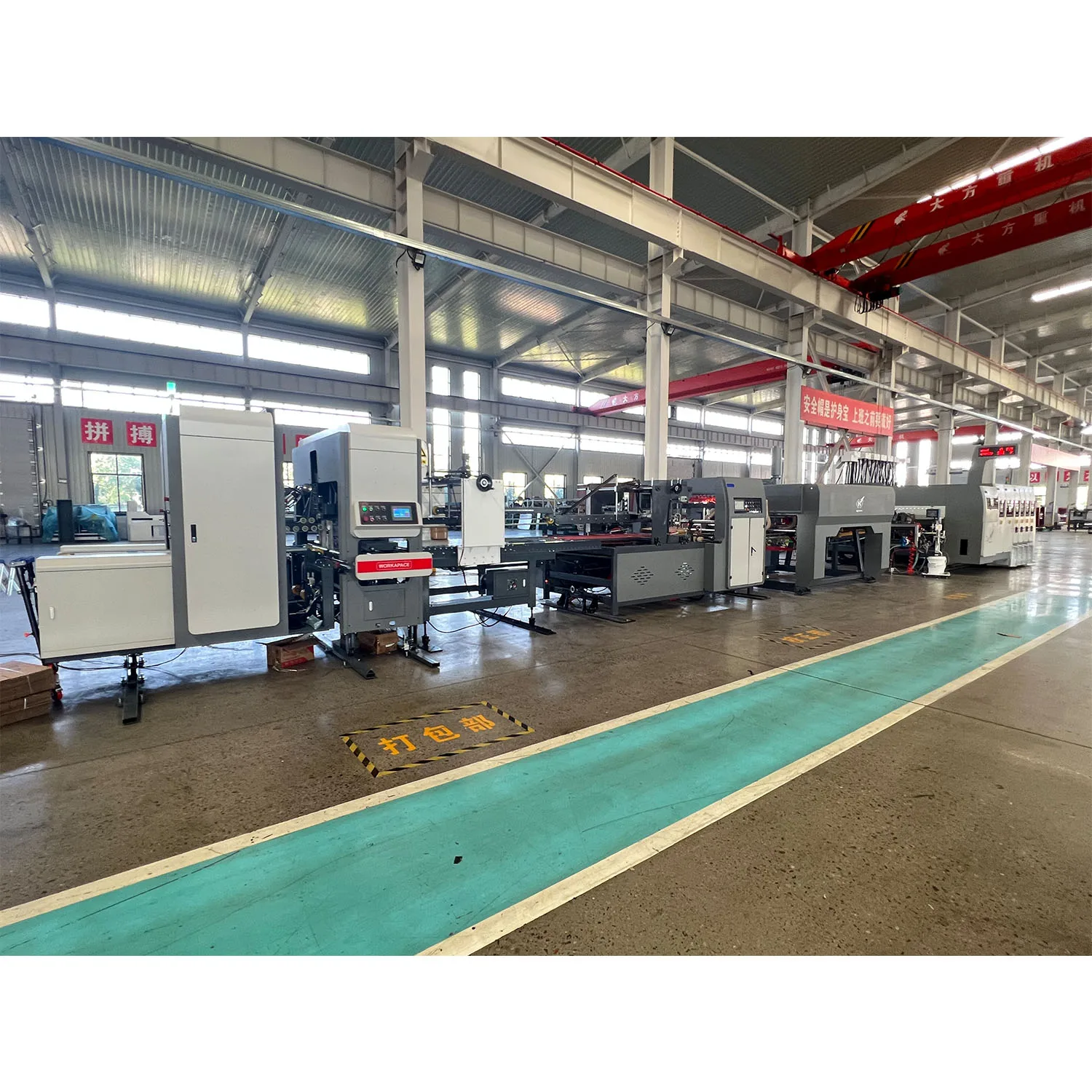

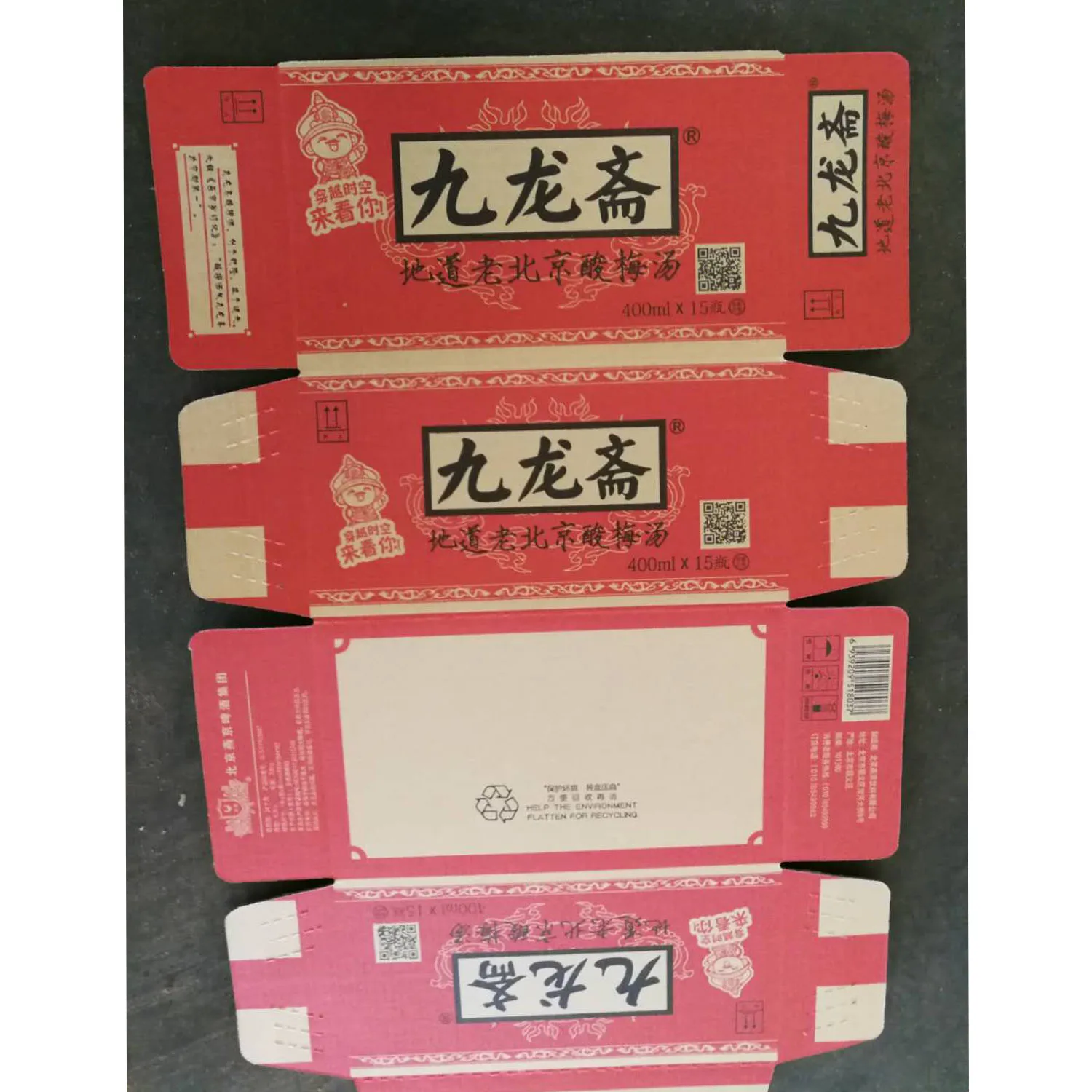

HS C SERIES full automatic carton box printing slotting machine folding gluing pasting machine for pizza box
- Category: >>>
- Supplier: Dongguang County Huayu Carton Machinery Co. Ltd.Dongguang Ltd.
Share on (1601105197840):
Product Overview
Description
VR
Product Advantage
Automatic tracking can adjust the feed speed using PP packaging
Adopt high quality imported belt, with quick connection stable and durable, easy to replace.
PLC touch screen control, quick and reliable response, no stop input data, with the function of correcting deviation, effectively
correct the phenomenon of error.

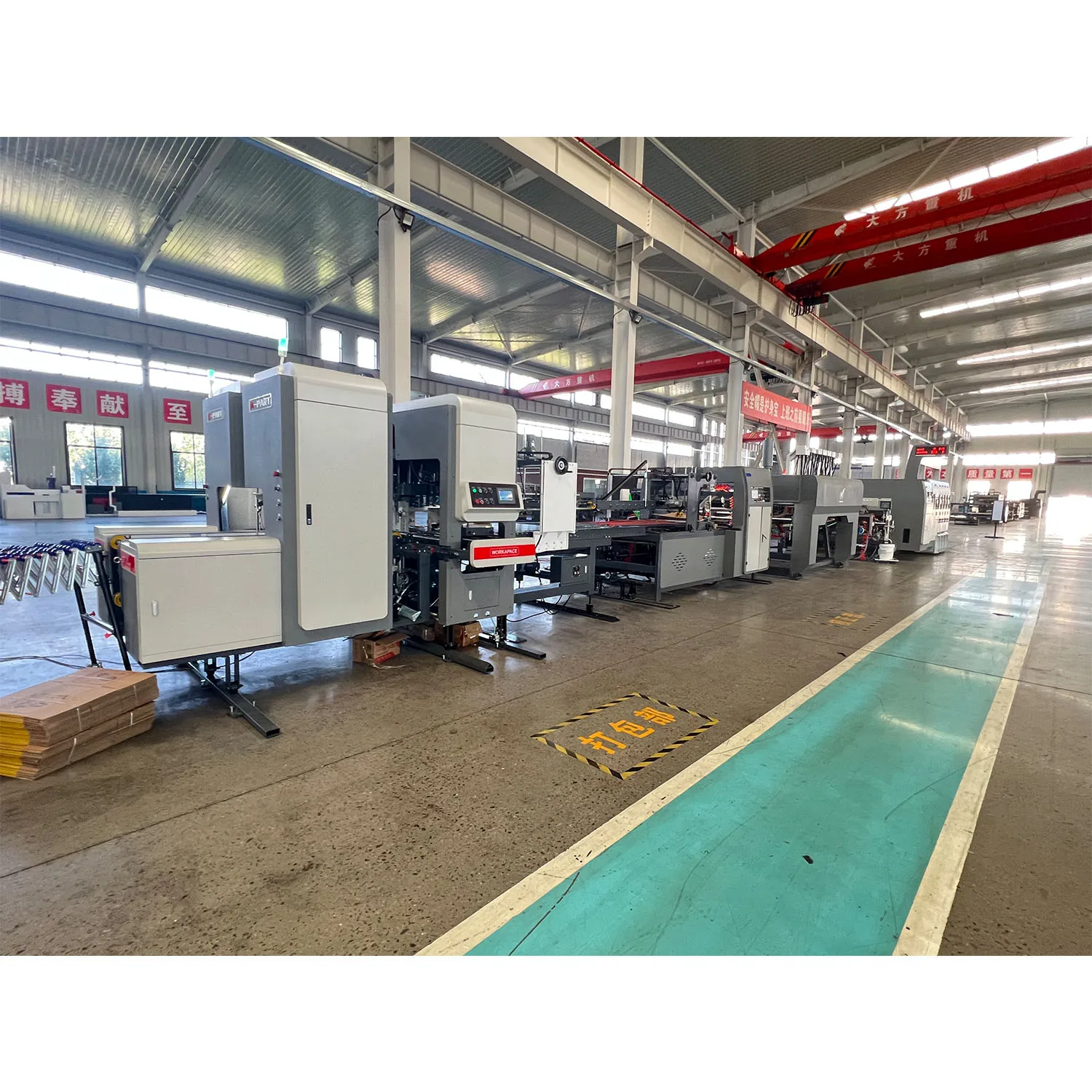

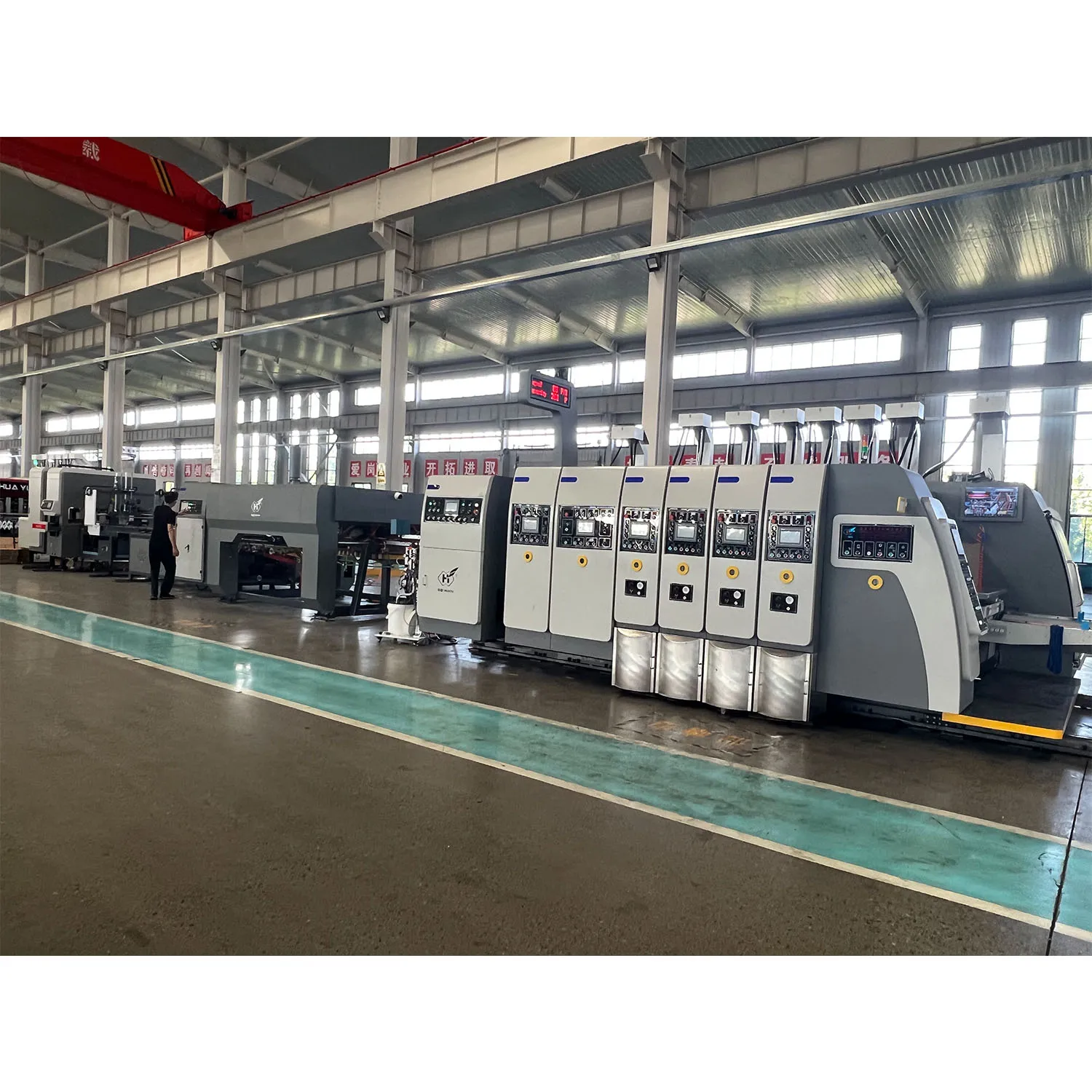

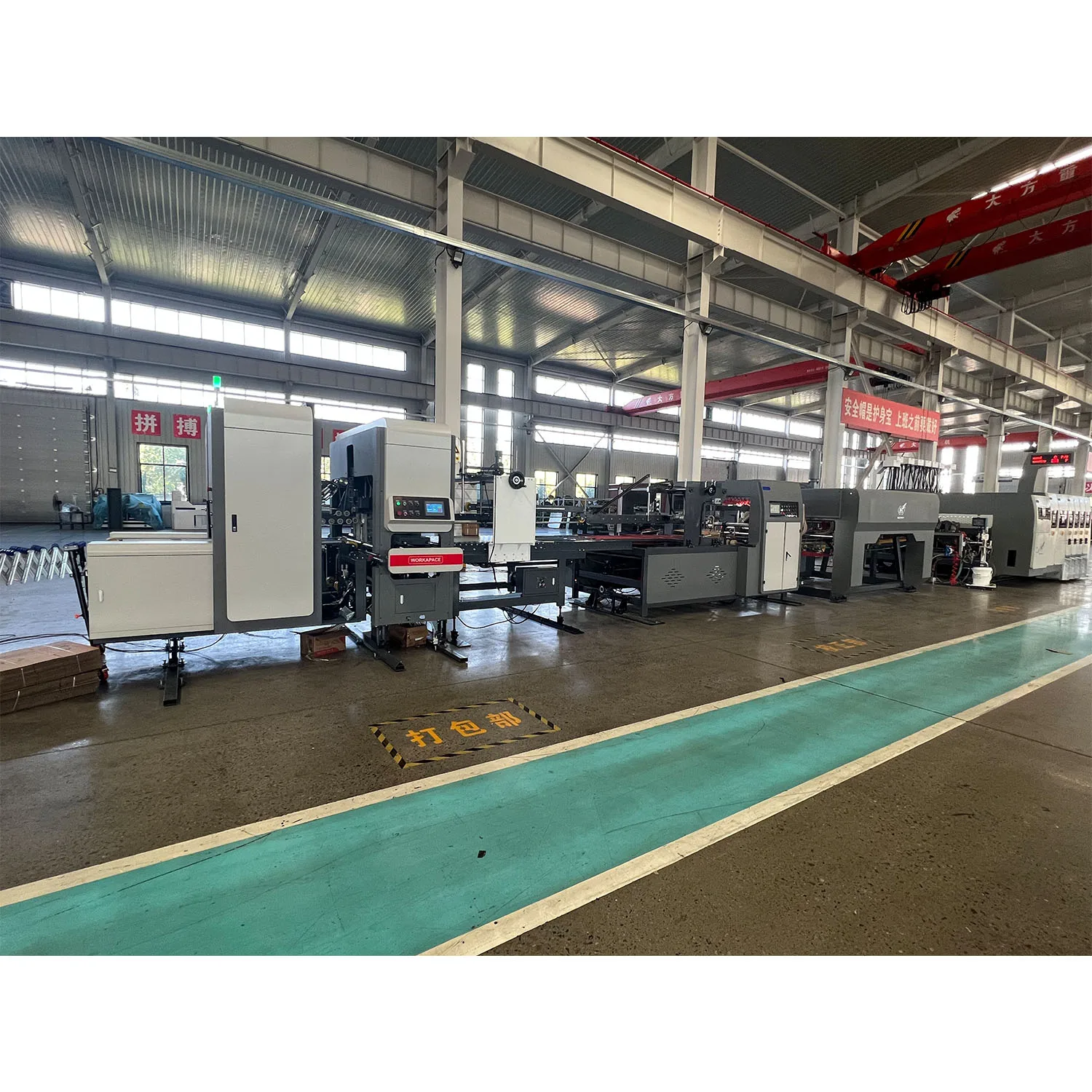

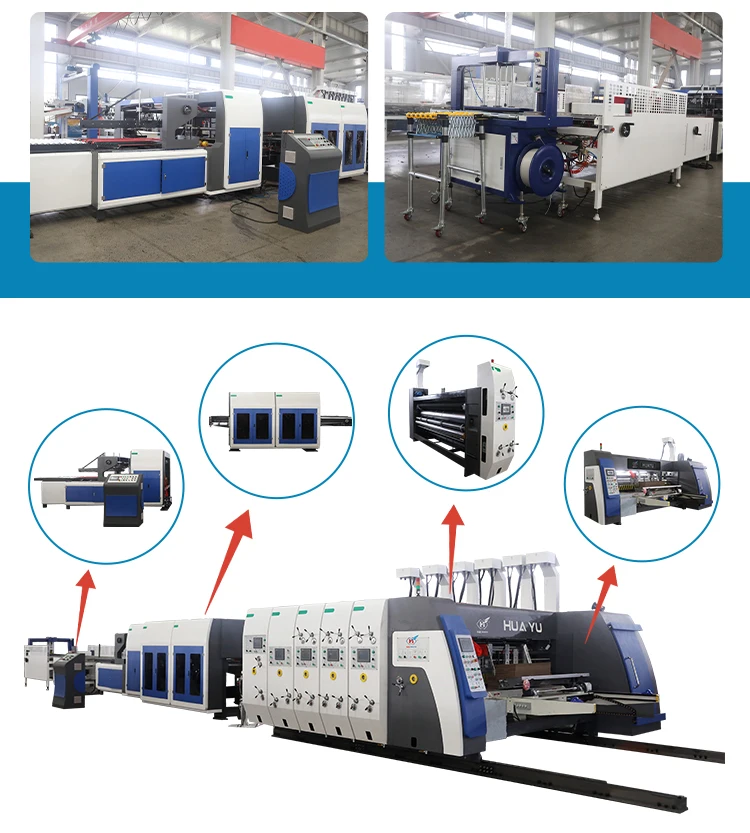

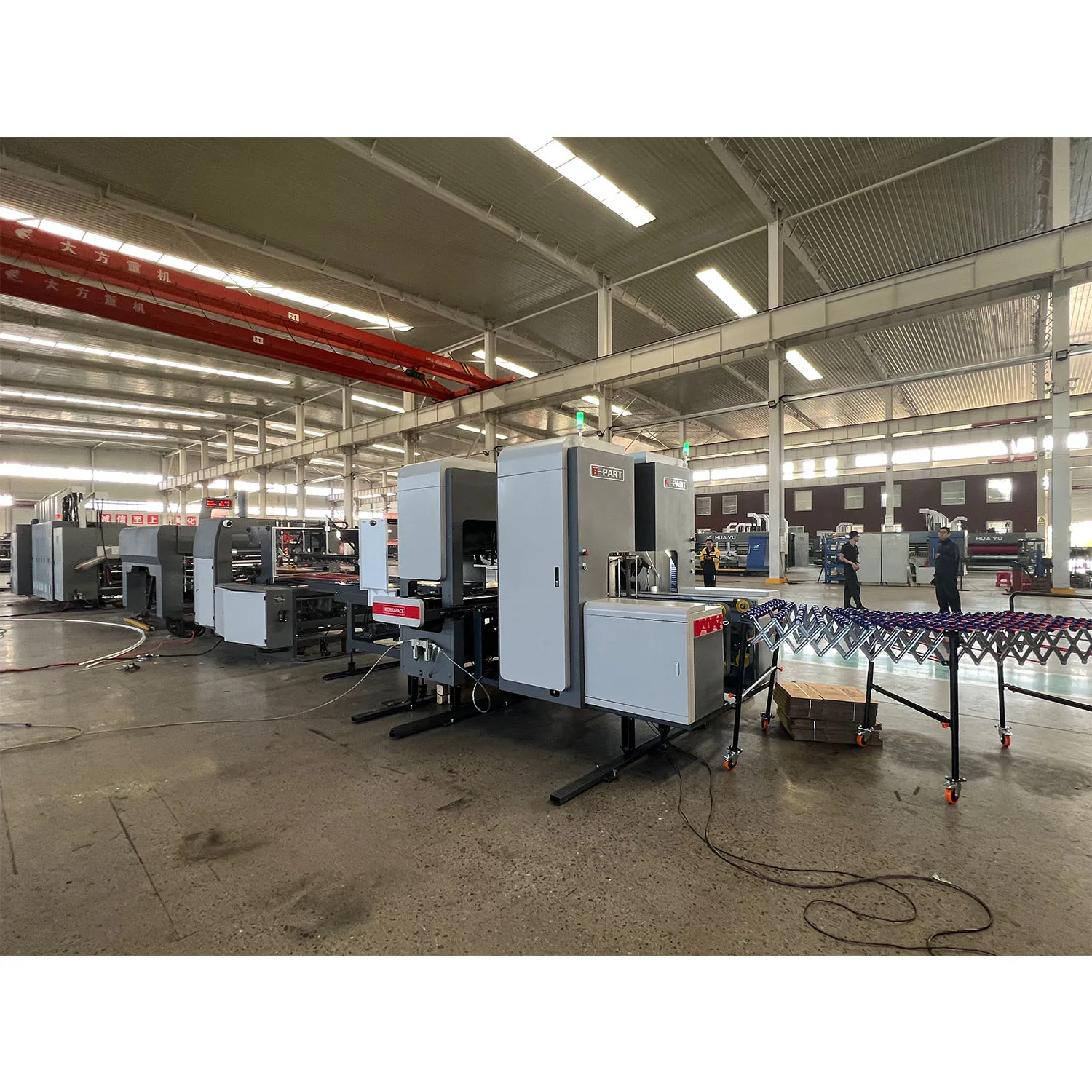

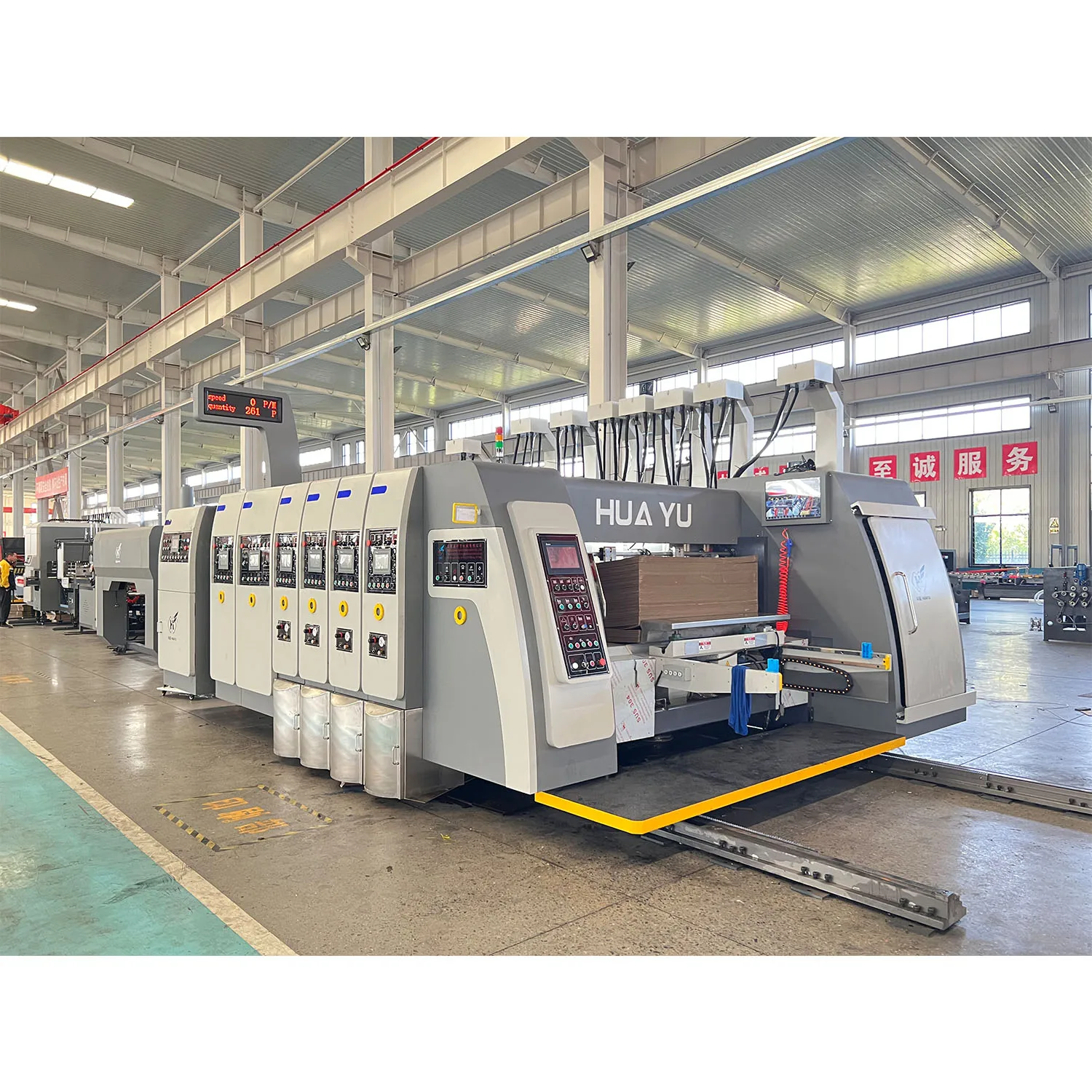

This machine is an automatic carton production equipment which integrates the functions of paper feeding, printing, slotting, die cutting, folding, box sticking and bundling. The equipment not onlysaves labor, but also realize the working concept of high speed, high efficiency and low consumption
The whole machines electrical appliances and equipment spare parts all adopt international famous brands with stable and reliable quality, and adopt man-machine interface, which is simple, efficient, economical and easy to operate.
Item Model | 922 | 1224 | ||
Max. speed (pic/min) | 260 | 200 | ||
Max. feeding size | 900×2000 | 1200×2400 | ||
Min. feeding size | 300×765 | 350×785 | ||
Max. single sheet size | Pasting ear side | 890 | 955 | |
Pasting ear opposite side | 875 | 1000 | ||
Min. slotting interval | Pasting ear side | 240 | 250 | |
Pasting ear opposite side | 120 | 120 | ||
Pasting ear width | Under 45 | Under 45 | ||
Product Function
* Feeding unit
1. Lead edge feeding system Wheel type lead edge paper feeding system, standard configuration, suitable for corrugated board with corrugated board of no less than 2mm, stable system performance and paper feeding accuracy of ± 1mm. The leading edge feeding mode of negative pressure suction ensures efficient and accurate feeding of various corrugated paperboard.

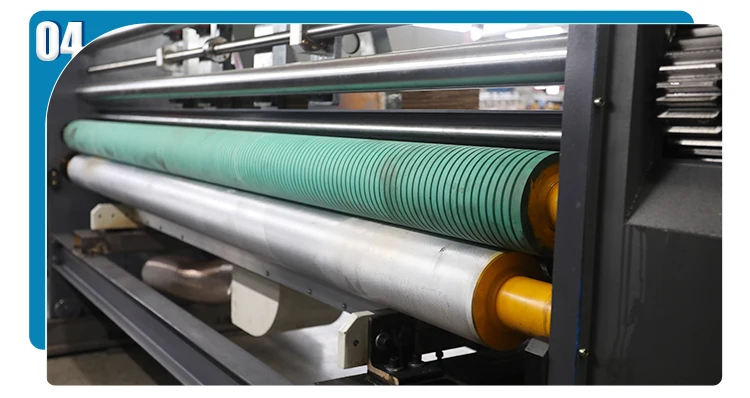

2. Feeding roller
The paper feeding upper roller adopts high-quality seamless steel pipe double plate welding hot charging shaft head, the outer diameter is ￠ 150 mm, the processing wall thickness is not less than 20 mm, the rubber roller elastic buffer wear-resistant rubber, reduce the flattening of the feeding cardboard. The dynamic balance correction is carried out in each process section of the transmission shaft to ensure the service life of the drive shaft and the stable, accurate and reliable paper feeding.
* Printer unit
1. Printing roller (option 1-5 color ) High quality steel production, surface grinding, hard chromium plating. Dynamic and static balance correction, stable operation; The horizontal and circumferential direction of the roll body is engraved with datum line to facilitate plate alignment.
2. Press printing roller
The steel pipe surface is ground and plated with hard chromium; Multi process dynamic and static balance correction, stable operation.
3. Metal Anilox Roller
The clearance between anilox roller and plate is adjusted by double pole self-locking worm gear box. The adjustment range of scale indication is 2-10 mm, which is convenient and quick.
4. Rubber roller
Special grinding of rubber roller, good ink transfer effect, ensure uniform ink quality.
5. Feeding upper and lower roller
The wall plate bearings on both sides of the drive shaft can be lubricated and maintained. The oil filling device is installed to prolong the service life of the bearing.

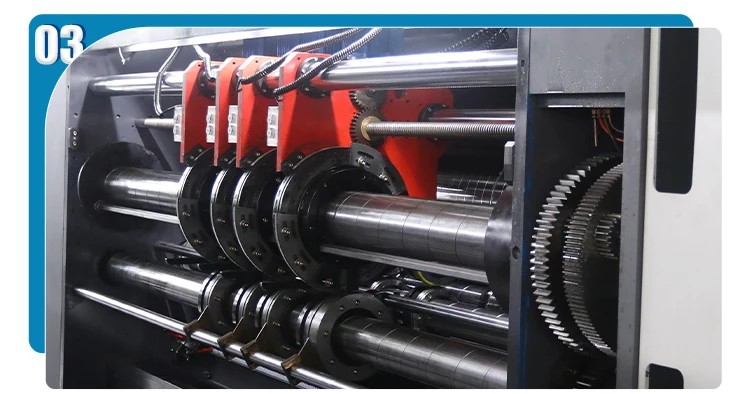

* Motorized slotter unit
1. Operation control Electric control button is used to adjust the axial direction and box height of each tool holder. Equipped with emergency stop device to ensure safety.
2. Slotting phase adjustment
Construction of multi point planetary gear; Double gears are used to adjust the clearance of the phase adjustment gear to ensure the long-term adjustment accuracy of the phase machinery
3. Creasing wheel
High quality seamless steel pipe is used for the pressing shaft, and after overall heat treatment. Multi process dynamic balance, surface grinding, hard chromium plating, smooth transmission.
4. Pre-press wheel
The precompression shaft is made of high quality seamless steel pipe, which is heat treated as a whole. Multi process dynamic balance, surface grinding, hard chromium plating, smooth transmission.
5. Slotter knife holder (4 units knife holder)
Slotted cutter head finishing treatment, cutter shaft grinding twice, plating hard chromium, smooth movement; Electric adjustment of slotting tool holder, pressing wheel, position and axial displacement.
* Die cutter unit
This kind of die-cutting machine can not only be used as a special-shaped box, but also can be used as a quadruple die-cutting machine. Do not need to do die-cutting Version (save the cost of the version) can be produced with the same effect of die-cutting slotted ordinary carton. One machine with multi-purpose greatly improves the applicability of various cartons. And manual four knife synchronous adjustment box height, equipped with paper separation line pressing function, convenient and fast.
* Folding and counting unit
The imported belt drive is wear-resistant, non slip, accurate and reliable. The glue applicator head is controlled by servo motor, which can automatically track the speed according to the production speed, so as to ensure that there is no missing or less coating on the paperboard.

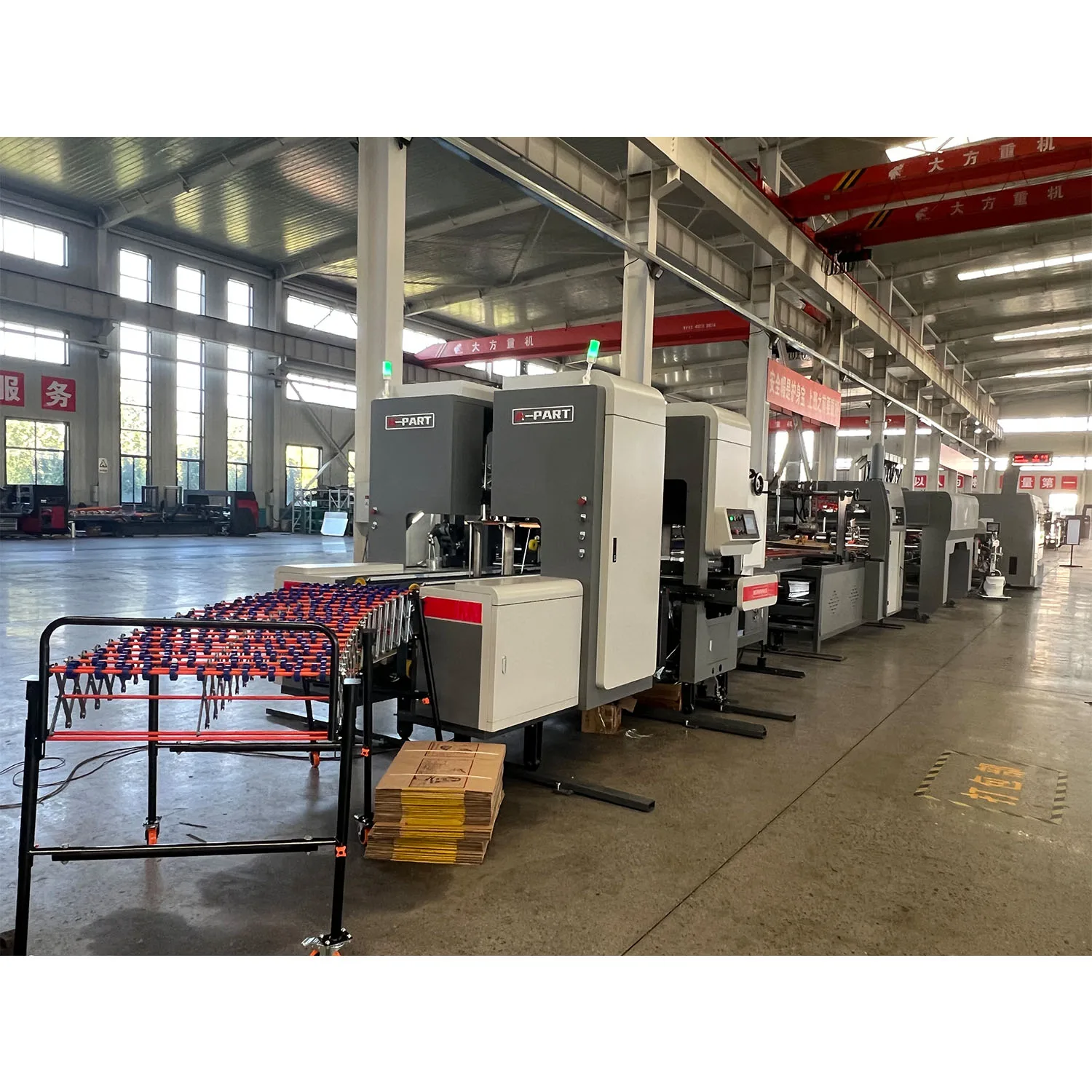

* Discharging and bundling unit
The downward insertion type paper output is stable and not easy to break down. The scissors can be completely eliminated by the second time flapping.
Dongguang Huayu Carton Machinery Co., Ltd. is an enterprise specializing in the R&D, design and manufacturing of carton machinery.

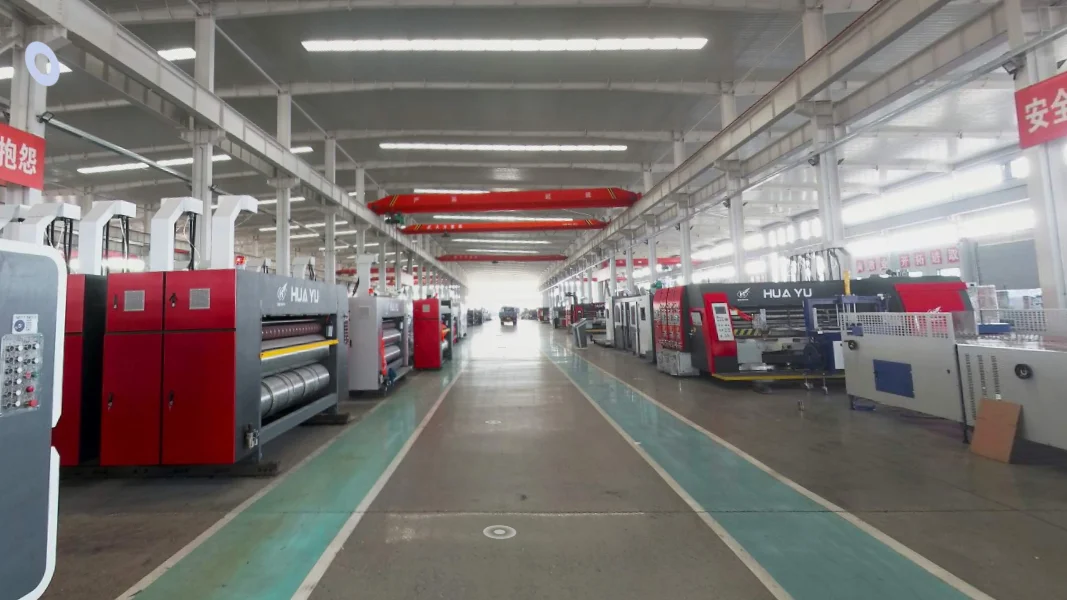

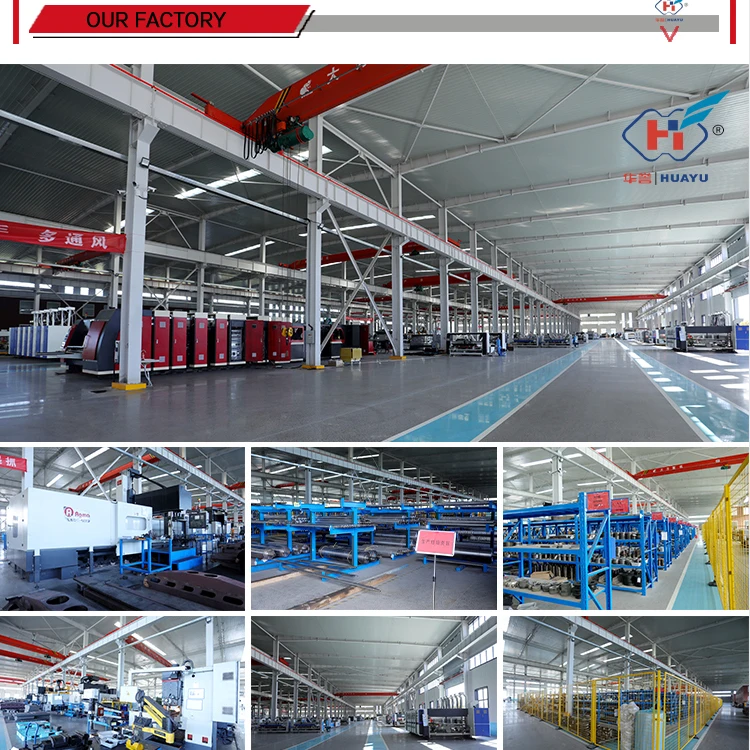

It is located in Dongguang Packaging Machinery Industrial Zone, Cangzhou City, Hebei Province, with a workshop area of 36000 square meters and an office area of 9600 square meters.
It is a national high-tech enterprise, a national science and technology oriented small and medium-sized enterprise, and has won the honors of "Hebei Research and Development Center", "Cangzhou Technology Center", etc. It has passed ISO 9001 international quality management system certification and EU CE certification. It is located in Dongguang Packaging Machinery Industrial Zone, Cangzhou City, Hebei Province, with a workshop area of 36000 square meters and an office area of 9600 square meters.
At present, it has many sets of advanced production equipment such as CNC processing machine, CNC drilling machines, etc.
Over the years, it has successively developed and produced high-speed corrugated board production lines, automatic printing and gluing machine, full computer high-definition printing machines, high-speed carton printing slotting. Die-cutting machines the products produced by the company have been exported to the united states, spain, austria, italy, germany, poland, russia, more than 100 countries are the enterprises with the largest export volume in the same industry in cangzhou city, ranking first in terms of export for 13 consecutive years.
The company's r&d center has more than 30 personnel specializing in scientific research and development, equipped with advanced r&d instruments and equipment, which ensures the smooth progress of the company's technological innovation, and urges us to produce more excellent products with more rigorous scientific management and more sophisticated production technology.
Rich experience
The company has been engaged in carton machinery manufacturing industry for 25 years, foreign trade exports for 14 years, with rich experience.
Quality of products
The company has a number ofhigh-precision processing equipment to ensure product quality. Quality of productsThe company has a number ofhigh-precision processing equipment to ensure product quality.
Research and development team
The company has a research and development team of more than 20 people, including 5 postgraduate students.
First in the industry
The company currently exports to more than 120 countries, 14 consecutive years in the same industry exports first.
Multiple patents
The company has a number of patent certificates and product quality certification.
Quality service
The company will provide customers with high quality products, excellent service and the most competitive price.

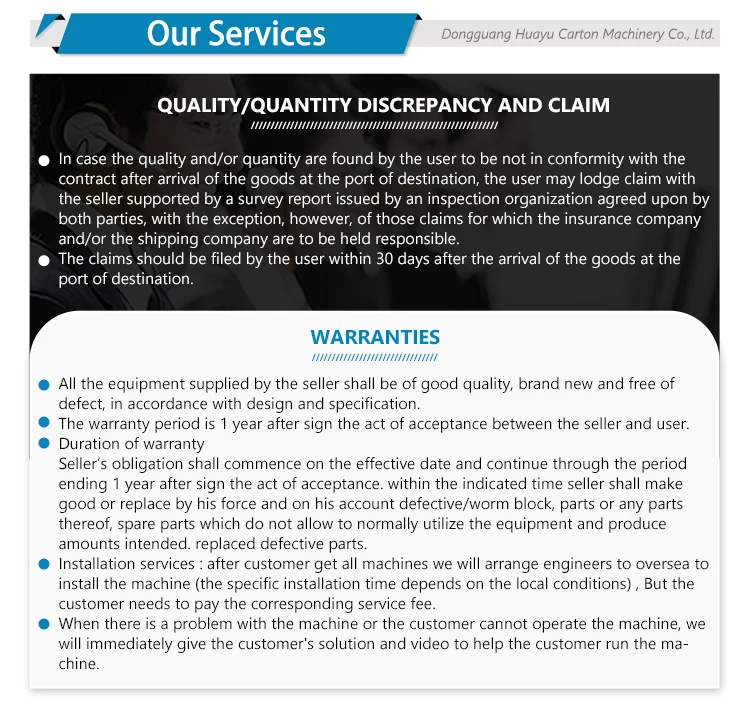

QUALITY/QUANTITY DISCREPANCY AND CLAIM
* In case the quality and/or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
* The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after sign the act of acceptance between the seller and user.
3. Duration of warranty:
Seller's obligation shall commence on the effective date and continue through the period ending 1 year after sign the act of acceptance. Within the indicated time seller shall make good or replace by his force and on his account defective/worm block, parts or any parts thereof, spare parts which do not allow to normally utilize the equipment and produce amounts intended. Replaced defective parts.
4. Installation services:
After customer get all machines we will arrange engineers to oversea to install the machine (the specific installation time depends on the local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately give the customer's solution and video to help the customer run the machine.
01 Who Are We?
Dongguang Huayu Carton Machinery Co., Ltd. Is an enterprise specializing in the R&D, design and manufacturing of carton machinery.
It is located in Dongguang Packaging Machinery Industrial Zone, Cangzhou City, Hebei Province, with a workshop area of 36000 square meters and an office area of 9600 square meters.
It is a national high-tech enterprise, a national science and technology oriented small and medium-sized enterprise, and has won the honors of "Hebei Research and Development Center", "Cangzhou Technology Center", etc.
It has passed ISO 9001 international quality management system certification and EU CE
certification.
certification.
02 How Can We Guarantee Quality?
Our company has more than 20 precision processing equipment.
When the machine parts are processed, they will be strictly checked by the quality inspection department to ensure the accuracy and quality.
After the machine is completed, we need at least two days to run the machine to ensure the smooth production of the machine.
03 What Can You Buy From Us?
Our company mainly produces automatic carton box printing slotting die cutting machine ,automatic carton box printing slotting die cutting folder gluier with auto bundle machine, automatic 3/5/7 ply corrugated cardboard production line, automatic carton box folder gluer machine.
04 Why Should You Buy From Us Not From Other Suppliers?
Our company has many sets of advanced production equipment such as CNC processing machine, CNC drilling machines, etc.
The products produced by the company have been exported to the United States, Spain, Austria, Italy, Germany, Poland, Russia, More than 100 countries are the enterprises with the largest export volume in the same industry in Cangzhou City, ranking first in terms of export for 13 consecutive years.
The company's R&D center has more than 30 personnel specializing in scientific research and development, equipped with advanced R&D instruments and equipment, which ensures the smooth progress of the company's technological innovation, and urges us to produce more excellent products with more rigorous scientific management and more sophisticated production technology.
05 What After-sales Services Can We Provide?
When the machine is finished, we can arrange engineers to go abroad to install and debug the machine.
If the parts of the machine are damaged, we will immediately send the parts to the customer by international express.
If the machine has some operation problems, we will take some videos to guide customers to operate the machine.
06 Delivery Time :
If the customer needs some machines with standard configuration, we can guarantee that the machines will be completed and delivered within 7 days.
If the customer needs some customized machines, we can guarantee that the machines will be completed and delivered in about 30 days.
