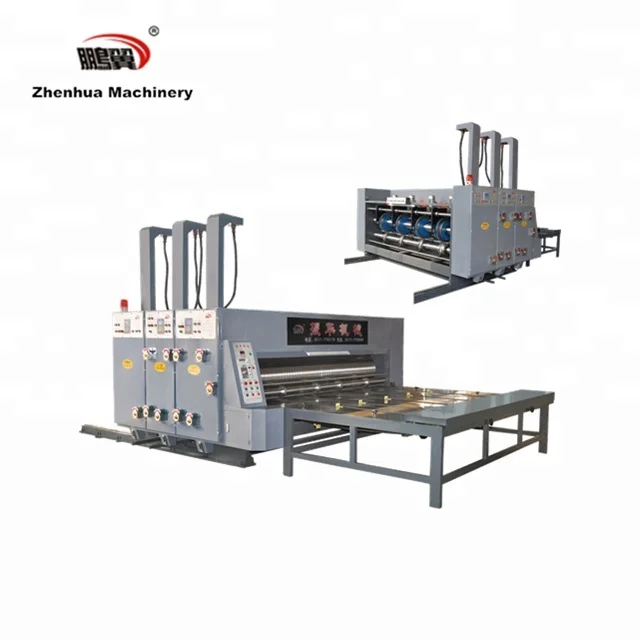

ZHENHUA YSF C Semi Automatic Slotting Chain Corrugated Cardboard Making Color Printer Slotter Rotary Die Cutter Printing Machine
- Category: >>>
- Supplier: Cangzhou Zhenhua Packing Machinery Manufacturing Co. Ltd
Share on (1601128086191):
Product Overview
Description
Model | YSF-C 420-2600 | YSF-C 480-2800 | YSF-C 530-3000 | YSF-C 600-3200 | YSF-C 800-3600 | ||||||
Max machine speed(pcs/min) | 80 | 80 | 70 | 60 | 60 | ||||||
Max.feeding size(mm) | 1200x2450 | 1450x2650 | 1660x2850 | 1800x3050 | 2500*3350 | ||||||
Max.printing area(mm) | 1200x2300 | 1450x2500 | 1600x2700 | 1800x2900 | 2500x3300 | ||||||
Min.feeding size(mm) | 350*350 | 380x550 | 400x550 | 500x700 | 600x890 | ||||||
Max.depth of slotting (mm) | 300 | 350 | 400 | 450 | 620 | ||||||
Printing plate thickness (mm) | 4 (7.2 optional) | ||||||||||
Application tickness (mm) | 1.5-14 | ||||||||||
Sloiting Width (mm) | 7 | ||||||||||
Registration precislon (mm) Comparing with front printing unit | ≦±0.6 | ≦±0.75 | |||||||||
Slotting precision (mm) | <±1.5 | ||||||||||
Min.slotting interval ( mm ) | Forward | 115x115x115x115 | 160x160x160x160 | ||||||||
Reverse | 200x60x200x60 | 265x60x265x60 | |||||||||

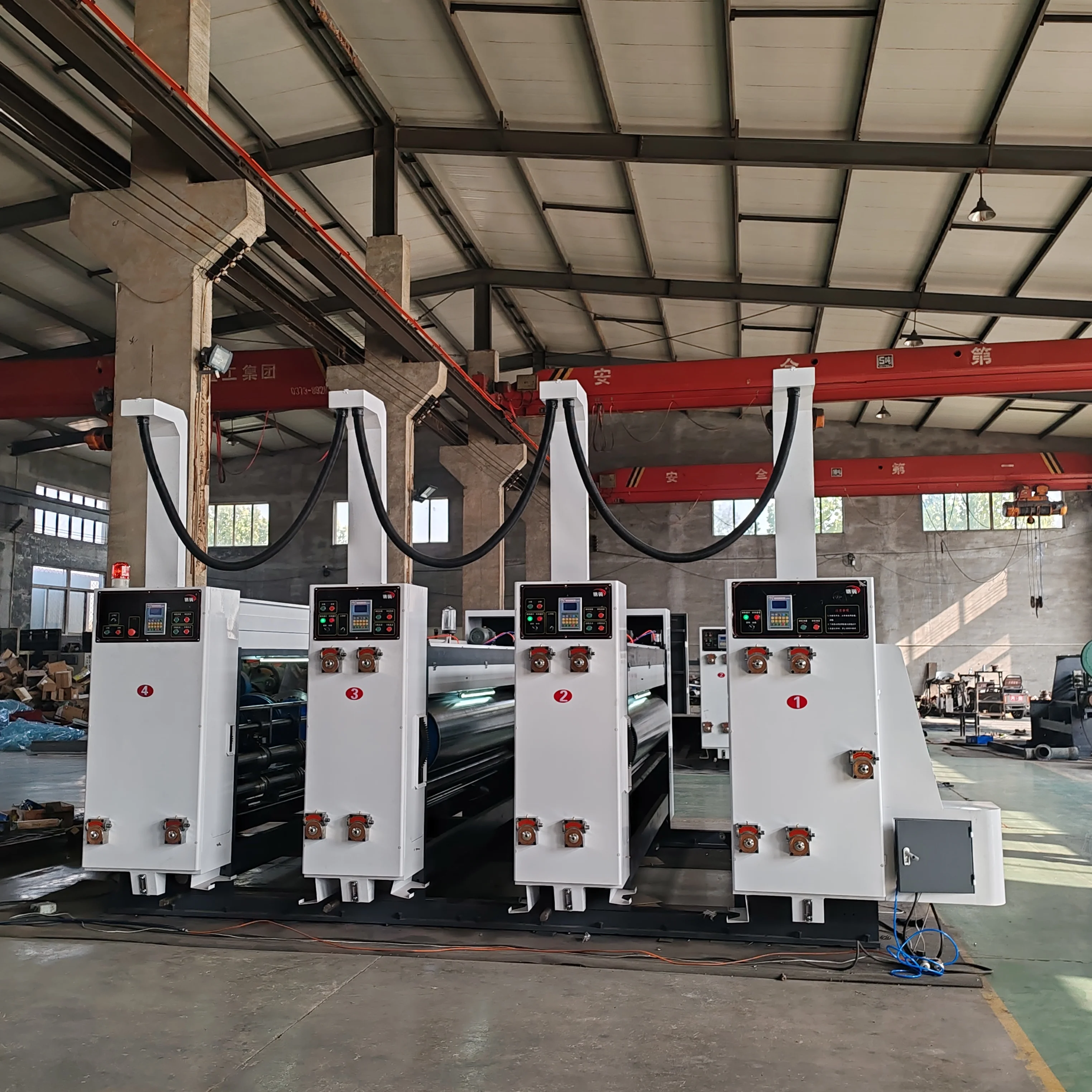

The chain-feed multi-color ink printing slotting die-cutting and stacking machine is a high-performance equipment integrating multiple functions and is widely used in the production of corrugated boxes and cartons. The equipment adopts chain drive mode and has stable cardboard conveying capabilities. It also integrates functions such as multi-color ink printing, grooving, die-cutting and automatic stacking.

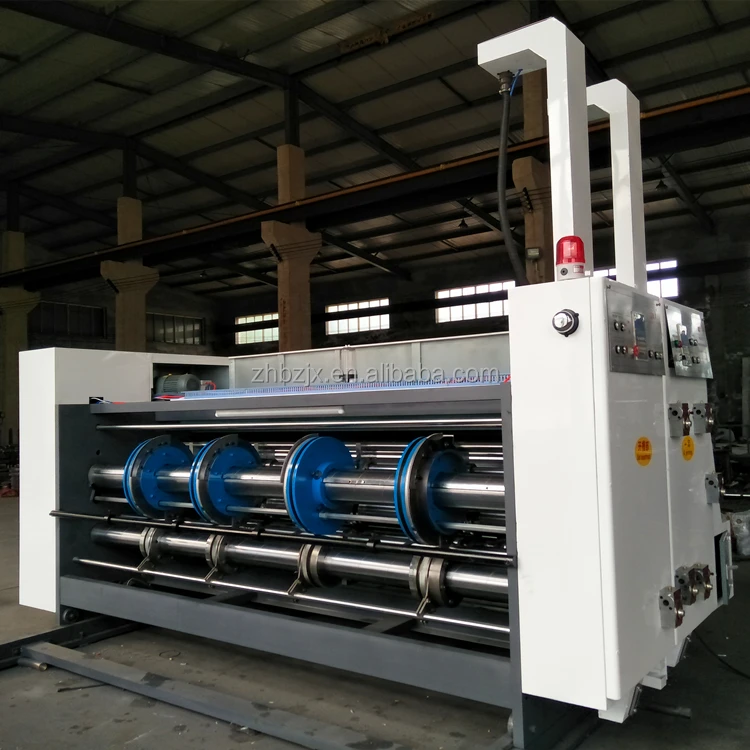

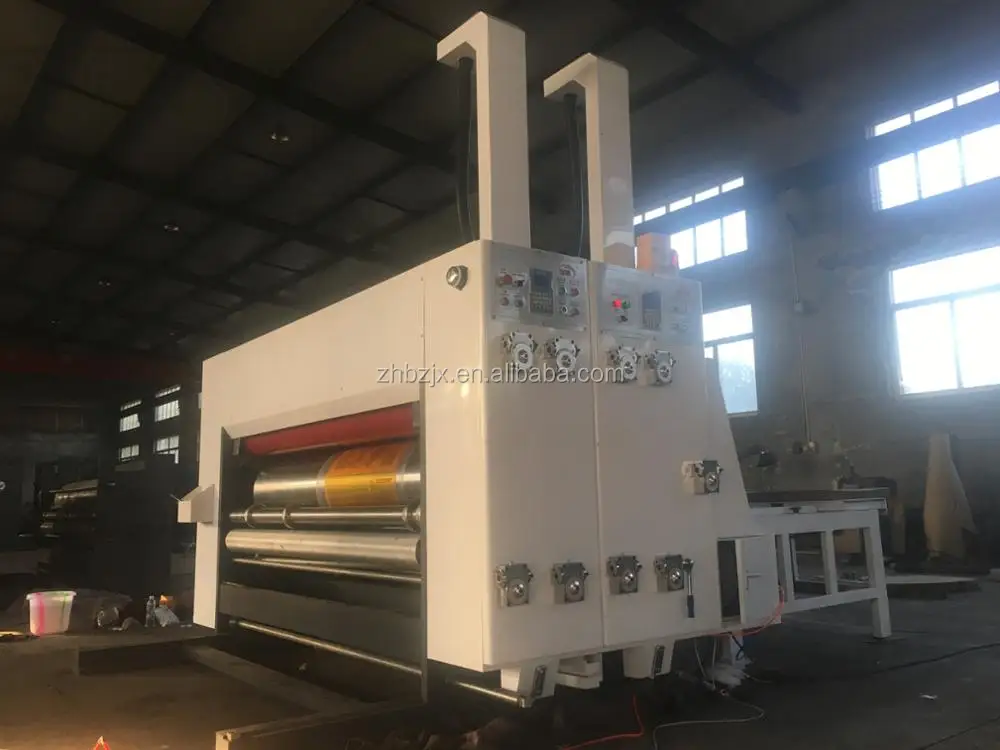

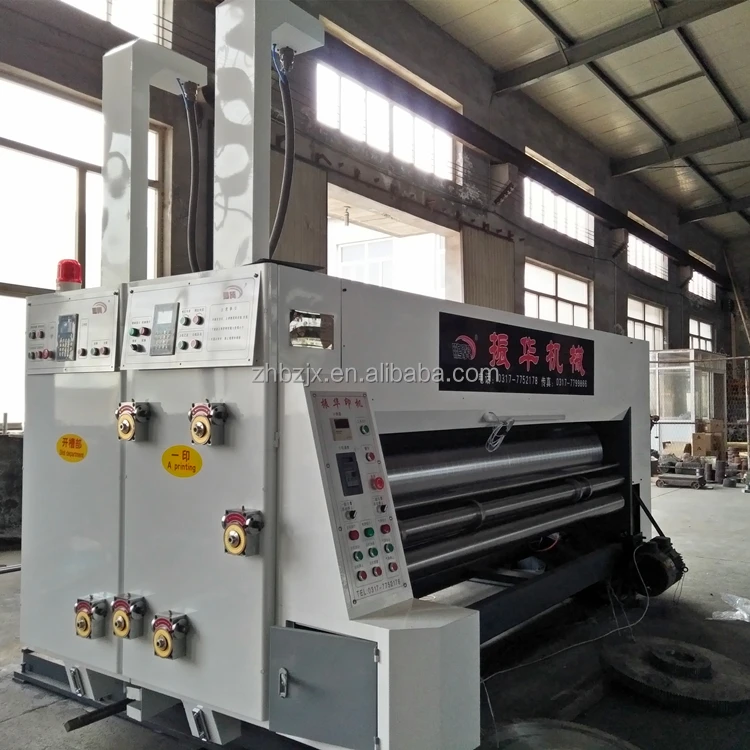

Printing part

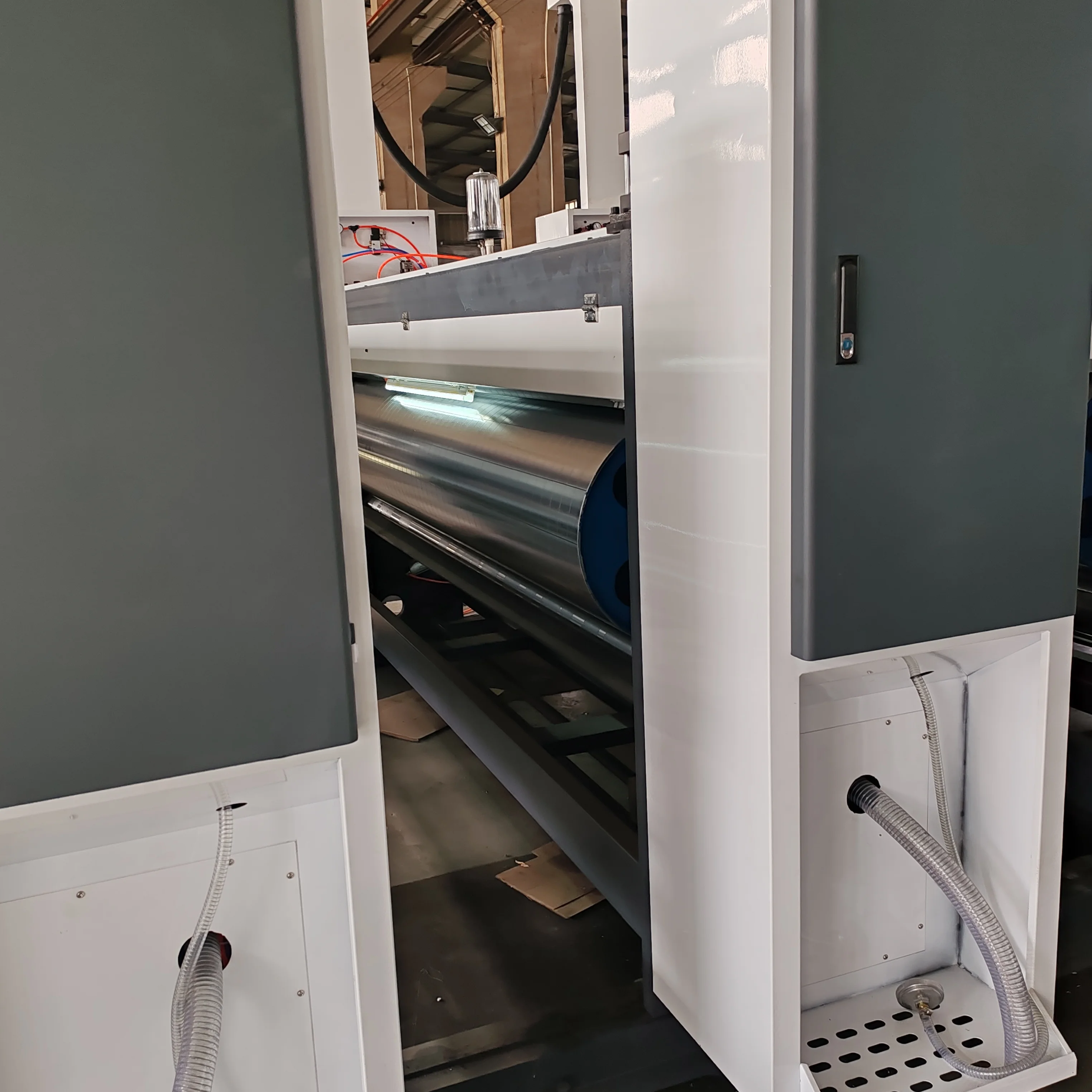

Printing roller: Use high-precision rollers to ensure accurate positioning and stable transmission of patterns during the printing process. The hardness and surface finish of the roller are critical to print quality.
Anilox roller: This component is responsible for evenly coating ink. The depth and structure of the anilox determines the distribution and coating quality of the ink. High-quality anilox rollers ensure print clarity and consistency.
Impression shaft: Responsible for bringing the cardboard into close contact with the pattern on the printing roller to ensure that the ink is fully transferred to the cardboard. The pressure of the imprinting shaft is adjustable to adapt to cardboard of different thicknesses.
Anilox roller: This component is responsible for evenly coating ink. The depth and structure of the anilox determines the distribution and coating quality of the ink. High-quality anilox rollers ensure print clarity and consistency.
Impression shaft: Responsible for bringing the cardboard into close contact with the pattern on the printing roller to ensure that the ink is fully transferred to the cardboard. The pressure of the imprinting shaft is adjustable to adapt to cardboard of different thicknesses.

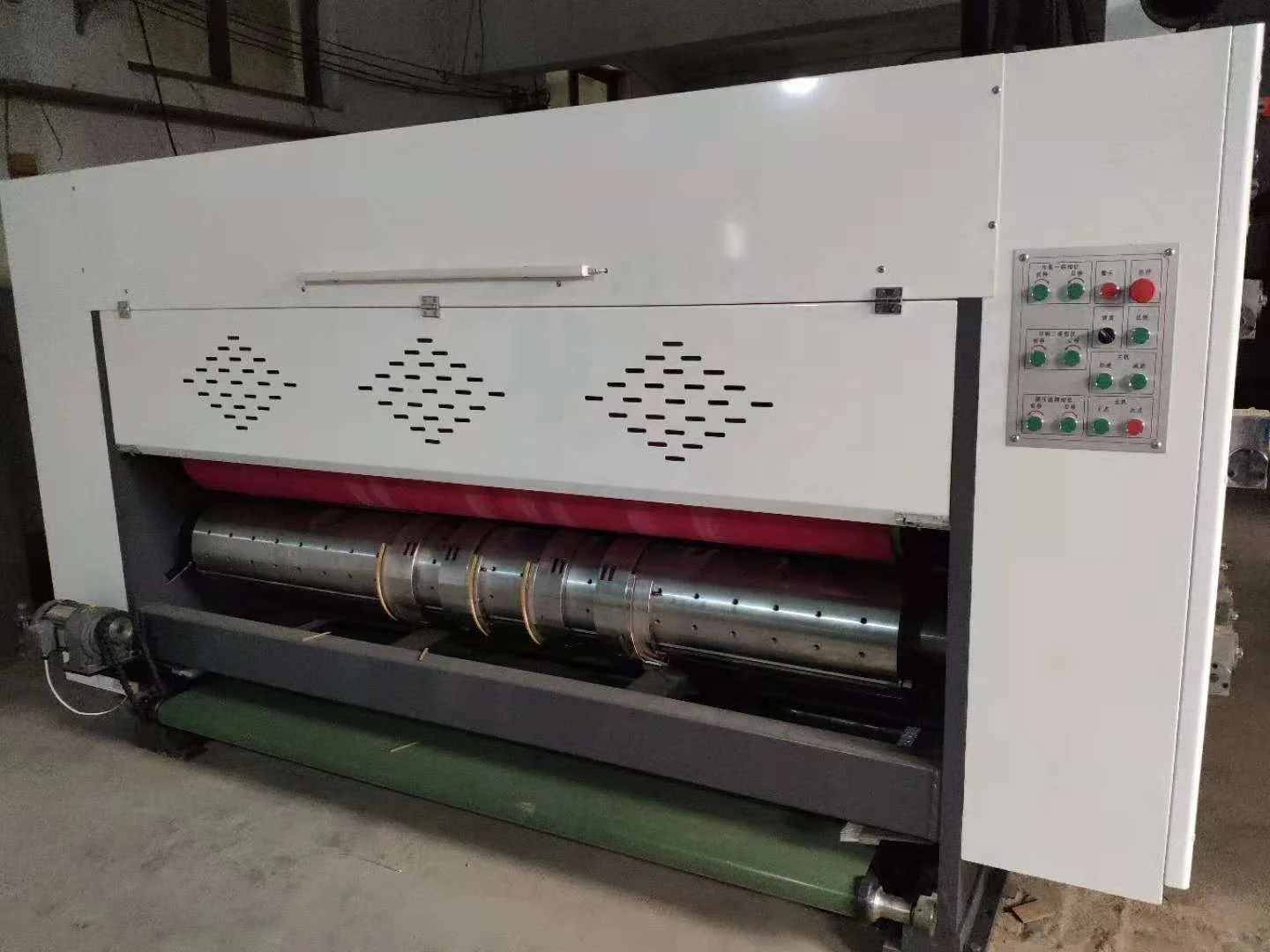

Grooving tool: Use high-quality blade material to ensure smooth and neat groove edges. The wear resistance of the knife allows it to be used for a long time.
Die-cutting roller: used to complete complex die-cutting operations and can cut out carton parts of different shapes. The die-cutting roller is easy to adjust to meet production needs of different sizes and shapes.
Die-cutting roller: used to complete complex die-cutting operations and can cut out carton parts of different shapes. The die-cutting roller is easy to adjust to meet production needs of different sizes and shapes.
Automatic stacking system
The system is responsible for automatically collecting and stacking finished cartons. The automated stacking design reduces manual
intervention and ensures the efficiency and safety of the production process. The system also supports adjustment of stacking
height and quantity to adapt to different production scales.
intervention and ensures the efficiency and safety of the production process. The system also supports adjustment of stacking
height and quantity to adapt to different production scales.

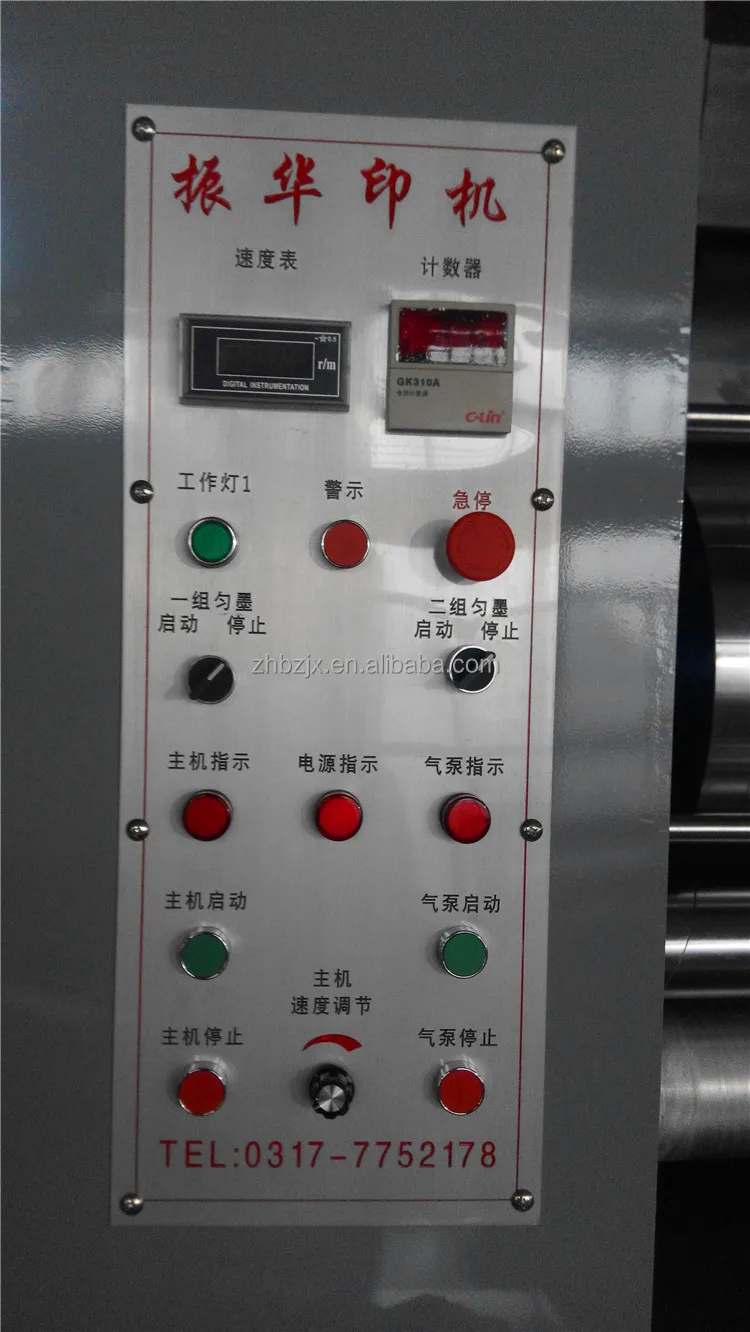

The chain-feed multi-color ink printing slotting die-cutting stacker is equipped with an advanced control panel and human-machine interface (HMI). Operators can easily adjust parameters such as printing color, groove depth and die-cut shape through the interface. The control system supports fast switching and automatic calibration, providing stable production performance.
Technical features

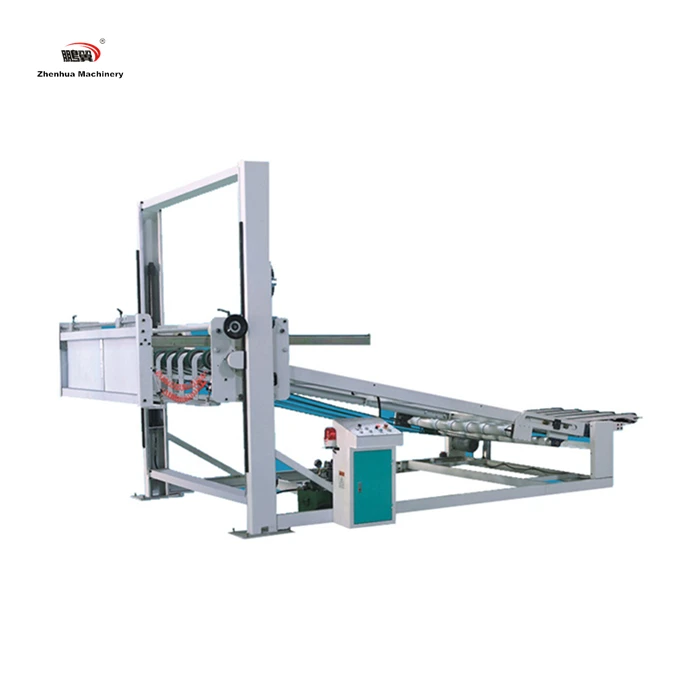

Chain feeding system: Chain feeding ensures the stability of the cardboard during transportation and reduces the possibility of paper jams and misalignment. The system also supports paperboards of different thicknesses to meet various production needs.
Multi-color ink printing: Using environmentally friendly ink technology, it supports 2-6 color printing. Precision print head design ensures printing clarity and accuracy, maintaining high quality even at high speeds.
Precise grooving: Precise grooving can be performed on cardboard to ensure neat edges and meet industrial standards. The grooving tool is wear-resistant and durable, suitable for long-term use.
Precision die cutting: supports die cutting processing of complex shapes and can meet the diverse needs of customers. The die-cutting system is easy to adjust and suitable for the production of cartons of different sizes and shapes.
Automatic stacking: The automated stacking system can automatically collect and neatly stack finished cartons, reducing manual operations and improving production efficiency.
Intelligent control: Equipped with advanced control panel and human-machine interface for easy operation. The system supports quick adjustment and parameter setting, suitable for different production needs.
Application scope
Customized cartons: Provide personalized printing and die-cutting services according to customer needs, suitable for brand customization and promotional activities.
E-commerce packaging: Provide e-commerce companies with customized cartons that match their brand image to ensure safety and beauty during the logistics process.
Industrial Packaging: Suitable for producing large-sized or custom-shaped industrial cartons to meet the packaging needs of manufacturing and heavy industry.
--Cangzhou Zhenhua Packing Machinery Manufacturing Co., Ltd.is established in 1999; As a world-class equipment manufacturing and service provider integrating R&D, production, sales and service of packaging equipment, we provide quality equipment, effective and convenient packaging solution for customers.
--Located in China famous corrugated packaging equipment manufacturing industry base,close to Beijing International Airport and Tianjin Xingang Port, is with convenient transportation.
--In recent years, the company has invested heavily in the establishment of a manufacturing base of 20,000 square meters in the China Packaging Industry Center,providing full set of packaging production equipment and accessories for users around the world.lt owns many subsidiaries such as Zhenhua Printing Machine Manufacturing Factory, Zhenhua Die Cutting Machine Manufacturing Factory,Zhenhua Plate Rolling Factory and Hebei Paiken Trading Co., Ltd. At present,many products of the company have passed CE certification.
--With the rapid development of global trade, Zhenhua Group established Hebei Paiken Trading Co., Ltd. as the Group's professional E-commerce Marketing Platform and Foreign Trade Platform, combining traditional business with B2B e-commerce platform to provide the best service for global users.
--We persist on "scientific and technological innovation, casting quality,excellence, and the pursuit of excellence" spirit of enterprise, take the road of brand development. Scientific management, cultivate the spirit of dedication,hard work and hard work,and the output value in creases year by year.
Since the establishment of company, we focus on cultivating a skilled technical team and innovative design concepts to make the products widely adaptable and to win the market in all parts of China and in Southeast Asia, Middle East.Africa and the European Union.
--Zhenhua Group persists on keeping pace with the times and expanding market with all our strength.We will be continuously devote to providing higher quality product.
--Located in China famous corrugated packaging equipment manufacturing industry base,close to Beijing International Airport and Tianjin Xingang Port, is with convenient transportation.
--In recent years, the company has invested heavily in the establishment of a manufacturing base of 20,000 square meters in the China Packaging Industry Center,providing full set of packaging production equipment and accessories for users around the world.lt owns many subsidiaries such as Zhenhua Printing Machine Manufacturing Factory, Zhenhua Die Cutting Machine Manufacturing Factory,Zhenhua Plate Rolling Factory and Hebei Paiken Trading Co., Ltd. At present,many products of the company have passed CE certification.
--With the rapid development of global trade, Zhenhua Group established Hebei Paiken Trading Co., Ltd. as the Group's professional E-commerce Marketing Platform and Foreign Trade Platform, combining traditional business with B2B e-commerce platform to provide the best service for global users.
--We persist on "scientific and technological innovation, casting quality,excellence, and the pursuit of excellence" spirit of enterprise, take the road of brand development. Scientific management, cultivate the spirit of dedication,hard work and hard work,and the output value in creases year by year.
Since the establishment of company, we focus on cultivating a skilled technical team and innovative design concepts to make the products widely adaptable and to win the market in all parts of China and in Southeast Asia, Middle East.Africa and the European Union.
--Zhenhua Group persists on keeping pace with the times and expanding market with all our strength.We will be continuously devote to providing higher quality product.
1.10 Years Manufacturing Experiences & 8 Years Exporting Experiences, not reseller, not trading company.
2.Improve your working efciency and help you resolved the problem of diff cult employment and high labor costs.
3.Online conferences product explanation,technical guidance, factory inspection etc are supported.
4.The job site installation train in guidance are supported.The staf will have be trained regularly.
5.Easy operation,positioned accuracy ,reasonable price.
6.Have an professional team and the staf will have be trained reqularly.
7.Customized solutions are supported.
3.Online conferences product explanation,technical guidance, factory inspection etc are supported.
4.The job site installation train in guidance are supported.The staf will have be trained regularly.
5.Easy operation,positioned accuracy ,reasonable price.
6.Have an professional team and the staf will have be trained reqularly.
7.Customized solutions are supported.
Cangzhou ZHENHUA Packing Machinery Manufacturing Co.,Ltd
1. Are you a factory or a trading company?
A: our company is specialized in manufacturing carton machinery.
2. Can your product be customized?
A: we can design and customize according to the requirements of customers.
3. How does your factory control product quality?
A: we always adhere to the "integrity-based, integrity-based" business purposes.adhering to the "pioneering spirit, strives for realism the innovation, enterprising,strives for perfection" spirit of enterprise, the production of the product specification is complete, the appearance is beautiful and easy, the machine type to be complete.can satisfy the requirements of different customers.
4. How do you evaluate the product?
A: we have been exported more than 40 counties, such as: the United States. Mexico, Spain, Russia, South Korea,Malaysia,India,Egypt, Kenya and so on product quality and reputation at home and abroad to get the praise.
2. Can your product be customized?
A: we can design and customize according to the requirements of customers.
3. How does your factory control product quality?
A: we always adhere to the "integrity-based, integrity-based" business purposes.adhering to the "pioneering spirit, strives for realism the innovation, enterprising,strives for perfection" spirit of enterprise, the production of the product specification is complete, the appearance is beautiful and easy, the machine type to be complete.can satisfy the requirements of different customers.
4. How do you evaluate the product?
A: we have been exported more than 40 counties, such as: the United States. Mexico, Spain, Russia, South Korea,Malaysia,India,Egypt, Kenya and so on product quality and reputation at home and abroad to get the praise.
