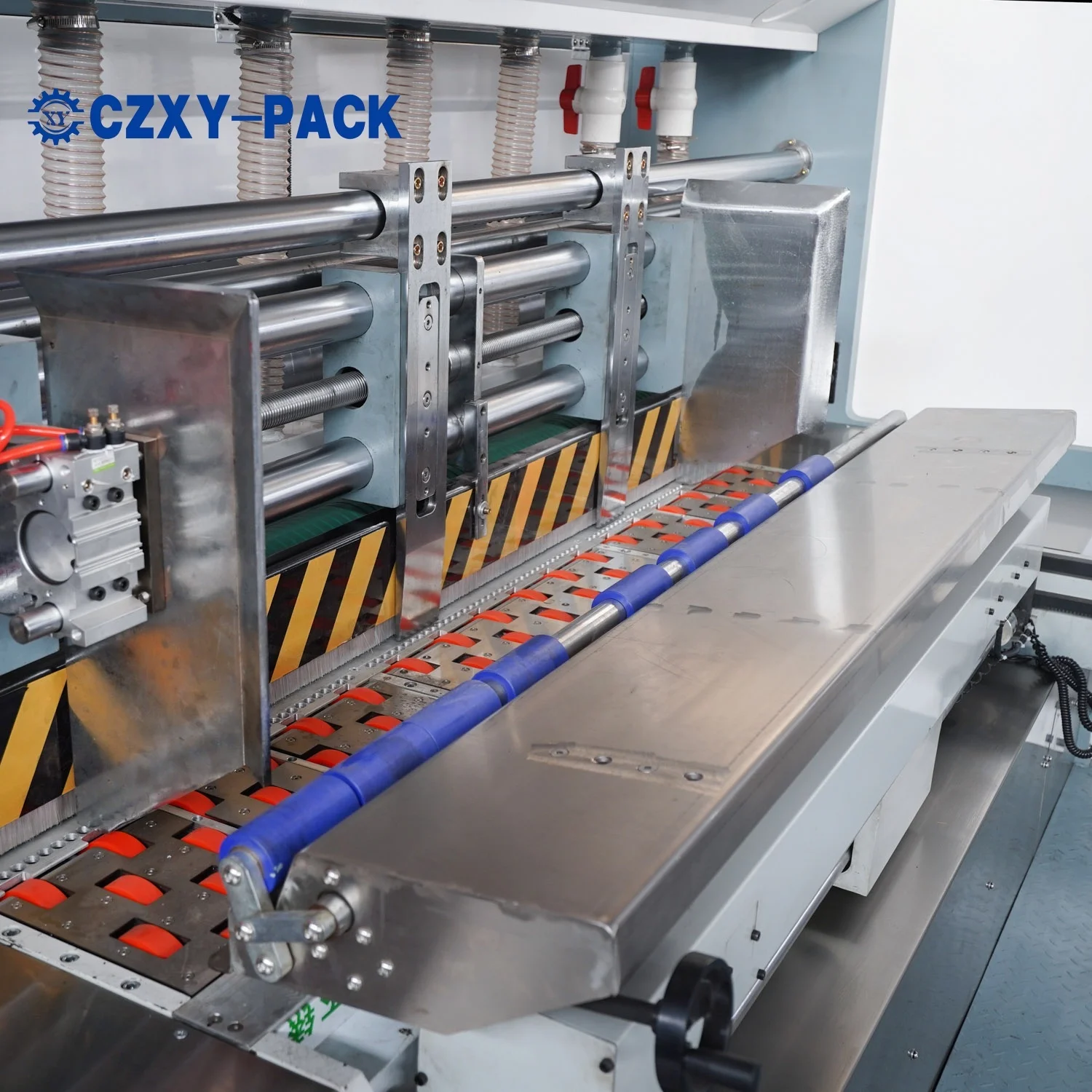

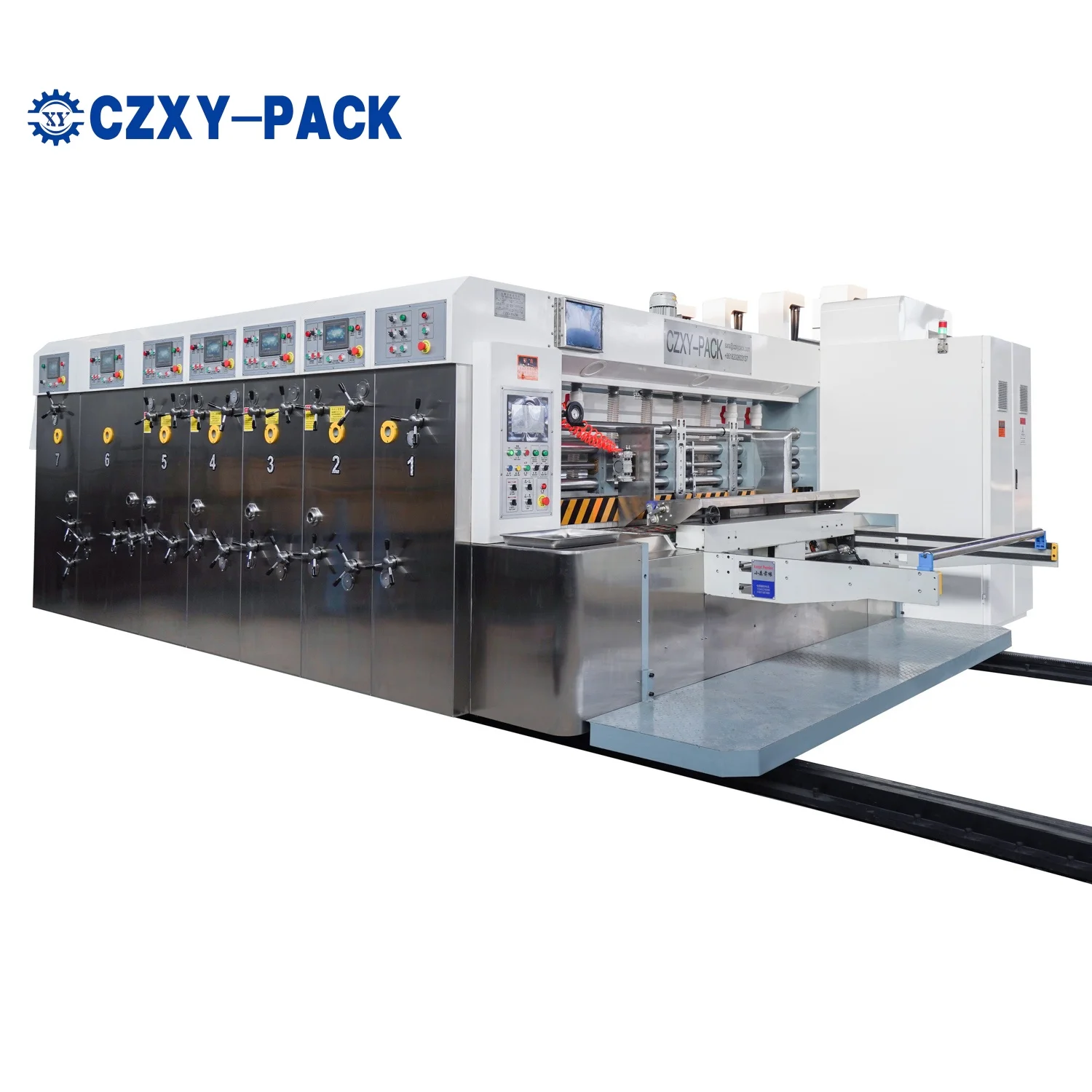

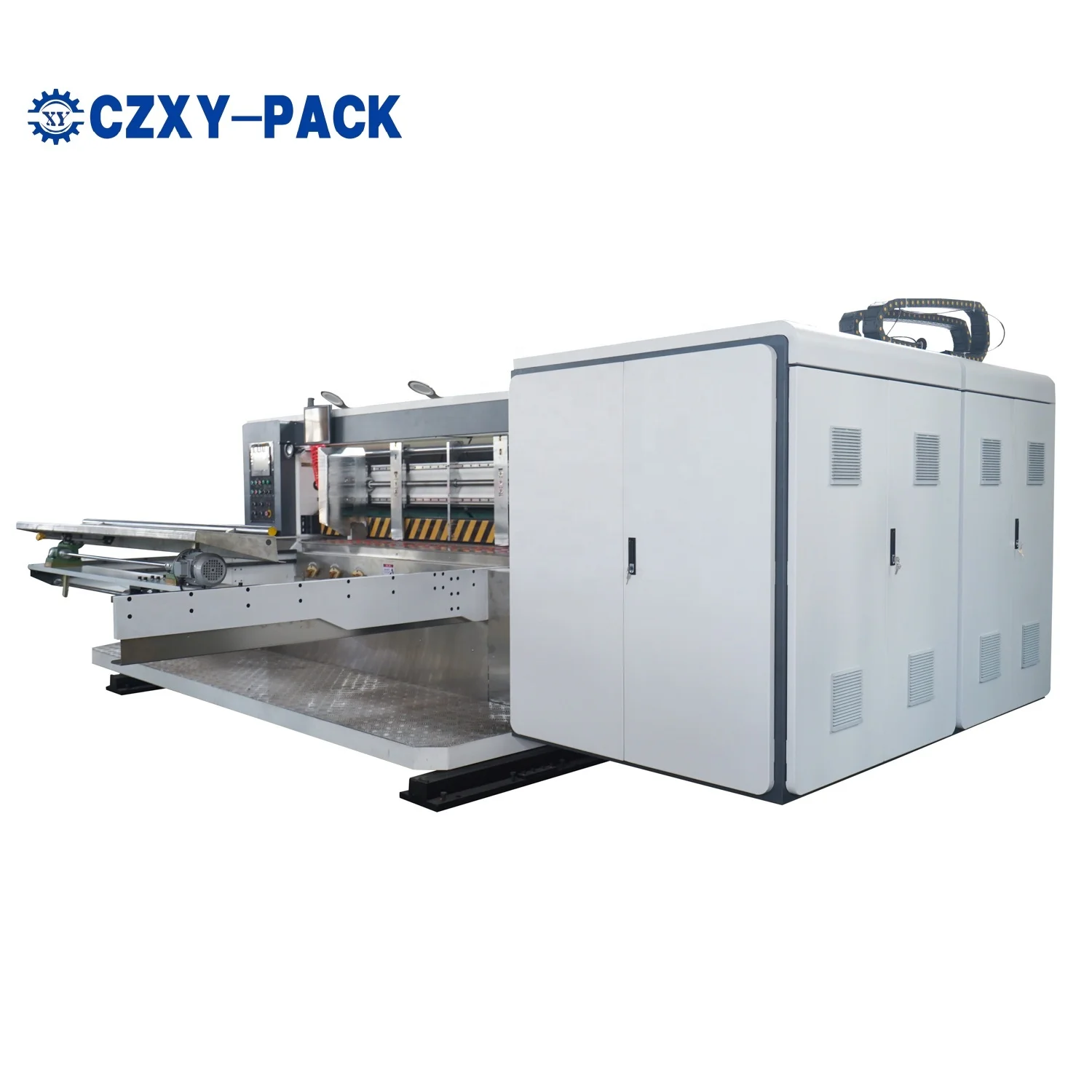

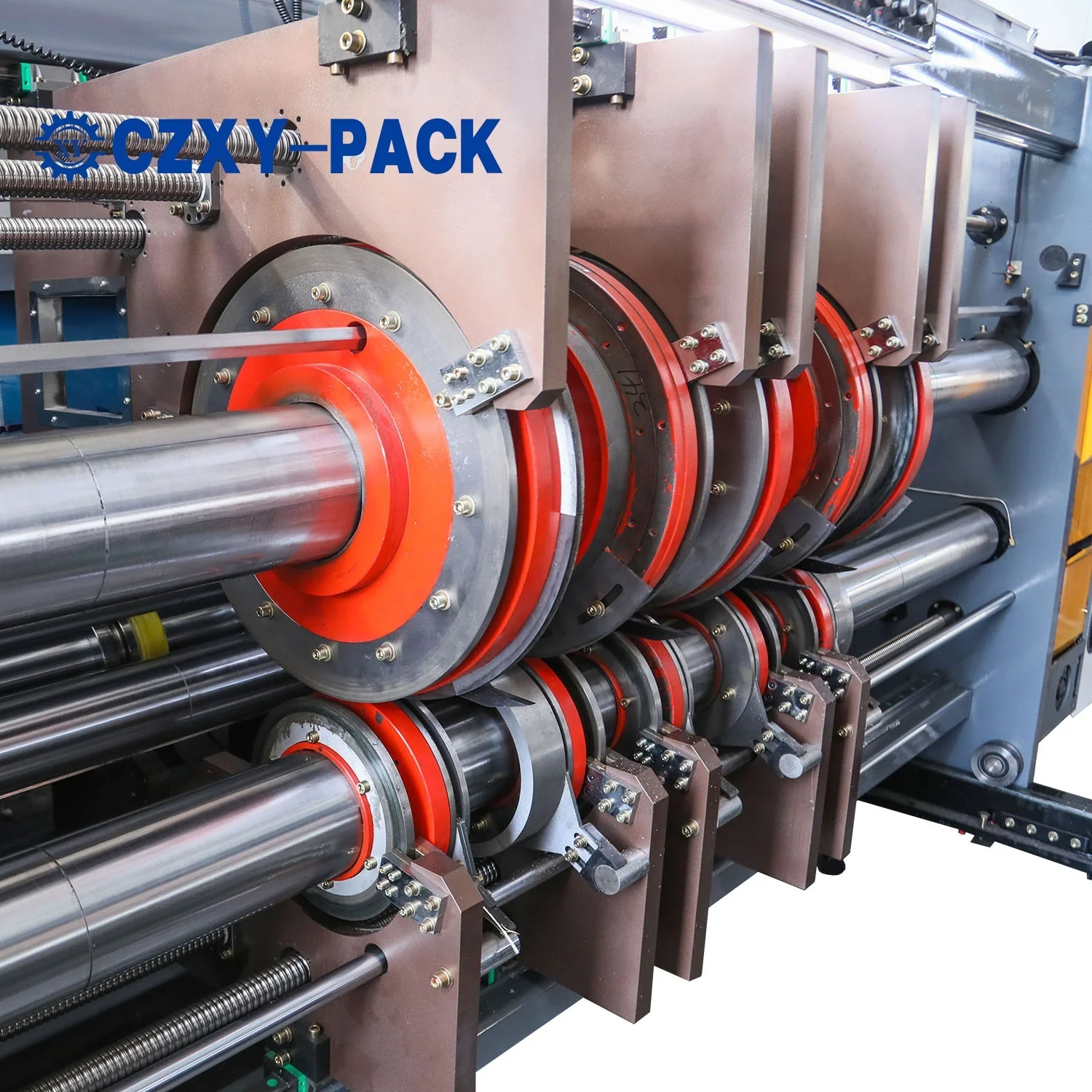

Carton slotting machine corrugated box slotter machine box slotting creasing machine

 1.The whole machine is designed in strict accordance with the EU CE safety standard, with standardization, universality and humanization.According to the man-machine integrated manufacturing concept, it can directly set, correct, execute, replace, memory and other functions on the touch screen, which is a product with ultra-high cost performance.

2.Touch screen human-machine interface and electric control dual system operation function, with intelligent zero, memory automatic reset, order storage and other functions.

3.The whole machine wall panel and important parts are aging treatment, tempering to eliminate metal internal stress; Are made of high precision machining center, CNC grinding machine grinding processing.

4.The machine shaft and roller are made of high quality steel, grinding, high precision computer dynamic balance correction, the surface is plated with hard chromium.

5.The whole machine transmission gear is made of 40Cr alloy steel, carburized and quenched, hardness HRC58 ~ 62; After grinding, 6-level precision, to ensure long-term use of high color accuracy.

6.The machine transmission parts (shaft, tooth connection),are key-less connection (expansion sleeve), eliminate the connection gap, suitable for large torque long-term high-speed operation.

7.The whole machine transmission bearings, important transmission parts are made of well-known brands: Harbin brand, easy maintenance, longer service life.

8.The lubrication system adopts spray type automatic lubrication and is equipped with automatic balancing device to maintain the same level of oil in each unit.

9.The machine adjusts preset bits.Paper feed, printing, and die-cutting automatically return to zero, and memory automatically resets.

10.The working gap of the machine is adjusted by PLC electric and touch screen.The adjustment is quick, accurate and convenient.

11.The host adopts frequency conversion control, which makes the starting operation more stable and energy saving.Phase adjustment using inverter control, shutdown, operation can be adjusted (PLC touch screen operation).

12.The whole machine is equipped with the function of order storage, which can store 999 orders.   According to the carton size, set the parameters of each unit on the touch screen, store the order and give the order number.When the order is produced again, you can search the order number to retrieve and use it, which makes the order exchange more convenient and faster.

13.The machine is equipped with automatic inking function of glue shaft extrusion pressure, and the ink balancing function is turned on by PLC touch screen to manually adjust the pressure between glue shaft and mesh roller.When the photoelectric sensor detects that the pressure of rubber shaft and mesh roller is appropriate, ink will be automatically inking to prevent the printing roller from being polluted directly because the pressure of rubber shaft and mesh roller is too small.

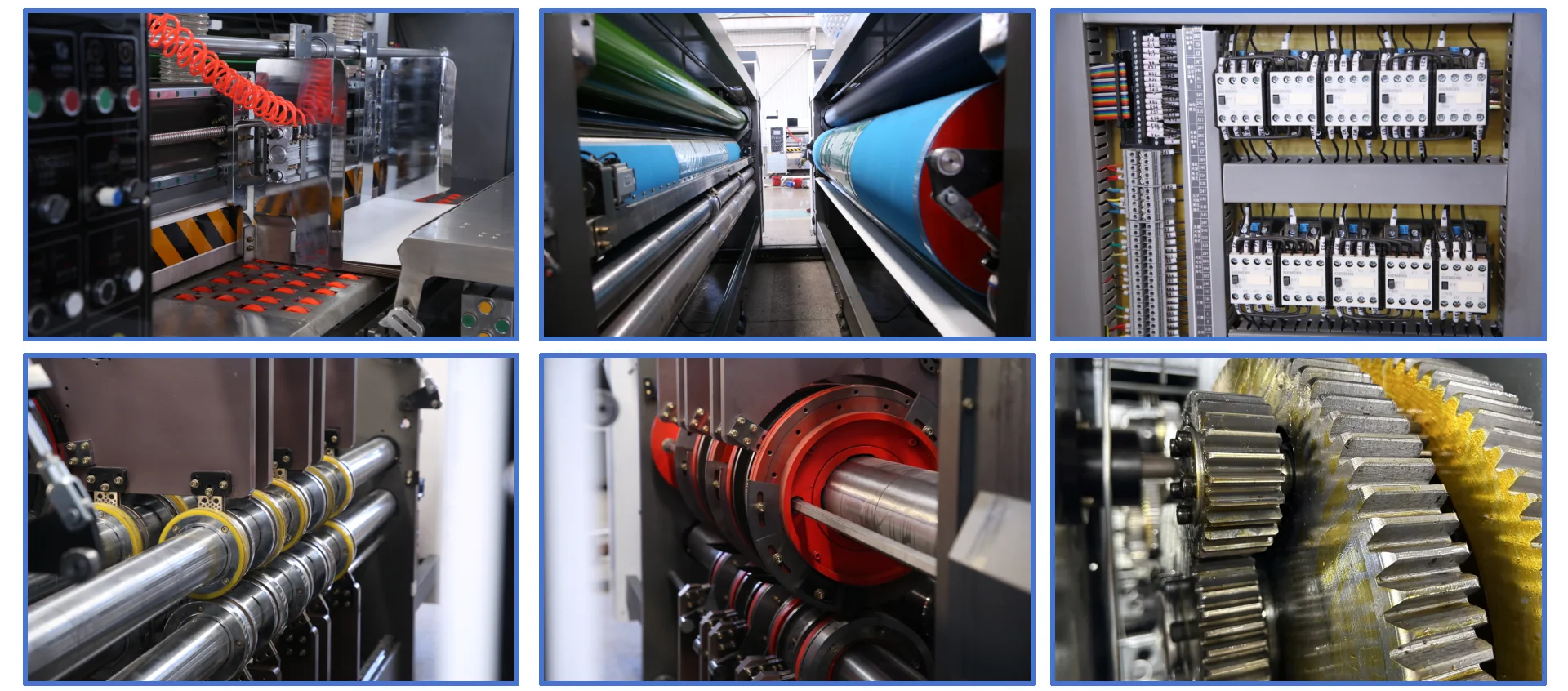

Gear Wheel:

1)The main transmission gear is made of 40Cr alloy steel, thickness 60mm. After tempering, carburizing and quenching treatment, fine grinding tooth processing.

2)Six-level precision, smooth operation, low noise, hardness HRC55-60, long life, small wear helical gear, can ensure that the printing color accuracy is unchanged for a long time.

3)The gear of the whole machine is locked with keyless connection ring and no gap connection to ensure the color accuracy.

Oil supply device:

1)Mechanical oil pump. (imported oil leveller)

2)Circulating oil supply, gear oil amount is uniform, each group of oil level balance.

3)The lubrication adopts a closed spray lubrication system to ensure transmission accuracy and life.
