Servo feeder corrugated carton box high definition 5 colors HD flexo print slot rotary die cut machine Troquelado rotativo
- Category: >>>
- Supplier: Hebei Huazhu Carton Equipment Manufacturing Co. Ltd.Hebei Ltd.
Share on (1601187400486):
Product Overview
Description

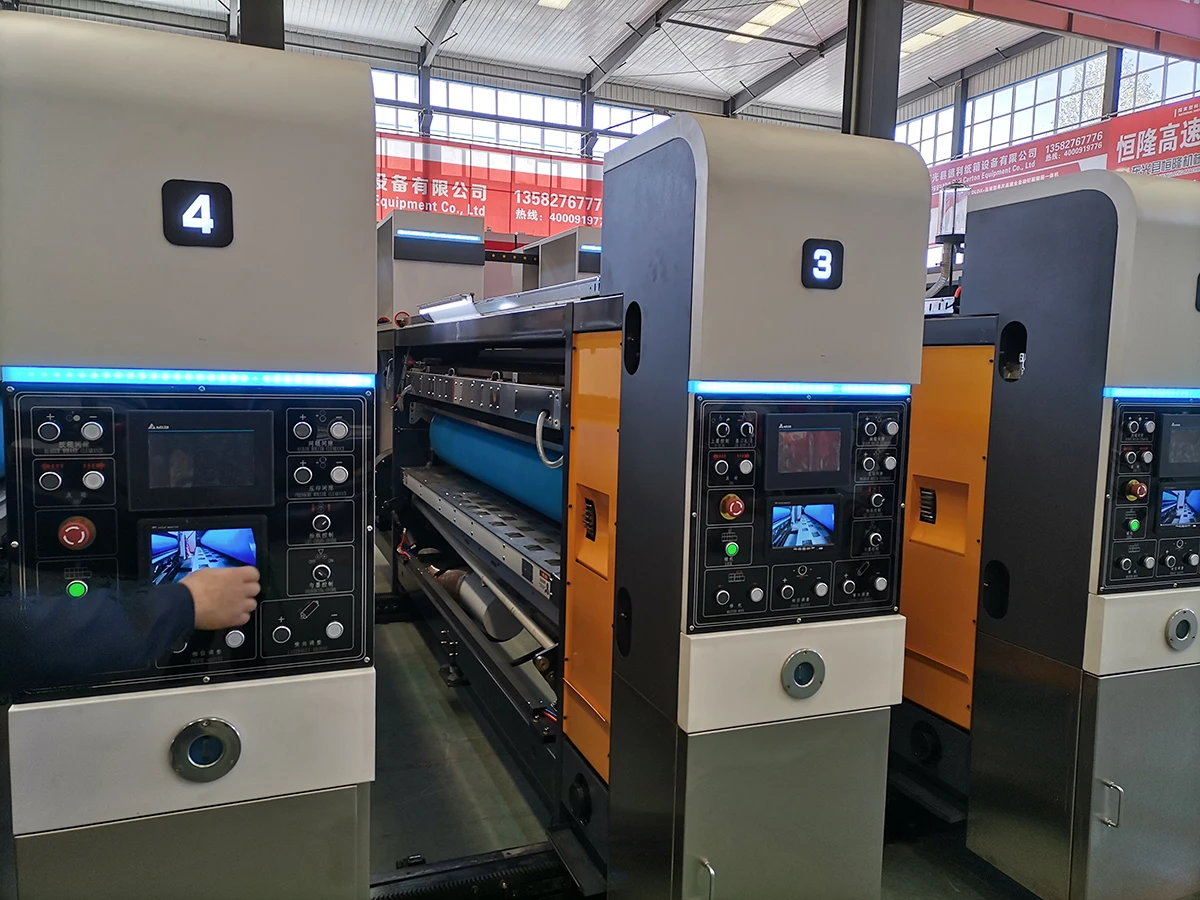

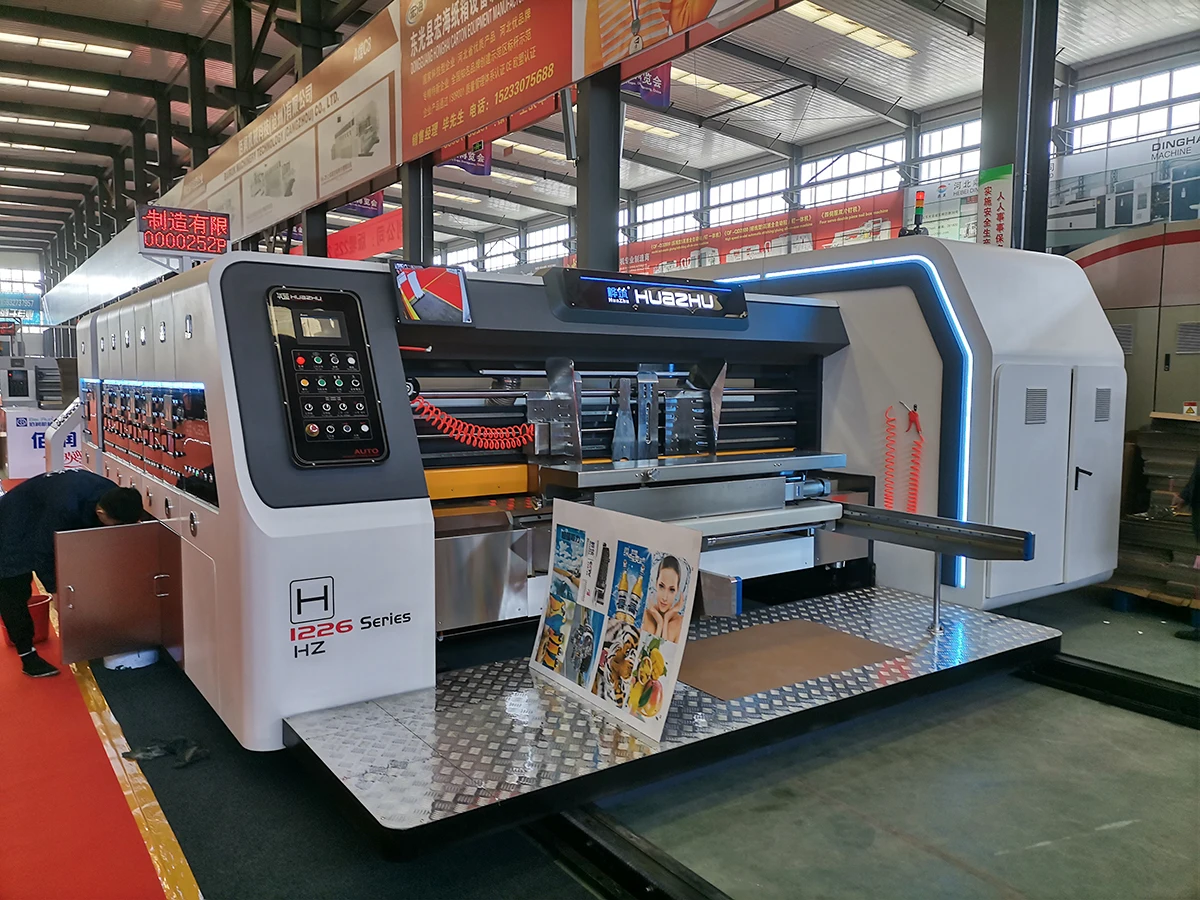

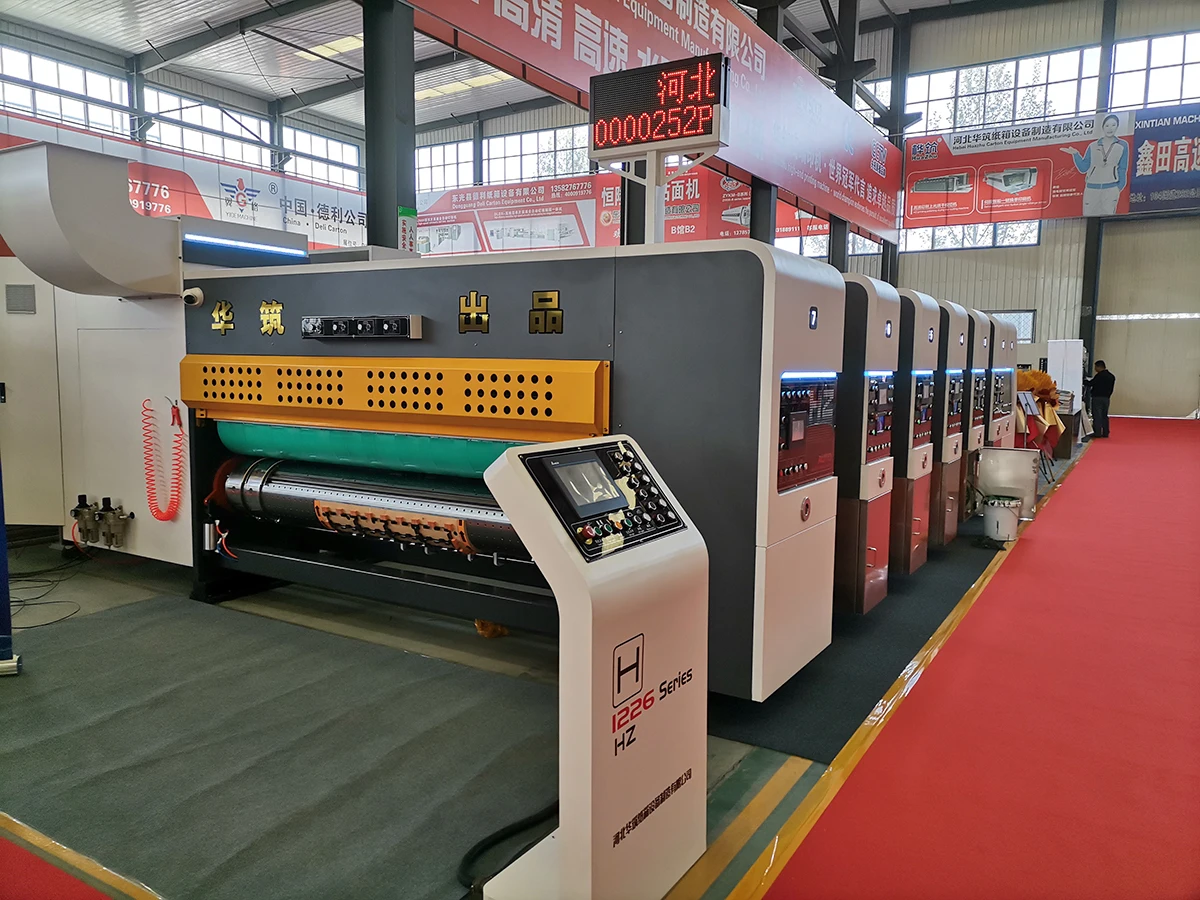

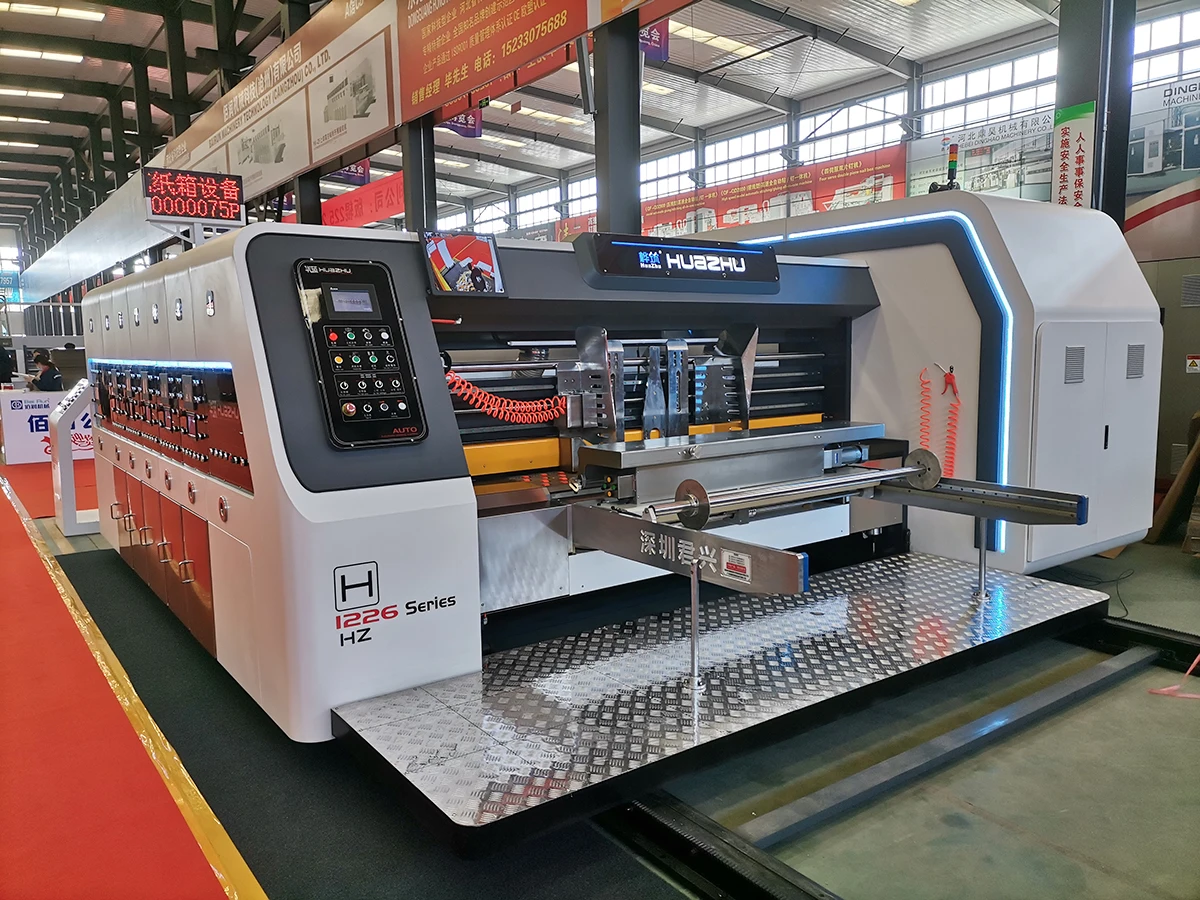

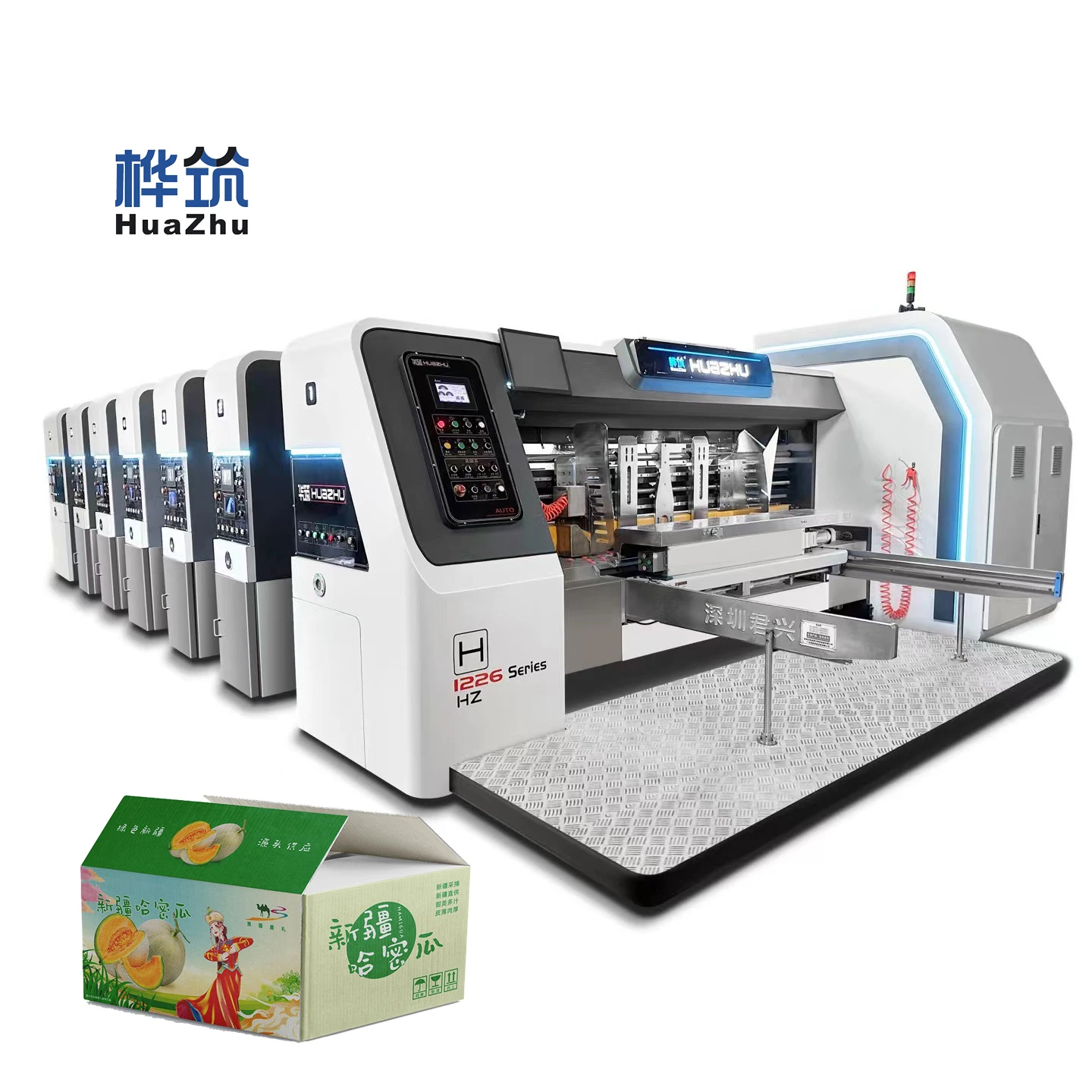

HUAZHU1226 intelligent high speed 1/2/3/4 color die cutter flexo printing machine
( all electric adjustment ,all intelligent , vacuum fransfer)
Machine features:
* In accordance with the European concept of design, more reliable functionality, security.* PLC touch screen control, including automatic counting, speed, quantity display, spacing, alarm lamp functions.
* Selection of high quality materials and accessories, all the transmission roller material is high quality steel,static and
static balance,after grinding hard chrome polishing treatment.
* The main transmission gear adopts high frequency quenching treatment of 40 chromium alloy steel, high precision grinding, gear precision, strong wear resistance, stable and reliable transmission, Rockwell hardness >60 degrees.
* The main transmission bearing is made of high quality bearings from Harbinoriginal factory.
* The main control appliances are Taiwan Delta, Germany Siemens.
* The application of keyless connecting ring, reduce center wear, maintain long-term printing and overprint accuracy.
* Host startup protection, host is not locked active can not start, prevent misoperation.
* Automatic reset, automatic return to zero.
* Effevtive printing : 1200*2600mm
* Maxium feeding : 1200*2700mm
* Design speed :260 pics/min ,running speed :200-230pics/min
* Labor requirements: 3 workers -5 workers
* Labor requirements: 3 workers -5 workers
Please provide your carton size and pictures
We will give you a personalized customized solution. welcome to contact us!
Model | 920 | 1224 | 1425 | 1628 |
Plate roller diameter, including plate | 308 | 408 | 482 | 535.5 |
Design speed | 260 | 260 | 260 | 260 |
Economic speed | 100-230 | 100-230 | 100-230 | 100-200 |
Machine width | 2400 | 2800 | 2900 | 3200 |
Max feeding size | 900X2100 | 1200X2500 | 1450X2600 | 1600X2900 |
Min feeding size | 270X500 | 320X650 | 350X650 | 380X650 |
Effective printing area | 900X2000 | 1200X2400 | 1400X2500 | 1600X2800 |
