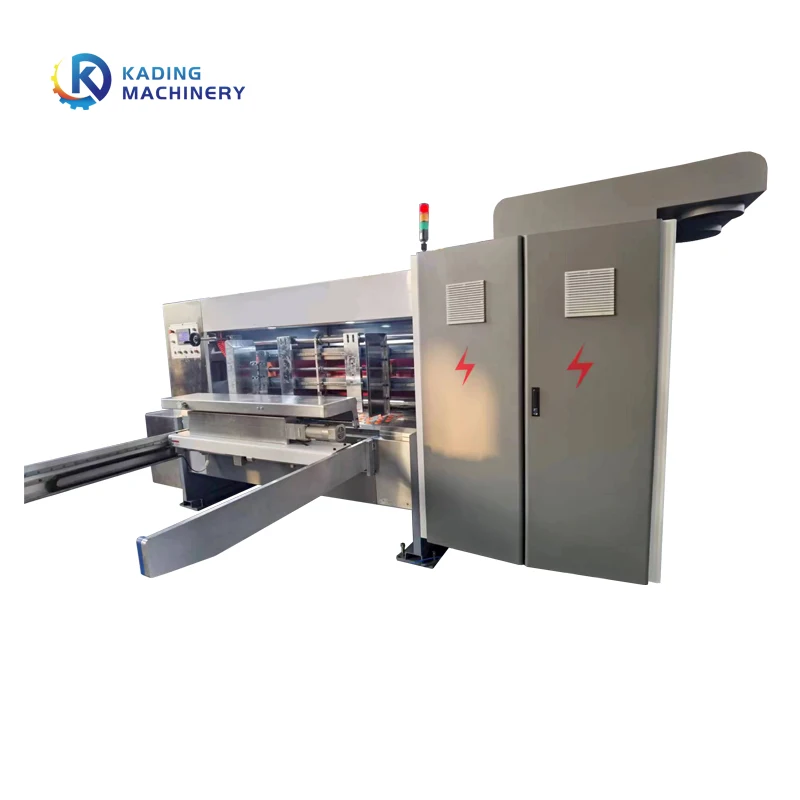

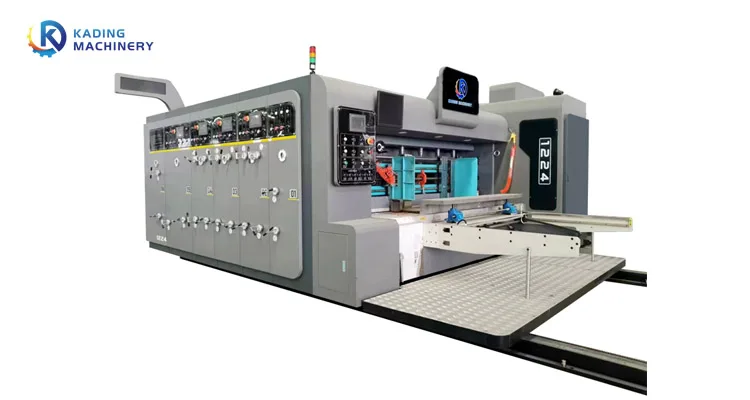

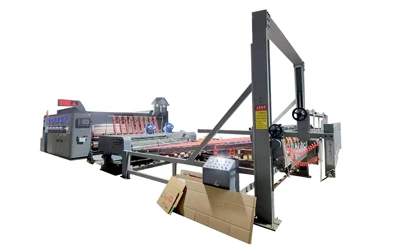

Automatic Corrugated Carton Boxes Multi color Printer Slotter Rotary Die Cutter Machine
- Category: >>>
- Supplier: Cangzhou Kading Carton Machinery Manufacturing Co. Ltd.
Share on (1601222856664):
Product Overview
Description
MACHINE DESCRIPTION
MACHINE SPECIFICATION
Model | KAF-1224 | KAF-1228 | KAF-1624 | |||
Max.mechanical speed (pcs/min) | 180 | 180 | 160 | |||
Max.feeding size (mm) | 1200*2600 | 1200*3000 | 1600*2600 | |||
Min.feeding size (mm) | 720*340 | 720*340 | 720*420 | |||
Skip feeding size (mm) | 1400*2600 | 1400*3000 | 1800*2600 | |||
Valid printing area (mm) | 1200*2400 | 1200*2800 | 1600*2400 | |||
Printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | |||
Min.slotting space (Upper knife)(mm) | 130*130*130*130 | 130*130*130*130 | 130*130*130*130 | |||
Min.slotting space (Lower knife)(mm) | 260*70*260*70 | 260*70*260*70 | 260*70*260*70 | |||
Max.slotting depth (mm) | 300 | 300 | 400 | |||
*If need higher speed or other configuration, please ask our salesman for more details | ||||||

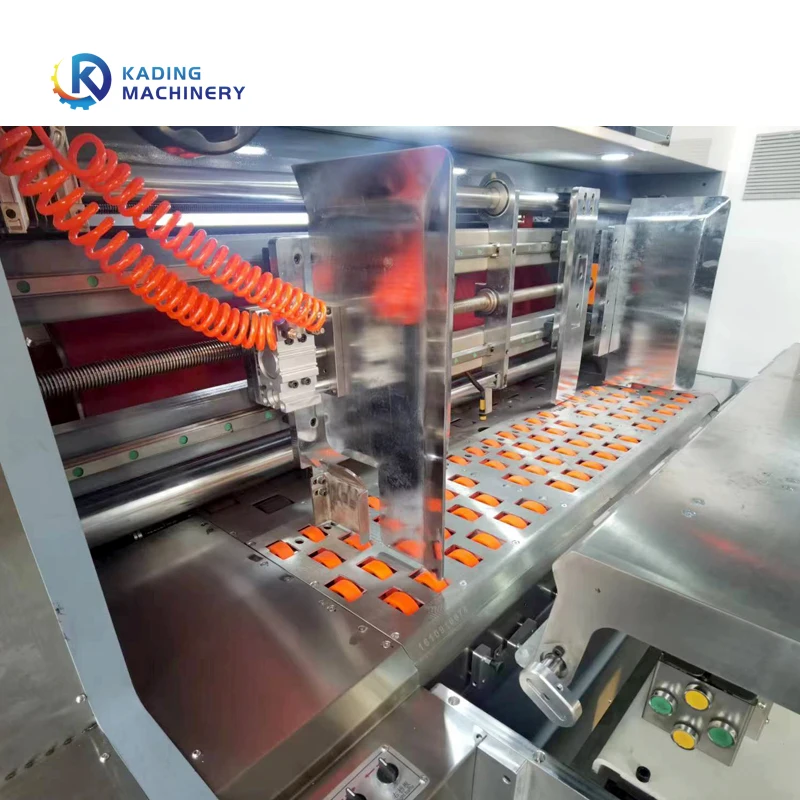

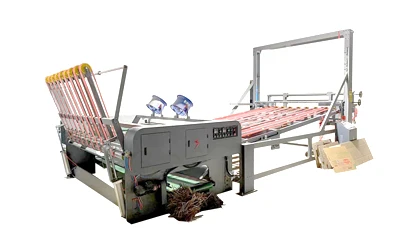

Feeding Unit
1.Lead edge feeder with vacuum transfer;
2.The sliding seat on the feeding table is made of aluminum alloy, which keep the machine work more smoothly and vibrate less;
3.The paper feeding table is steel material, the wall is strong and durable;
4.Automatically count the production quantities, touch screen display;
5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;
6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control switch, as to realize the emergency stop, stop or restore the paper feeding.
2.The sliding seat on the feeding table is made of aluminum alloy, which keep the machine work more smoothly and vibrate less;
3.The paper feeding table is steel material, the wall is strong and durable;
4.Automatically count the production quantities, touch screen display;
5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;
6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control switch, as to realize the emergency stop, stop or restore the paper feeding.
Printing Unit
1.The phase adjustment of the printing roller adopts the planetary gear structure, PC control, digital display, and the printing cylinder can be adjusted 360 degrees.
2.The printing roller is grinding and chrome hardening with the latitude and longitude lines center line, easy to hang printing plate;
3.Balance correction makes it more stably, and has no effect in high-speed running;
4.Hanging printing plate system makes it easy to change;
5.Zero function makes the order easy to change. Available foot pedal to changing the printing plate, and equipped with accuracy adjustment function;
6.Equipped with positive and negative accuracy adjustment, the machine running and stopping is very stably, and it's easy to change the printing plate.
2.The printing roller is grinding and chrome hardening with the latitude and longitude lines center line, easy to hang printing plate;
3.Balance correction makes it more stably, and has no effect in high-speed running;
4.Hanging printing plate system makes it easy to change;
5.Zero function makes the order easy to change. Available foot pedal to changing the printing plate, and equipped with accuracy adjustment function;
6.Equipped with positive and negative accuracy adjustment, the machine running and stopping is very stably, and it's easy to change the printing plate.
Slotting Unit
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade, which has the advantages of high hardness, good toughness, strong wear resistance and so on;
2.The slotting shaft is hard chromium plating on the surface;
3.The cutting holder, creasing wheel, position axis can be adjusted automatically;
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time. Theoretically ensure to return back the right position according to different size order;
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height;
6.Equipped with pre-creaser shaft before slotting;
7.Can produce large double stitching carton, and some irregular cartons;
8.Equipped with middle knife moving structure.
2.The slotting shaft is hard chromium plating on the surface;
3.The cutting holder, creasing wheel, position axis can be adjusted automatically;
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time. Theoretically ensure to return back the right position according to different size order;
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height;
6.Equipped with pre-creaser shaft before slotting;
7.Can produce large double stitching carton, and some irregular cartons;
8.Equipped with middle knife moving structure.

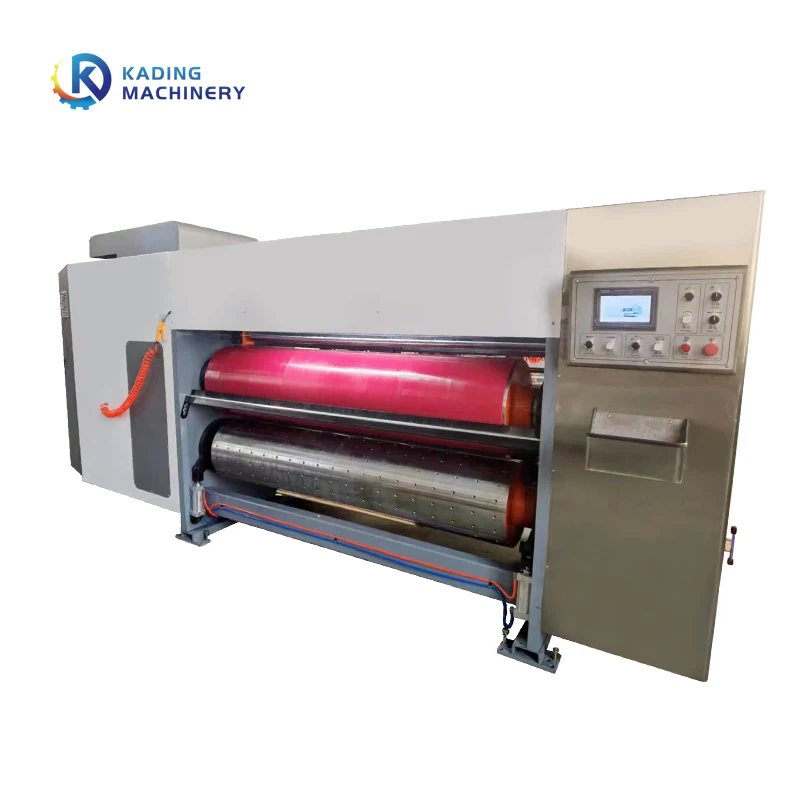

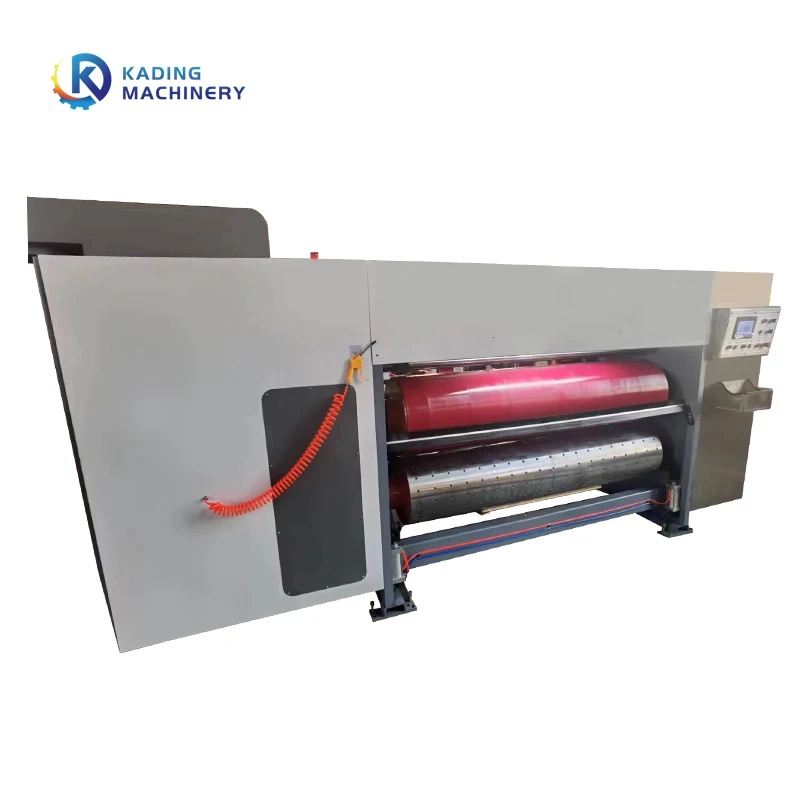

Die Cutting Unit
1.Adopt PLC color touch screen operation and monitor production status.
2.The phase is automatically adjusted after the value is set, which has both positioning accuracy and time saving.
3.Rubber pad roller reversing ±20mm automatic swimming device.
4.Die-cutting phase, computer and electric digital control.
5.The gap between the rubber pad roller and the knife mold roller is adjusted manually.
6.When the die cutter roller and the rubber roller are not working status without die-cutting process, the cylinder eccentric device is automatically or manually detached, which can reduce the no-load load of the machine and extend the life of the die cutter rubber and die cutting blade.
7.Cutting and smoothing structure of the rubber pad roller to keep the surface of the rubber pad flat.
8.Use auxiliary motor drive to ensure the performance of the whole machine and equipment stability.
2.The phase is automatically adjusted after the value is set, which has both positioning accuracy and time saving.
3.Rubber pad roller reversing ±20mm automatic swimming device.
4.Die-cutting phase, computer and electric digital control.
5.The gap between the rubber pad roller and the knife mold roller is adjusted manually.
6.When the die cutter roller and the rubber roller are not working status without die-cutting process, the cylinder eccentric device is automatically or manually detached, which can reduce the no-load load of the machine and extend the life of the die cutter rubber and die cutting blade.
7.Cutting and smoothing structure of the rubber pad roller to keep the surface of the rubber pad flat.
8.Use auxiliary motor drive to ensure the performance of the whole machine and equipment stability.

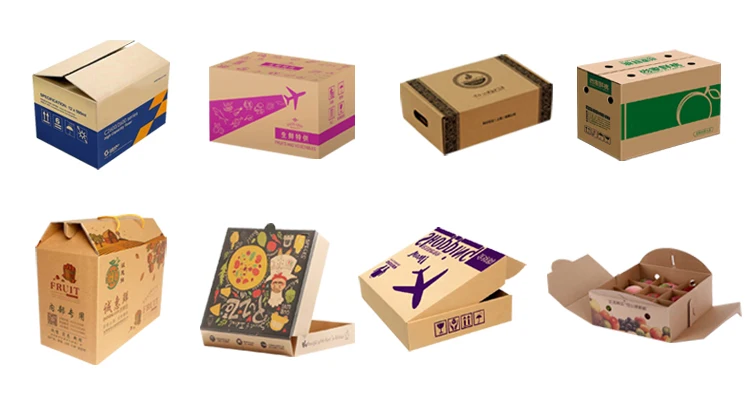

Our printing slotting die cutting machine can print in multicolor and can handle a variety of cartons such as: fruit boxes, pizza boxes, shipping cartons, electrical appliance outer boxes, etc.
FAQ
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual banding machine etc, usually we have stock available. But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual banding machine etc, usually we have stock available. But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
