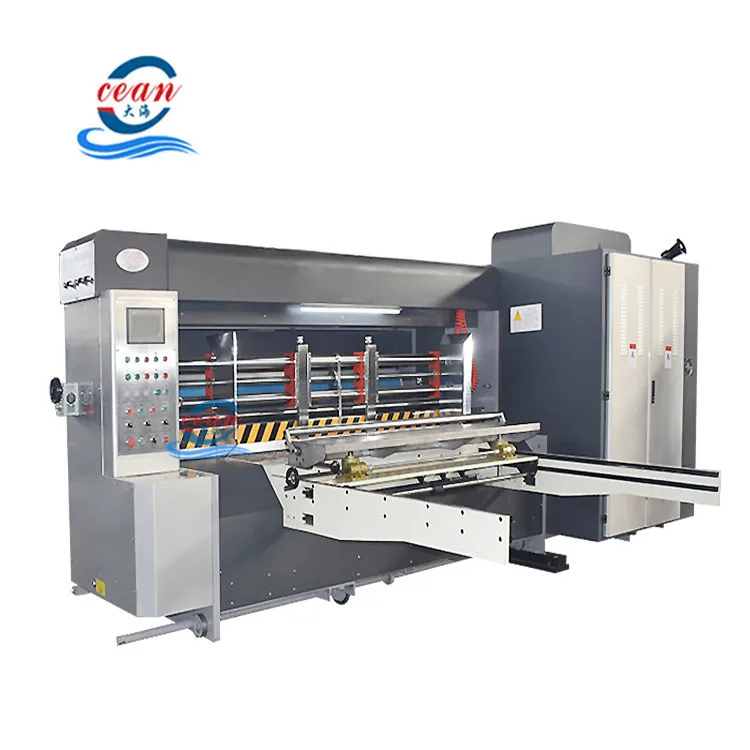

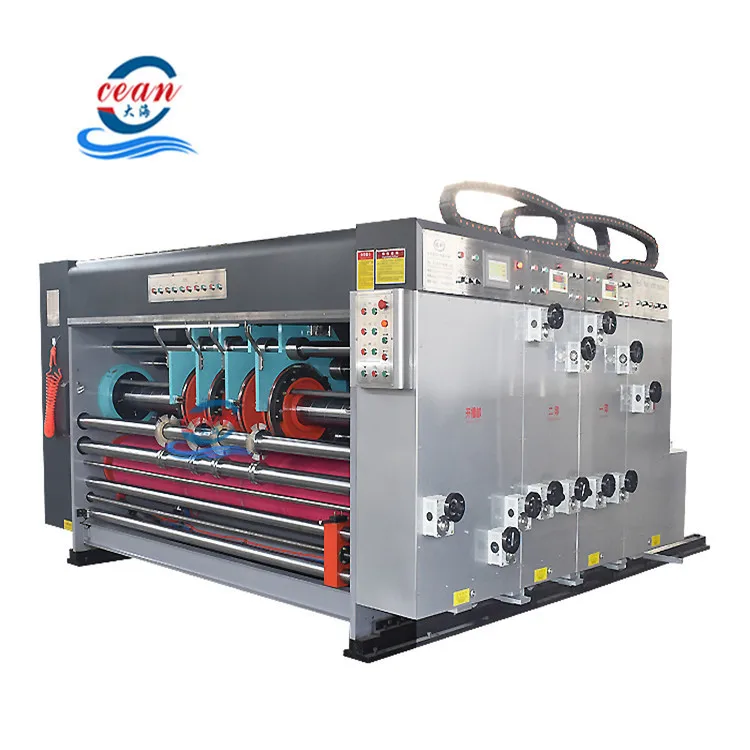

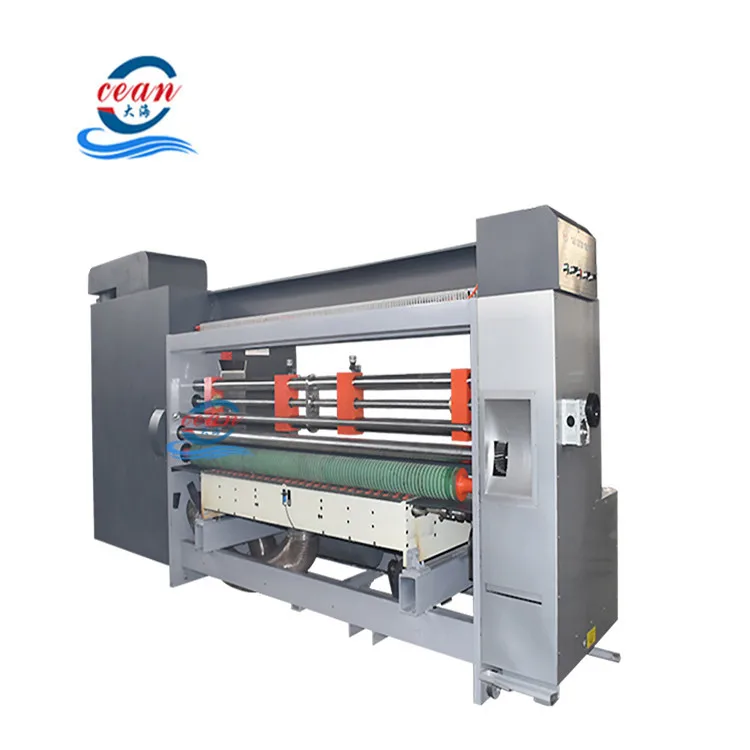

Ocean Automatic 2 Colors Printing Slotting Die Cutting Machine Printer Machine Corrugated Box Making Machine

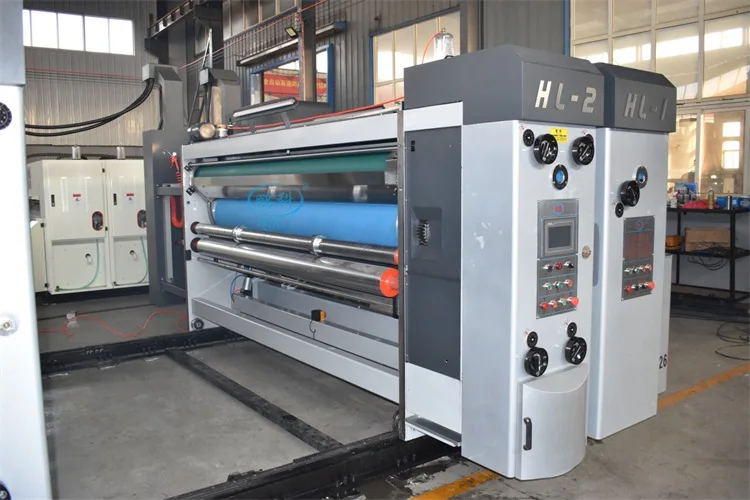

banner (2).jpgbanner .jpg




Function and characteristics:


1.The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE(optional).


2.Straight gear drive.The gears are after highfrequencyquenching and grinding


3.All the rollers are plated with chromium to encrease their hardness.


4.Spray circulated oillubrication.


5.Return to zero and adjust printing plate automatically.


6.Module-designed.Multicolor printing sections can be combined as your requests.


7.The side baffle of feeder and slotter are all adjusted electrically.


8.PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.


The Machine technique parameter:
































































































Moldel



920



1224



1426



1628



Max speed (pcs/min)



300



250



180



160



Feeding precision(mm)



±1



Min sheet size(mm)



300*600



420*600



450*600



450*600



Max sheet size(mm)



860*2100



1150*2500



1350*2700



1500*2900



Skip sheet size|(mm)



1200*2100



1500*2500



1800*2700



2000*2900



Max printing area(mm)



900*2000



1200*2400



1400*2600



1600*2800



Printing precision(mm)



±0.5



Plate thickness(mm)



7.2    



                       positive  knife


Min slotting distance 


                                                                                              negative knife



 130*130*130*130



 140*140*140*140



 150*150*150*150 



 230*65*230*65



 230*70*230*70



  240*75*240*75



Max slot depth



 230



 300



 360



 400



 increase the blade, increase  the slot depth



Slotting precision(mm)



±1



Max die cutting size(mm)



 



 



 



 



Die cutting precision(mm)



±1

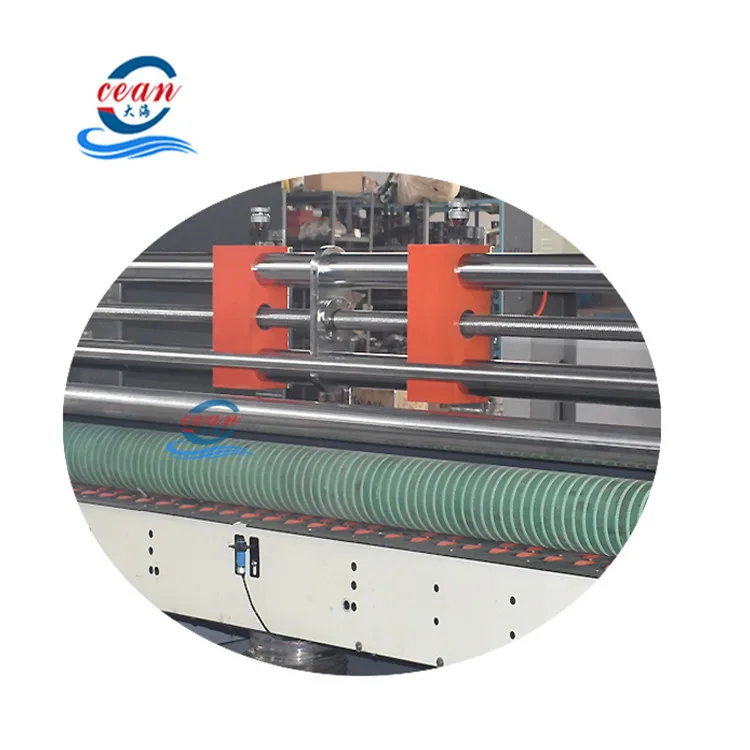

Feeding unit:


Leading edge paper feeding adopt Vacuum adsorption,frequency conversion control air volume,increase paperboard conveying stability and accuracy.Double-row paper feed roller to improve the accuracy of paper feeding.

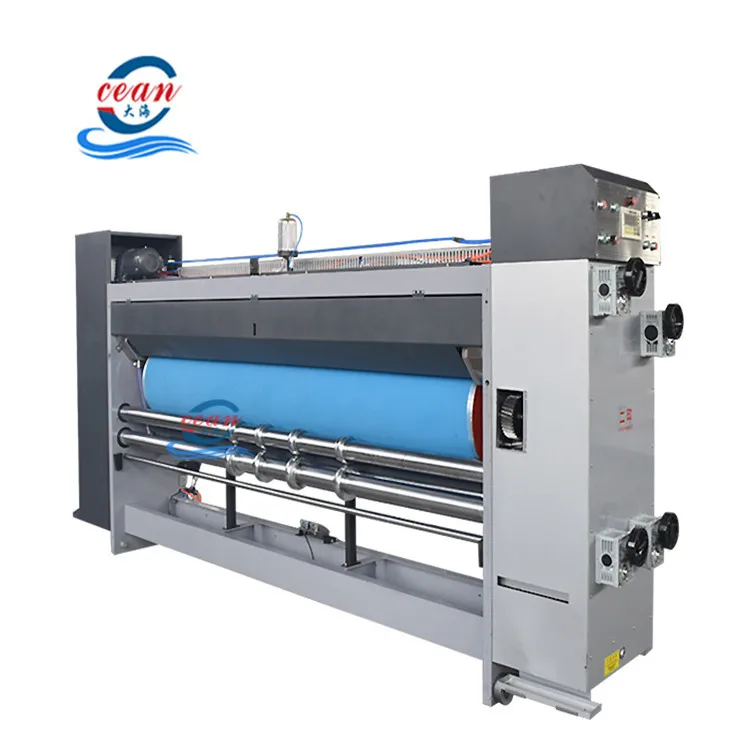

Printing unit:


1.The printing roller and the transmission shaft are all adopt high quality steel,computer dynamic balancing correction,eliminate the centrifugal force.Grinding process,hard chrome plating.


2.The printing roller adopts hangs plate device,ratchet fixed volume edition axis,hang all editions of slot,foot switch control of positive and reverse. It’s convenient and fast to load and unload printing plate.




Slotting unit:


Slotted cutter wheel form:double blade single shaft.Pressure wheel,blade holder traverse move,phase adjustment,reset,etc.All adopt computer control(automatic or manual)electric control,change orders qulickly.

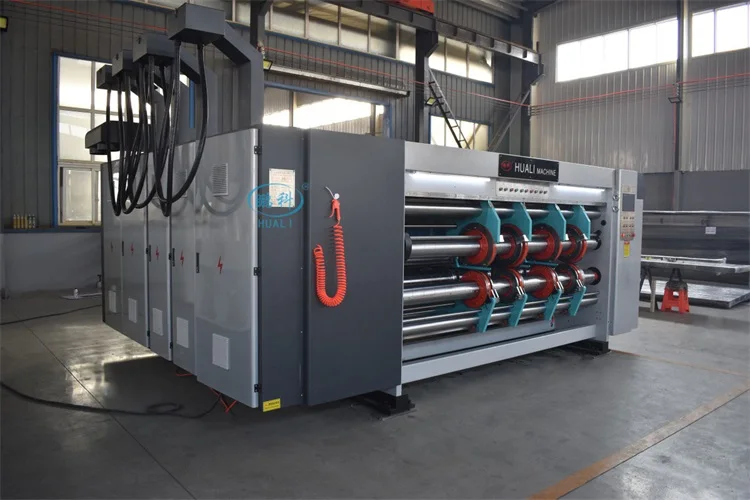

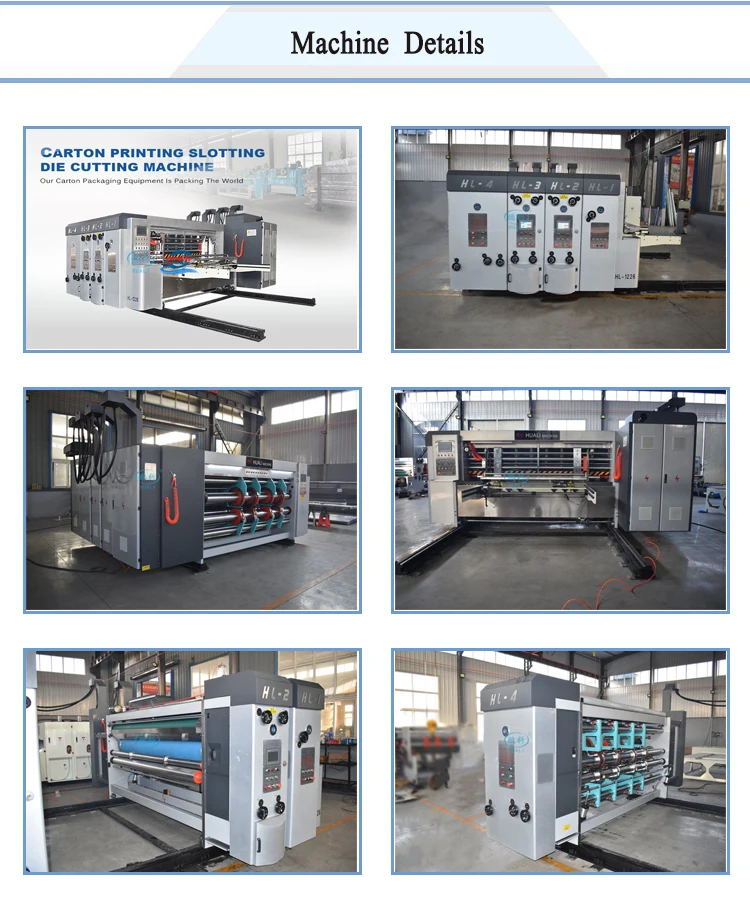

Machine details.jpg.jpg.jpg.jpg.jpg.jpg.jpg.jpgFAQ1.jpg
