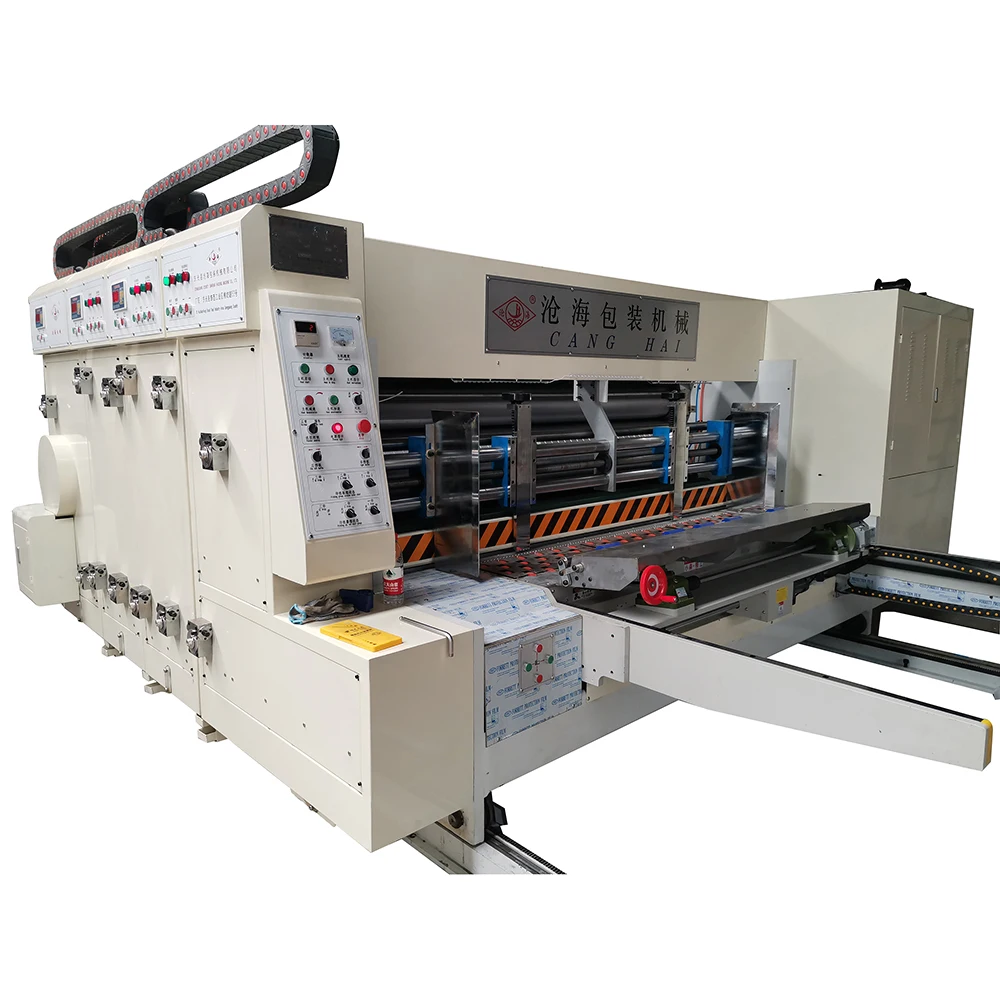

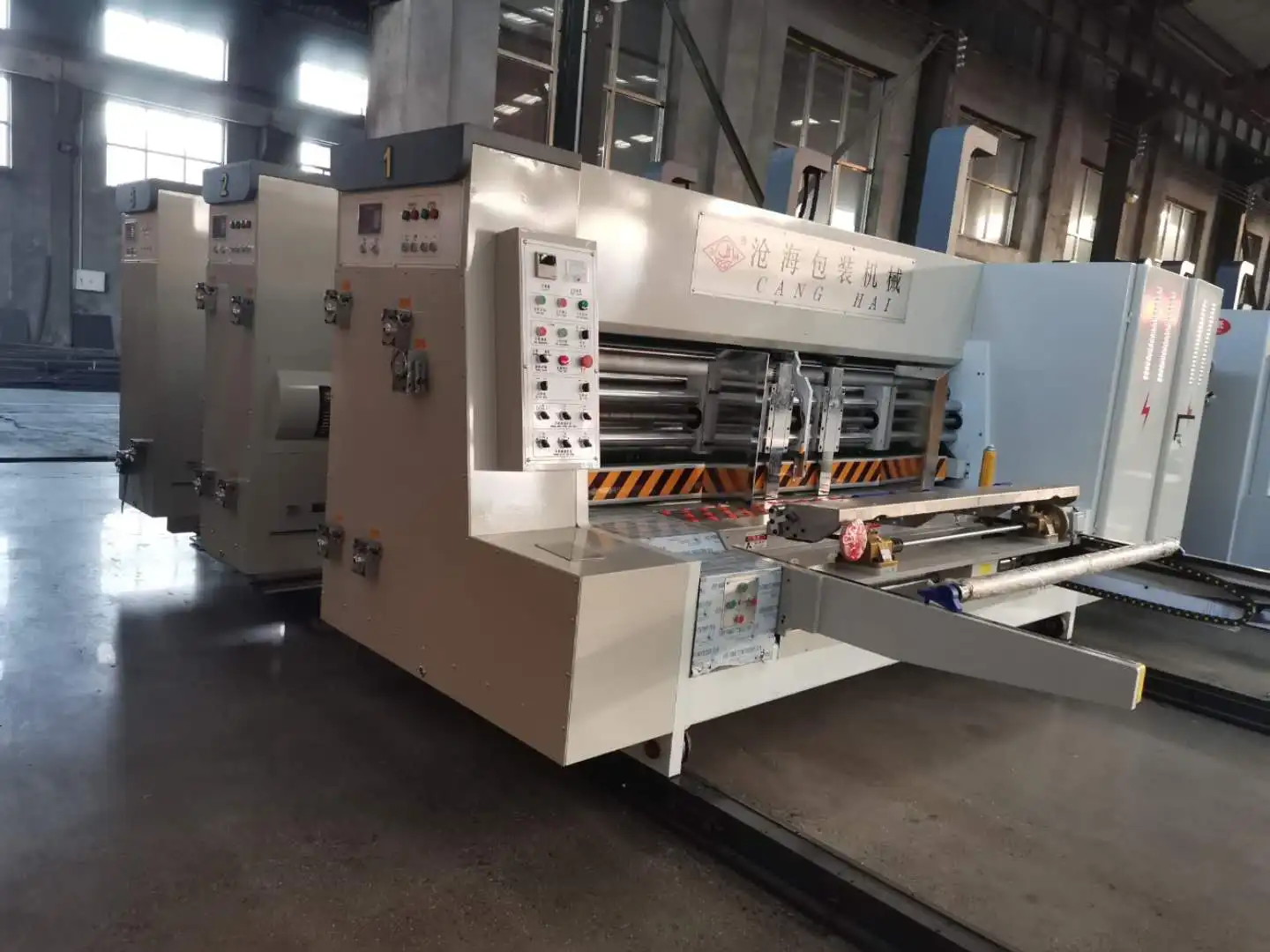

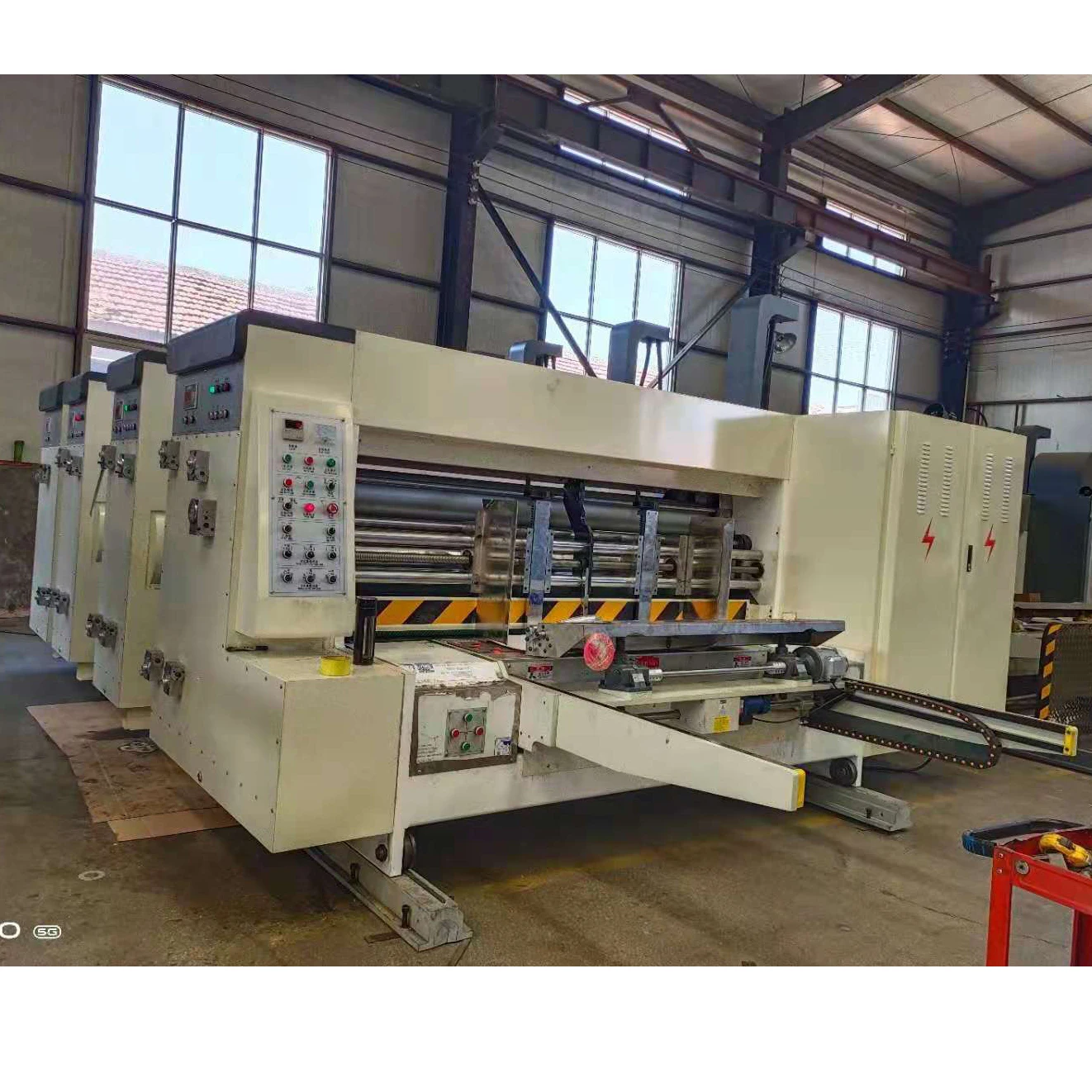

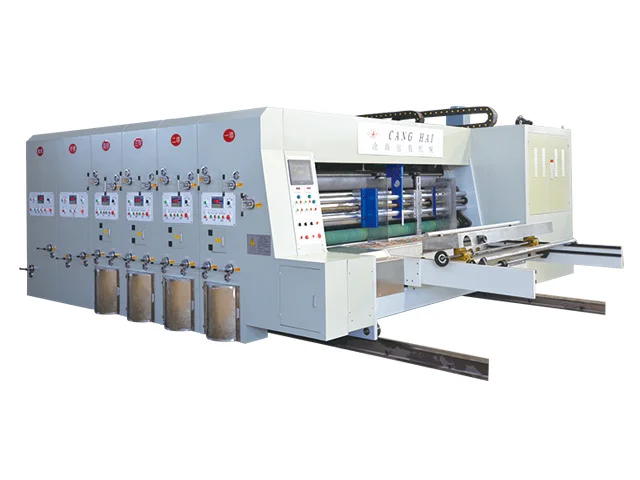

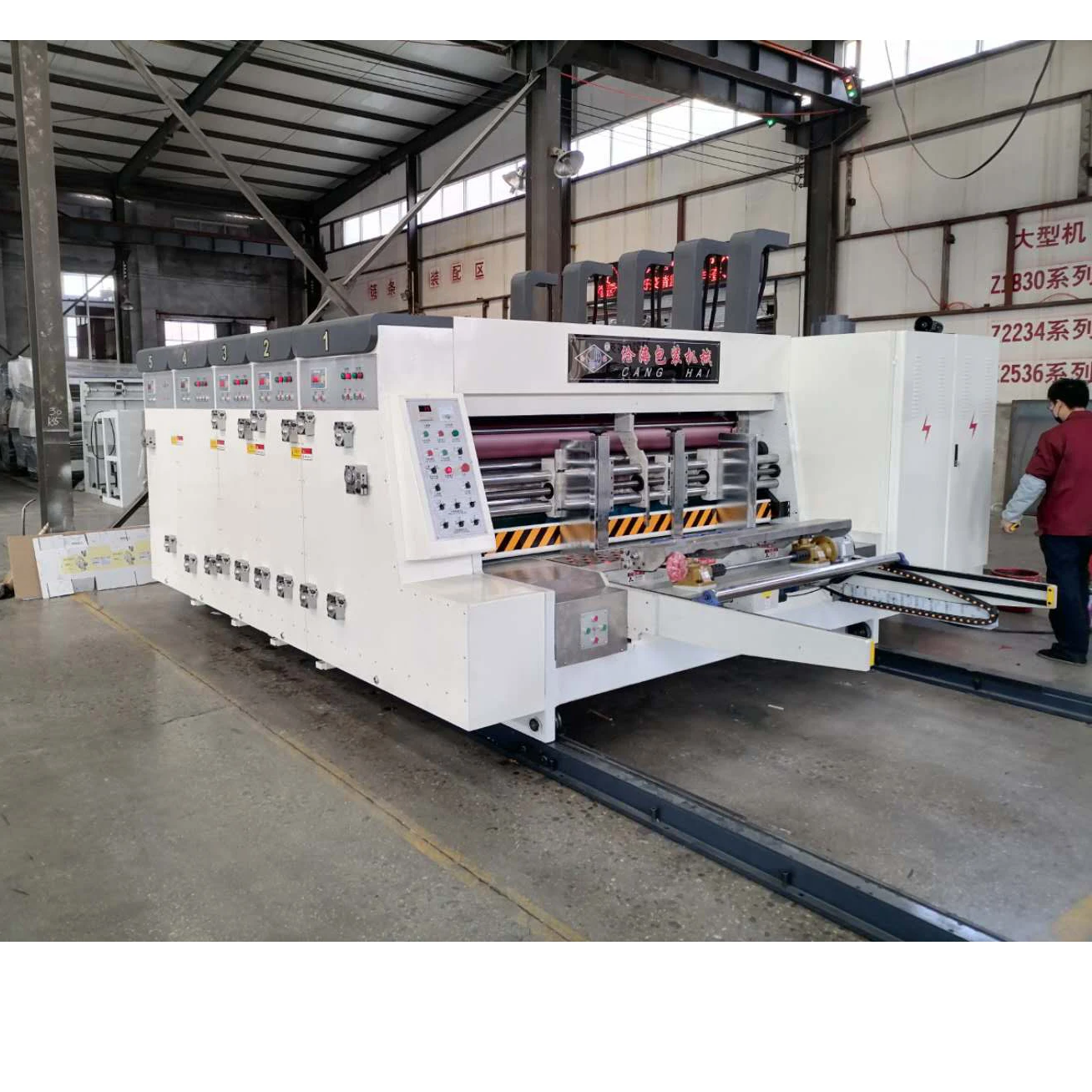

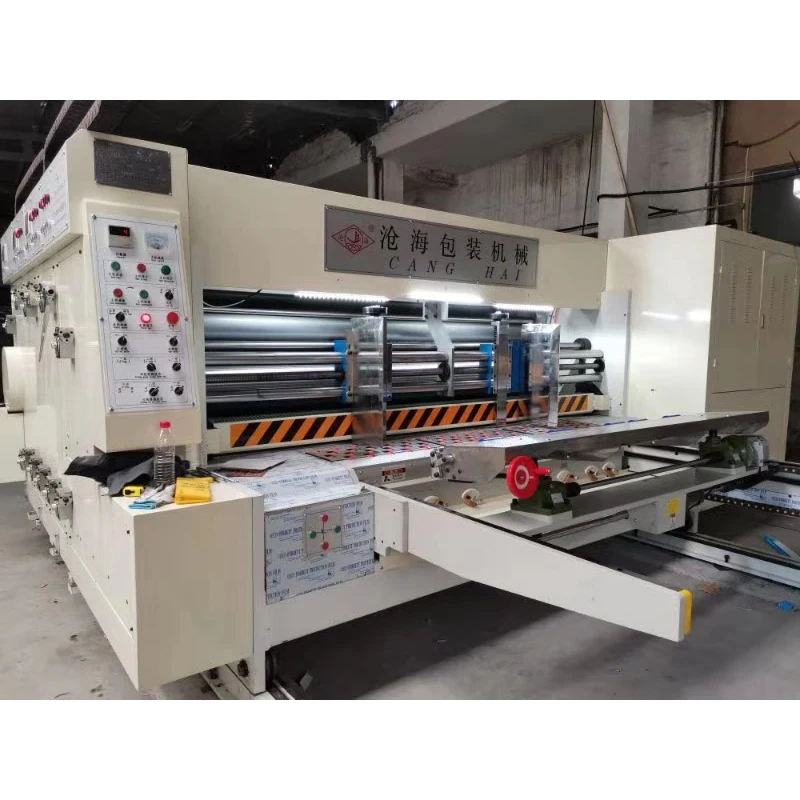

mini slotter machine carton printing slotting die cutting machine and cardboard printing machine

Modle

1428

1630

1828

2230

2530

Max.machine speed(pcs/min)

100

100

80

80

80

Max.feeding  size(mm)

1500×2900

1660×3100

1800×2900

2200×3100

2500×3100

Skip  feeding size(mm)

1500×2900

2000×3100

1800×2900

2200×3100

2500×3100

Max  printing area(mm)

1430×2800

1600×3000

1800×2800

2200×3000

2500×3000

Min.feeding size(mm)

350×750

400×750

500×890

550×890

600×890

Max.Depth of slotting(mm)

390

430

490

580

660

 Printing plate thickness(mm)

6

thickness of paper

2.5—12mm

Registration precision(mm)

≤±0.6(four color)

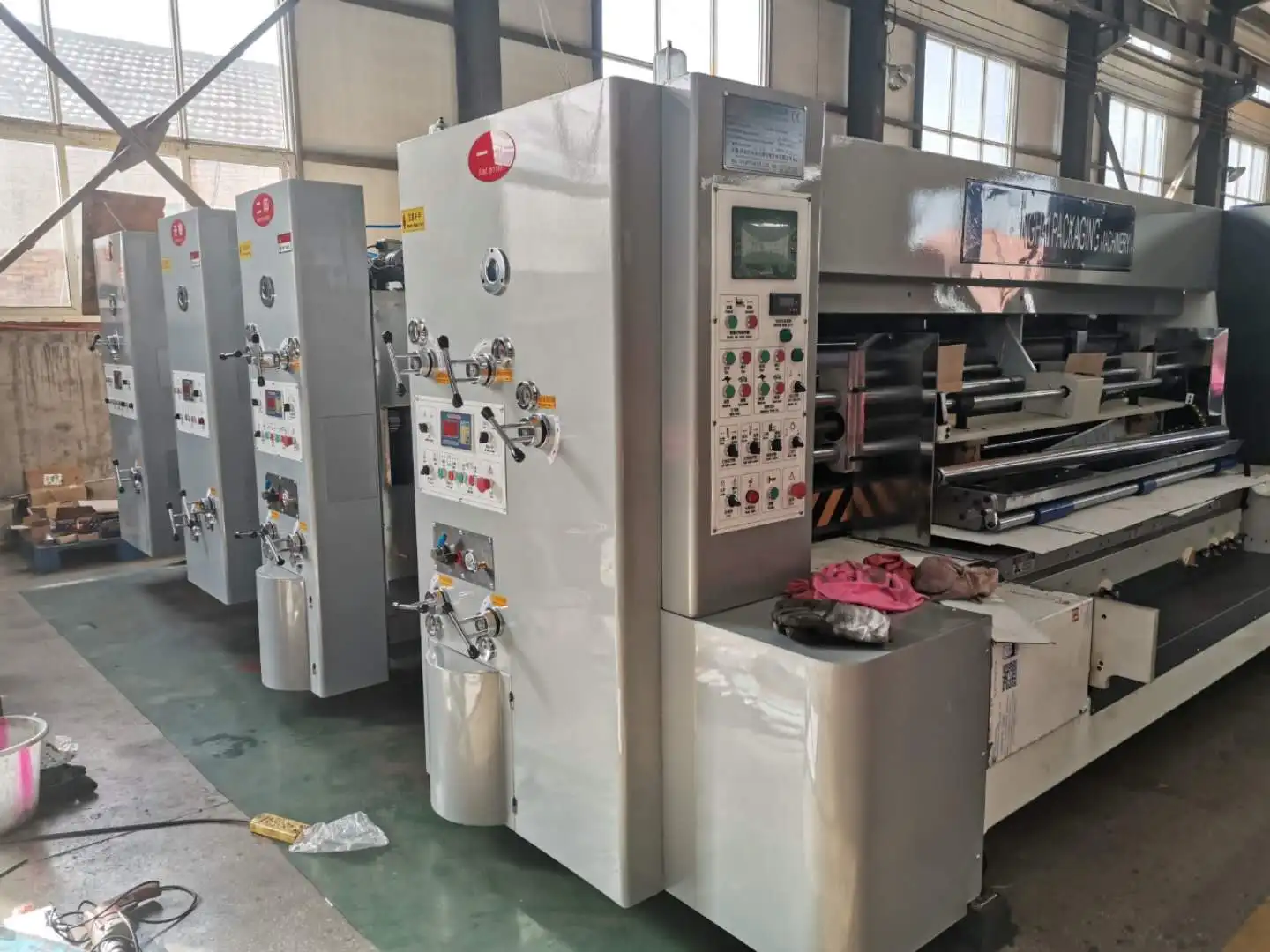

Printing unit

4.High precision dynamic balance anilox, fine printing effect 180,200,220 items by choose

2.The print phase 360℃ adjustment, print roller can be adjusted horizontally ranging from±10mm

3.The interval of transmission roller ,paper press roller ,and rubber roller and anilox roller adopt the self-lock structure.

4.Brush plate reset ,and ink clean mechanism

Print roller adopt options glue plate or handing plate ,has rapid handing plate mechanism

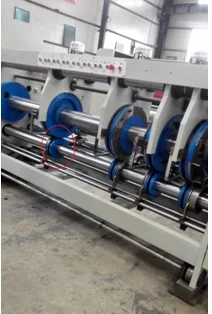

Slotter unit

1.the slot knife thickness is 7 millimeter, which is from high quality alloy, tllth profile in sharp cutting, high wearable.

2.the slot knife with phasing and box height adjustment device,

PLC control the dynamic 360 degree adjustment.

3.the slot knife seat lateral movement uses the electric control, in fast and accurate.

4. regards the user’s need it can match the punch device.

5.slot department add prepress wheel to improve the cardboard

resistant to compression ability.

6.the line ball cut the angle turn place addition compressing wheel disk ,

guaranteed the mouth paper box sticks the place to compress

Die cutter unit

1.die cut unit roller adopt high quality steel, plated with rigid chrome. High precision dynamic and static balance increase running stable.

2.mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut this can lighten machine load and increase rubber roller and die knife life.

3.matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly.

4. the mechanical transmission rubber roller move 40mm in left and right side. It also with wear and tear regular could increase the life of rubber roller

5.die cut phase adopt phase device and electric digital 360 degree adjustment.

6.machine with rubber amend device, the rubber roller can be used after many times amend.

7.free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency.(optional)

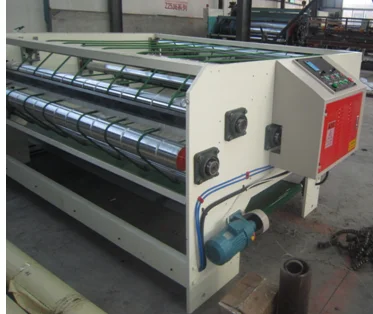

Vibrate unit

1. The machine have move floor rail for all  machine , it can Separate or merge from front machine quick

2. The machine can adopt  Frequency conversion control , two motor

control speed . the effect will better .

3.The vibration have single vibration and double vibration ,

based on

the cardboard size , choice the speed .

4.Main motor Power : 3.7KW .

The machine transfer side , the power is 0.37kw

Size :3000*2200*1300

Weight:1600kg

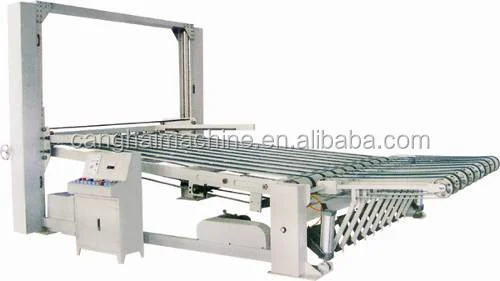

Staker unit

1) The paper can then manually adjust automatically.
2) splicing speed and feed speed is synchronization, then the paper speed can    be adjusted independently
3) The stack height of 1600 mm
4) bed units lifting strength chain drive.
5) The splicing platform equipped with anti-fall device to ensure operator safety.
6) take action paper hanging pressure plates stacked in cardboard to a certain height, then lift up out of cardboard board automatically.
7) plane wrinkle belt, to prevent the cardboard down.
8) received a separate paper to adjust the belt tension arm, without the belt length limit.
