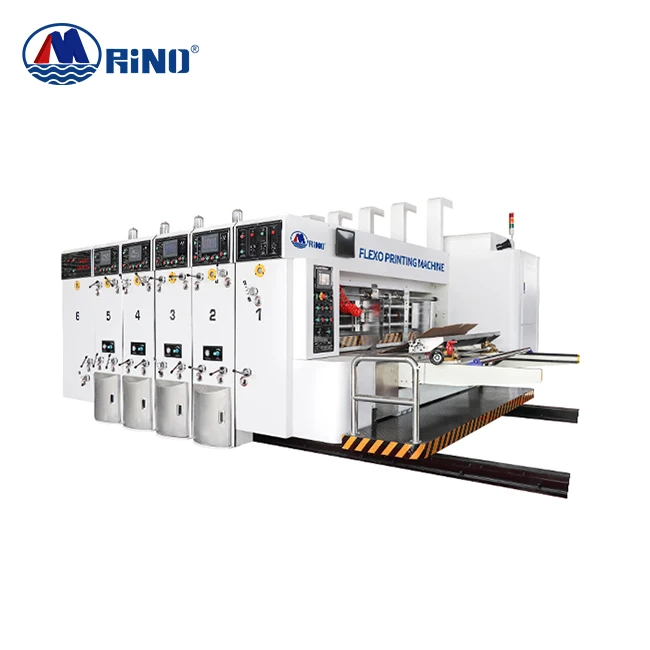

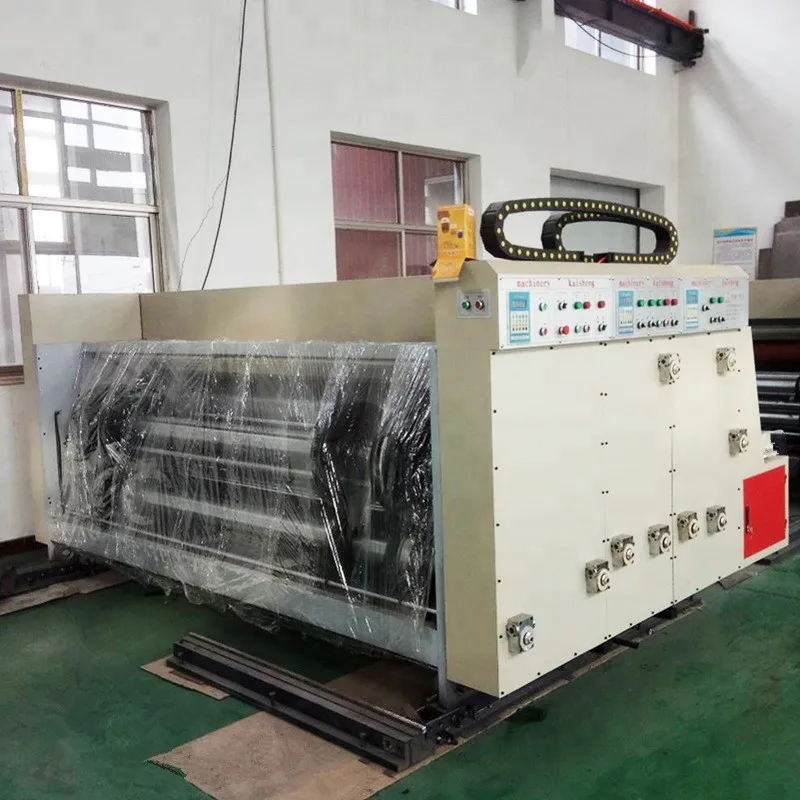

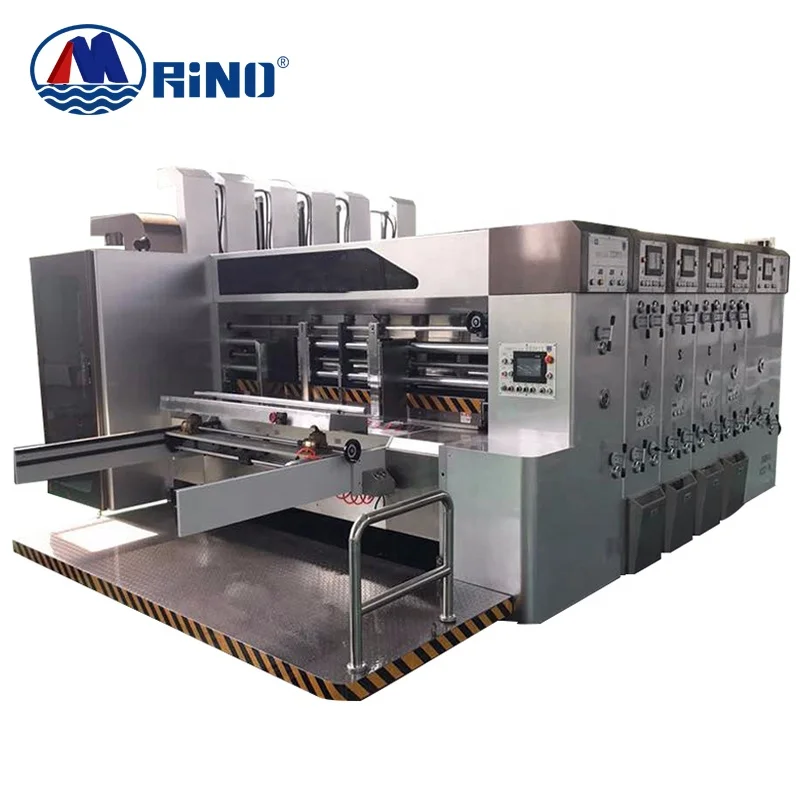

cardboard making machine Lead Edge Feeding Large Flexo Printing Machine

This equipment can complete multiple processes such as multi-color printing, creasing, slotting, trimming, corner cutting, die cutting, and punching of cardboard at one time. The equipment adopts lead edge adsorption paper feeding, the host and fan frequency converter control the start and stop, The printing accuracy of this machine can be adjusted from the paper feeding , operation and paper receiving direction.Each part is electrically separated and combined, pneumatic locking, pneumatic lifting, automatic ink distribution, and ink shortage alarm system to ensure the normal operation of the whole machine, fine printing patterns and accurate color registration.

Width

mm

3200

Maximum Paper feeding size

mm

1400×3000

Effective printing size

mm

1400×2800

Minimum Paper feeding size

mm

400×650

Thickness of printing plate

mm

              7.2

Design speed

sheets/min

               200

Economic speed

                 150-180

Main motor

kw

15-20

Total power

kw

30-45

Weight

T

15

Tinted precision

mm

±0.5

Die cutting precision

mm

±1.5

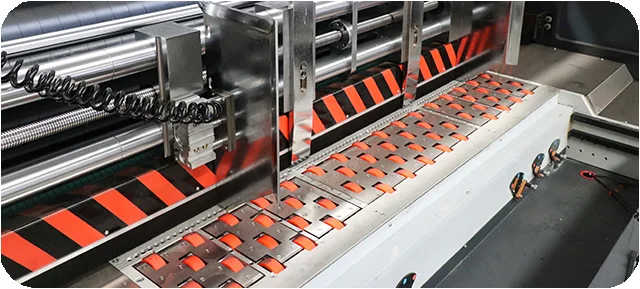

 Lead edge feeding unit

The electric control machine is equipped with an alarm bell, which keeps ringing to warn while operating to ensure the safety of operators.

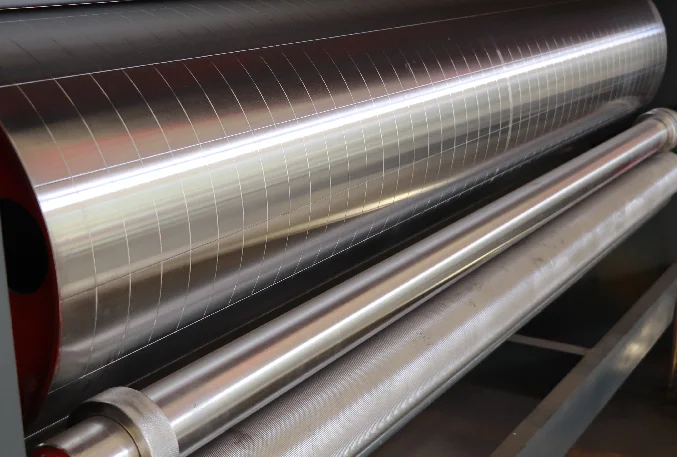

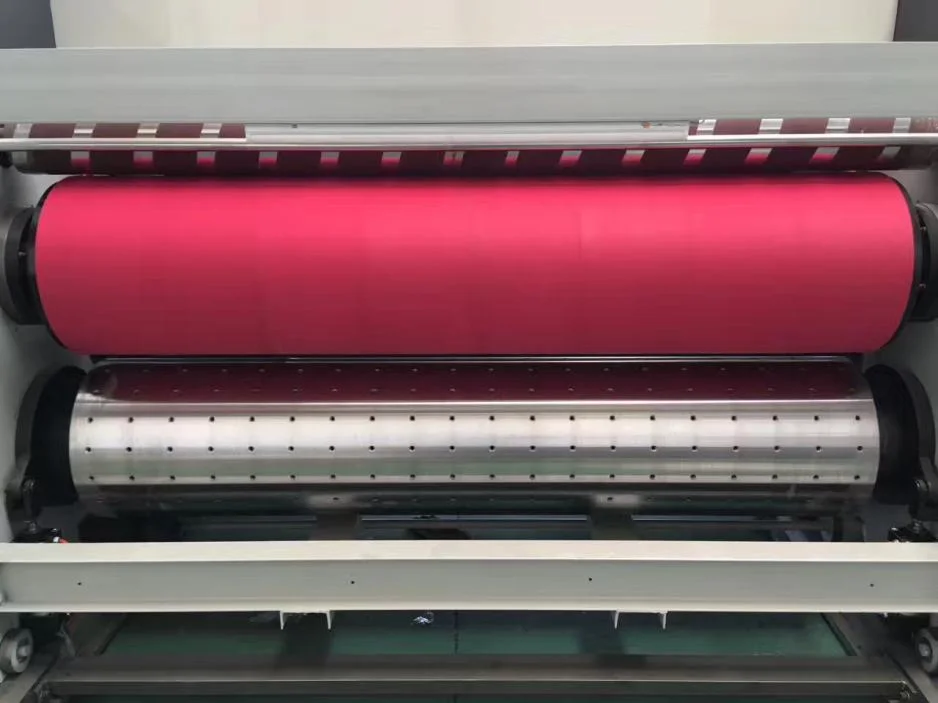

 Printing unit

The surface of the steel pipe is ground and plated with hard chrome plated.Do balance correction, stable operation.

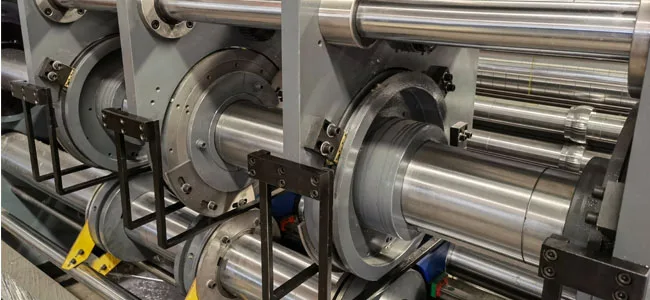

Slotting unit

Perform balance correction and run smoothly.

Manual adjustment of the pressure wheel gap dial, the adjustment range is 0-12mm.

Die cutting unit

The surface of cast steel material is ground and plated with hard chromium.Balancing correction to increase running stability.

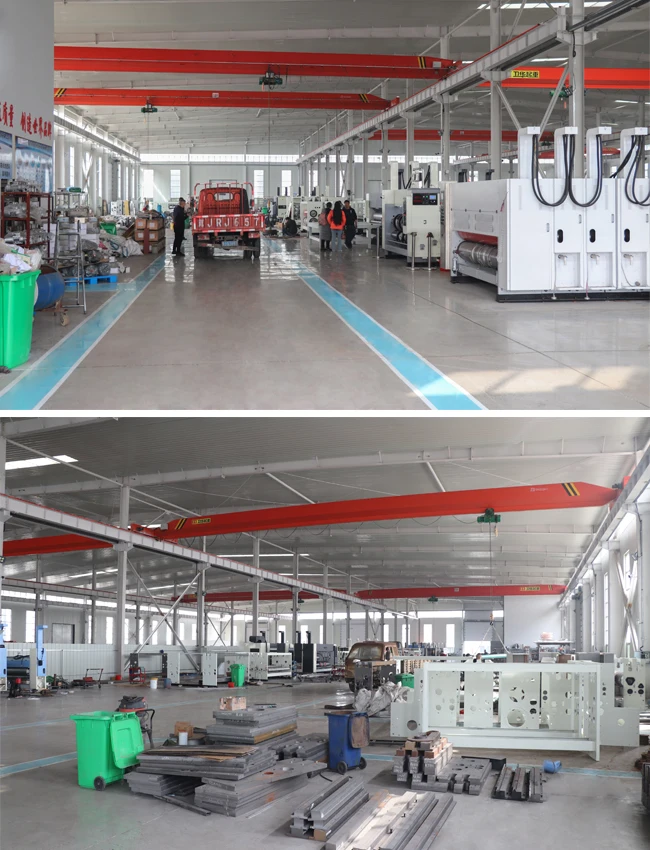

    Rino is a fast growing group company mainly committed to manufacturing and exporting high quality products with reasonable price to fulfill the needs of the most rigorous buyers. With the development of 20 years  ,Rino Group already established flexo printing machine plant ,manual die cutting machine plant ,corrugated production line plant in Hebei province , carton packaging plant and trade department in Jinan Shandong province, Oversea branch in Chennai India.

    Our company has nearly 20 years of experience in carton packaging production and professional technical team which can provide reasonable packaging solutions, after-sales service, timely and comprehensive  for each customer. Aiming at offering the most suitable solution and professional service, Persisting in client requirement oriented, offering high quality, reasonable price and cordial service which have formed a unique service mode.

    We sincerely expecting for cooperation with all global clients on the basis of Mutual-Trust, Mutual-Understanding, and Mutual-Benefit.

1.Q:What is the machine warranty?

A:one year.

2.Q:Does your machine with CE certificate?

A:Yes, issued by Italian organization

3.Q:What is the production time while placing order?

A:About 20 days

4.Q:What is the delivery time?

A:15-30days after get the payment.

5.Q:Can your company handle shipping for customers?

A:Yes, just give us destination sea port or container yard

6.Q:Does the packing strong?

A:Yes, all packages are double-checking before delivery

7.Q:How about after-sales service process?

A: We offer life time A.S.S. Please feel free to contact after-sales department.

8.Q:Do you have machines in stock?

A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
