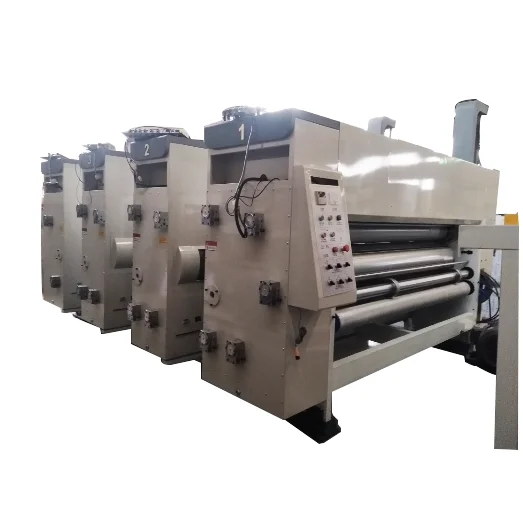

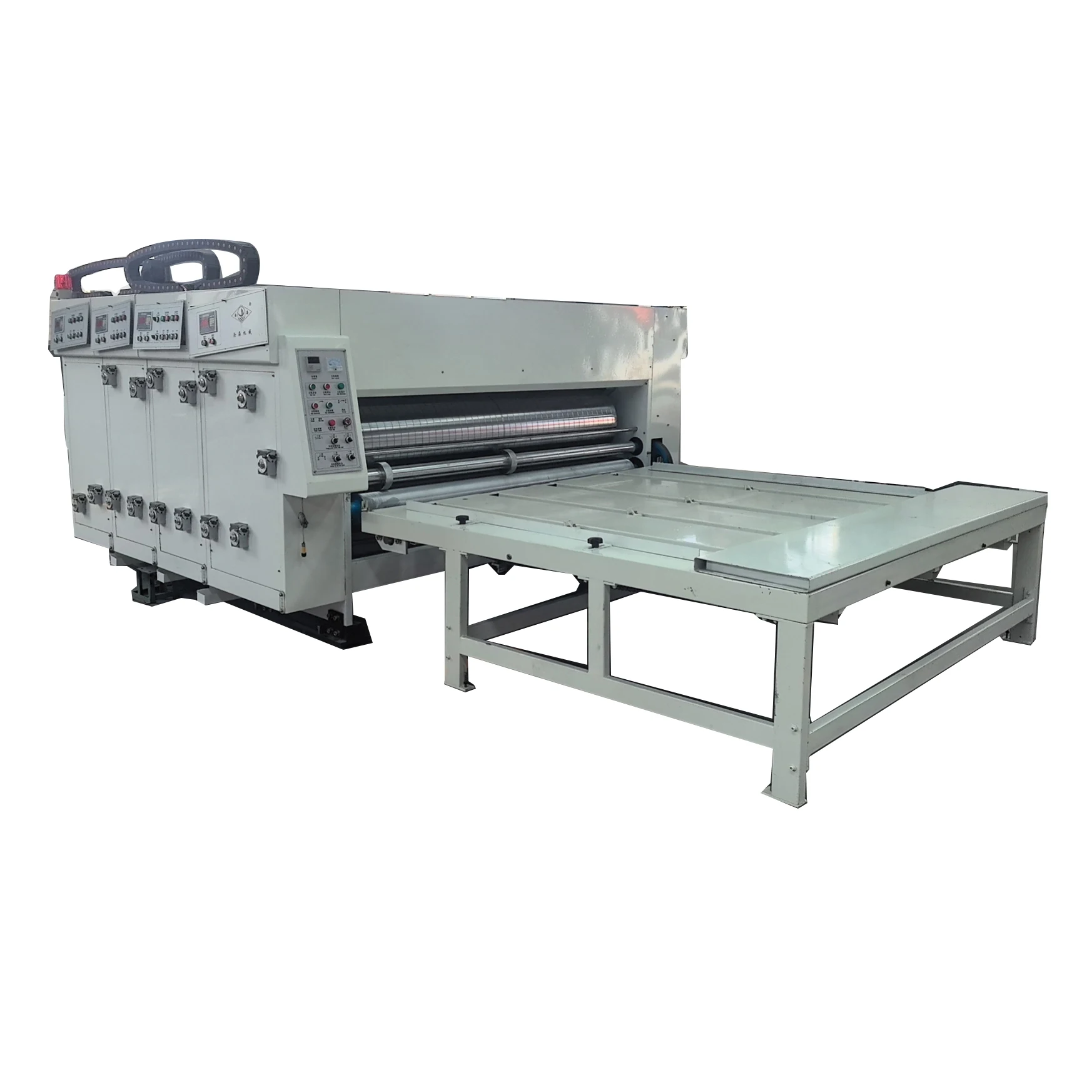

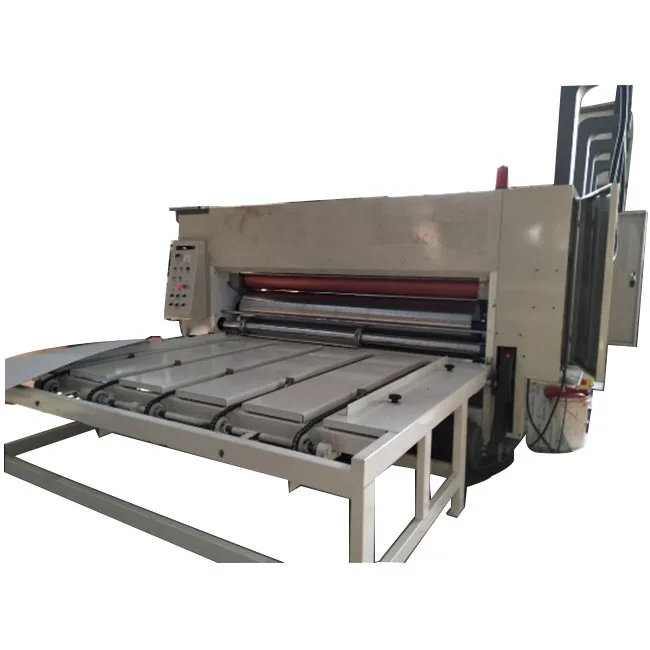

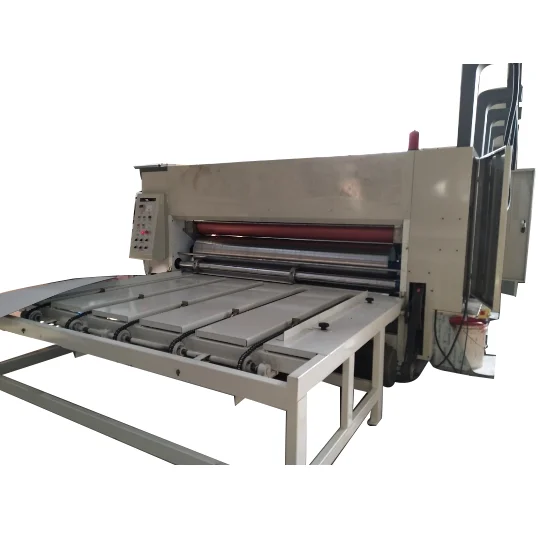

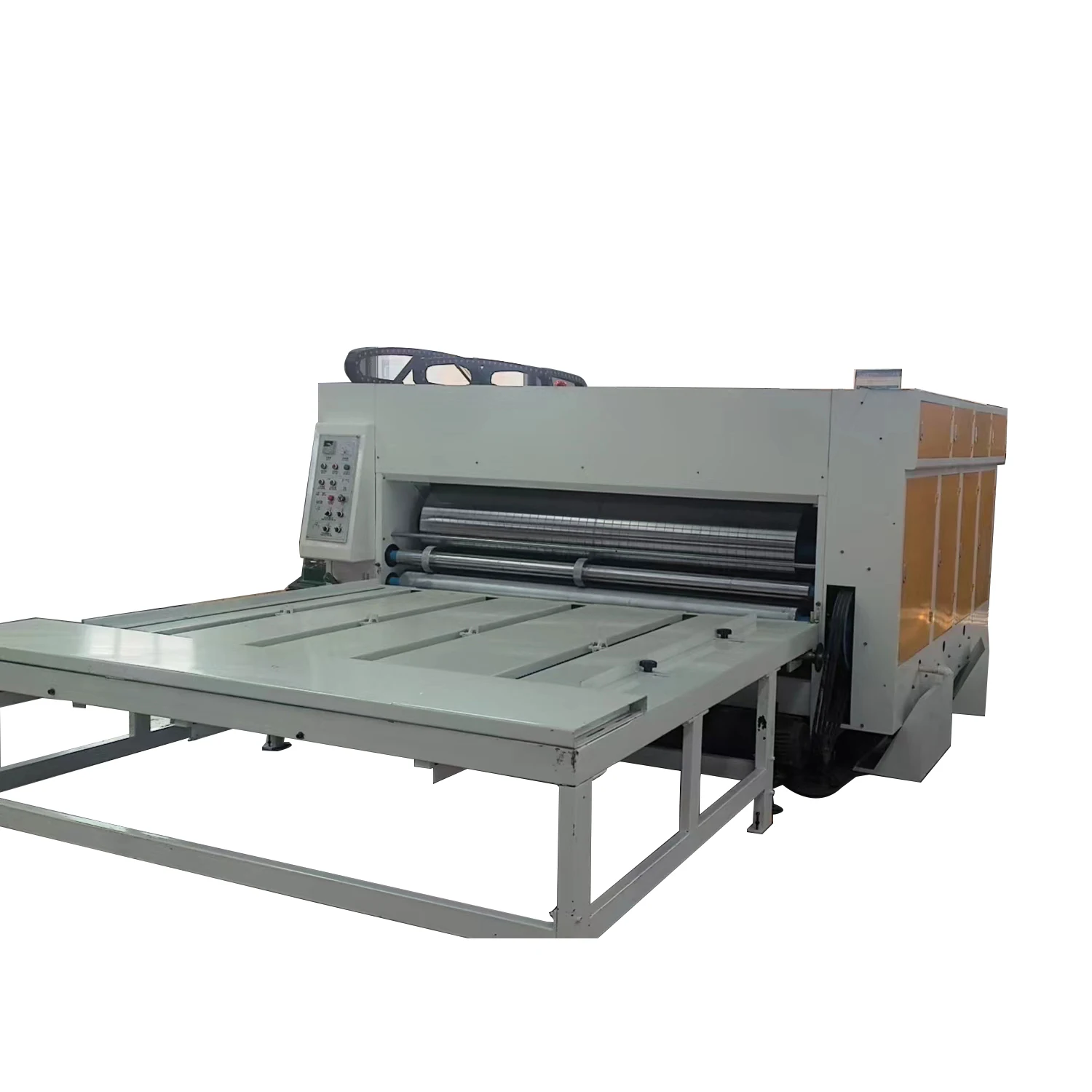

Hot Sale in stock Semi Automatic 2 Color die cutting Machine Chain Feeding Printer Slotter Die Cutter Machine

Product Overview

Description

Modle		1020	1428	1630
Max.machine speed(pcs/min)		60	60	60
Max.feeding size(mm)		920×2100	1450×2900	1660×3100
Skip printing area(mm)		920×2000	1450×2800	1600×3000
normal slot Min.feeding size(mm)		250×530	380×550	400×550
Linkage  Min.feeding size(mm)			380×750	400×750
Max.Depth of slotting(mm)		250	390	430
Printing plate thickness(mm)		6
cardboard thickness(layers)		3,5,7
Slot width (mm)		7
Cut corner deepness (mm)		50
Registration precision (mm)		≤0.6
Slotting precision (mm)		≤±1.2
die cutting precision (mm)		≤±1.2
Ordinary Min.slotting interval (mm)	Normal	160×160×160×160	125×125×125×125	125×125×125×125
	Reverse	240×80×240×80	215×40×215×40	215×40×215×40
Linkage Min.slotting interval (mm)	Normal		180×180×180×180	180×180×180×180
	Reverse		270×65×270×65	270×65×270×65

Machine features

1. It adopts chain-paper feeding.

2. transmission gear made from high-hardness heat quality steel which produced according to high precisin requirements and adopt”+” slippery lumps gear transmission device and spray lubrication system.

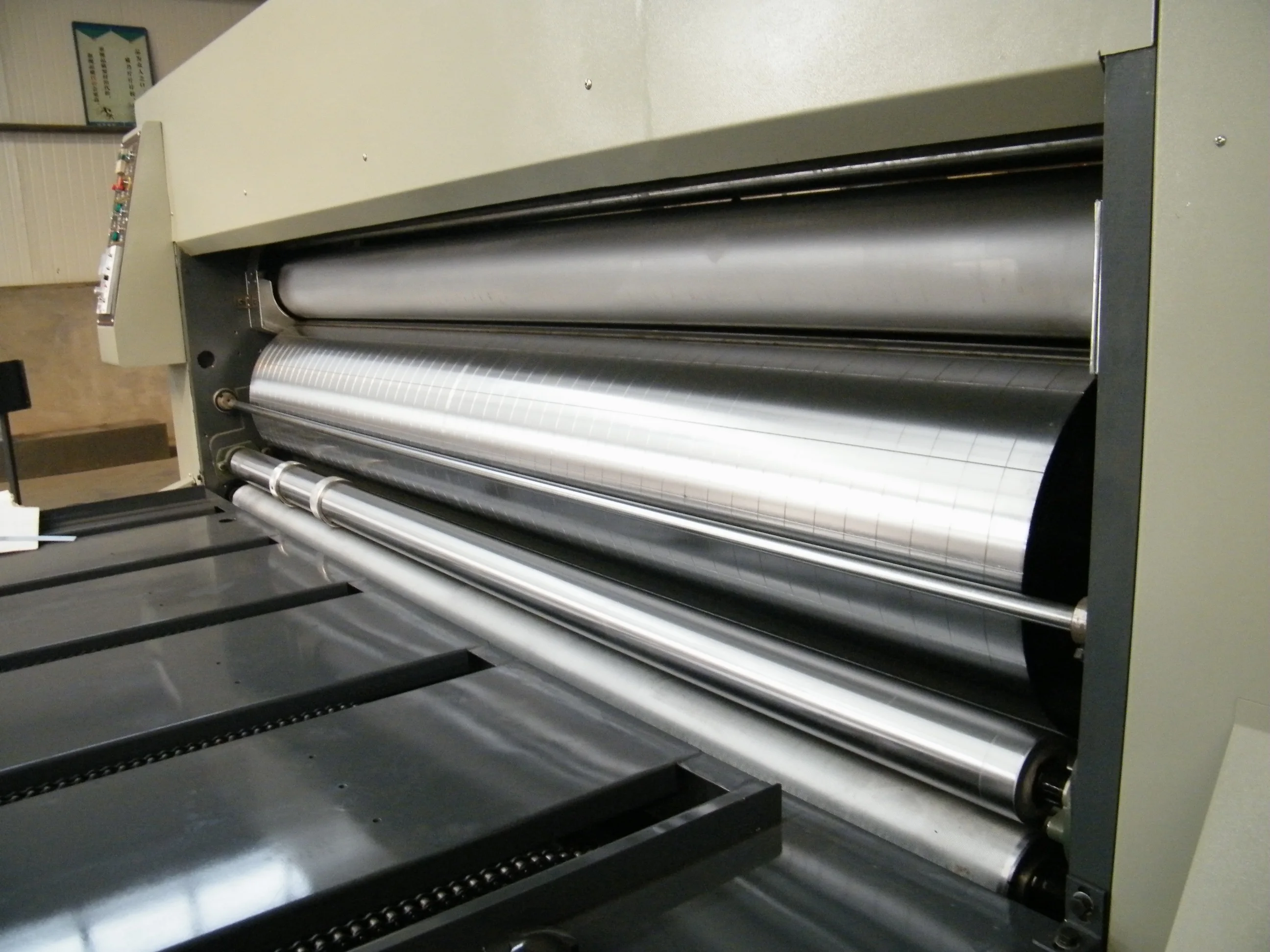

3. auto cycing ink-feed system. Ink roller with pneumatic lift and separate rotating,

4.all the axles of roller must be chrome-plating in order to increase the hardness.

5. printing , slotting and die cutting electric phase adjusting mechanism adopt planet type gear struture.(it can adjust 360 degree while revolving and stopping.)

6. electrically separation and pneumatic locking.

7. module design, any combination of multicolor printing unit.

8.slot unit with manual synchronization adjustment for box height, all knife with electric adjustment,PLC touch screen control,and store orders.

9. free die mould slotting unit, no need to make the die mould when making normal box,saving cost and improved efficiency,

10.rubber roller with automatic displacement device, prolong the service life of anvil.

11. quick repalcement rubber cushion is from abroad, it is easy for replacement and wear-proof.

12.auto count device to show right production volume.

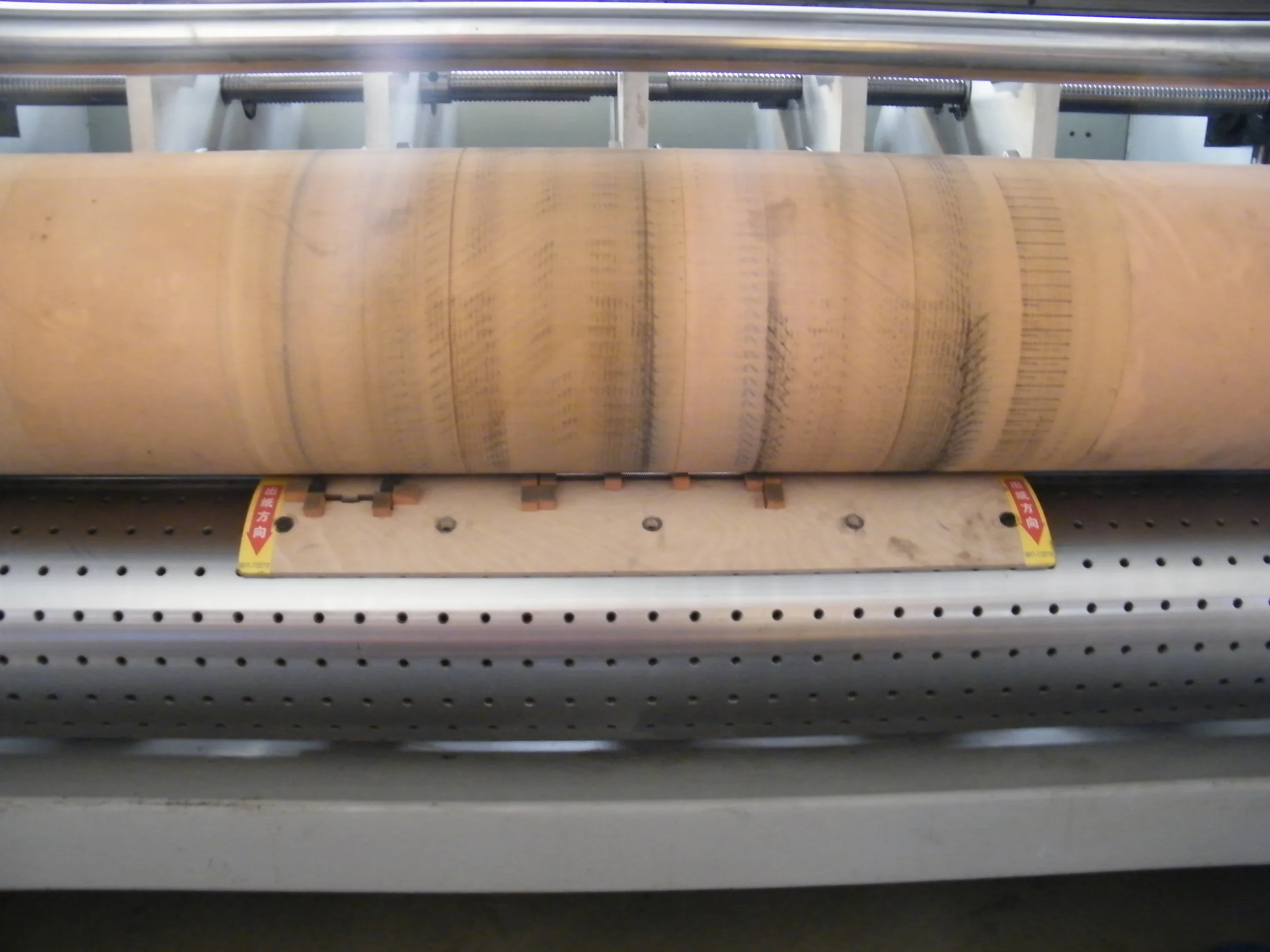

 4)Die cutting

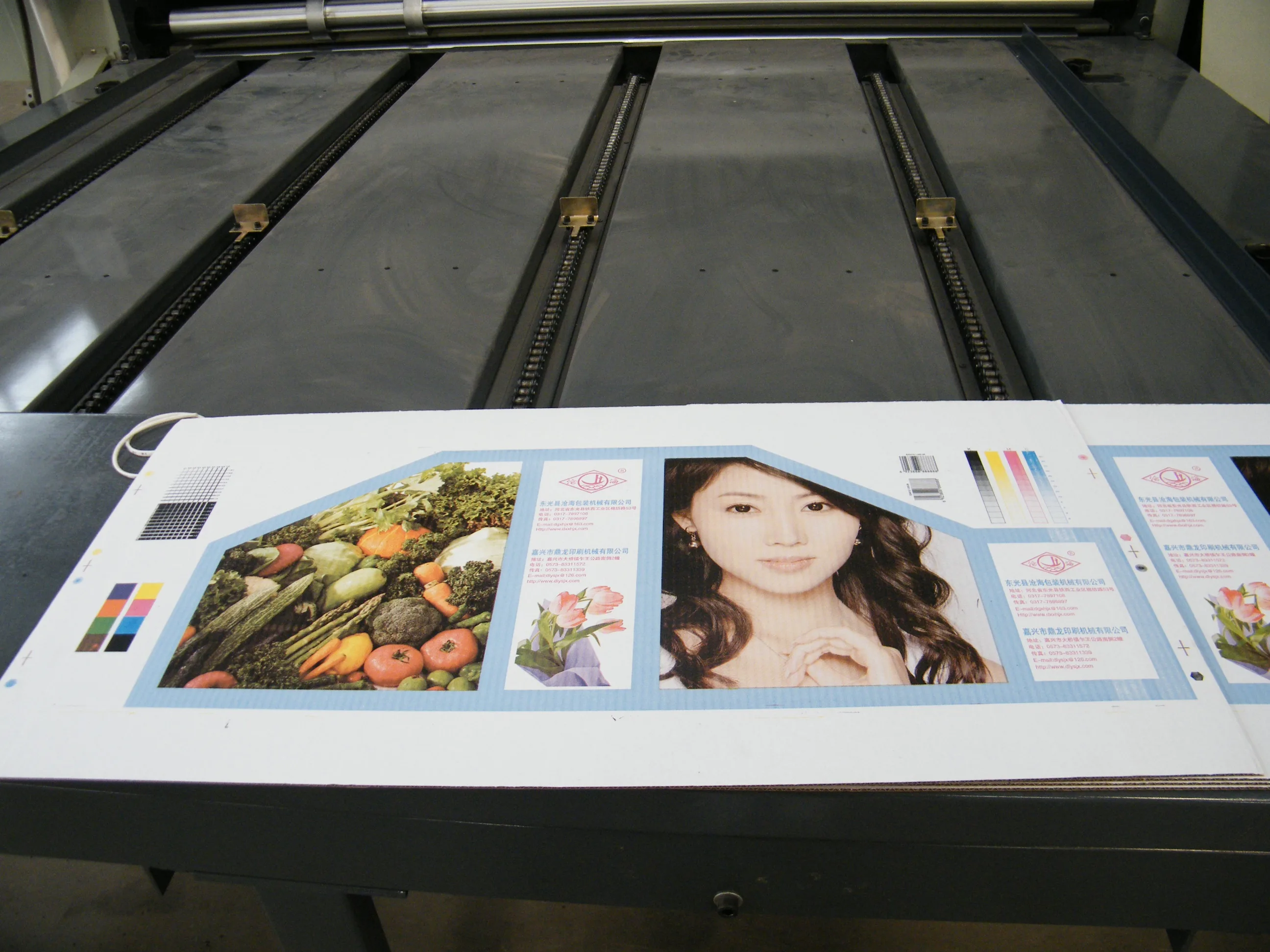

Finished Carton box





Customer visit
