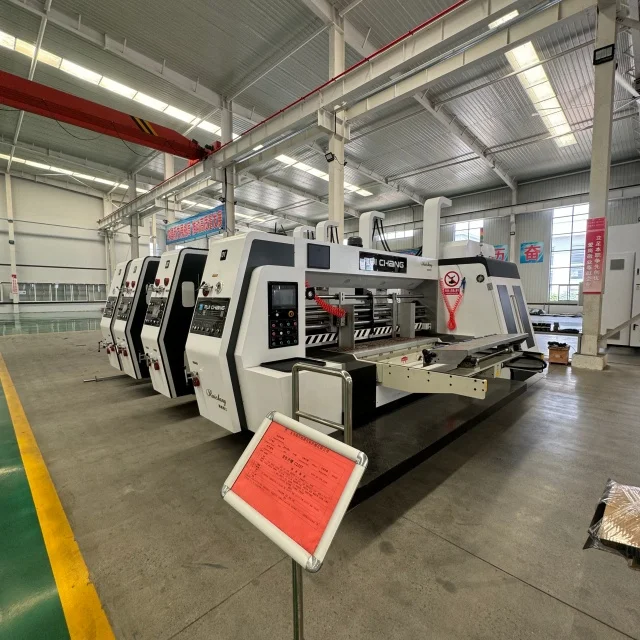

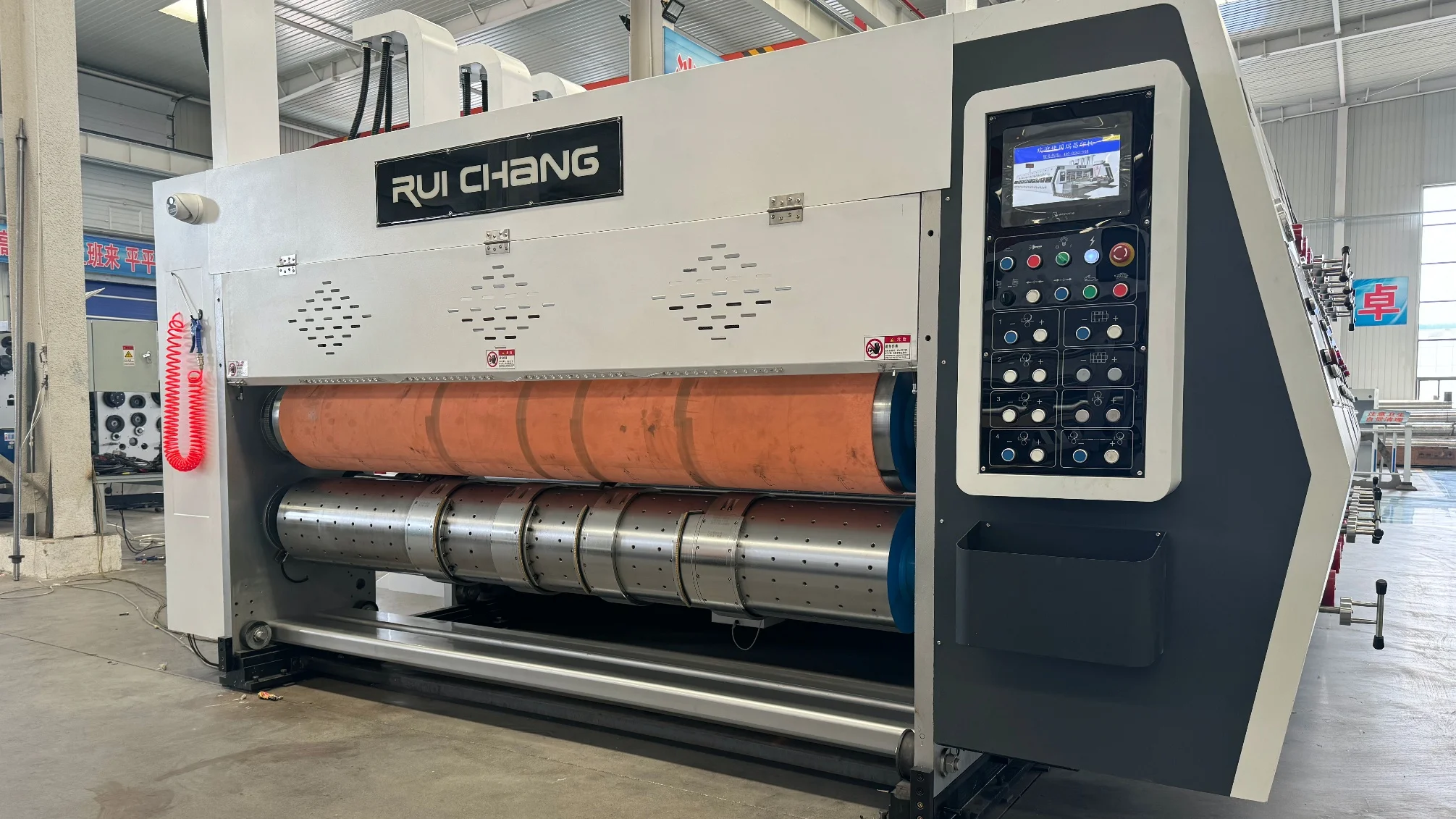

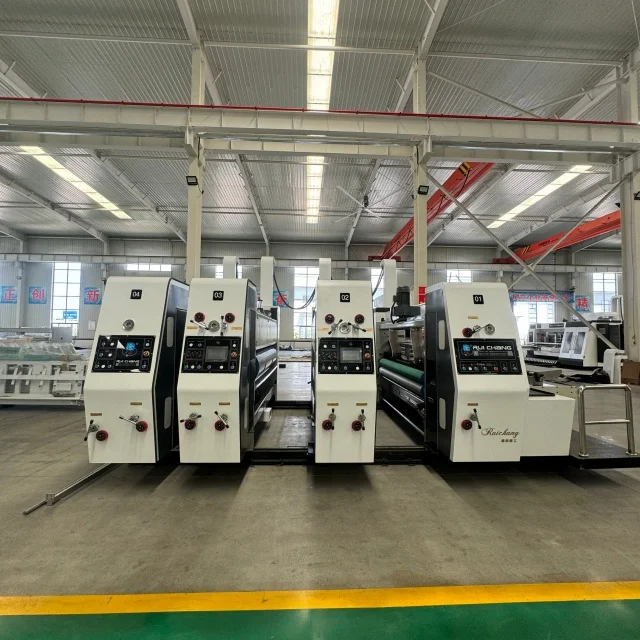

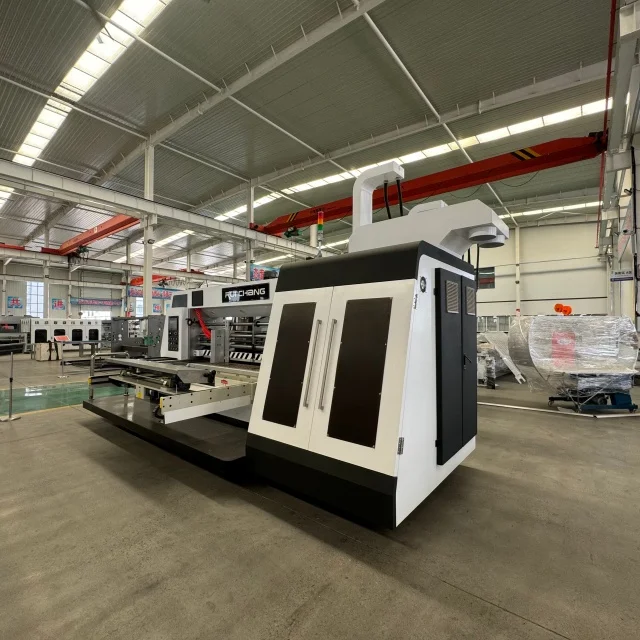

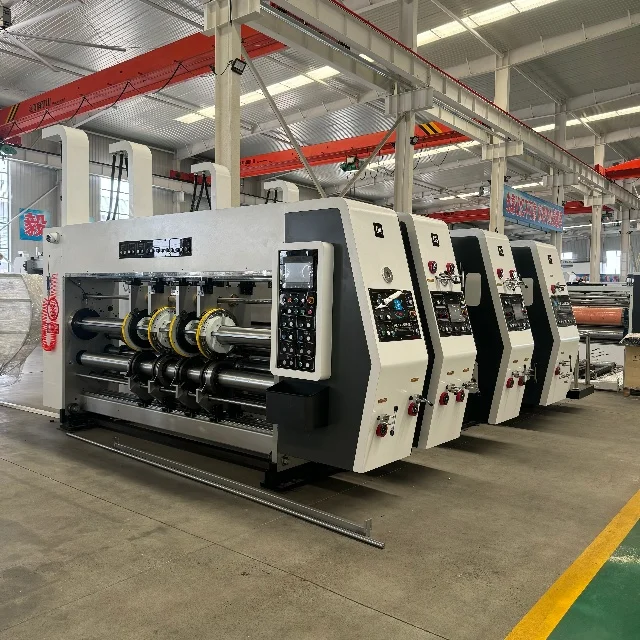

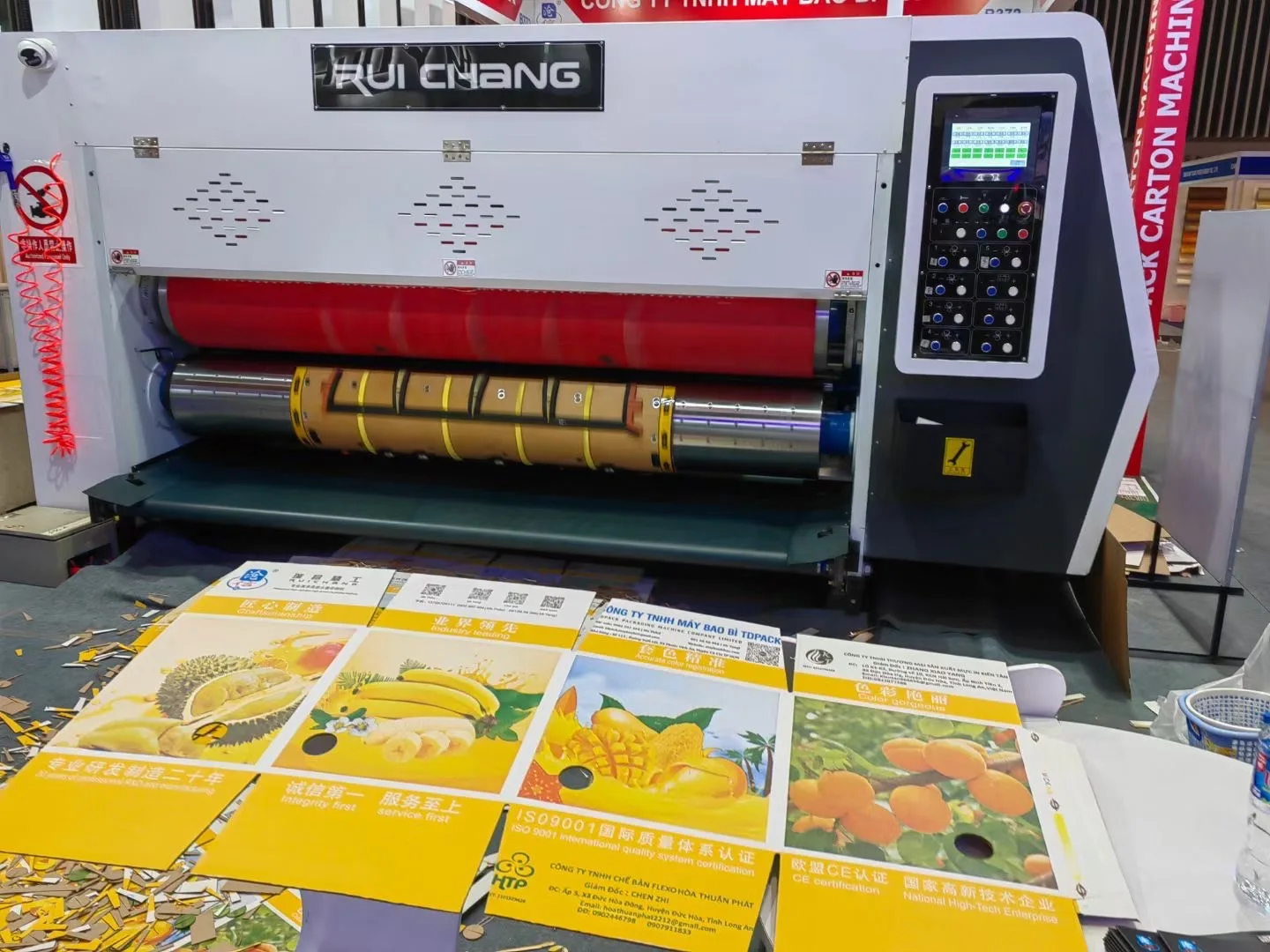

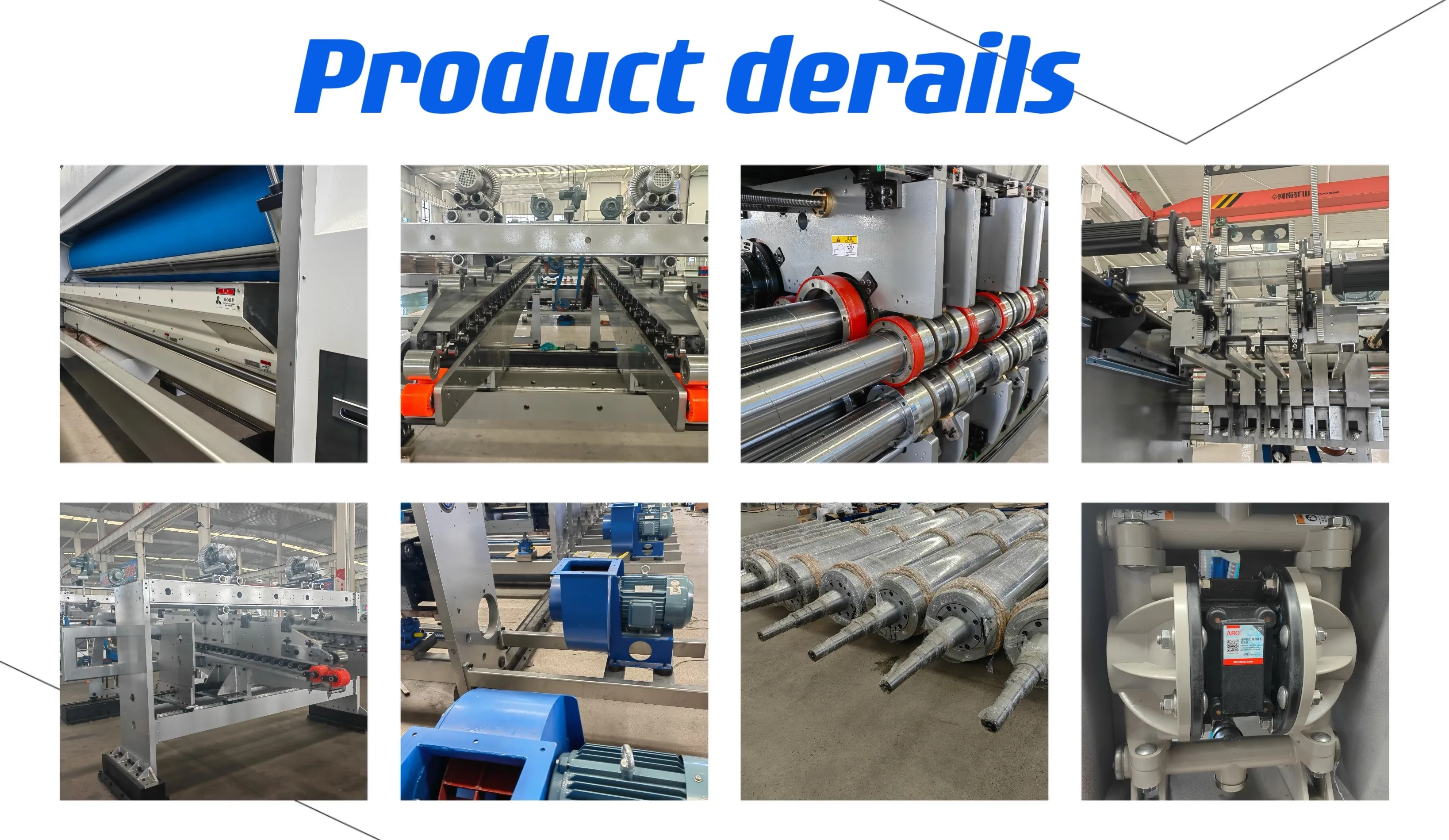

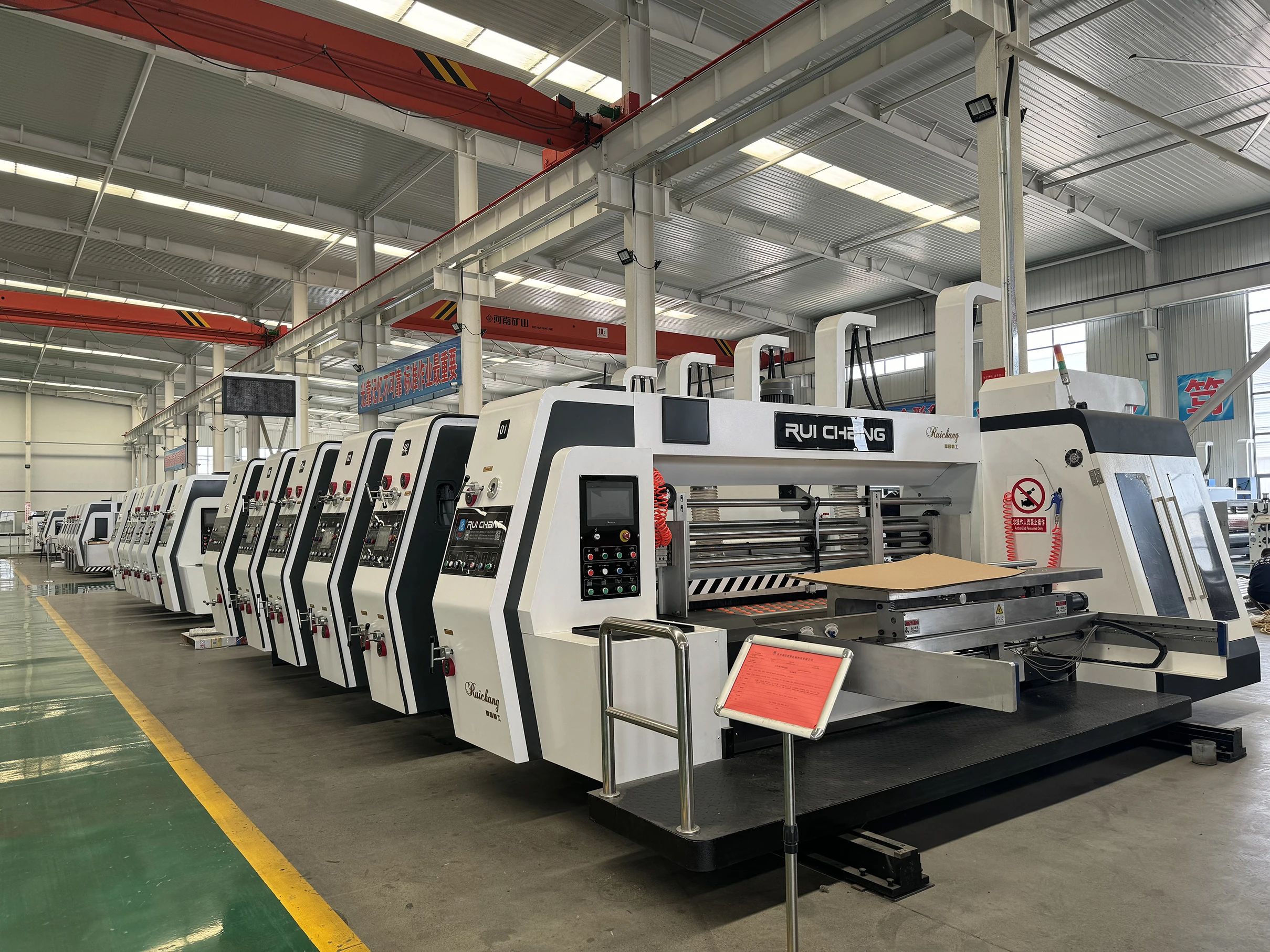

ZYKM-A Series flexo printer die cutter slotter machine
(roller to roller transmission printer series)
FUNCTION AND CHARACTERISTIC:
1. Control on the main console and each unit console with display adjustment system,store repeated order,easy for operation.
2. Motorized printing plate mounting,auto reset,quick change.
3. Each unit is equipped with Emergency Stop switch to ensure safety operation.
4. Motorized gap adjustment device for ease operation.
5. Transmissions are using precision high hardness gears with spraying type circulating lubrication system.
6. Electric element,bearing,and pneumatic element all us international brand.
2. Motorized printing plate mounting,auto reset,quick change.
3. Each unit is equipped with Emergency Stop switch to ensure safety operation.
4. Motorized gap adjustment device for ease operation.
5. Transmissions are using precision high hardness gears with spraying type circulating lubrication system.
6. Electric element,bearing,and pneumatic element all us international brand.
Project/Type | ZYKM-A 920 | ZYKM-A 1224 | ZYKM-A 1228 | ZYKM-A 1424 | ZYKM-A 1428 | ZYKM-A 1624 |
Max.speed (piece /min) | 250 | 200 | 150 | 150 | 120 | 150 |
Paper feeding precision (mm) | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
Max.feed size (mm) | 900*2100 | 1200*2500 | 1200*2900 | 1400*2500 | 1400*2900 | 1600*2500 |
Min.feed size (mm) | 280*600 | 350*600 | 350*600 | 400*600 | 400*600 | 450*600 |
Size of drawing paper (mm) | 1200*2100 | 1500*2500 | 1500*2900 | 1700*2500 | 1700*2900 | 2000*2500 |
Max.printing area (mm) | 900*2000 | 1200*2400 | 1200*2900 | 1400*2500 | 1400*2900 | 1600*2500 |
Printing precision | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
Thickness of standard printing plate (mm) | 5mm | 5mm | 5mm | 5mm | 5mm | 5mm |
Max.groove depth (mm) | 225 | 300 | 300 | 350 | 350 | 400 |
Slotting accuracy (mm) | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
Die cutting precision (mm) | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
Lead feeder unit
1. Extended wheel type lead feeder with servo driving system and vacuum assist for high feeding precision and running steadiness.
2. Suitable for 3/5/7ply boards and micro-flute board of E.W.F flutes.
3. Vacuum with variable strength and sectional adjust for different board quality and sizes.
4. Motorized left/right for side gauges.
5. Dupiex feeding rolls with spring pressure for minimized board caliper loss.
6. Brush and vacuum suction to clean dust from board surface for perfect printing result.(Optional electrostatic dust remving devce).
2. Suitable for 3/5/7ply boards and micro-flute board of E.W.F flutes.
3. Vacuum with variable strength and sectional adjust for different board quality and sizes.
4. Motorized left/right for side gauges.
5. Dupiex feeding rolls with spring pressure for minimized board caliper loss.
6. Brush and vacuum suction to clean dust from board surface for perfect printing result.(Optional electrostatic dust remving devce).
Printing unit
1. Printing roller:steel cylinder, surface grinding,hard chrome plated. Frequent balance correction,smooth links.
2. The axial adjustment adopts manual adjustment,and the axial adjustment range is 10mm.
3. Fixed ratchet reel shaft,Full plate hanging plate groove loading and unloading printing plate,foot switch electric control positive and negative rotation.
4. Manual adjustment of cutter roll gap,the label shows,adjustment range of 4-12mm.
5. Rubber roller ink leveling system. Steel pipe surface coated with wear-resistant rubber,medium and high special grinding. Gap electric adjustment, digital display,adjustment range 0-6mm.(Optional:scraper ink leveling system).
2. The axial adjustment adopts manual adjustment,and the axial adjustment range is 10mm.
3. Fixed ratchet reel shaft,Full plate hanging plate groove loading and unloading printing plate,foot switch electric control positive and negative rotation.
4. Manual adjustment of cutter roll gap,the label shows,adjustment range of 4-12mm.
5. Rubber roller ink leveling system. Steel pipe surface coated with wear-resistant rubber,medium and high special grinding. Gap electric adjustment, digital display,adjustment range 0-6mm.(Optional:scraper ink leveling system).
Slotting unit
1. Prepressing wheel:Electically couped slotting and cutting and prepressing.
2. Automatically adjusted group data setting with frequency converter revision to ensurehigh precision.
3. Manually adjusted scoring wheel clearance with adjustment data displayed on the dial.
4. 7mm alloy steel scoring knives with indent heat treatment to enable grinding teeth shaip edge and high precision.
5. PLC,touch screen and motorized digital 360degree adjustment adopted form solttingphase with order being able to stored.
6. Additional portable orifice die backer.
7. Equipped with the inerlock control switch at slotting unit to achieve stop orresumepaper feed.
2. Automatically adjusted group data setting with frequency converter revision to ensurehigh precision.
3. Manually adjusted scoring wheel clearance with adjustment data displayed on the dial.
4. 7mm alloy steel scoring knives with indent heat treatment to enable grinding teeth shaip edge and high precision.
5. PLC,touch screen and motorized digital 360degree adjustment adopted form solttingphase with order being able to stored.
6. Additional portable orifice die backer.
7. Equipped with the inerlock control switch at slotting unit to achieve stop orresumepaper feed.
Die cutting unit
1. Die-cutting pressure gap is motorized adjust.
2. Setting displacement measure device for anvil roll.
3. Quick change over rubber anvil, good wear-ability.
4. Speed difference compensation system make line speed be synchronization,it can ensure die cutting precise.
5. Anvil roll renew device to prolong usage time of anvil roll and reduce production costs.
2. Setting displacement measure device for anvil roll.
3. Quick change over rubber anvil, good wear-ability.
4. Speed difference compensation system make line speed be synchronization,it can ensure die cutting precise.
5. Anvil roll renew device to prolong usage time of anvil roll and reduce production costs.
