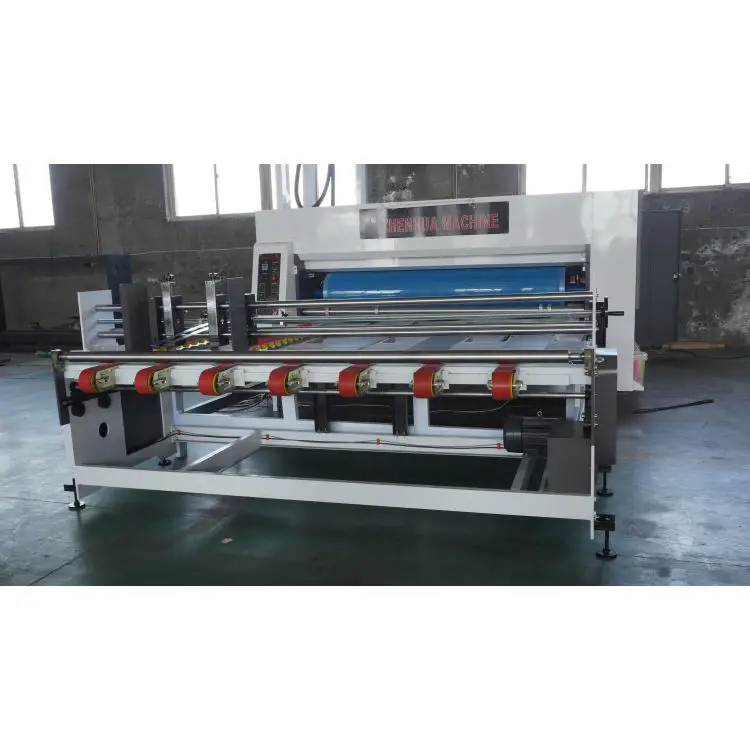

YSF C Best Seller Chain Feeding Corrugated Cardboard Carton Box 2 color Printing Electric Slotting Machine
- Category: >>>
- Supplier: Cangzhou Golden Wings Machinery Co. ltdCangzhou ltd
Share on (1601265274744):
Product Overview
Description
Model | YSF-C 420-2600 | YSF-C 420-2600 | YSF-C 530-3000 | YSF-C 600-3200 | YSF-C 600-3200 | ||||
Max machine speed(pcs/min) | 80 | 80 | 70 | 60 | 60 | ||||
Max.feeding size(mm) | 1200x2450 | 1200x2450 | 1660x2850 | 1800x3050 | 2500*3350 | ||||
Max.printing area(mm) | 1200x2300 | 1450x2500 | 1600x2700 | 1800x2900 | 2500x3300 | ||||
Min.feeding size(mm) | 350*350 | 380x550 | 400x550 | 500x700 | 600x890 | ||||
Max.depth of slotting (mm) | 300 | 350 | 400 | 450 | 620 | ||||
Printing plate thickness (mm) | 4 (7.2 optional) | ||||||||
Application tickness (mm) | 1.5-14 | ||||||||
Sloiting Width (mm) | 7 | ||||||||
Registration precislon (mm) Comparing with front printing unit | ≦±0.6 | ≦±0.75 | |||||||
Slotting precision (mm) | <±1.5 | ||||||||
Min.slotting interval ( mm ) | 115x115x115x115 | 160x160x160x160 | |||||||
200x60x200x60 | 265x60x265x60 | ||||||||

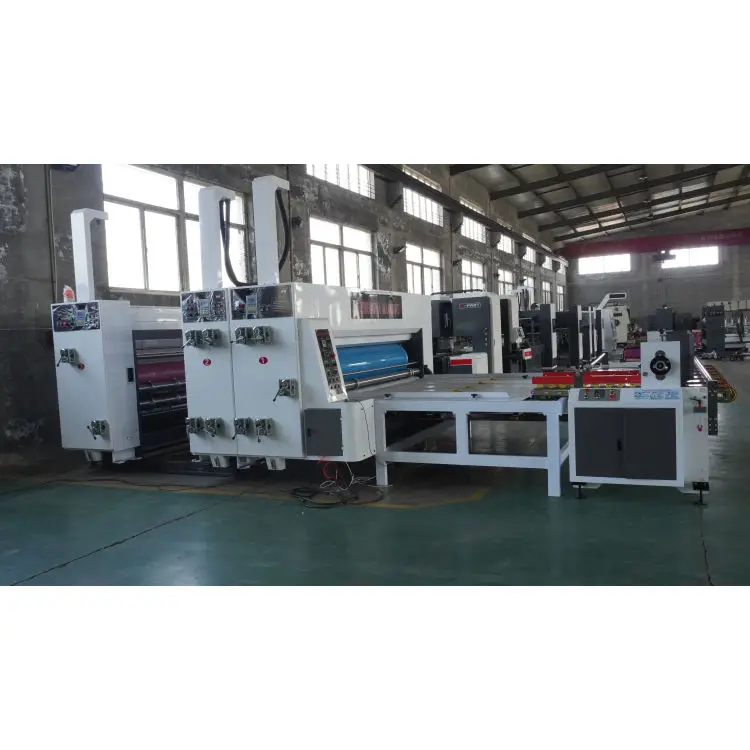

The chain-feed multi-color ink printing slotting die-cutting and stacking machine is a high-performance equipment integrating multiple functions and is widely used in the production of corrugated boxes and cartons. The equipment adopts chain drive mode and has stable cardboard conveying capabilities. It also integrates functions such as multi-color ink printing, grooving, die-cutting and automatic stacking.
Printing part

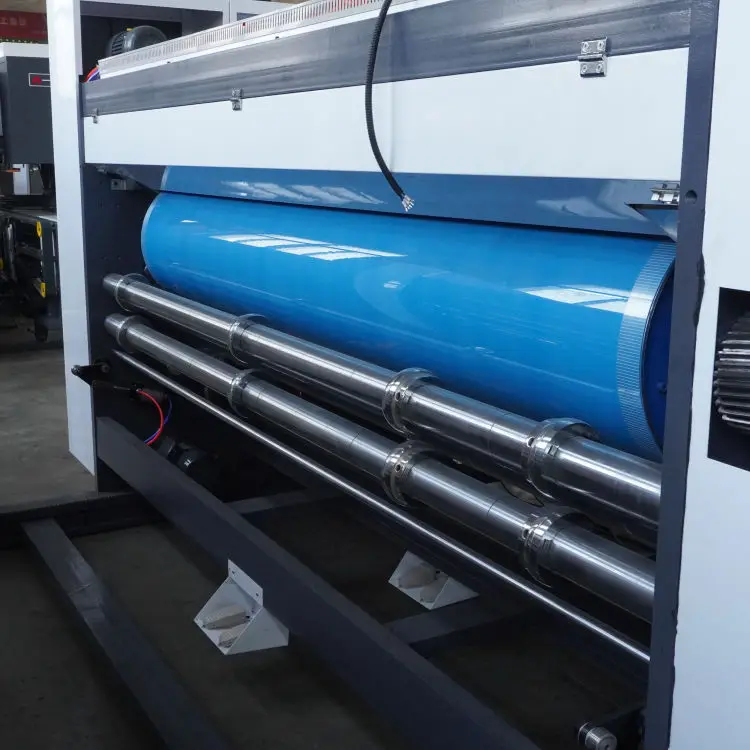

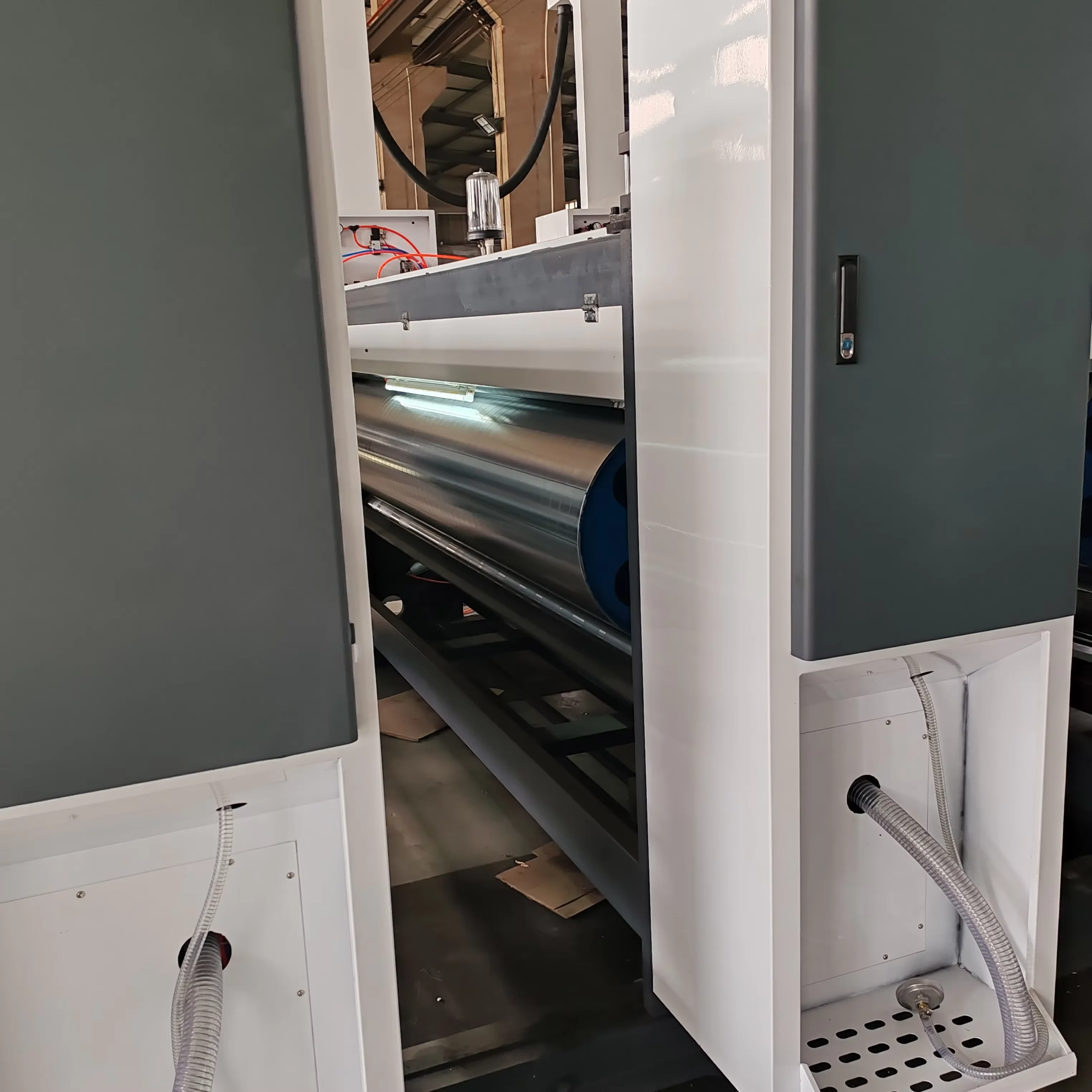

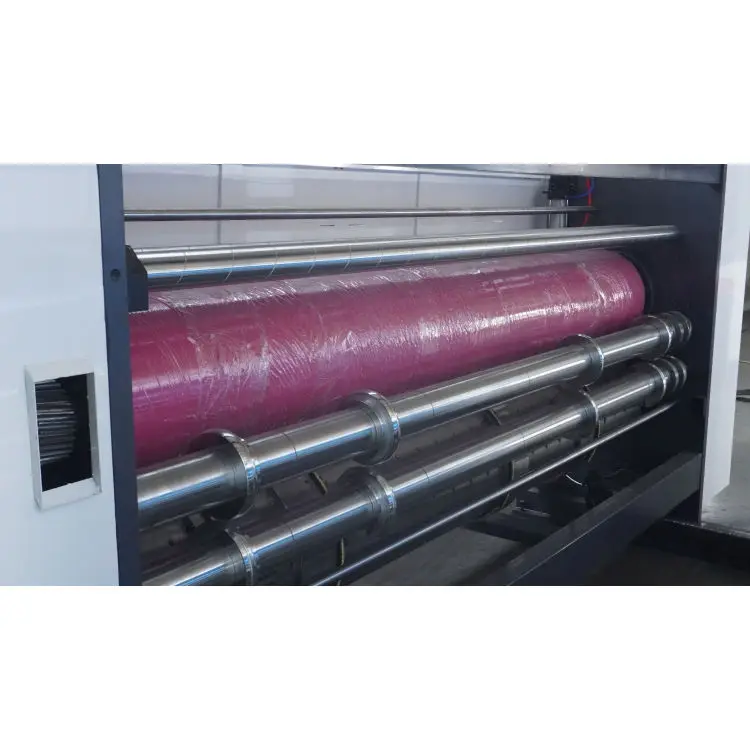

Printing roller: Use high-precision rollers to ensure accurate positioning and stable transmission of patterns during the printing
process. The hardness and surface finish of the roller are critical to print quality.
process. The hardness and surface finish of the roller are critical to print quality.
Anilox roller: This component is responsible
for evenly coating ink. The depth and structure of the anilox determines the distribution and coating quality of the ink. High-quality anilox rollers ensure print clarity and consistency.
for evenly coating ink. The depth and structure of the anilox determines the distribution and coating quality of the ink. High-quality anilox rollers ensure print clarity and consistency.
Impression shaft: Responsible for bringing the cardboard into close contact with the pattern on the printing roller to ensure that the ink is fully transferred to the cardboard. The pressure
of the imprinting shaft is adjustable to adapt to cardboard of different thicknesses.
of the imprinting shaft is adjustable to adapt to cardboard of different thicknesses.

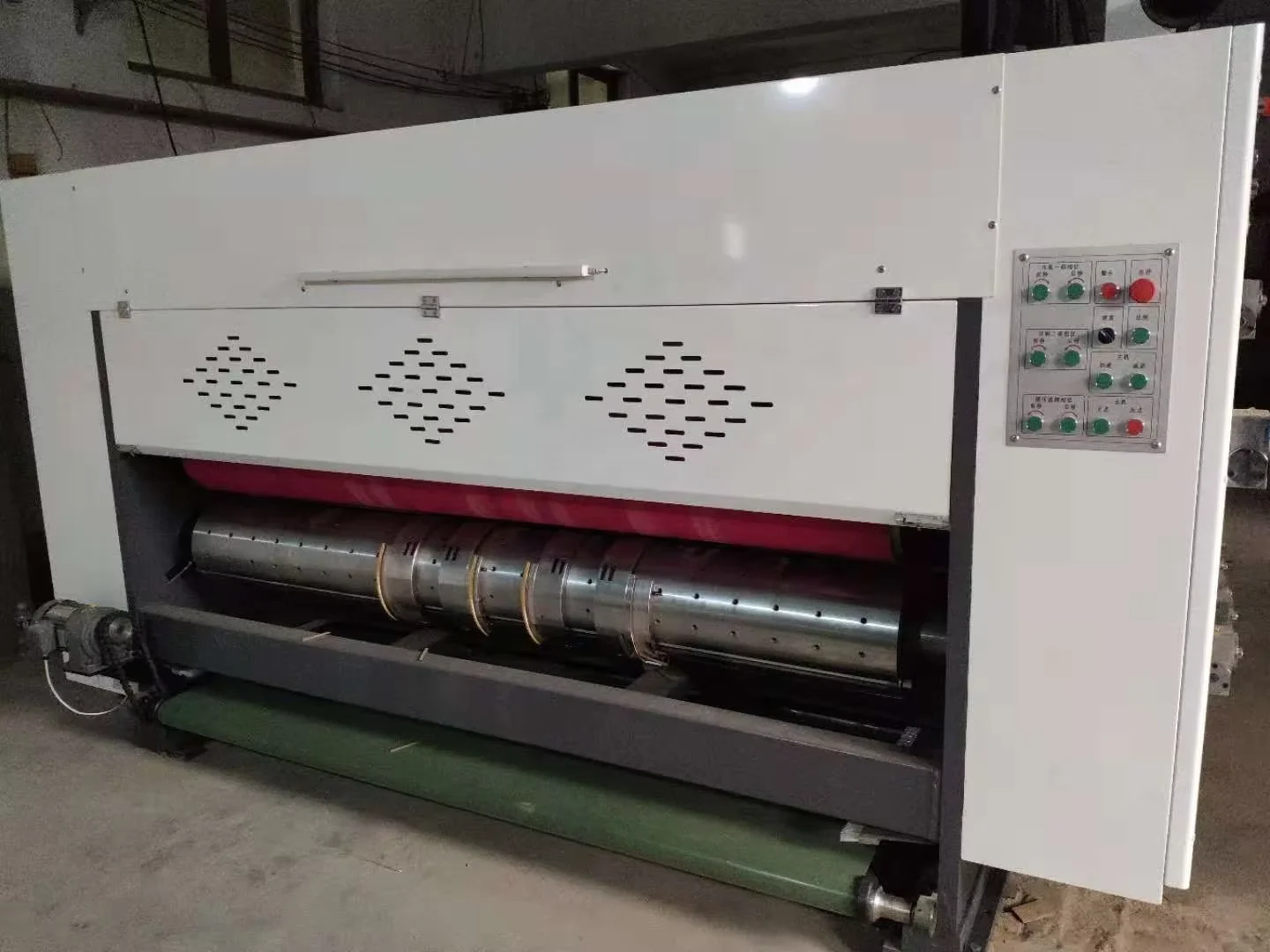

Grooving tool: Use high-quality blade material to ensure smooth and neat groove edges. The wear resistance of the knife allows it
to be used for a long time.
to be used for a long time.
Die-cutting roller: used to complete complex die-cutting operations and can cut out carton parts of different shapes. The die-cutting roller is easy to adjust to meet production needs of different sizes and shapes.
The system is responsible for automatically collecting and stacking finished cartons. The automated stacking design reduces manual
intervention and ensures the efficiency and safety of the production process. The system also supports adjustment of stacking
height and quantity to adapt to different production scales.
intervention and ensures the efficiency and safety of the production process. The system also supports adjustment of stacking
height and quantity to adapt to different production scales.

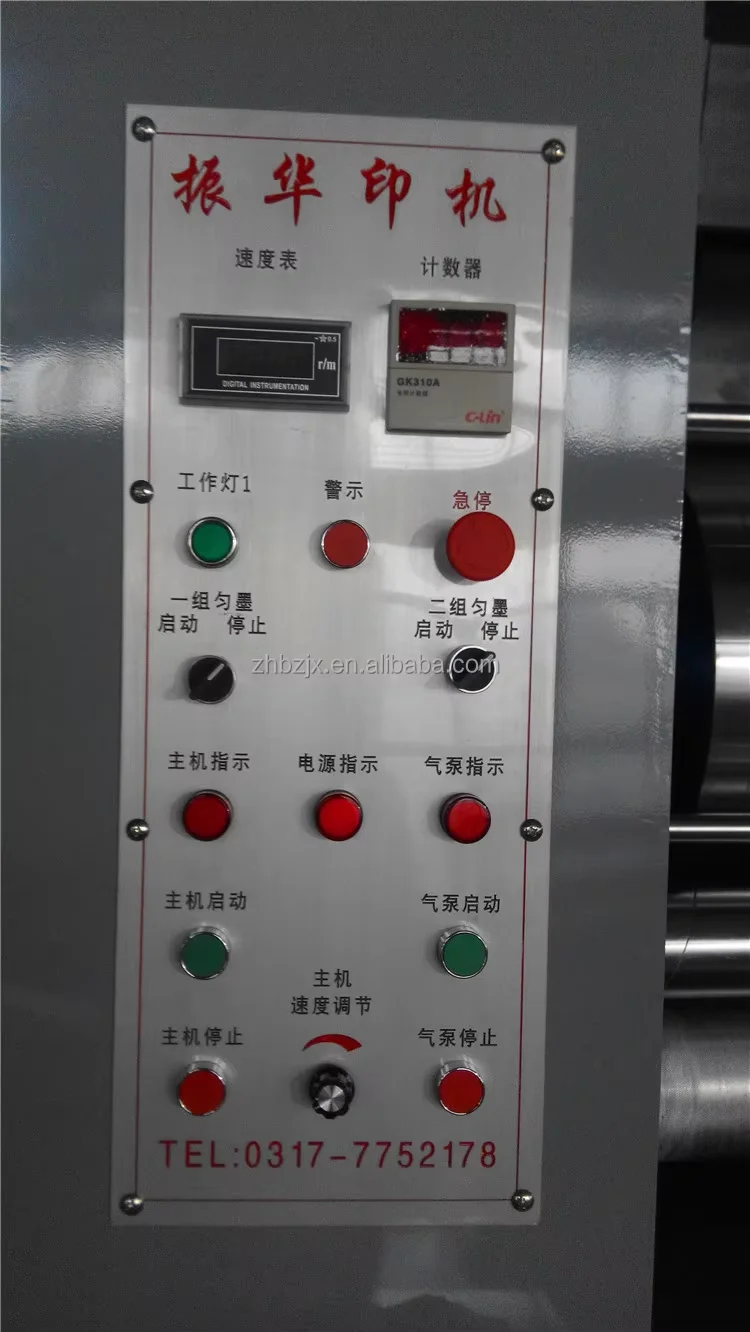

The chain-feed multi-color ink printing slotting die-cutting stacker is equipped with an advanced control panel and human-machine
interface (HMI). Operators can easily adjust parameters such as printing color, groove depth and die-cut shape through the
interface. The control system supports fast switching and automatic calibration, providing stable production performance.
interface (HMI). Operators can easily adjust parameters such as printing color, groove depth and die-cut shape through the
interface. The control system supports fast switching and automatic calibration, providing stable production performance.
Technical features

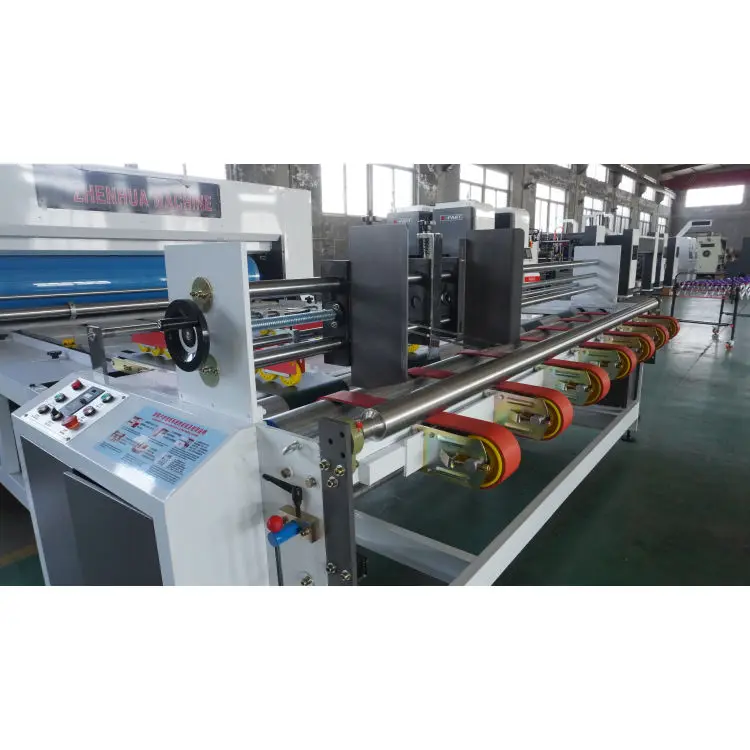

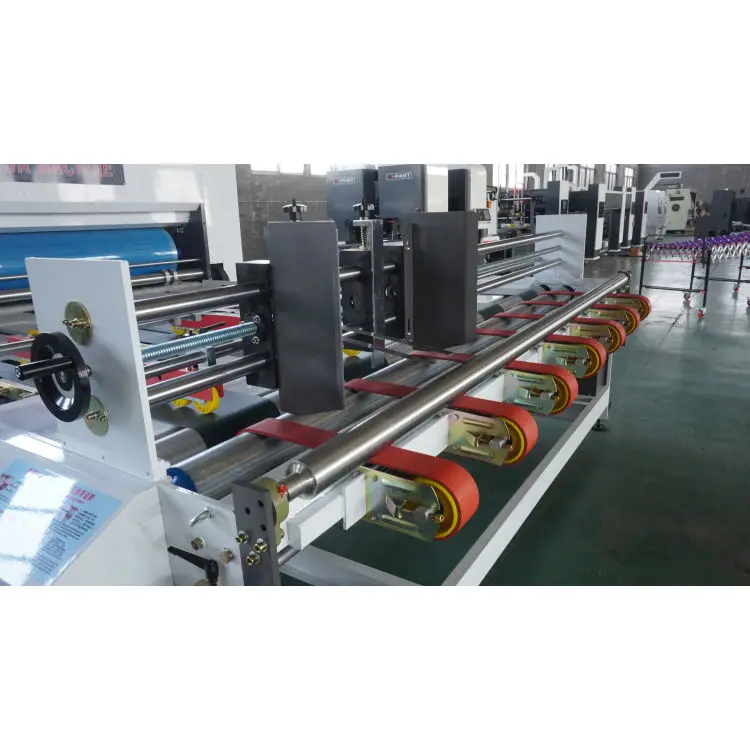

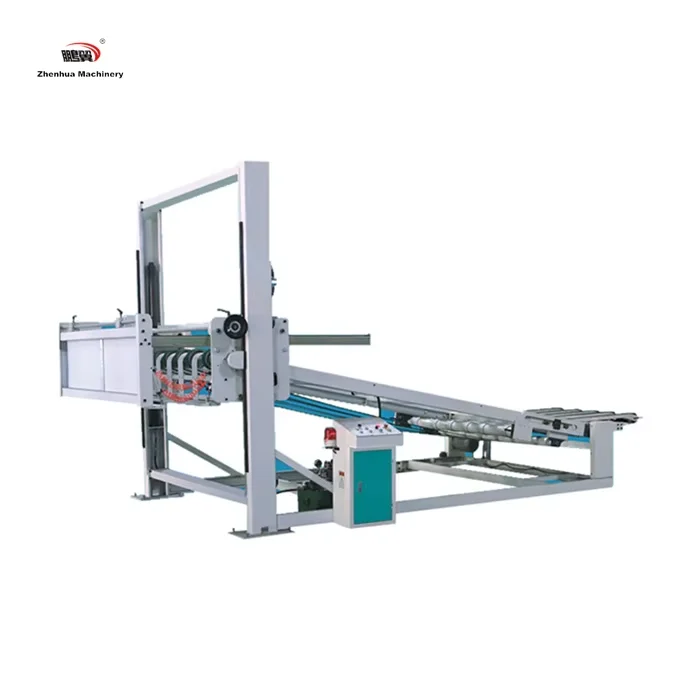

Chain feeding system: Chain feeding ensures the stability of the cardboard during transportation and reduces the possibility of paper jams and misalignment. The system also supports paperboards of different thicknesses to meet various production needs.
Multi-color ink printing: Using environmentally friendly ink technology, it supports 2-6 color printing. Precision print head
design ensures printing clarity and accuracy, maintaining high quality even at high speeds.
Precise grooving: Precise grooving can be performed on cardboard to ensure neat edges and meet industrial standards. The grooving tool is wear-resistant and durable, suitable for long-term use.
Precision die cutting: supports die cutting processing of complex shapes and can meet the diverse needs of customers. The die-cutting system is easy to adjust and suitable for the production of cartons of different sizes and shapes.
Automatic stacking: The automated stacking system can automatically collect and neatly stack finished cartons, reducing manual operations and improving production efficiency.
Intelligent control: Equipped with advanced control panel and human-machine interface for easy operation. The system supports quick adjustment and parameter setting, suitable for different production needs.
Multi-color ink printing: Using environmentally friendly ink technology, it supports 2-6 color printing. Precision print head
design ensures printing clarity and accuracy, maintaining high quality even at high speeds.
Precise grooving: Precise grooving can be performed on cardboard to ensure neat edges and meet industrial standards. The grooving tool is wear-resistant and durable, suitable for long-term use.
Precision die cutting: supports die cutting processing of complex shapes and can meet the diverse needs of customers. The die-cutting system is easy to adjust and suitable for the production of cartons of different sizes and shapes.
Automatic stacking: The automated stacking system can automatically collect and neatly stack finished cartons, reducing manual operations and improving production efficiency.
Intelligent control: Equipped with advanced control panel and human-machine interface for easy operation. The system supports quick adjustment and parameter setting, suitable for different production needs.
Application scope
Carton manufacturing: produces various types of corrugated cartons, including industrial packaging, consumer goods packaging, and logistics transportation boxes.
Customized cartons: Provide personalized printing and die-cutting services according to customer needs, suitable for brand customization and promotional activities.
E-commerce packaging: Provide e-commerce companies with customized cartons that match their brand image to ensure safety and beauty during the logistics process.
Customized cartons: Provide personalized printing and die-cutting services according to customer needs, suitable for brand customization and promotional activities.
E-commerce packaging: Provide e-commerce companies with customized cartons that match their brand image to ensure safety and beauty during the logistics process.
Industrial Packaging: Suitable for producing large-sized or custom-shaped industrial cartons to meet the packaging needs of manufacturing and heavy industry.
--Focusing on the research and development and production of high-quality packaging machinery for more than 18 years. Cangzhou Golden Wings Packaging Machinery Manufacturing Co., Ltd. was established in 2006 and is a professional carton packaging machinery designer and manufacturer
--We provide one-stop ODM and OEM services to our partners with leading performance and pioneering innovation.

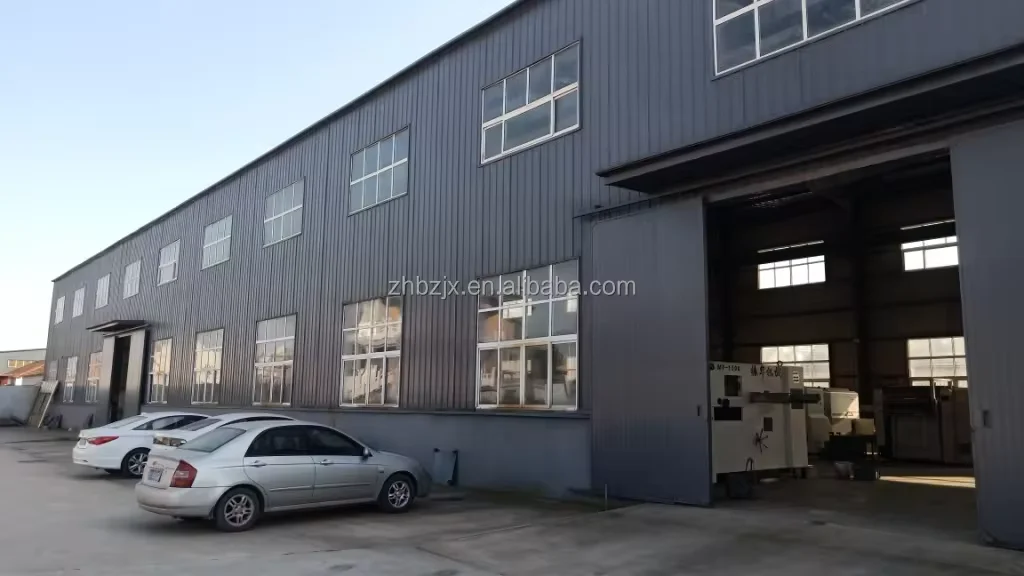

--Our factory is located in Dongguang County, Cangzhou City, Hebei Province, China. The industrial park covers an area of 10,000 square meters. We now have more than 20 professional engineers, 100% quality inspection before shipment, and business personnel follow up throughout the process to ensure the stable operation of the machine.
