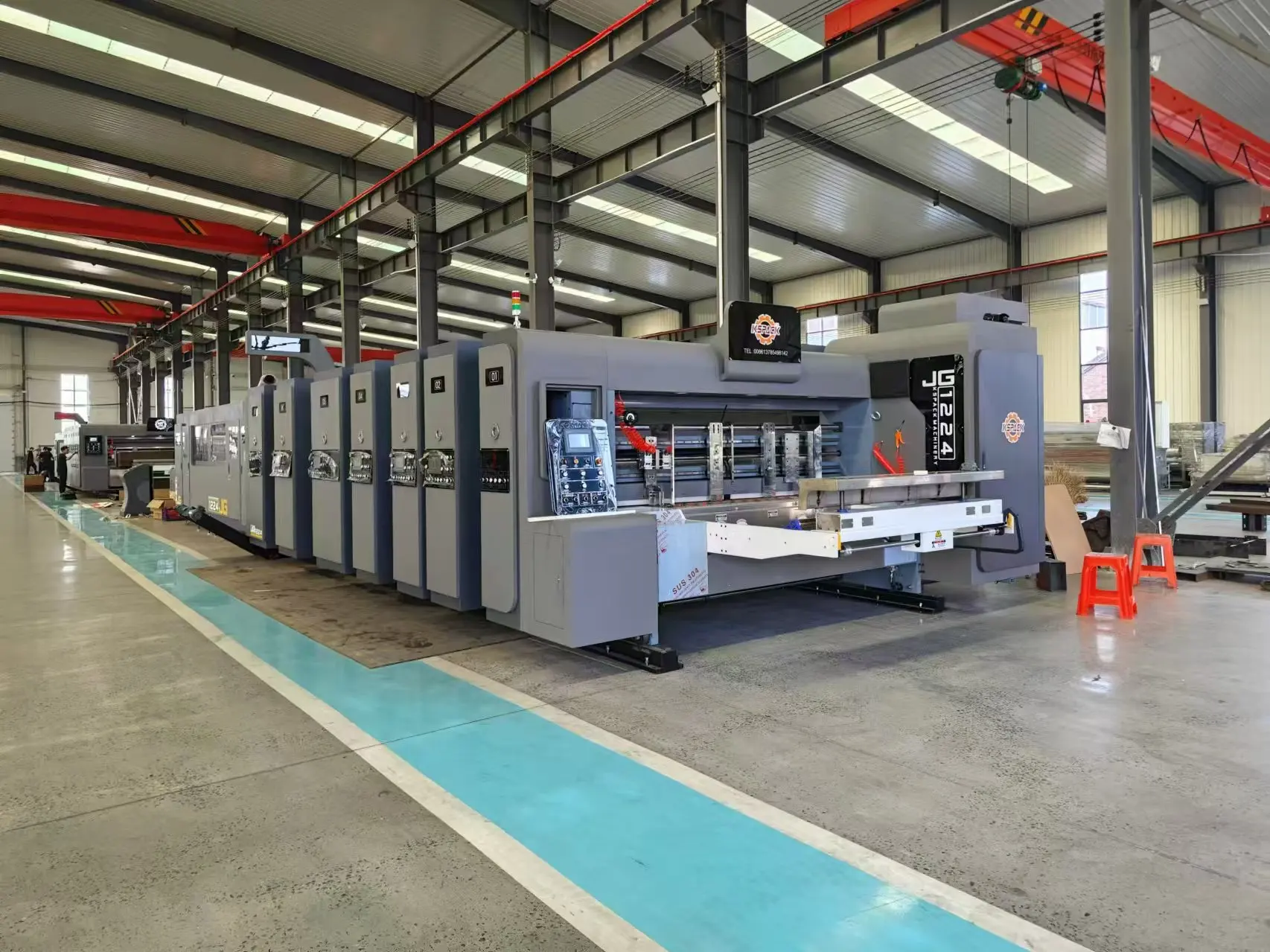

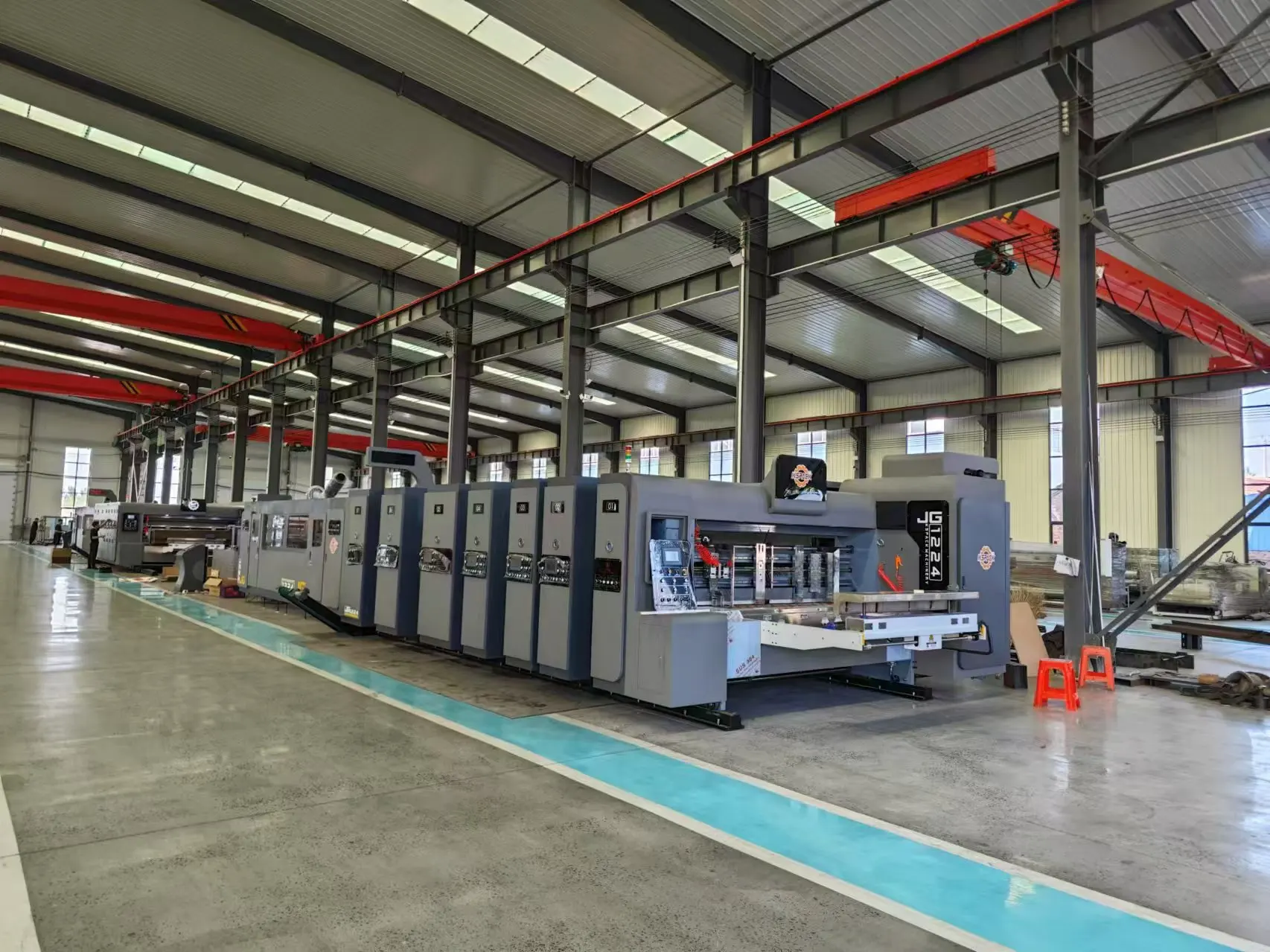

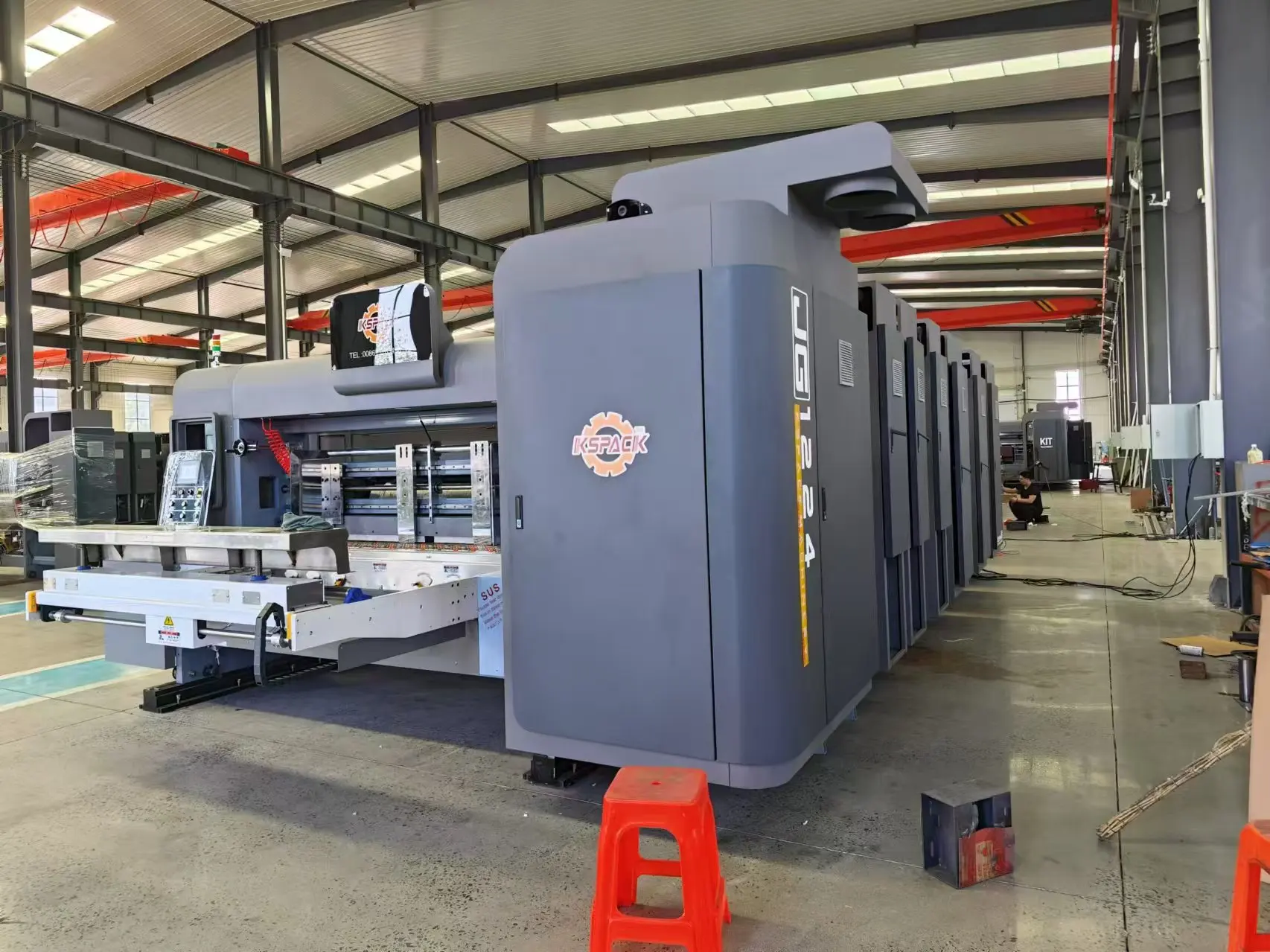

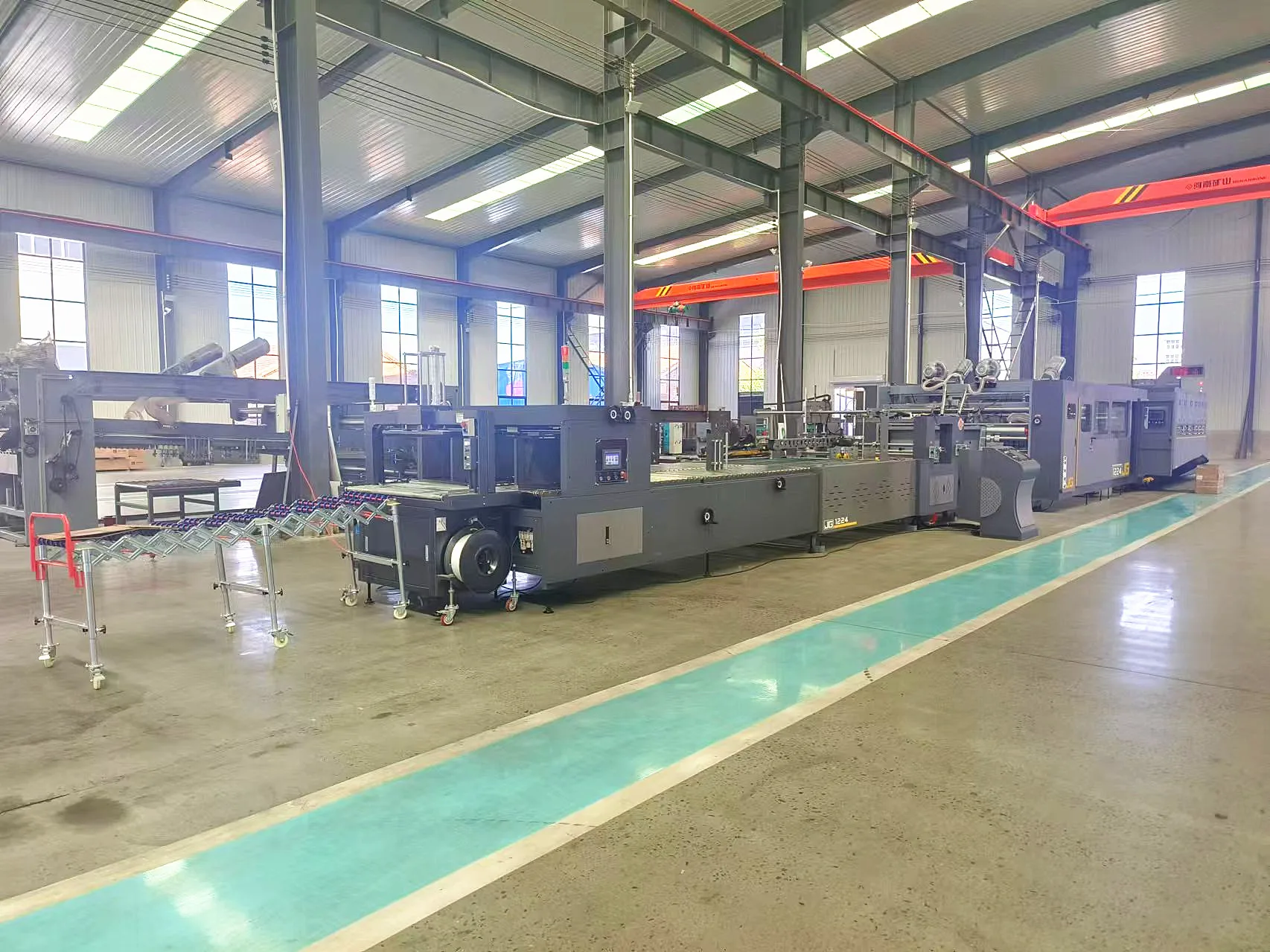

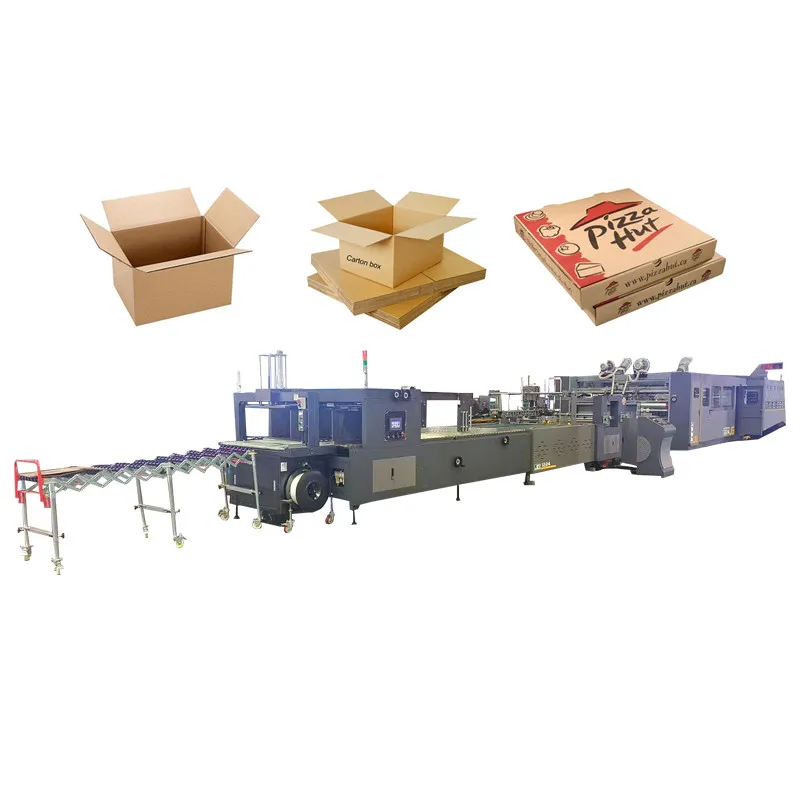

Flexo Box making machine packaging forming machines carton slotting die cutting making fold glue bundling machine
MODEL | High Speed Printer Slotter die cutter fold glue inline machine |
PRINTER COLOR | MULTI COLOR |
MNACHINE SIZE | WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM |
MACHINE DESIGN SPEED | DESIGN SPEED 200PCS /MIN |
WORK SPEED | 180PCS /MIN |
MACHINE WALL BOARD SIZE mm | 60 |
GERA THICKNESS （mm） | 60 |
MAX PASSING PAPER SIZE （mm） | 1200 X2200 |
MIN PAPER PASSING SIZE （mm） | 330X650MM |
SKIP PAEER SIZE （mm） | 1400*2200MM |
MAX PRINT SIZE （mm） | 1200*2000mm |
THINKCNESS OF THE PLATE （mm） | 3.2---7.2 |
BOARD THICKNESS （mm） | 3---12 |
Technical Parameter
Lead edge feeder for printer slotter die cutter folder gluer bundling machine inline
Machine characters
1.electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.
2.drive shaft with friction clutch, to avoid misuse and damage to the machine.
3.pneumatic interlock device.
4.The host motor starts the protection device. (The machine is not locked, the host can not start running)
2.drive shaft with friction clutch, to avoid misuse and damage to the machine.
3.pneumatic interlock device.
4.The host motor starts the protection device. (The machine is not locked, the host can not start running)

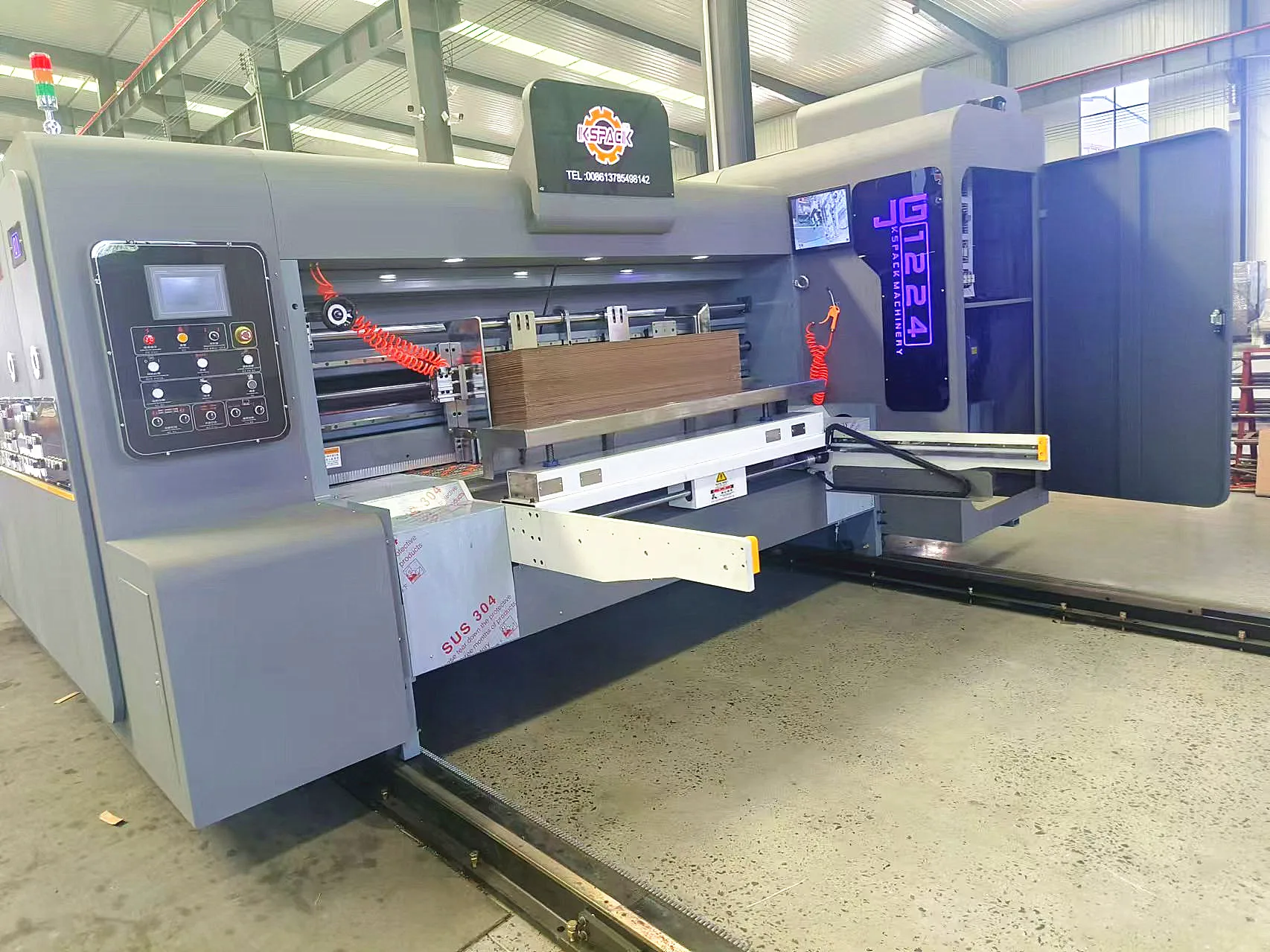

Leading edge roller type feeding system
1. suction auxiliary feeding paper fan 7.5KW, according to the different bending conditions of cardboard, air volume adjustment,
To ensure smooth paper supply. Use the brush to remove the cardboard surface
Dust, scraps of paper and other debris, improve the printing quality.
2.slotted with a chain control switch, control emergency stop paper.
3.The paper lift and down adopt the air cylinder,the action quickly, effort.
4.the use of Shandong "Komori" front edge roller feed system, simple operation, high precision. The amount of extension can be adjusted, raw
Strong adaptability. Speed transmission more stable, suitable for warping, thin cardboard transmission, the effect is obvious.
5.side baffle, rear box position by the screw electric adjustment; front baffle upper and lower gap position manually synchronized adjustment.
6.skip feeding device (according to the need to choose continued or sheet feeding).
7.PLC control, man-machine interface, menu storage, printing plate correction, printing speed, quantity, time and theDepartment operation
To ensure smooth paper supply. Use the brush to remove the cardboard surface
Dust, scraps of paper and other debris, improve the printing quality.
2.slotted with a chain control switch, control emergency stop paper.
3.The paper lift and down adopt the air cylinder,the action quickly, effort.
4.the use of Shandong "Komori" front edge roller feed system, simple operation, high precision. The amount of extension can be adjusted, raw
Strong adaptability. Speed transmission more stable, suitable for warping, thin cardboard transmission, the effect is obvious.
5.side baffle, rear box position by the screw electric adjustment; front baffle upper and lower gap position manually synchronized adjustment.
6.skip feeding device (according to the need to choose continued or sheet feeding).
7.PLC control, man-machine interface, menu storage, printing plate correction, printing speed, quantity, time and theDepartment operation

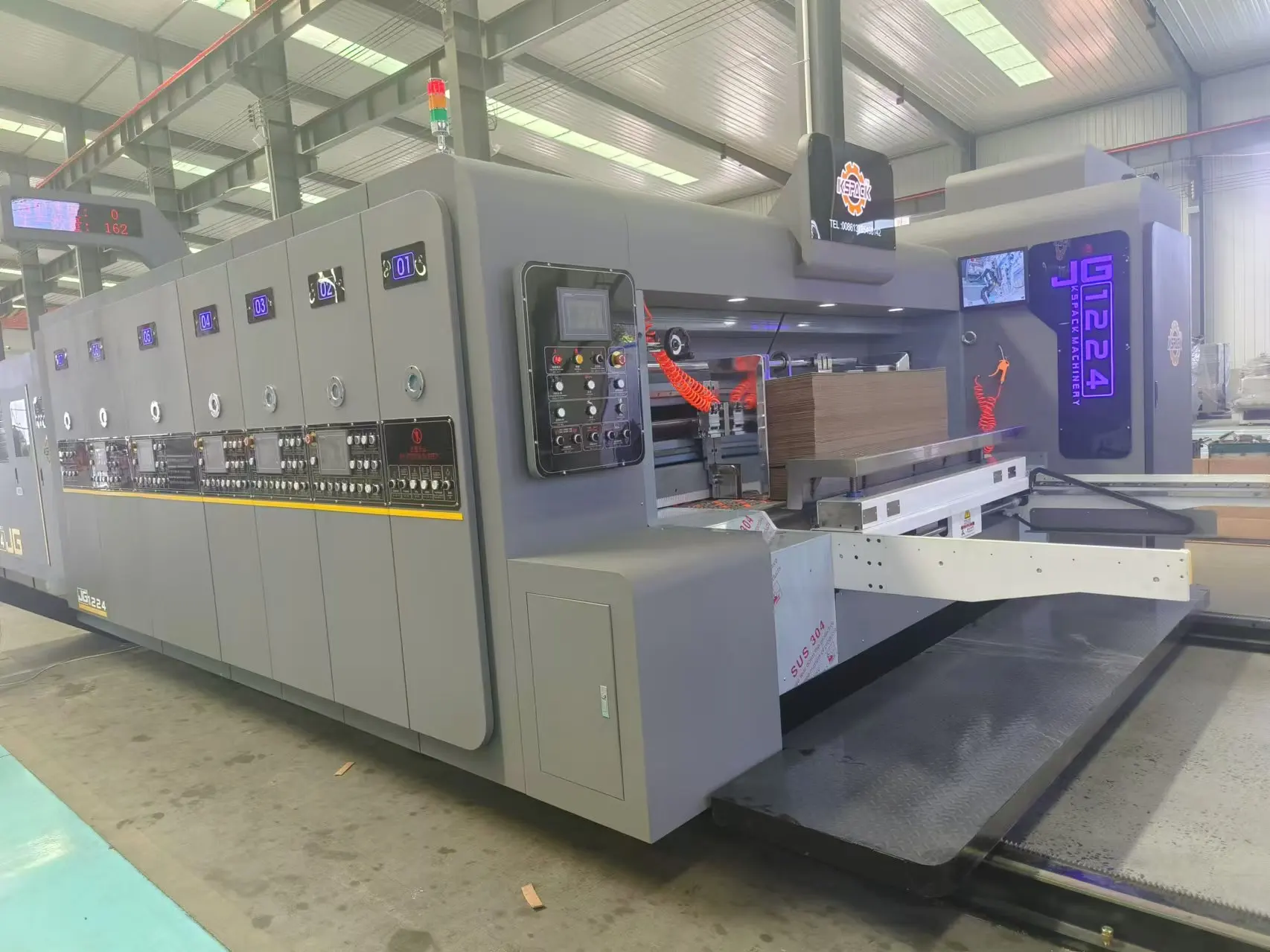

Printing unit printer slotter die cutter folder gluer bundling machine

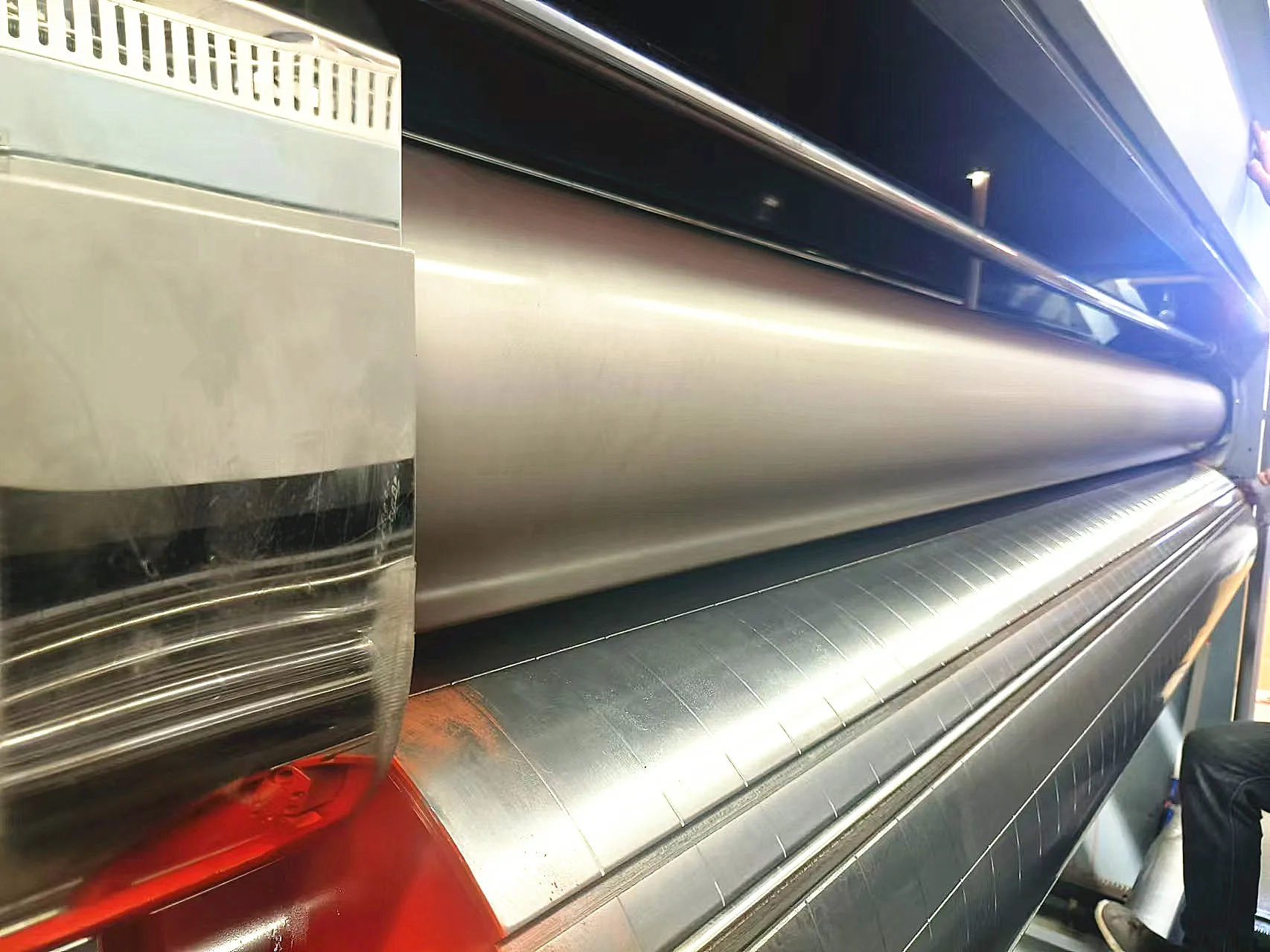

Printing roll
1.diameter of ¢ 369.3 mm (with diameter of ¢ 408mm).
2.high-quality steel surface grinding, axial reference scale, hard chrome plating.
3.To do the balance correction, smooth operation, to adapt to high-speed operation.
4.ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
5.full version of hanging slot, for 10 mm hanging version of the article.
6.loading and unloading printing plate, foot switch electric control is reversing.
7.printing roller axial manual traverse, the maximum movement of 10mm.
2.high-quality steel surface grinding, axial reference scale, hard chrome plating.
3.To do the balance correction, smooth operation, to adapt to high-speed operation.
4.ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
5.full version of hanging slot, for 10 mm hanging version of the article.
6.loading and unloading printing plate, foot switch electric control is reversing.
7.printing roller axial manual traverse, the maximum movement of 10mm.
Steel anilox roller rubber roller set ink system
1.diameter of ¢ 176mm.
2.steel surface grinding, repression reticulate, hard chrome plating.
3.alance correction, smooth operation.
4.mesh number is ,200-280 lines / inch selection. Option ceramic roller 300line/inch (need to paid)
5.with the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper
anilox roll is up and the plate is separated)
6.Anilox roller with wedge-type clutch, even ink, easy to clean ink.
7.rubber roller diameter ¢ 168 mm.option the doctor blade system
8.steel pipe surface wrapped with wear-resistant rubber, and do the balance correction.
9.rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.
2.steel surface grinding, repression reticulate, hard chrome plating.
3.alance correction, smooth operation.
4.mesh number is ,200-280 lines / inch selection. Option ceramic roller 300line/inch (need to paid)
5.with the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper
anilox roll is up and the plate is separated)
6.Anilox roller with wedge-type clutch, even ink, easy to clean ink.
7.rubber roller diameter ¢ 168 mm.option the doctor blade system
8.steel pipe surface wrapped with wear-resistant rubber, and do the balance correction.
9.rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.

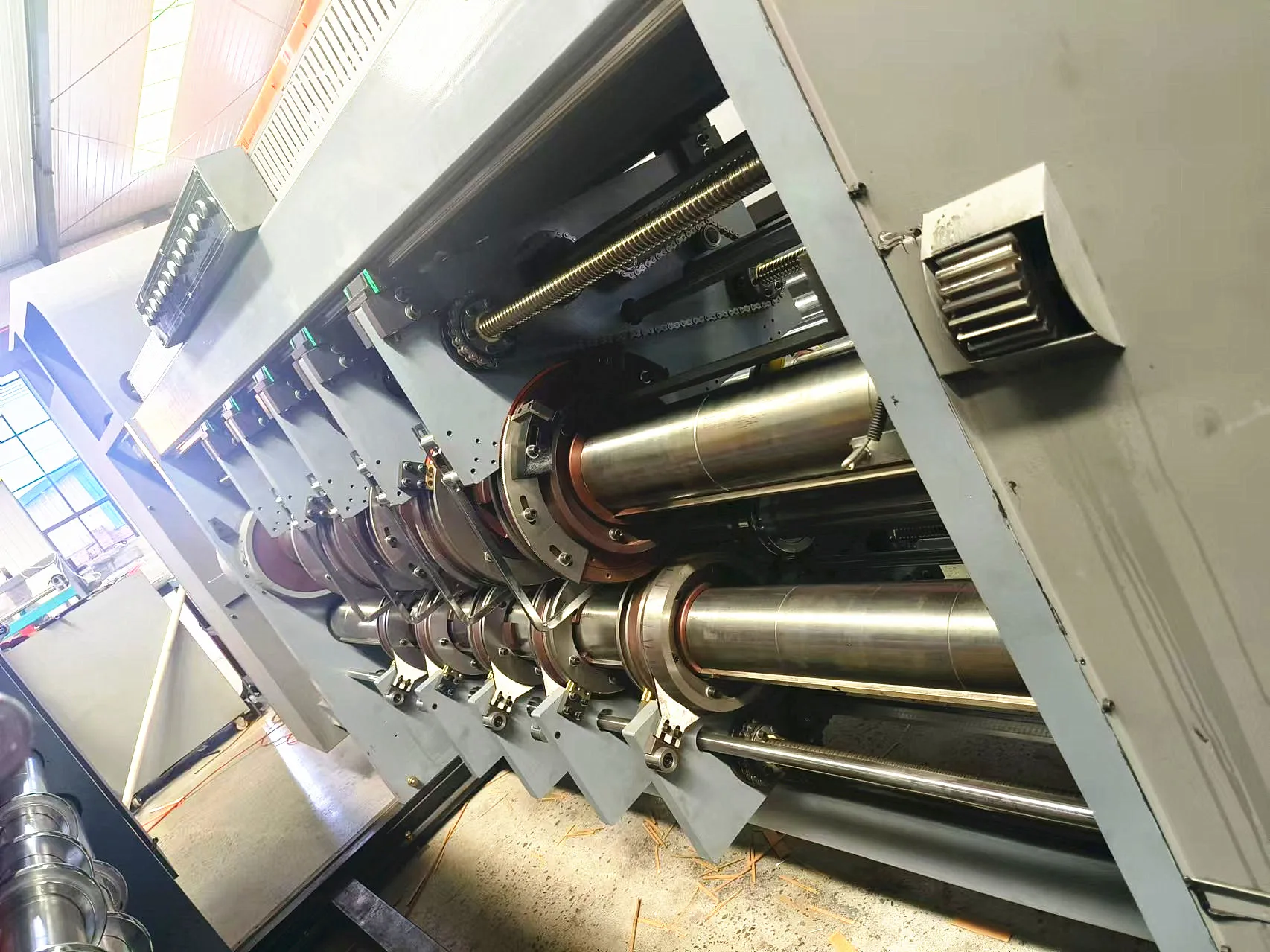

Slotter unit for printer slotter die cutter folder gluer bundling machine inline
1.Up slot knife shaft diameter 156mm , knives seat diameter 395mm
2.Crease roller shaft diameter 86mm , crease wheel diameter 180mm
3.The lower cutter shaft diameter is 156mm, and the lower cutter diameter is 280mm.
4.The lateral movement of the cutter head and the pressure roller is synchronous electric adjustment.
5.Each slotted tool holder is traversed with anti-collision protection device.
6.Slot knives width 7mm use ally steel material after heattreatment ,grinding , teeth model knives ,slot knives thickness 7 mm ( standard size is 7mm )
7.The knife and crease wheel lateral movement used electrical control .
8.We offer 6 shaft , whole slotter knife adjust electrically
2.Crease roller shaft diameter 86mm , crease wheel diameter 180mm
3.The lower cutter shaft diameter is 156mm, and the lower cutter diameter is 280mm.
4.The lateral movement of the cutter head and the pressure roller is synchronous electric adjustment.
5.Each slotted tool holder is traversed with anti-collision protection device.
6.Slot knives width 7mm use ally steel material after heattreatment ,grinding , teeth model knives ,slot knives thickness 7 mm ( standard size is 7mm )
7.The knife and crease wheel lateral movement used electrical control .
8.We offer 6 shaft , whole slotter knife adjust electrically

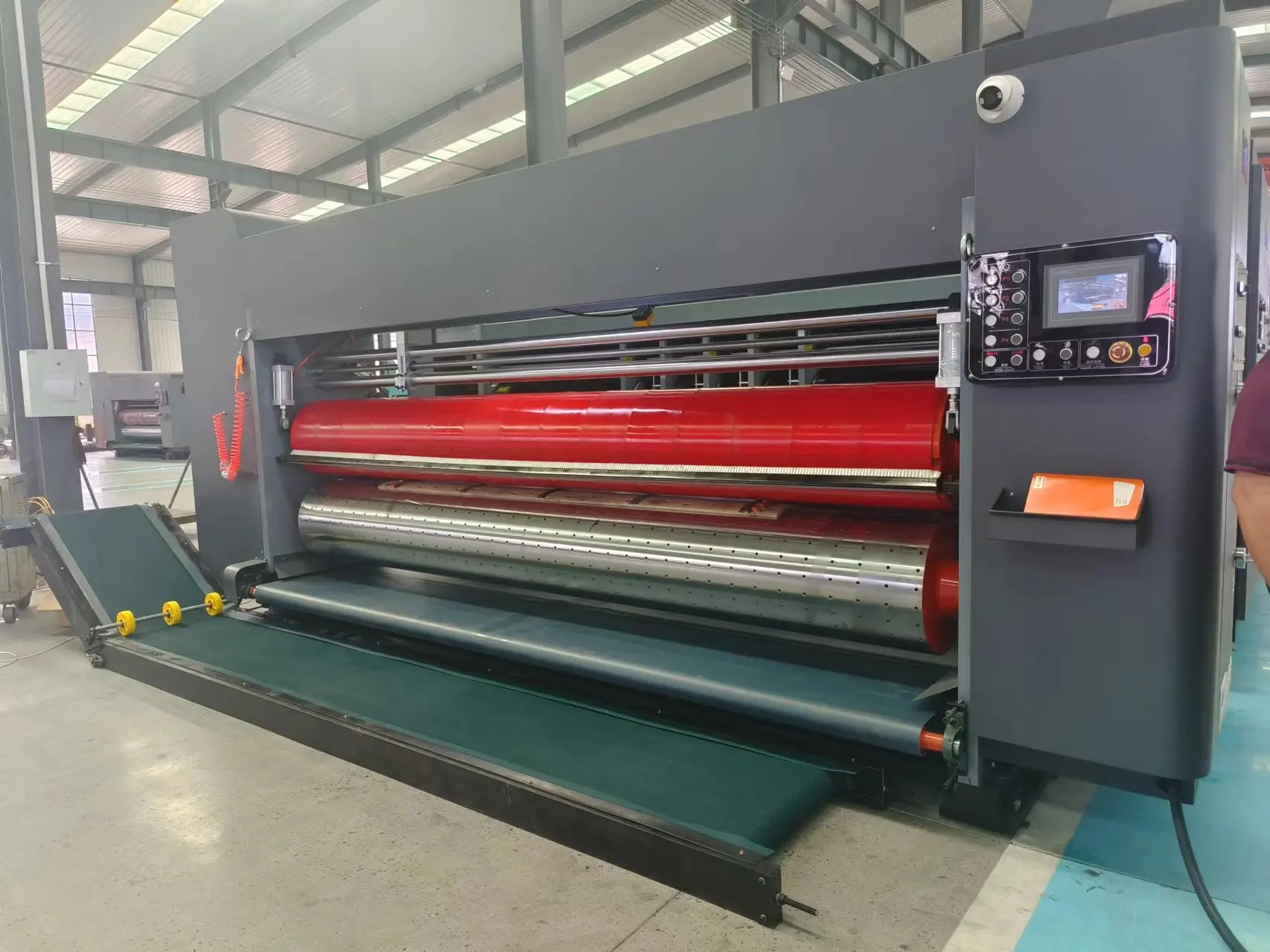

Die cutter unit for printer slotter die cutter folder gluer bundling machine
Cutter roll (lower roll)
1.The outer diameter is ￠250mm (without die).
2. The surface of the cast iron material is ground, hard chrome plated, balance correction, increase the running stability.
3.The distance between the screw holes of the knife mold is 100mm in the axial direction and 12 equally in the radial direction. Applicable cutter height is 25.4mm.
4.Thickness of wood template: 16mm (for three-layer cardboard) 13 mm (for five-layer cardboard)
Rubber pad roller (upper roller)
1. The outer diameter is ￠332mm, and the rubber pad size is ￠349.
2.Quick-change rubber pad, wear-resistant and long life.
3.The surface of the cast iron material is ground and hard chrome plated.
4.Balance correction, increase the running stability.
5.The thickness of the rubber pad is 9m. Width 250mm. Mechanical type horizontal 40mm swimming device. (Adjustable swimming speed)
1.The outer diameter is ￠250mm (without die).
2. The surface of the cast iron material is ground, hard chrome plated, balance correction, increase the running stability.
3.The distance between the screw holes of the knife mold is 100mm in the axial direction and 12 equally in the radial direction. Applicable cutter height is 25.4mm.
4.Thickness of wood template: 16mm (for three-layer cardboard) 13 mm (for five-layer cardboard)
Rubber pad roller (upper roller)
1. The outer diameter is ￠332mm, and the rubber pad size is ￠349.
2.Quick-change rubber pad, wear-resistant and long life.
3.The surface of the cast iron material is ground and hard chrome plated.
4.Balance correction, increase the running stability.
5.The thickness of the rubber pad is 9m. Width 250mm. Mechanical type horizontal 40mm swimming device. (Adjustable swimming speed)

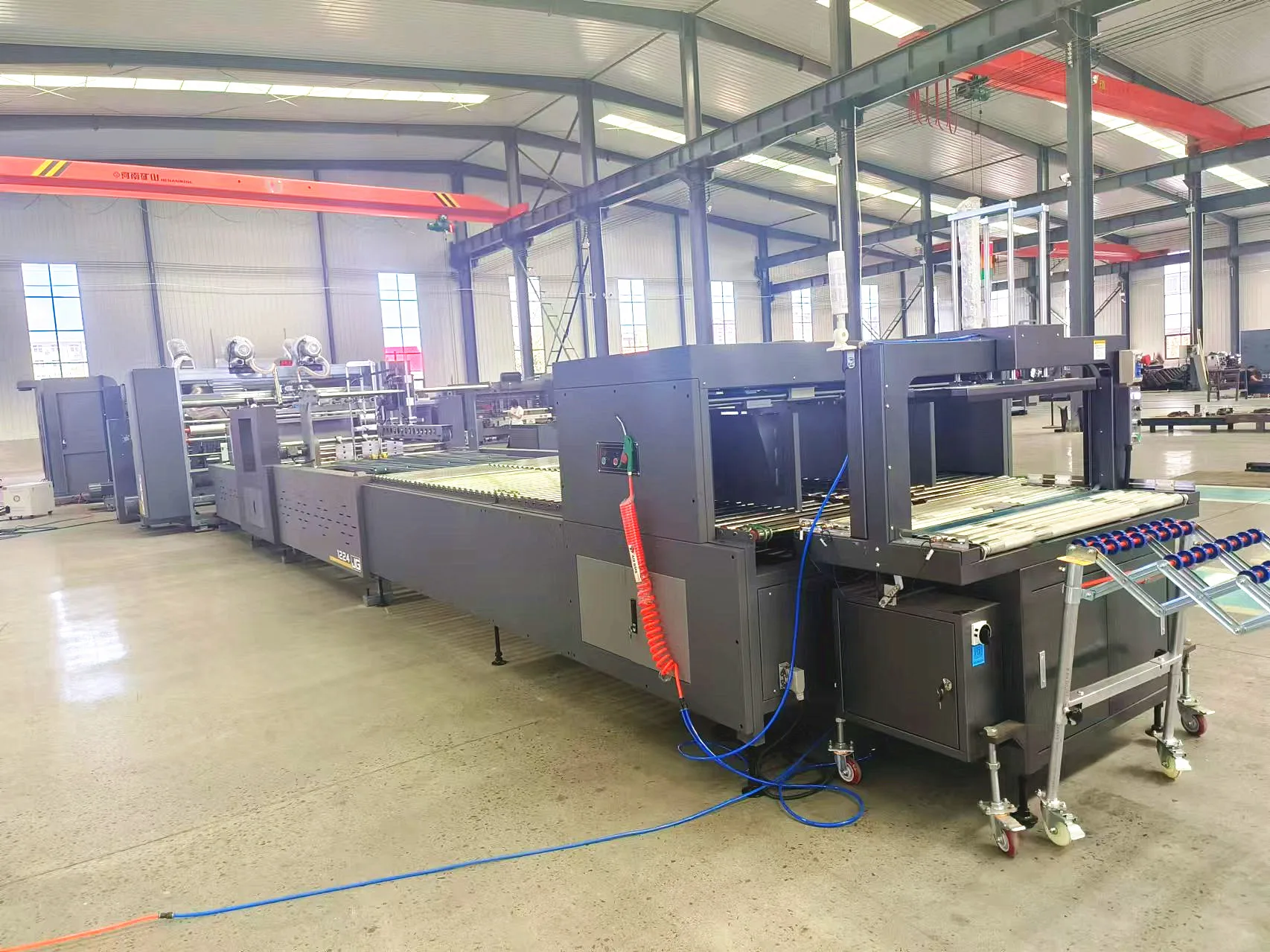

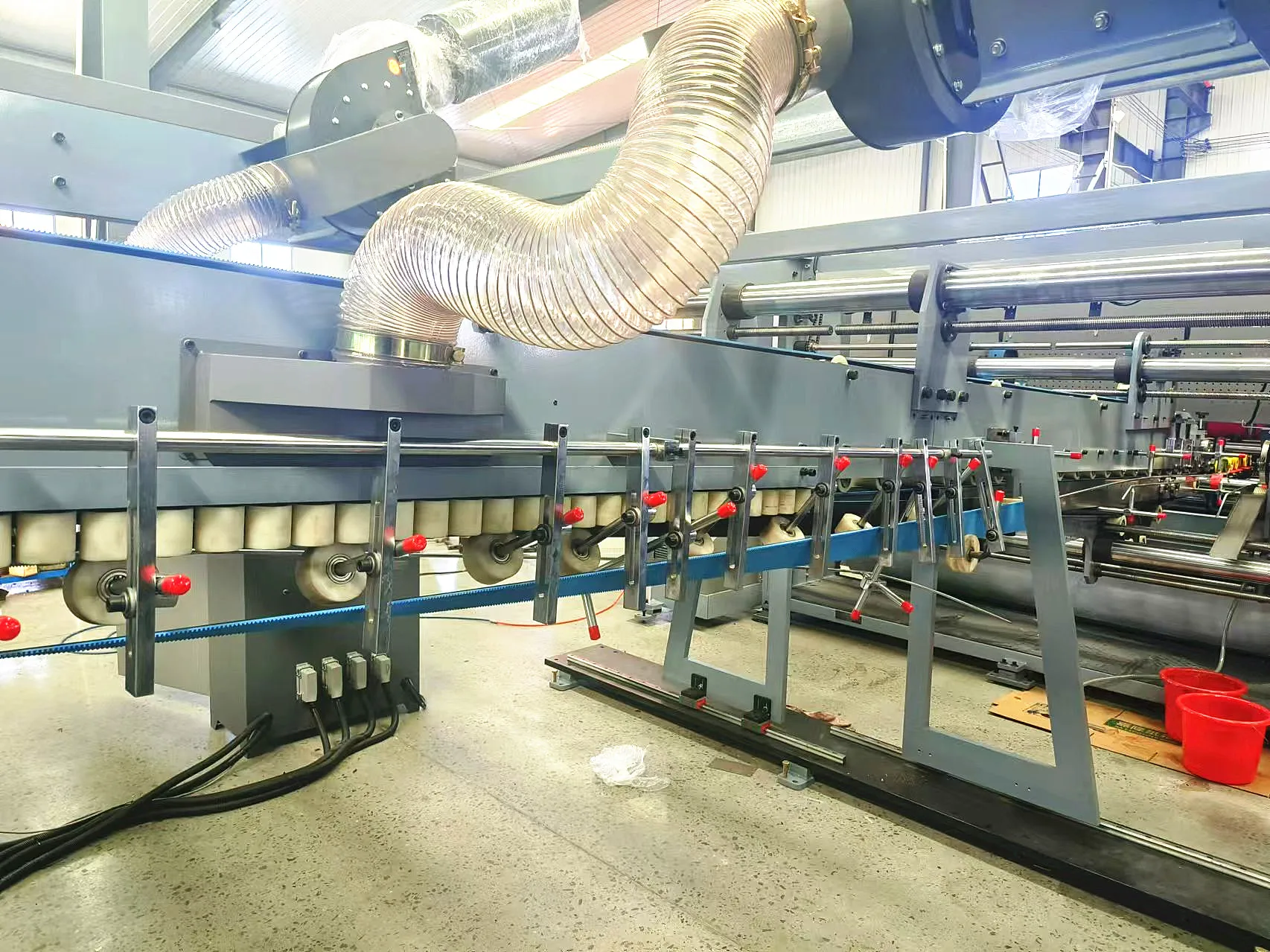

Folder gluer part for printer slotter die cutter folder gluer bundling machine inline
Automatic carton gluer is designed and made to match printing, slotting, folding and gluing and stacking. It has functions of delivering, smearing glue,folding, shaping up and counted stacking automatically.It adopts PLC control, touch screen operating and prestore and manage orders.Its high-speed producing ability, changing order
quickly and good stability can satisfy the shorter delivery .
quickly and good stability can satisfy the shorter delivery .
In order to improve the speed of the belt speed bridge and flexographic printing slot production speed adjustment. At the same time, the folding belt, the conveyor belt produces a flexographic printing slotting speed almost the same, to avoid the folder and the water-based printing slotted parts are not synchronized, which may cause the cardboard to jam and achieve accurate delivery.
The upper and lower belt speeds can be adjusted separately, ie their speeds are different and can be adjusted to the same speed.
The folding cardboard adopts a belt or rubber roller to facilitate the adjustment of the folding angle.
The paper feed section uses spring pressure to adjust the gap, and the thickness of the cardboard is automatically adjusted between 1 and 9 mm.
Cardboard stacking and counting pieces.
The stack of cardboard is mechanically and sensorized for full automation.
The counter (sensor) counts the number of cartons for easy setup and reliability.
The stack of cardboard uses computer counting and precise pushing.

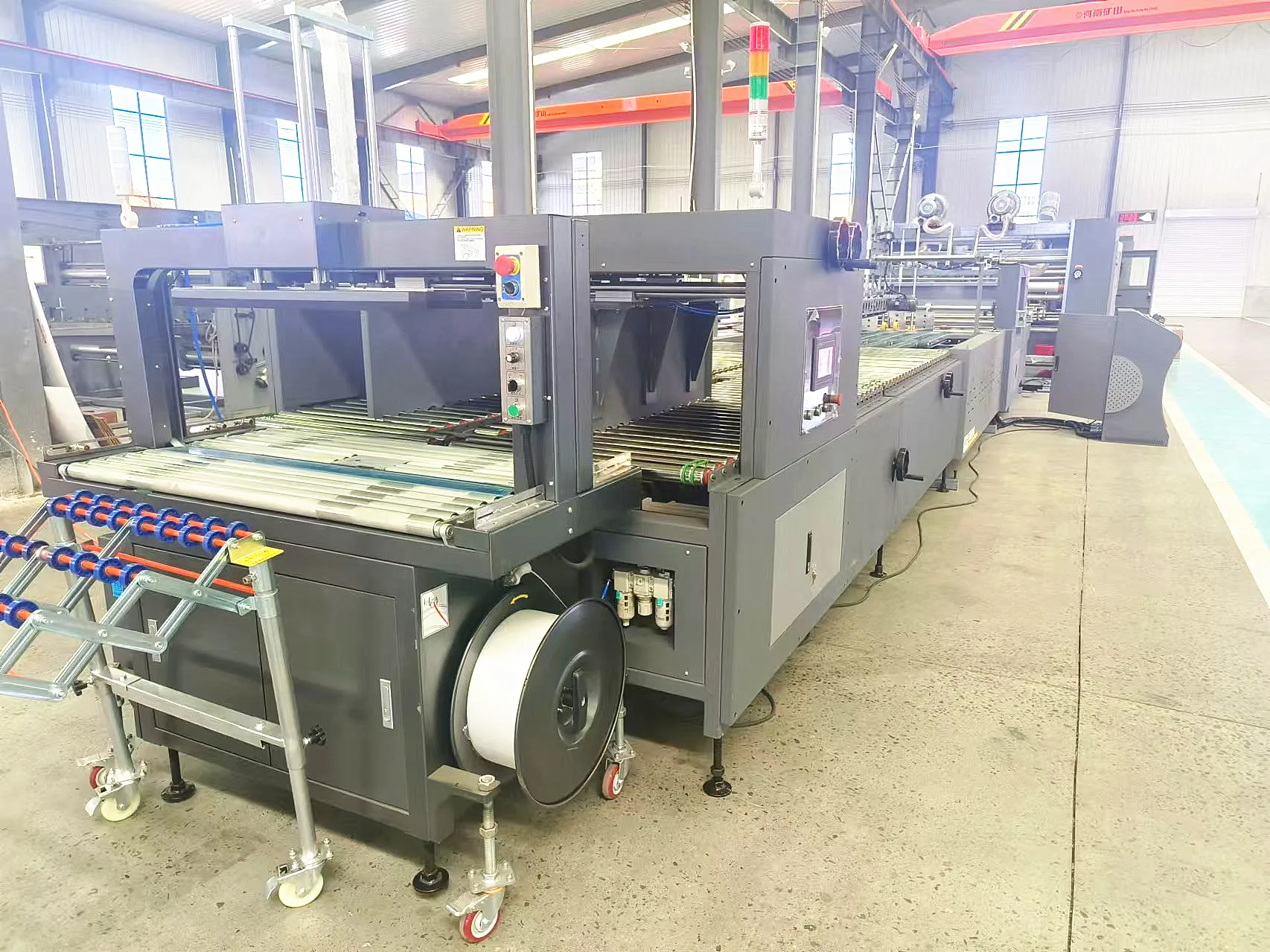

PP bundling part for printer slotter die cutter fold gluer bundling machine inline
This product is suitable for carton box manufacturers to match the sticking or ordering line. According to the size of the carton, it can be automatically adjusted and packed. Bundling form: 1-2 parallel channels, photoelectric, manual, etc.The conveying line of the bumper steering power roller: speed: 45mm / min. Bottom bonding surface ≥90% bonding width ≥20mm bonding position deviation ≤0.5mm.According to the needs: configure the Raffles telescopic rack connected with other equipment.Conveying equipment size: length 4850 × width 2300 × height 2000 (excluding telescopic frame)
The machine size is 1520 × 680 × 2000mm.
2. Suitable packing belt: width 5mm, thickness 0.6mm.
3. Bearing capacity: 80Kg.
4. Tape reel: the inner diameter of the paper core of the roll is 200mm-210mm, the outer diameter of the roll is 400mm-450mm, and the width of the roll is 170mm-190mm.
5. Adhesive method: hot melt method.
6. Bundling tightness: 0-45Kg.
7. Bundling form: parallel 1-2 channels, photoelectric, manual, etc.
8. Bottom bonding surface ≥90%, bonding width ≥20mm, bonding position deviation ≤0.5mm.
9. Electrical configuration: Panasonic PLC; Schneider inverter; Schneider contactor; Taiwan Yadeke cylinder; Taiwan Wanxin motor

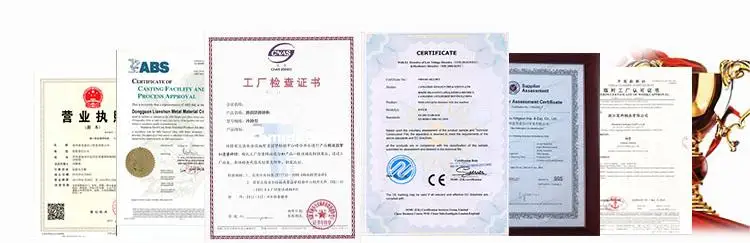

Certifications
