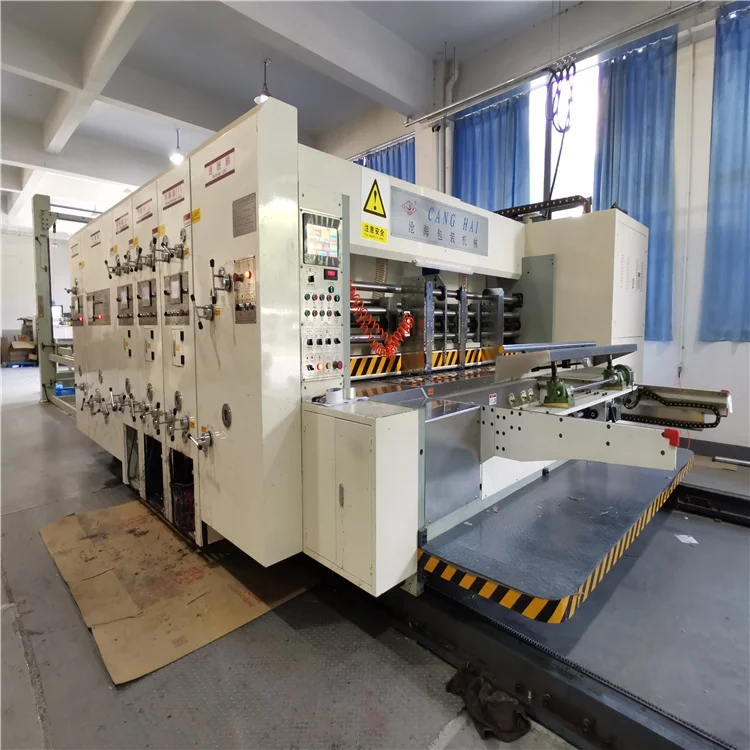

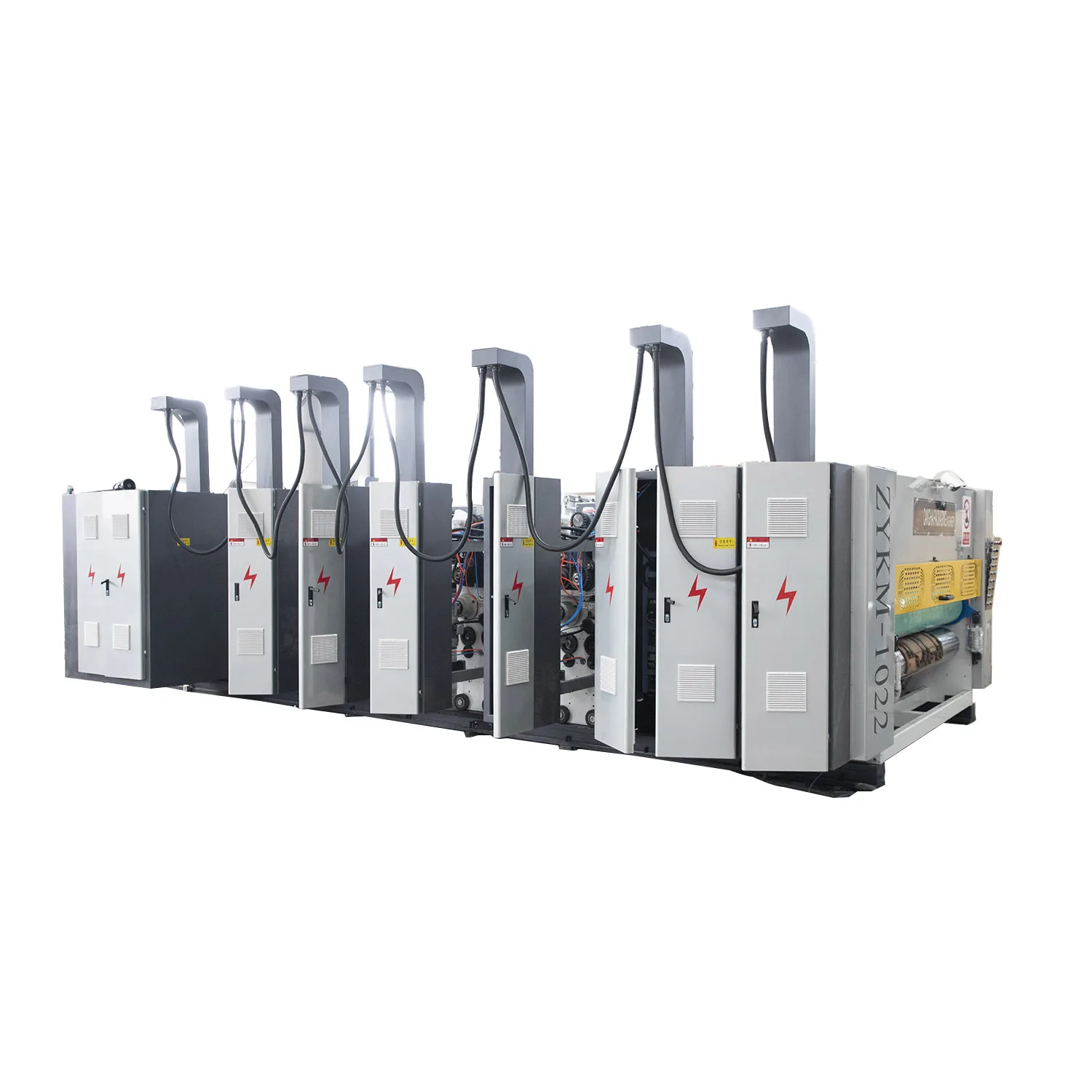

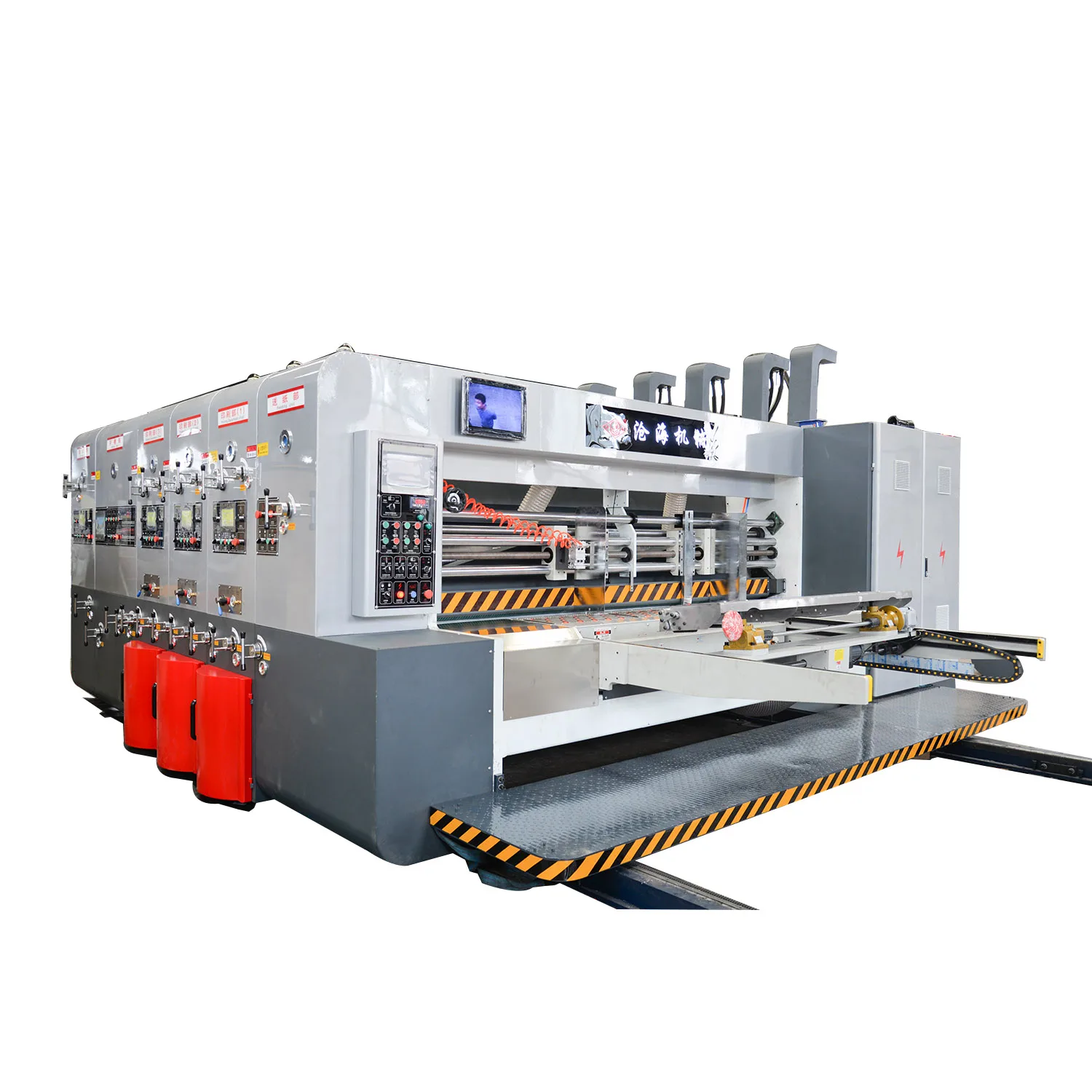

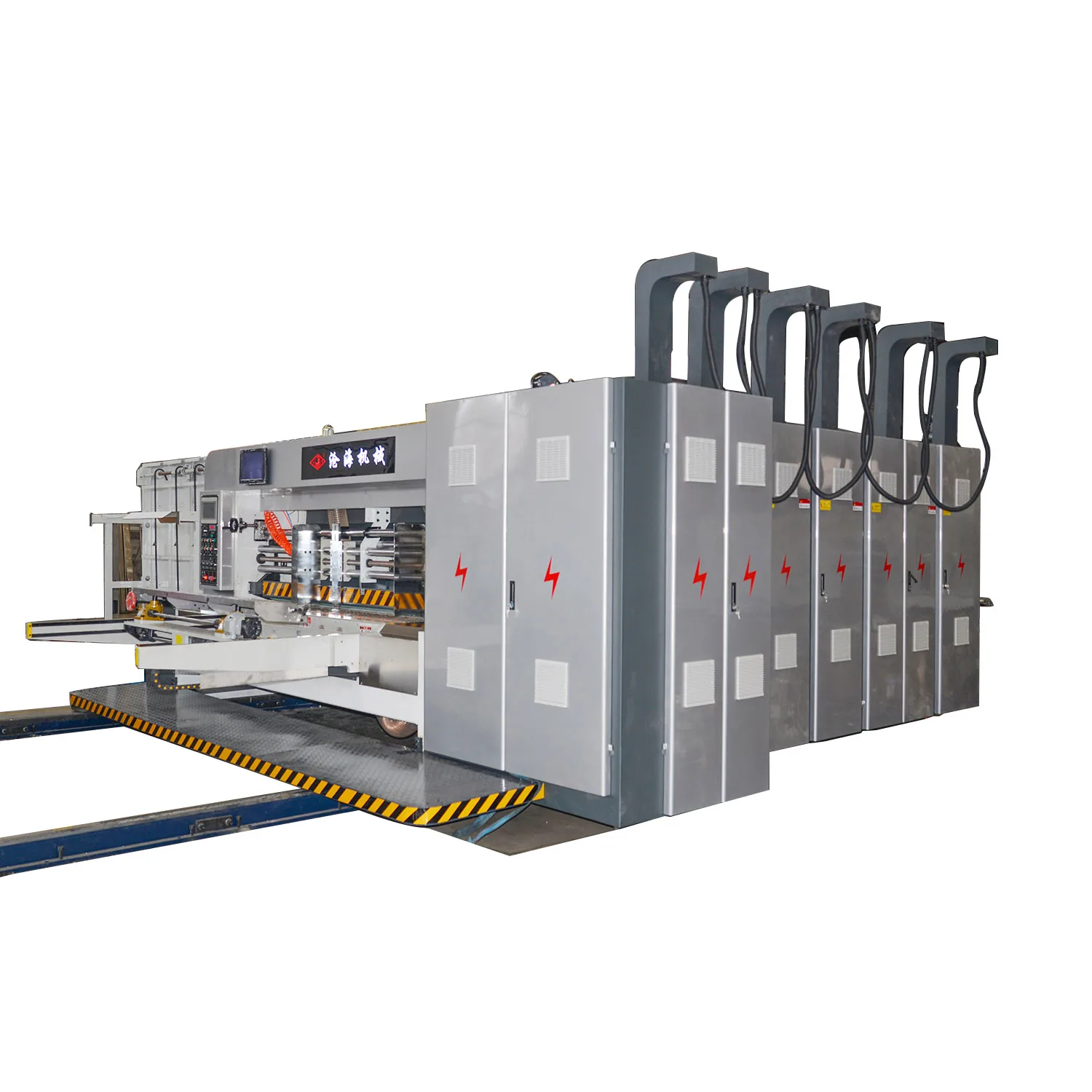

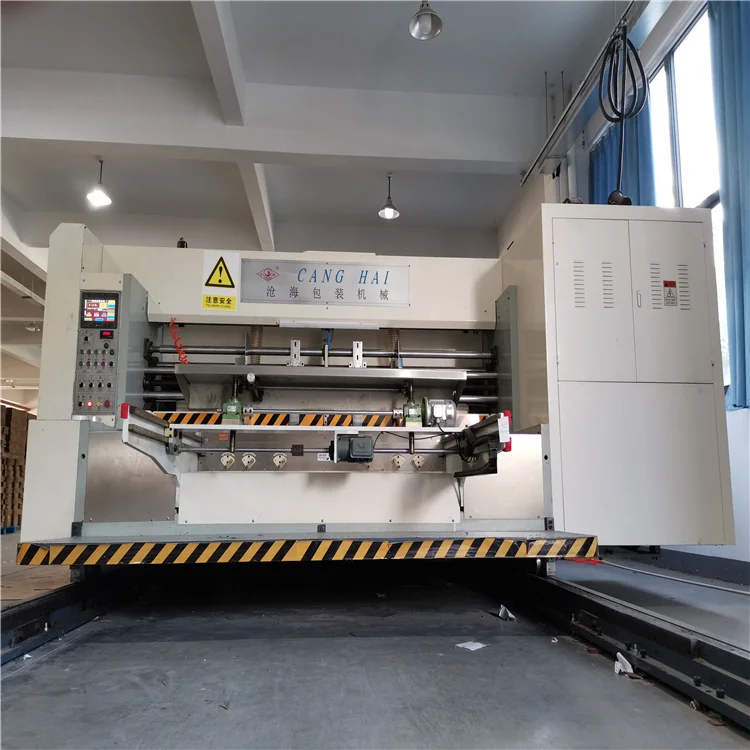

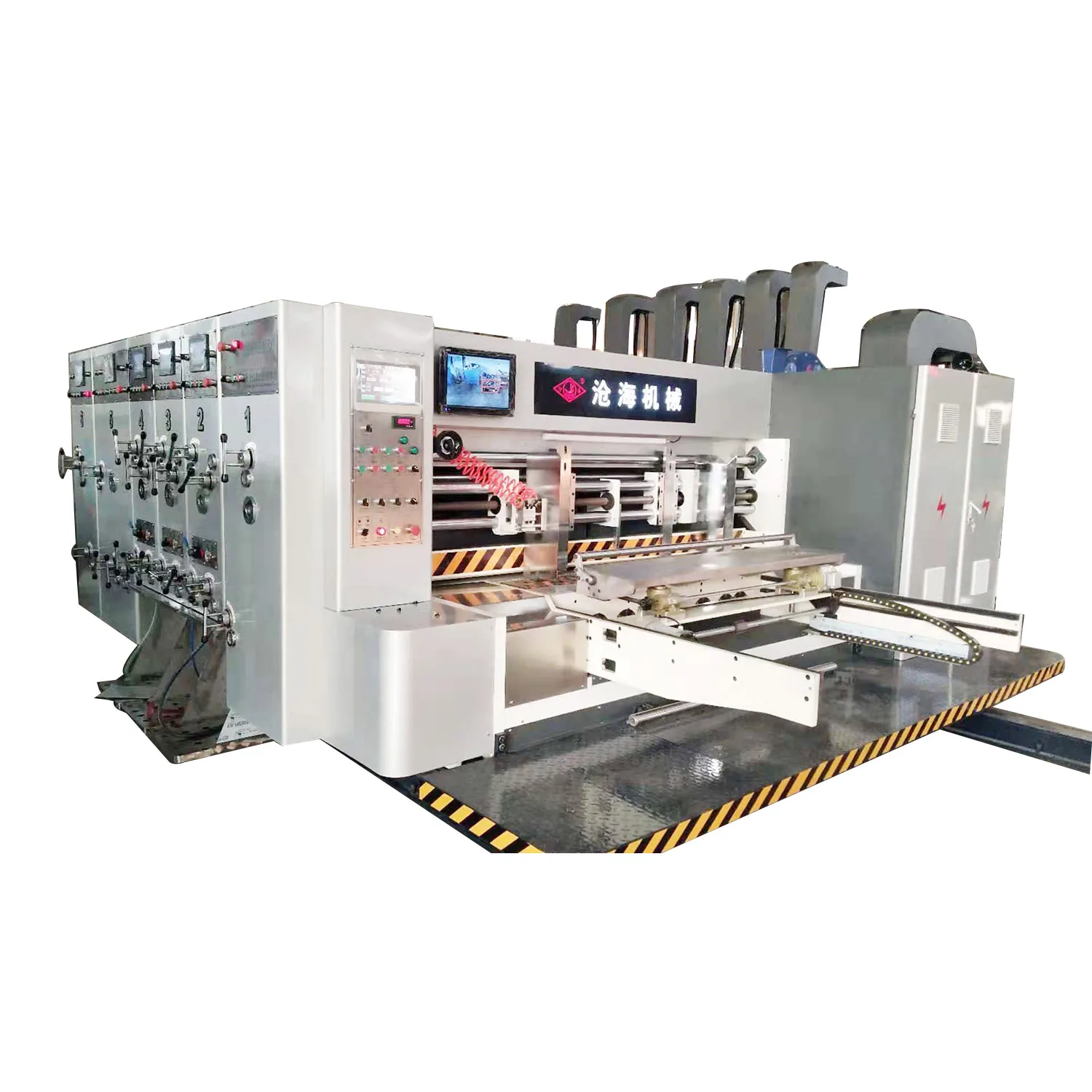

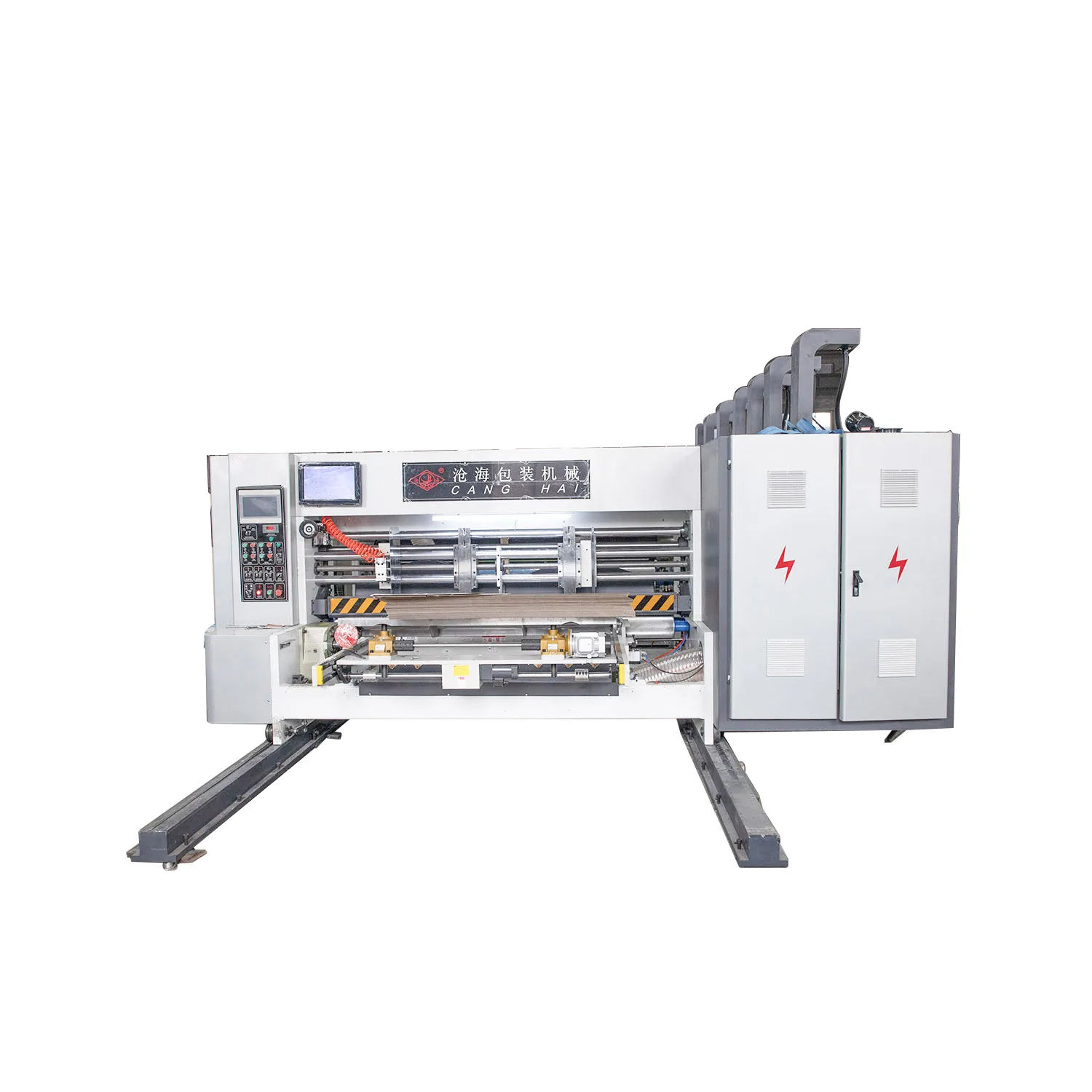

Canghai high speed automatic rotary carton box die cutting machine

Product Overview

Description

Canghai single color printer slotter machine

MACHINE FEATURES

*. This machine is designed and produced based on high quality, high speed, high efficiency, reliability and safety, with the advantages of quick changing order and easy operation.

*. Adapting imported PLC with touch screen control. It can save order, and accelerate the changing order speed.

*. Adopt high quality material and assembly part.



*. The slot knife seat lateral movement uses the electric control, in fast and accurate.

*. Rubber roller automatic displacement device,prolong the service life .

*. Quick replacement rubber anvil is from abroad,it is easy for replacement and wear-proof.

*. Pull roller puick lateral moving mechanism.

*. Equipped with automatic paper stacking machine.

FEEDER:

*. Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.

*. Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.

*. Touch screen displays production speed and quantity.

*. Adjust the feed interval by manual.

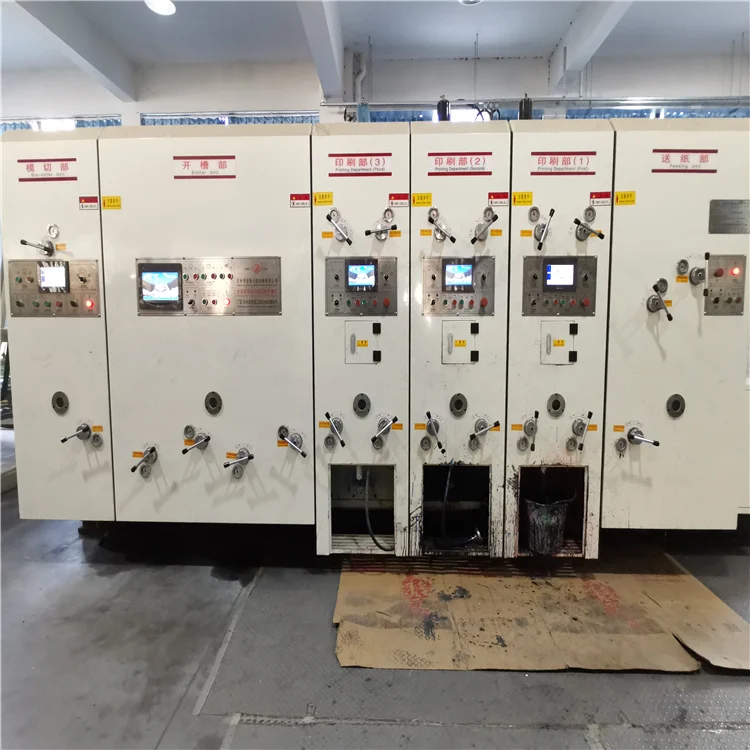

PRINTER:

 *. Adopt hanging structure,,convenience and fast to set up.

*. Installing and uninstalling printing plate with pedal switch or operation panel to control forward and reverse

*. To match with feeding unit the machine with automatic lift anilox, when the feeding unit runs,the anilox roller goes down to

*. Printing phase adopt PLC touch screen and 360 degree electric adjustment.

*. Pull roller quick lateral moving mechanism, self-locking gap adjustment device.

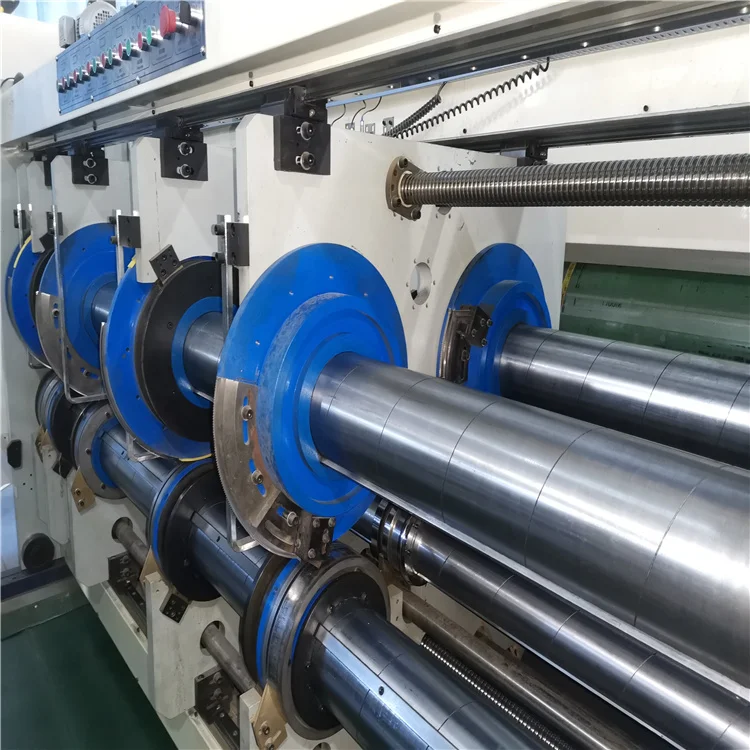

BIAX SLOTTER:

*. Unique double slotted structure, elimination of Collision between front and back tool, Processing of large size high carton box.

*. The slot knife thickness is 7-8 millimeter,which is from high quality alloy,tooth profile in sharp cutting, high wearable.



*. Spring type single slitting knife with glabrous slitting effect and cost saving.

*. Middle knife motorized moving device, fit for each production.

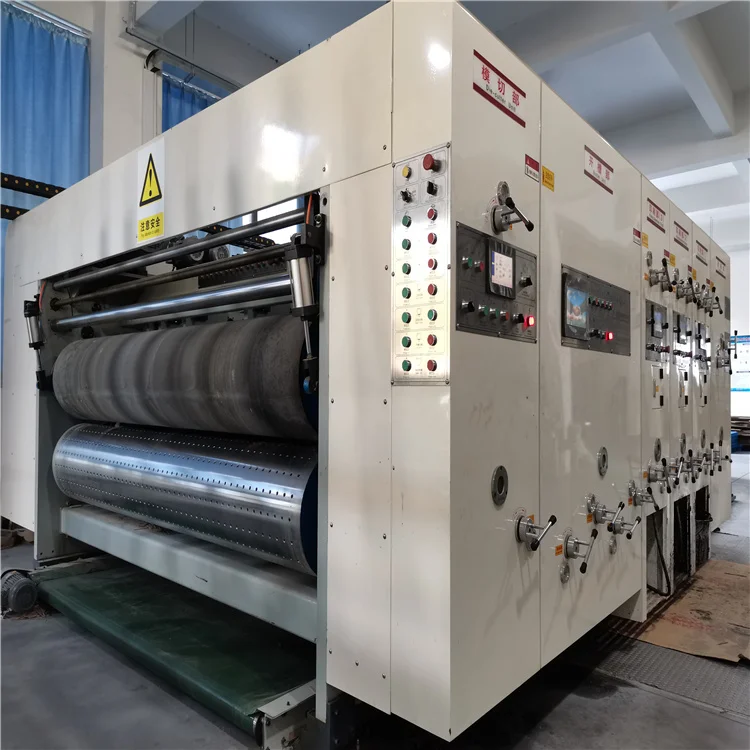

ROTARY DIE-CUTTER:

*. Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.



*. Die cut phase adopt PLC touch screen, 360 degree adjust electric number.

*. Machine with rubber amend device, the rubber roller can be used after many times amend.
