Platform Die Cut Machine High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box
- Category: >>>
- Supplier: Henan Zhixuan Machinery Co. Ltd.Henan Ltd.
Share on (1601298176773):
Product Overview
Description
Platform Die Cut Machine High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box
Contact person:Angela Wang
Wechat/Whatapps:0086 13676945208

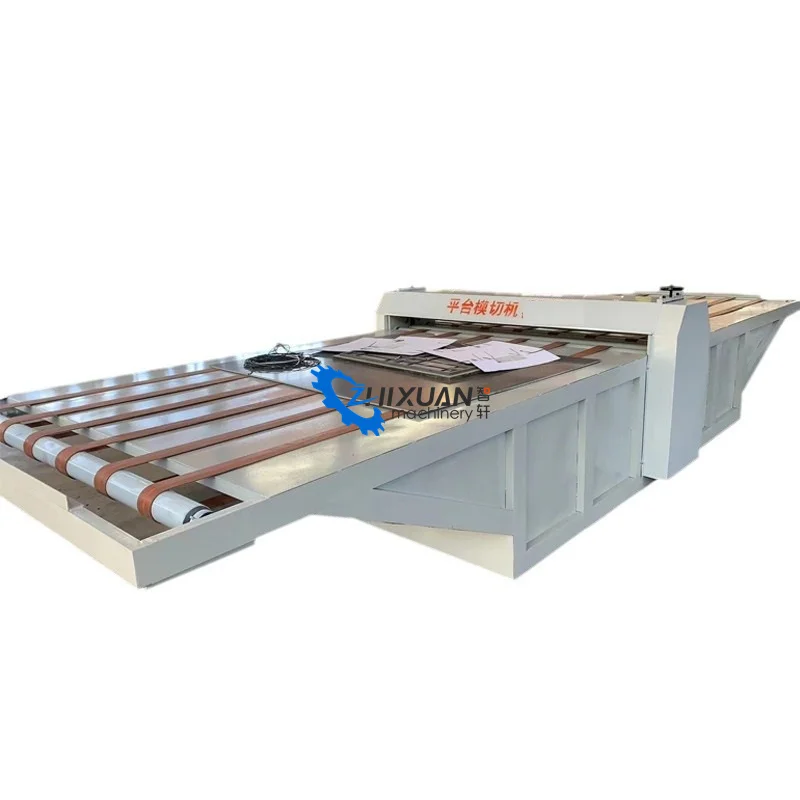

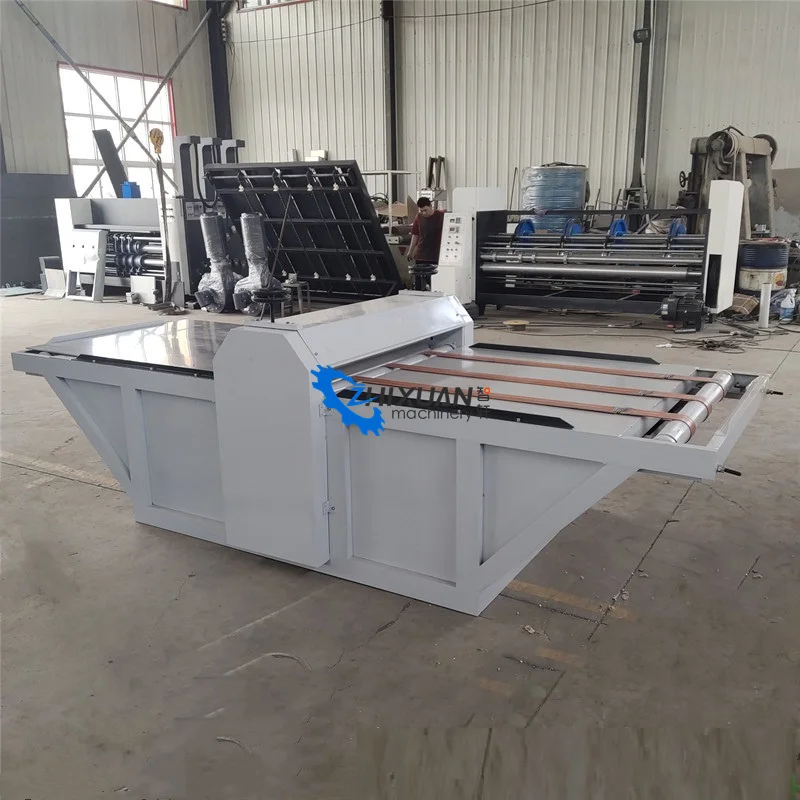

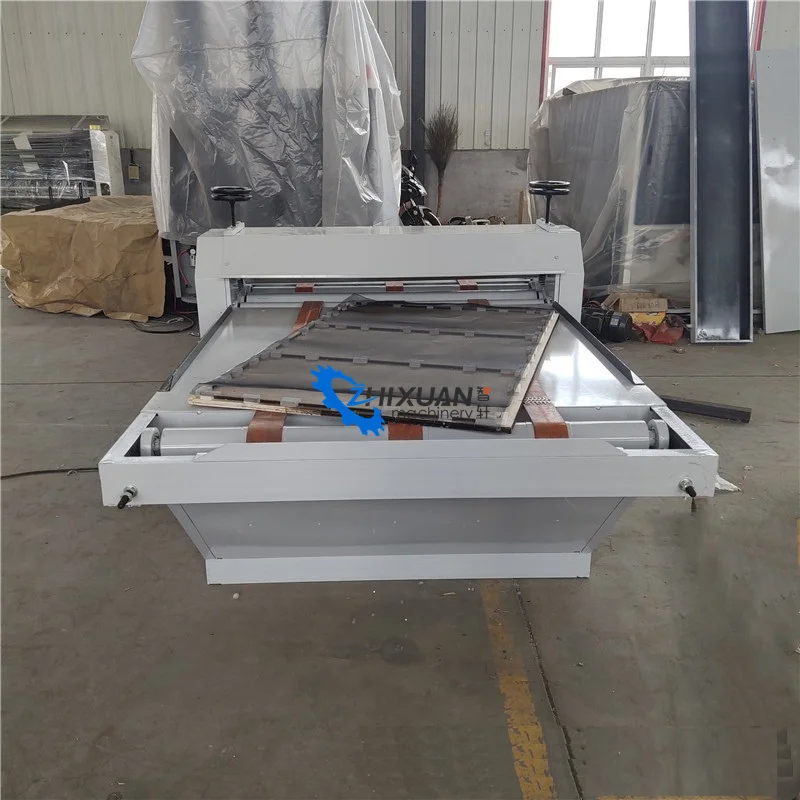

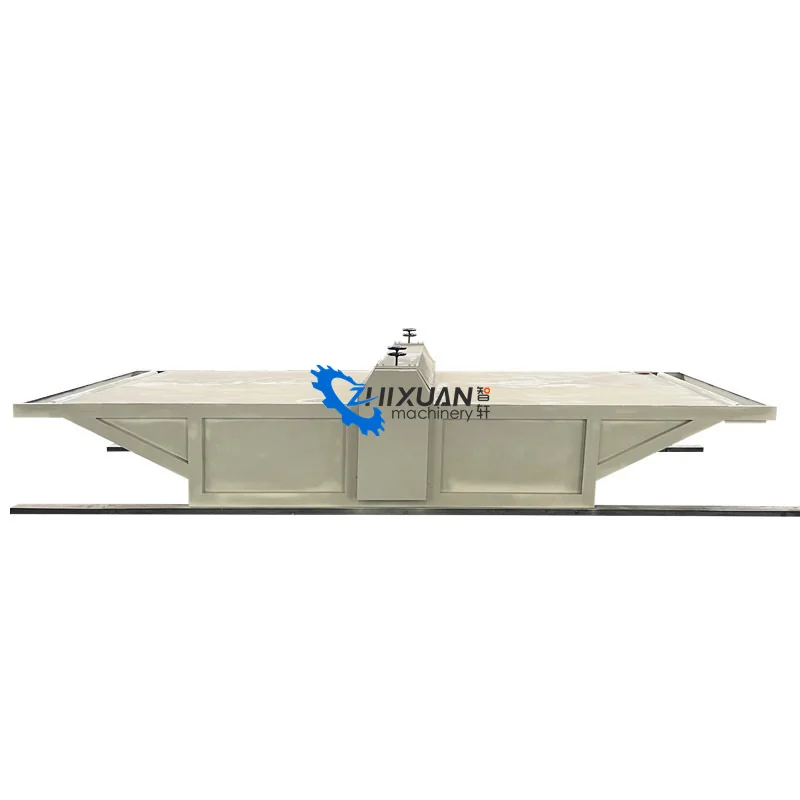

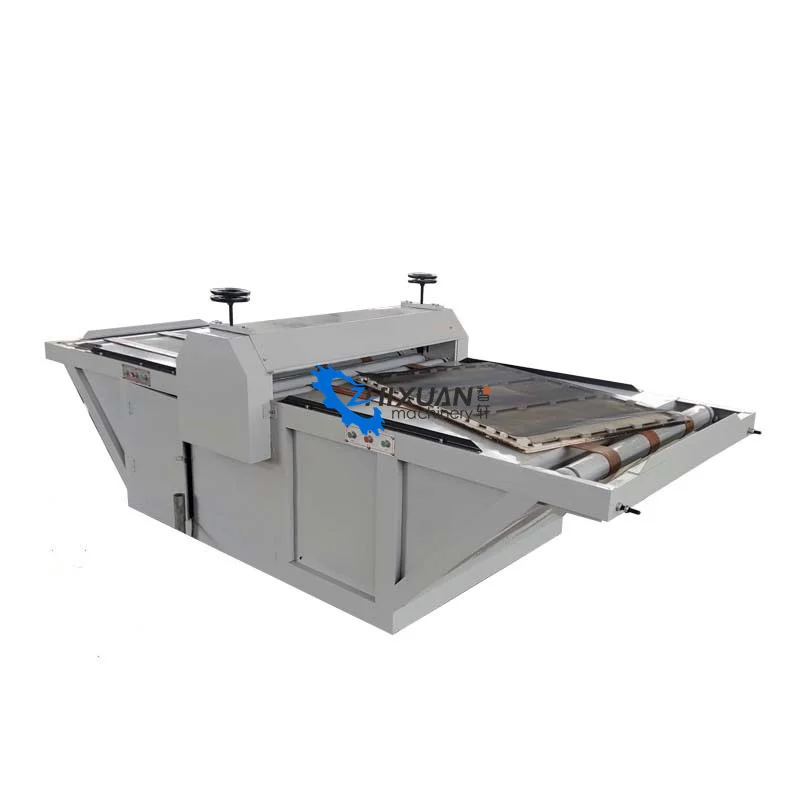

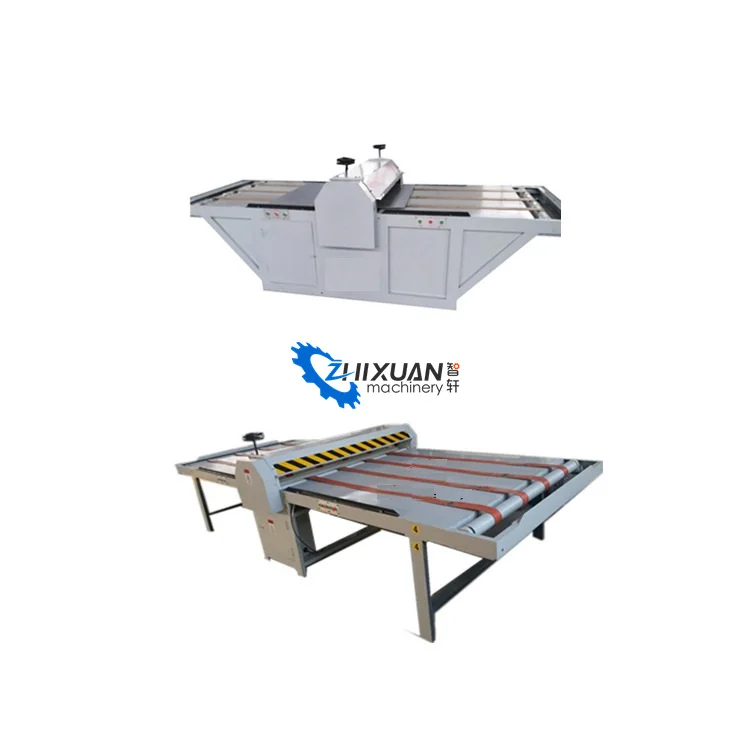

Product Photo
Product Description
Introduction for High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box:
The High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box(DIE CUTTING MACHINE) is also called beer machine, cutting machine, CNC punching machine, mainly used for die cutting (full cutting, half cutting), creasing and hot stamping, laminating, automatic waste discharge of some corresponding non-metallic materials, self-adhesive, EVA, double-sided adhesive, electronics, mobile phone rubber pads, etc. The High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box uses steel knife, hardware mold, steel wire (or template carved from steel plate), and applies a certain pressure through the stamping plate to roll and cut the printed product or cardboard into a certain shape.
The High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box is an important equipment for post-printing packaging processing and molding.
Main production technology of High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box：
Die-cutting is the most commonly used process for packaging printed materials. It is a molding process that uses a die-cutting knife to combine into a die-cutting plate according to the pattern required by the product design, and under the action of pressure, the printed materials or other coiled blanks are rolled into the required shape or cut marks. The creasing process uses a creasing knife or a creasing die to press out line marks on the sheet material under the action of pressure, or uses a rolling wheel to bend the sheet at a predetermined position. Usually, the die-cutting and creasing process is a process that combines the die-cutting knife and the creasing knife in the same template, and performs die-cutting and creasing processing on the die-cutting machine at the same time, which is referred to as die-cutting. Process introduction The main process of die-cutting and creasing is: plate loading → adjust pressure → determine rules → paste base material and auxiliary materials → test die-cutting → formal die-cutting and creasing → waste removal → finished product winding or cutting into sheets → counting and packaging.
Die-cutting is the most commonly used process for packaging printed materials. It is a molding process that uses a die-cutting knife to combine into a die-cutting plate according to the pattern required by the product design, and under the action of pressure, the printed materials or other coiled blanks are rolled into the required shape or cut marks. The creasing process uses a creasing knife or a creasing die to press out line marks on the sheet material under the action of pressure, or uses a rolling wheel to bend the sheet at a predetermined position. Usually, the die-cutting and creasing process is a process that combines the die-cutting knife and the creasing knife in the same template, and performs die-cutting and creasing processing on the die-cutting machine at the same time, which is referred to as die-cutting. Process introduction The main process of die-cutting and creasing is: plate loading → adjust pressure → determine rules → paste base material and auxiliary materials → test die-cutting → formal die-cutting and creasing → waste removal → finished product winding or cutting into sheets → counting and packaging.
Main Parameter
High Quality Flatbed Die Cutting Machine Large Platform Die Cutting Machine for Carton Box | ||||||||||
Model | MQJ-1200 | MQJ-1400 | MQJ-1600 | MQJ-1800 | MQJ-2000 | |||||
Speed | 0-15m/min | 0-15m/min | 0-15m/min | 0-15m/min | 0-15m/min | |||||
Work Size （mm） | 1000x1200 | 1200x1400 | 1300x1500 | 1600x2000 | 1800x12000 | |||||
Power | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 2.2kw | |||||
Weight | 600kg | 650kg | 700kg | 750kg | 1000kg | |||||
Overall Size (mm) | 1500×3000×1250 | 1700×4500×1250 | 1900×4500×1250 | 2100×5000×1250 | 2300x5000x1300 | |||||

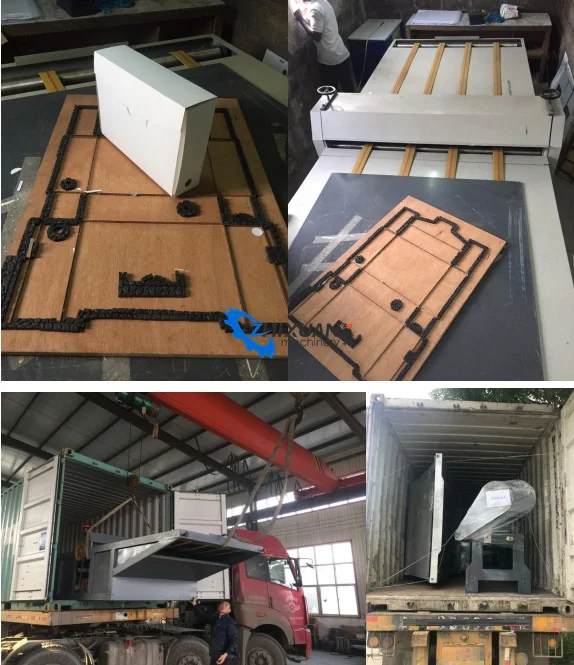

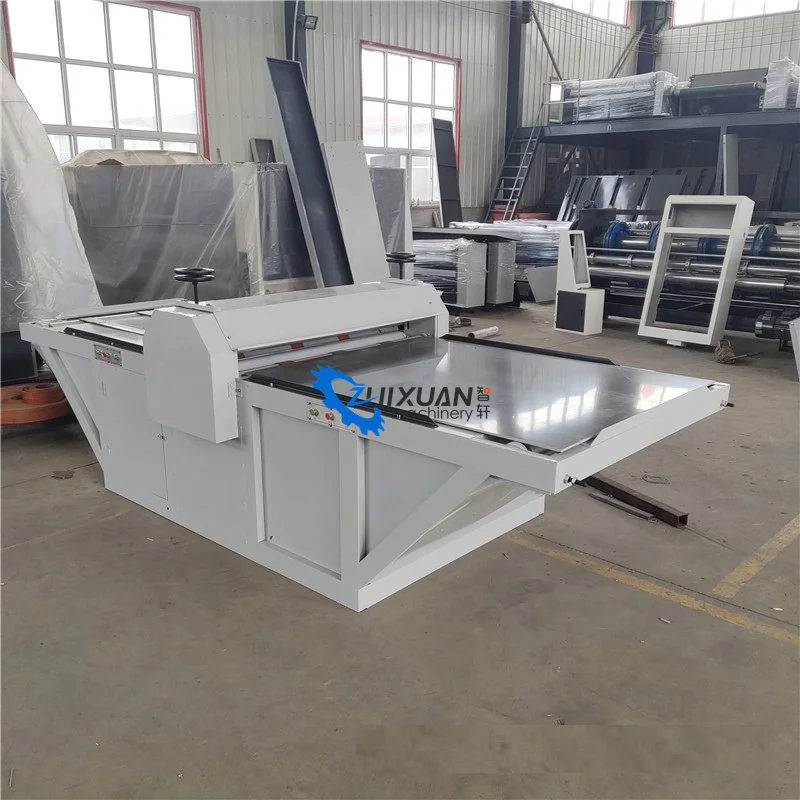

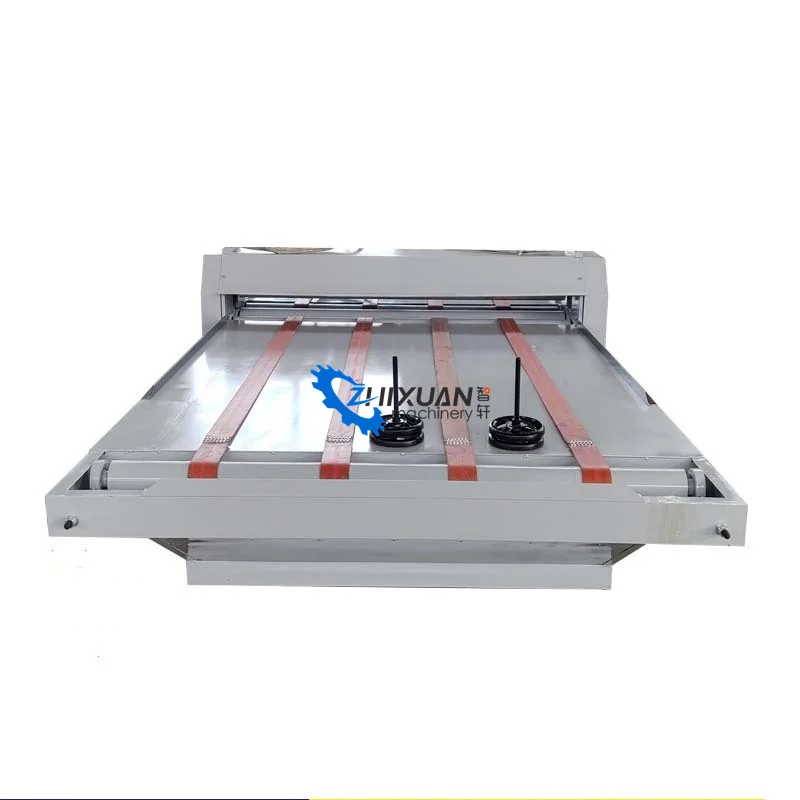

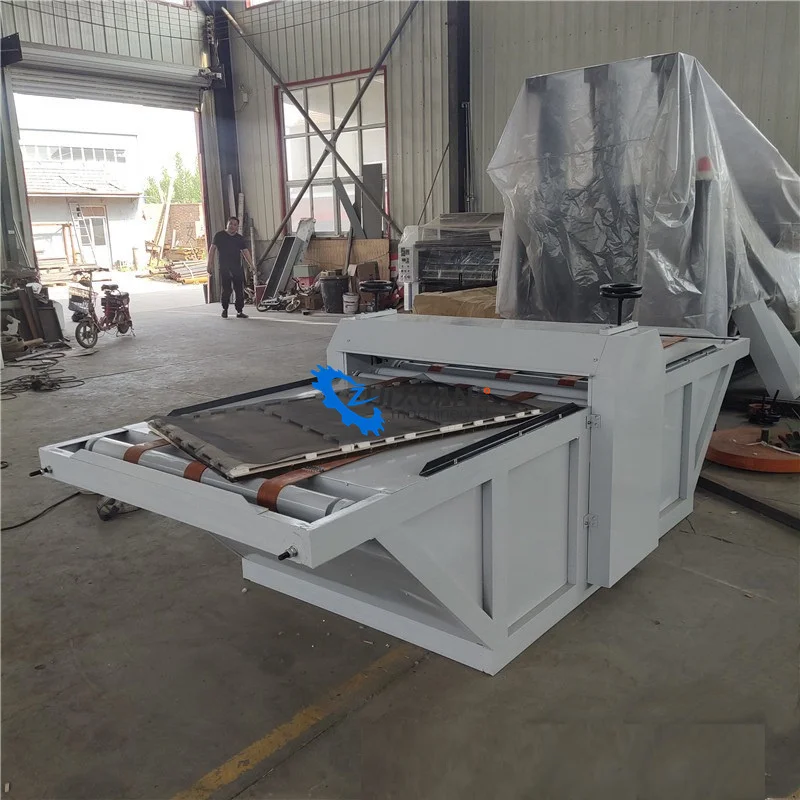

Details Images
