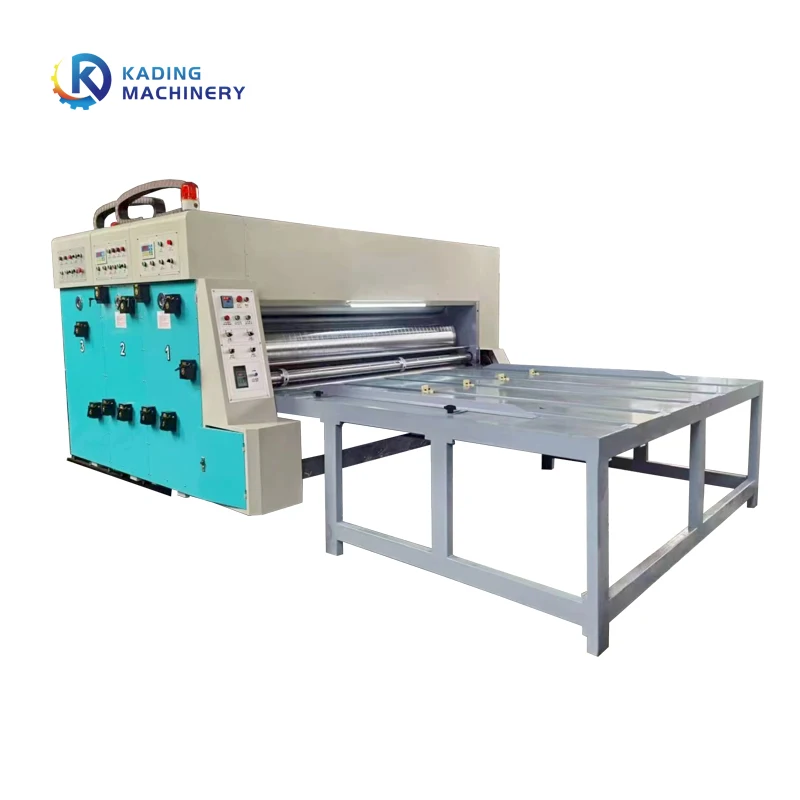

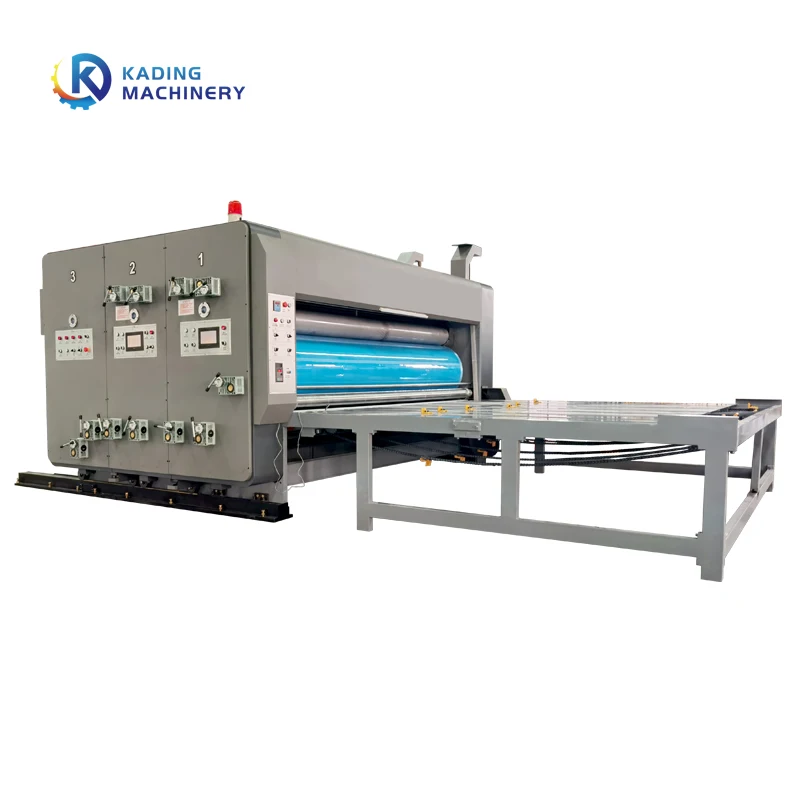

Chain Paper Feeding Corrugating Carton Boxes Printing Die Cutting Machine With Slotting Knives
- Category: >>>
- Supplier: Cangzhou Kading Carton Machinery Manufacturing Co. Ltd.Cangzhou Ltd.
Share on (1601320163753):
Product Overview
Description
MACHINE DESCRIPTION
1.Chain type hand move feeding cardboard.
2.The whole machine is designed and manufactured according to high requirements and reliable functions, and the operation of the whole machine is designed with humanization, which can perform setting, correction, execution, replacement and memory functions in a short time, and display with accurate data.
3.All driving rollers are made of high-quality steel, plated with hard chrome, and the surface is ground.
4.Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately.
5.Ink roller have the separately turn device to prevent ink dried when machine stopped working.
6. Ink supply by pneumatic diaphragm pump.
7. The transmission gear is made of high-quality alloy steel, which is heat-treated and ground.
8. The transmission part adopts spray lubrication system to ensure high precision and long service life of the machine.
9. The automatic oil balance device keeps the oil level of each unit balanced.
2.The whole machine is designed and manufactured according to high requirements and reliable functions, and the operation of the whole machine is designed with humanization, which can perform setting, correction, execution, replacement and memory functions in a short time, and display with accurate data.
3.All driving rollers are made of high-quality steel, plated with hard chrome, and the surface is ground.
4.Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately.
5.Ink roller have the separately turn device to prevent ink dried when machine stopped working.
6. Ink supply by pneumatic diaphragm pump.
7. The transmission gear is made of high-quality alloy steel, which is heat-treated and ground.
8. The transmission part adopts spray lubrication system to ensure high precision and long service life of the machine.
9. The automatic oil balance device keeps the oil level of each unit balanced.
MACHINE SPECIFICATION
Model | KCF-1224 | KCF-1228 | KCF-1624 | KCF-1628 | ||||
Max.mechanical speed (pcs/min) | 60 | 60 | 60 | 60 | ||||
Max.feeding size (mm) | 1200*2600 | 1200*3000 | 1600*2600 | 1600*3000 | ||||
Min.feeding size (mm) | 720*340 | 720*340 | 720*420 | 720*420 | ||||
Valid printing area (mm) | 1200*2400 | 1200*2800 | 1600*2400 | 1600*2800 | ||||
Printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 | ||||
Min.slotting space (Upper knife)(mm) | 130*130*130*130 | 130*130*130*130 | 130*130*130*130 | 130*130*130*130 | ||||
Min.slotting space (Lower knife)(mm) | 260*70*260*70 | 260*70*260*70 | 260*70*260*70 | 260*70*260*70 | ||||
Max.slotting depth (mm) | 300 | 300 | 400 | 400 | ||||
*If need other configuration, please ask our salesman for more details. | ||||||||
MACHINE DETAILS

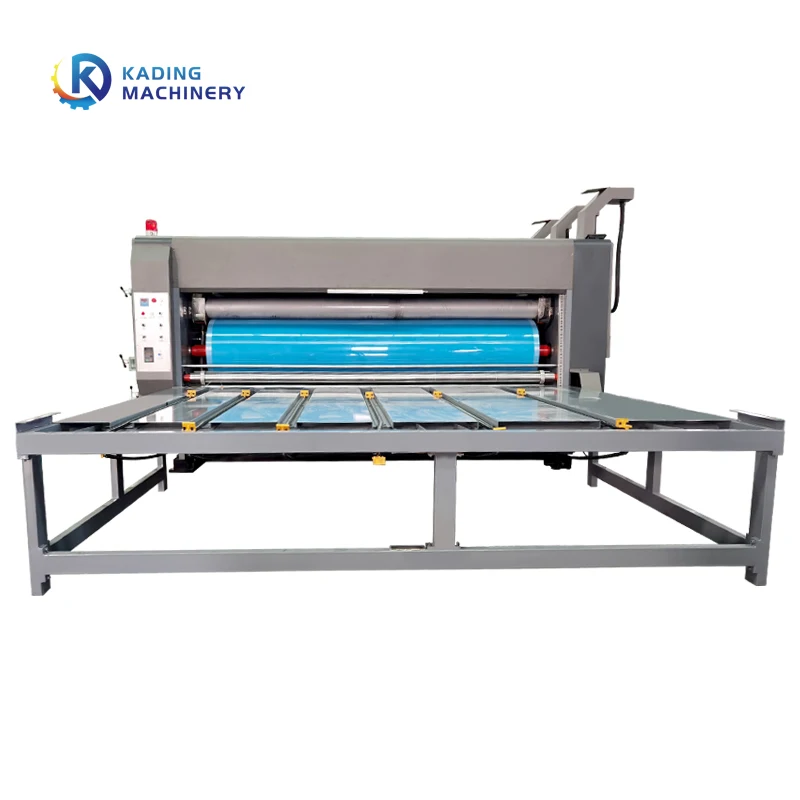

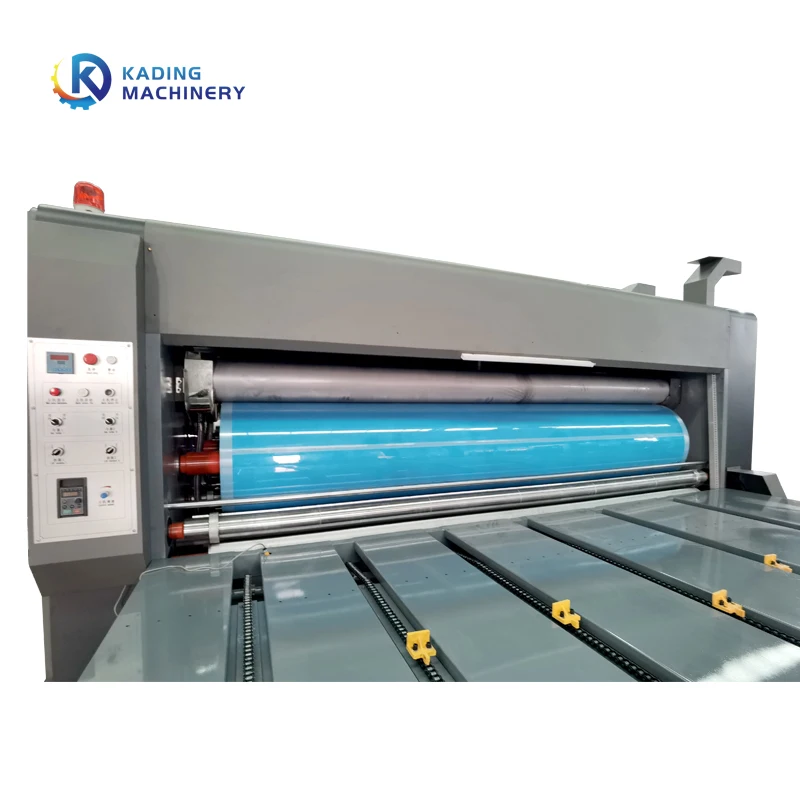

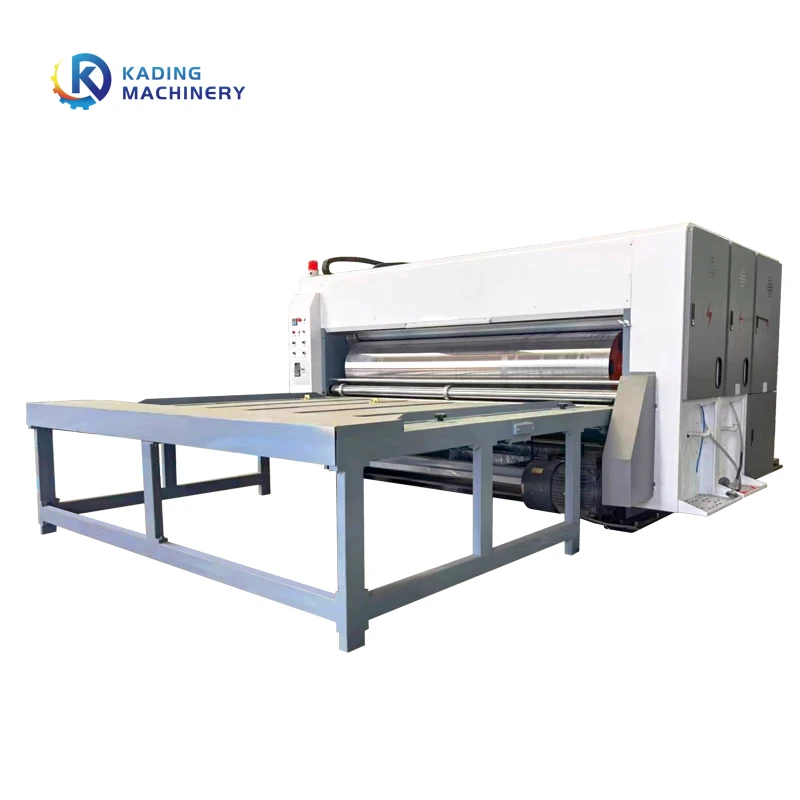

Chain Feeding Unit
1.Open and closing of the unit adopts electrical walking and pneumatic locking (with overload protection function).
2.Paper-feeding roller: The upper axle adopts ginning paper-feeding wheel while the lower axle adopts steel ginning roller.
3.The surface is hard chromium-plating, which guarantees the smooth feeding of the paperboard and does not damage the corrugated cap.

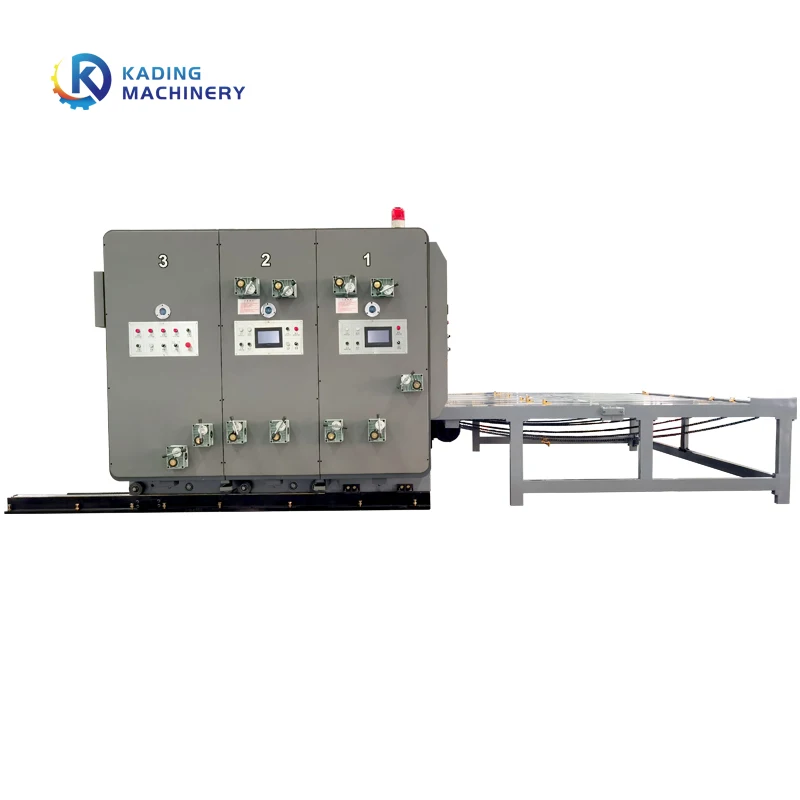

Printing Unit
1.Electric digital control of printing phase.
2.Manual lateral movement, control range±5mm.
3.Printing phase fixing device. When the unit is separated to adjust the phase or clean, the brake mechanism restricts the gear rotation and maintains the original gear position.
4.The surface diameter of the steel pipe is processed by precision press forming, with uniform dots and guarantee uniformly inking.
5.The anilox roller descends and press the printing plate when it start feeding paper, and the anilox roller rises and separate from the printing plate when feeding is stopped.
2.Manual lateral movement, control range±5mm.
3.Printing phase fixing device. When the unit is separated to adjust the phase or clean, the brake mechanism restricts the gear rotation and maintains the original gear position.
4.The surface diameter of the steel pipe is processed by precision press forming, with uniform dots and guarantee uniformly inking.
5.The anilox roller descends and press the printing plate when it start feeding paper, and the anilox roller rises and separate from the printing plate when feeding is stopped.
Die Cutting Unit
1.The rubber pad roller moves laterally within ±20mm and automatically swims.
2.Die-cut phase adopt electric digital control.
3.The gap between the rubber pad roller and the knife mold roller is manually adjusted.
4.The separation of the cylinder eccentric device under the condition of no die cutting between the stencil roller and the rubber roller can reduce the no-load load of the machine, and at the same time extend the life of the rubber pad and knife mold.
5.The rubber pad roller is equipped with a linear speed compensation device to control the linear speed of the rubber pad roller and the stencil roller to be consistent, which can extend the service life of rubber pad.
6.Cutting and smoothing structure of the rubber pad roller to keep the surface of the rubber pad flat.
2.Die-cut phase adopt electric digital control.
3.The gap between the rubber pad roller and the knife mold roller is manually adjusted.
4.The separation of the cylinder eccentric device under the condition of no die cutting between the stencil roller and the rubber roller can reduce the no-load load of the machine, and at the same time extend the life of the rubber pad and knife mold.
5.The rubber pad roller is equipped with a linear speed compensation device to control the linear speed of the rubber pad roller and the stencil roller to be consistent, which can extend the service life of rubber pad.
6.Cutting and smoothing structure of the rubber pad roller to keep the surface of the rubber pad flat.
Slotting Unit

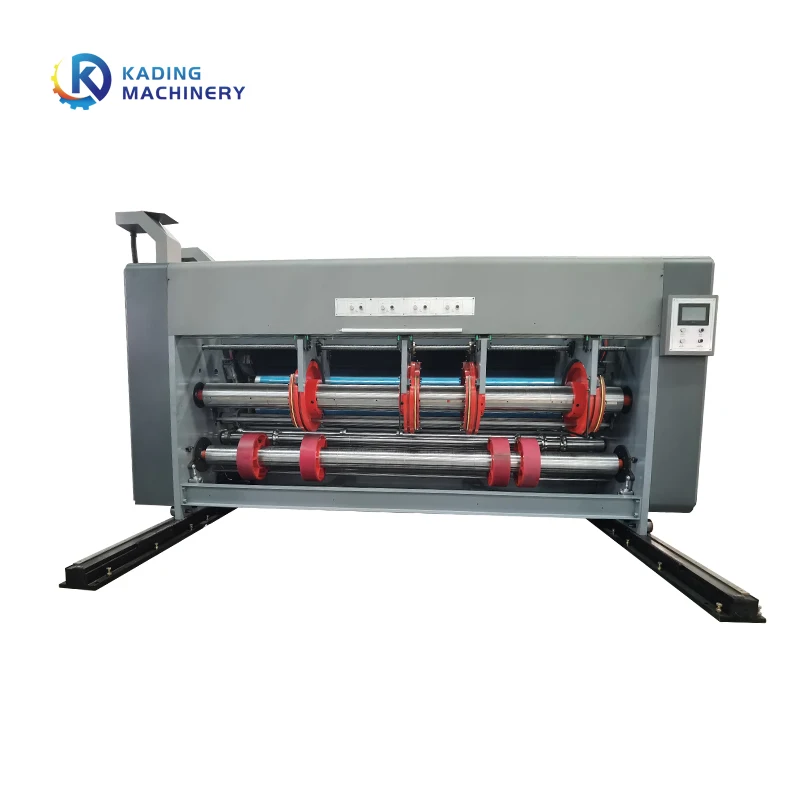

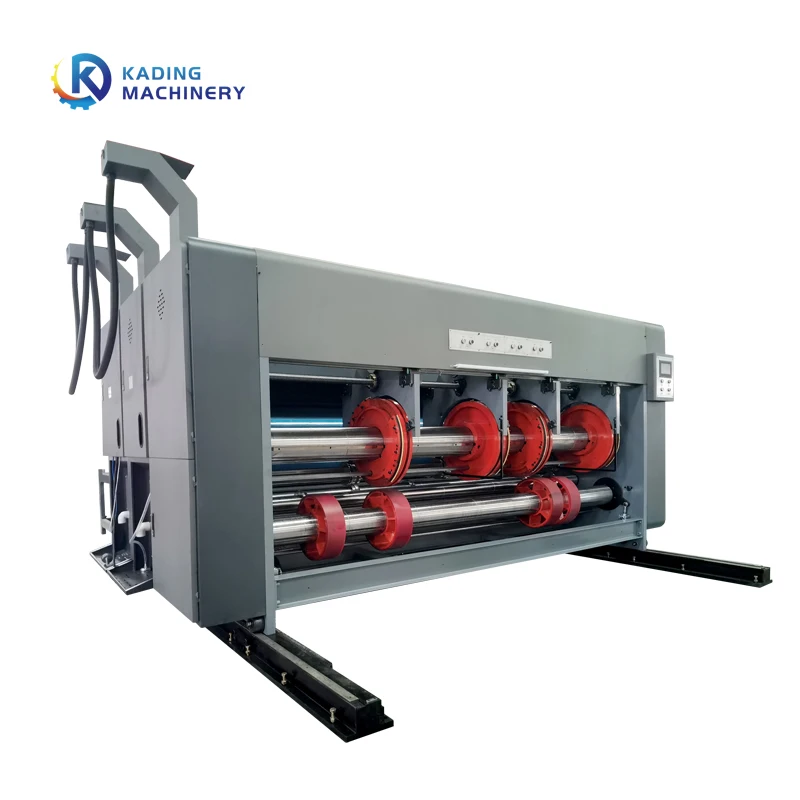

1.Total 4 creasing shafts,the seamless steel pipe with a shaft diameter of 98mm has been ground twice and hard chromium plated on the surface to ensure smooth movement.
2.The paper passing gap adopts a manual-adjustable quick gap fine-tuning self-locking device.
3.The toothed slotting knife is 7mm thick and made of high-quality alloy steel heat-treated.
4.Slotting knives axial adjustment in transverse is manual, carton height adjustment in lengthways is manual.
5.Adopting a unique chip-type chip removal device to ensure the machine is clean and tidy.
6.Each slotting tool holder has a traversing mechanism, and the screw rod cooperates with the linear guide rail to make the movement more flexible and accurate. Equipped with anti-collision electronic protection device.
2.The paper passing gap adopts a manual-adjustable quick gap fine-tuning self-locking device.
3.The toothed slotting knife is 7mm thick and made of high-quality alloy steel heat-treated.
4.Slotting knives axial adjustment in transverse is manual, carton height adjustment in lengthways is manual.
5.Adopting a unique chip-type chip removal device to ensure the machine is clean and tidy.
6.Each slotting tool holder has a traversing mechanism, and the screw rod cooperates with the linear guide rail to make the movement more flexible and accurate. Equipped with anti-collision electronic protection device.
Our printing slotting die cutting machine can print in multicolor and can handle a variety of cartons such as: fruit boxes, pizza boxes, shipping cartons, electrical appliance outer boxes, etc.
OUR FACTORY
FAQ
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual banding machine etc, usually we have stock available. But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual banding machine etc, usually we have stock available. But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
