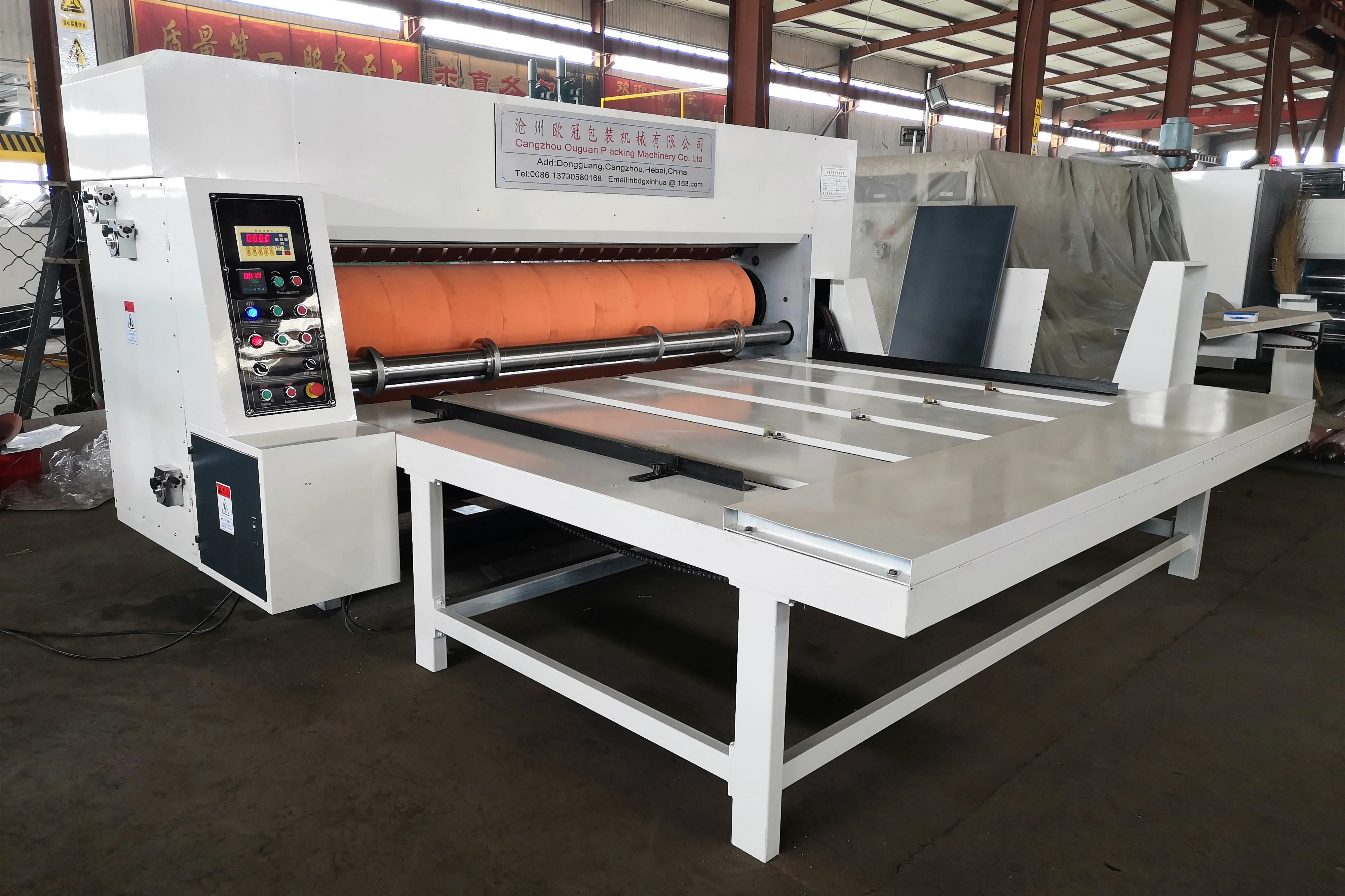

Low Price Sale Automatic Carton Box Packing Corrugated Cardboard Rotary Die Cutting Machine Flexo Printing Pizza Box Machine
- Category: >>>
- Supplier: Cangzhou Ouguan Packing Machinery Co. Ltd.Cangzhou Ltd.
Share on (1601346117181):
Product Overview
Description
Product Description
Function and use:
The machine adopts chain feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, long service life and low cost.
1.The drum made of high quality steel tube, thickness30mm, do balance treatment, plated chrome.
2.Full machine gear made of 45# steel have been quenched treatment, adopts lock-alx keyless and cross head system connect with shafts finish no gap adjustment.
3.Driving part uses pull pump to lubricating(motorized phase adjustment type used spray lubraction), oil box made of thick iron plate to avoid oil leakage.
4.Phase adjustment by manual operate with micro-adjustment (or motorized adjust in 360 degree).
5.Die roller(bottom roller) lift-down adopts pneumatic control, manual or automatic operation
6.Rubber roller(top roller be wrapped anvil cover from “Maxdura” brand from Taiwan (or CUE, DAY option), long use life.
7.Rubber roller(top roller) can move automatically, move range ±40mm
8.Rubber roller (top roller) fix overrunning clutch to compensate line speed automatically, and avoid one position cutting.
9.Equipped with anvil cover repair device, prolong use life.
2.Full machine gear made of 45# steel have been quenched treatment, adopts lock-alx keyless and cross head system connect with shafts finish no gap adjustment.
3.Driving part uses pull pump to lubricating(motorized phase adjustment type used spray lubraction), oil box made of thick iron plate to avoid oil leakage.
4.Phase adjustment by manual operate with micro-adjustment (or motorized adjust in 360 degree).
5.Die roller(bottom roller) lift-down adopts pneumatic control, manual or automatic operation
6.Rubber roller(top roller be wrapped anvil cover from “Maxdura” brand from Taiwan (or CUE, DAY option), long use life.
7.Rubber roller(top roller) can move automatically, move range ±40mm
8.Rubber roller (top roller) fix overrunning clutch to compensate line speed automatically, and avoid one position cutting.
9.Equipped with anvil cover repair device, prolong use life.
model | drum diameter | Max die-cutting size | Min sheet size | speed | power |
468 | Φ468 | 1450*2400mm | 400*500mm | 40-60pcs/min | 3kw |
FAQ
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
