K8 Computerized Flexo Printing Slotting Die Cutting In Line Folding Gluing Countering Ejecting
- Category: >>>
- Supplier: Shanghai Printyoung International Industry Co. Ltd.Shanghai Ltd.
Share on (60084845190):
Product Overview
Description
Product Description

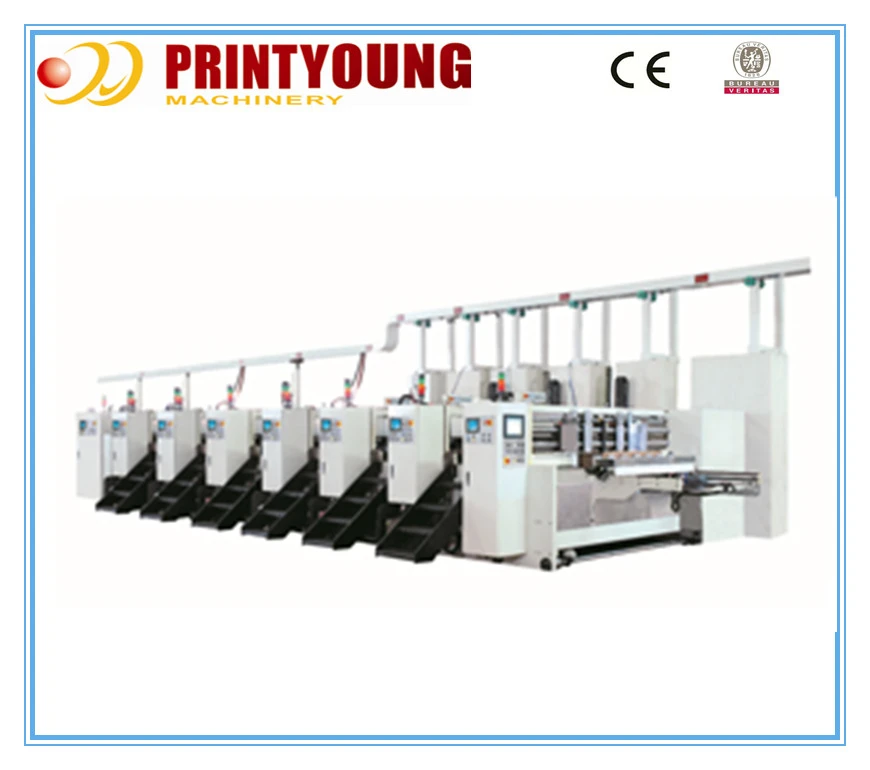

K8-Computerized Flexo Printing Slotting Die Cutting In-Line Folding Gluing Countering Ejecting
FEATURES:
·The whole line is designed and made for high quality, high speed, high efficiency, high stability and high safety, convenient for quick order update and operation.
·Made with high quality materials and parts.
·Well hardened and ground transmission gears with hardness more than 60(HRC)
·Auto zero return and auto reset.
·Key-free connection rings to reduce central wear to keep stable precise printing.
·All cylinders and rollers are hard chromed for ideal hardness.
·Use imported PLC. touch screen for multifunctional control.
·Able to save daily orders to speed up the order update.
·All electric, electronic and pneumatic components are of European standards.
·Optional equipment-Lead edge feeder or auto kicking feeder.
SPECIFICATIONS:
Data & Model | 900×2000 | 900×2400 | 1200×2000 | 1200×2400 | |
Max. mechanic speed(pcs/min) | 250 | 250 | 250 | 250 | |
Max. feeding size(mm) | 880×2000 | 980×2400 | 1180×2000 | 1180×2000 | |
Min. feeding size(mm) | 280×650 | 280×650 | 320×650 | 320×650 | |
Skip feeding(mm) | 1100×2000 | 1100×2400 | 1500×2400 | 1500x2400 | |
Max. printing area(mm) | 800×2000 | 800×2400 | 1150×2400 | 1150x2400 | |
Max. thickness of board(mm) | 7.2 | 7.2 | 7.2 | 7.2 | |
Min. slotting size | Slotting type L.(mm) | 160×160×160×160 | 160×160×160×160 | 160×160×160×160 | 165×165×165×165 |
Slotting type L.(mm) | 240×80×240×80 | 240×80×240×80 | 250×90×250×90 | 250×90×250×90 | |
Max. slot depth(mm) | 250 | 250 | 320 | 320 | |
Max. thickness of board(mm) | 12 | 12 | 12 | 12 | |
Dimension(L×W×H)(mm) Note:S-Single D-Double T-Three F-Four | 14374×5770×3200 | 14374×6170×3200 | 15732×5870×3500 | 15732×6270×3500 | |
15674×5770×3200 | 15674×6170×3200 | 17232×5870×3500 | 17232×6270×3500 | ||
|
|
|
| ||
