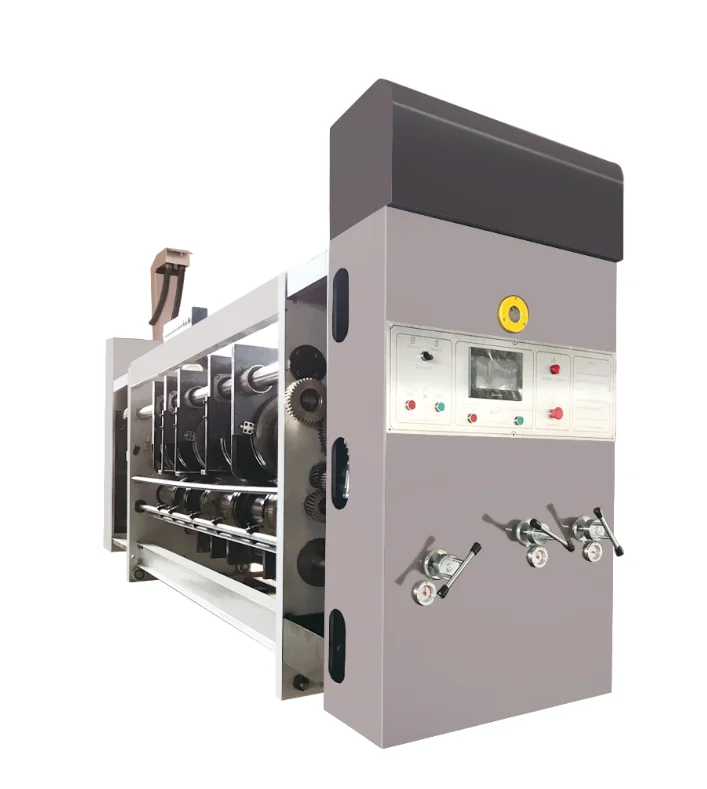

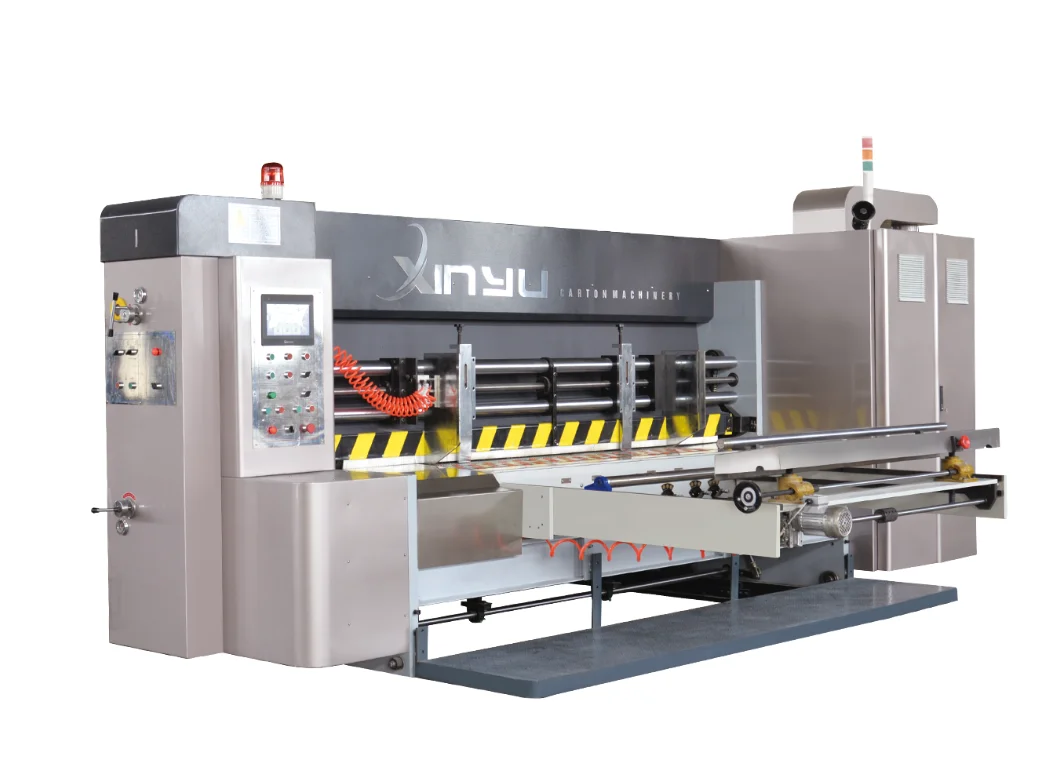

Packing machine high speed automatic carton box printing slotting and die-cutting machine with stacker

Share on:


Price:$111,500.00
Price in USD:Details

Quantity:


Product Overview

Description

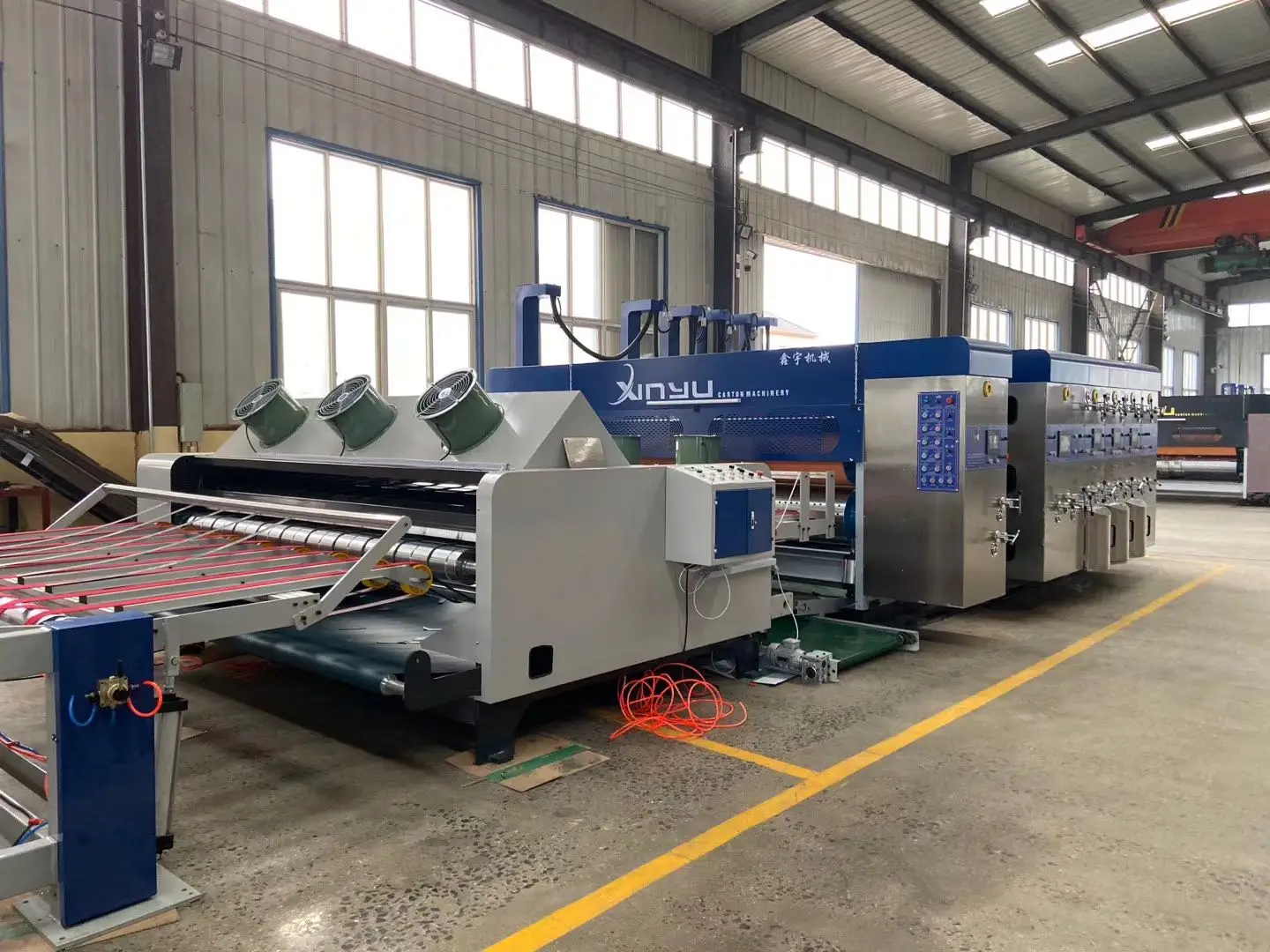

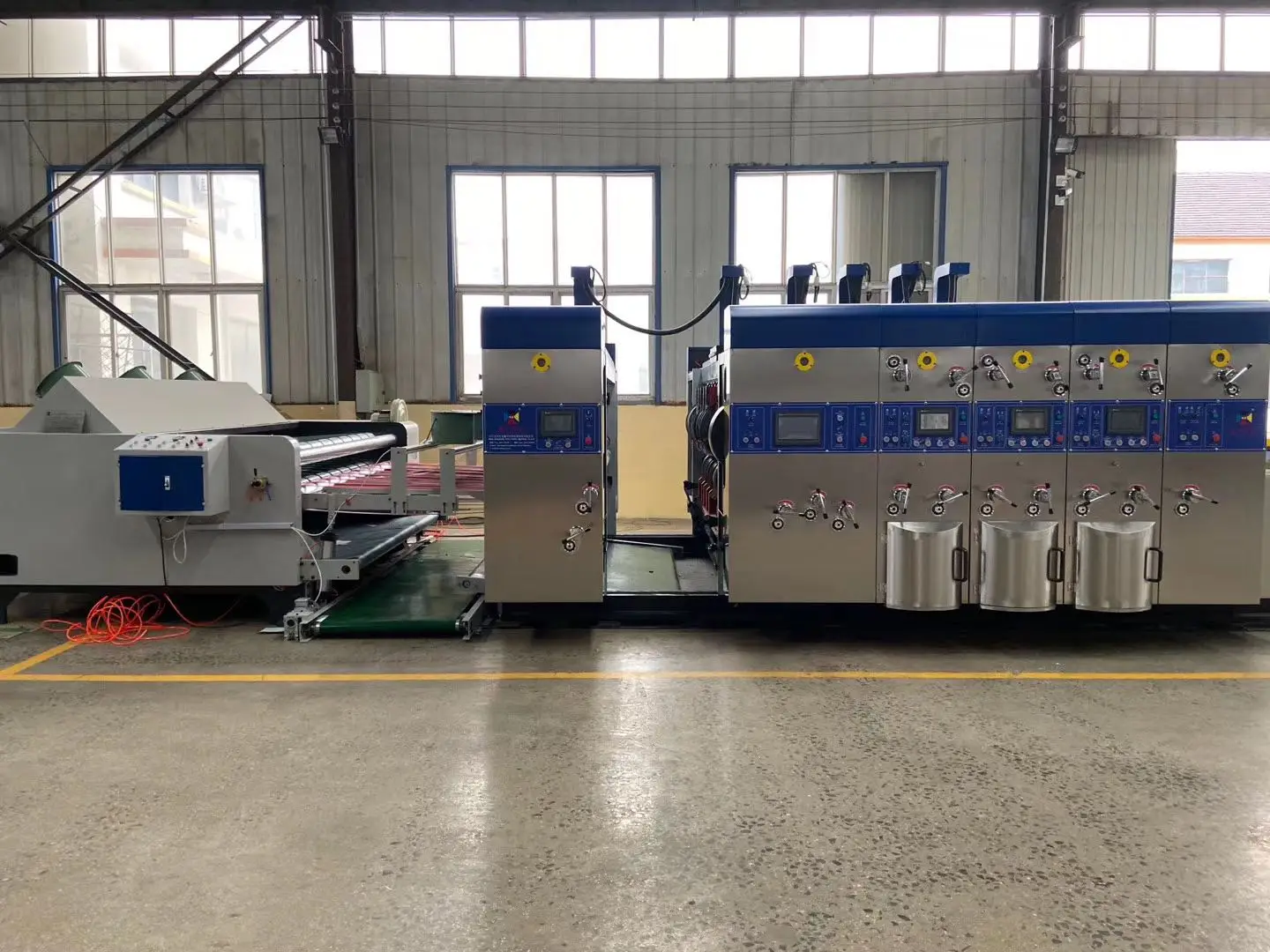

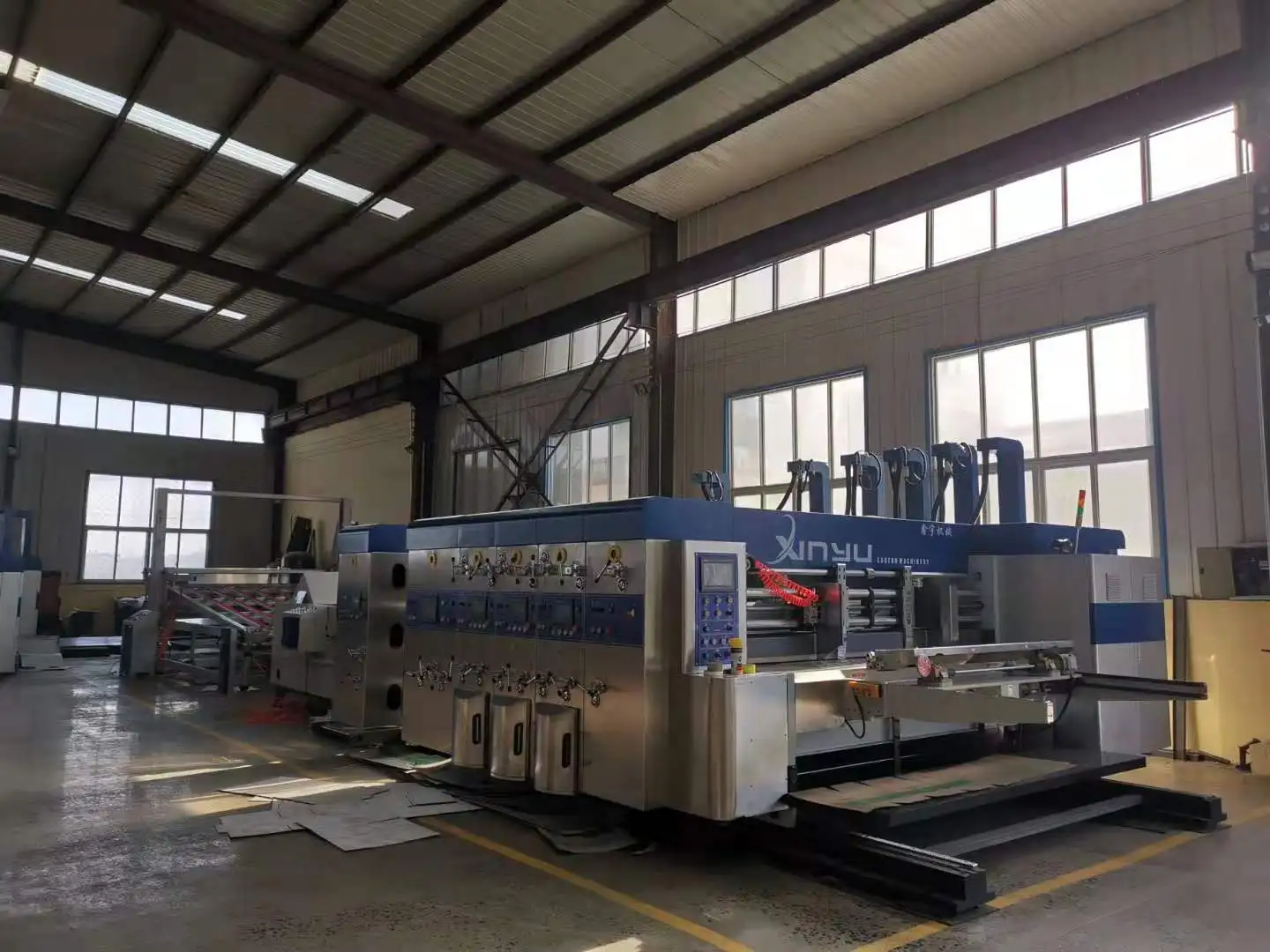

Lead edge feeding four colors flexo printing die-cutting machine1450x2600mm



Product Description






 Machine introduced:


1. Touch-screen and electric control dual system.


2. Using high quality materials and fittings.


3. All transmission gears are made of high quality of alloy steel (20CrMnTi) which is grinding under high temperature make the Hardness HRC58-62.


4. The driving part of the whole machine adopts key-free linking ring to remove the linking space. Suitable for long-term use. High precision of color process


5. Has the functions of intelligent return to zero and memory reset etc.


6. The transmission structure adopts two oil pumps circulation to lubricate.


Main features:











































































Design speed



200(piece/min)



Economic speed



180 (piece/min)



Max Cardboard size



1450*2600mm



Min cardboard size



450*680mm



Max printing size



1450*2400mm



Max skip cardboard



1600*2600mm



Slot width*slot depth



7×400mm



Min slot distance



300*100*300*100mm



Max die cutting size



1450*2600mm



Standard plate thickness



Hanging plate7.2mm



Main motor power



22kw



Air fan power



7.5kw



Total power



35kw



Tinted precision



±0. 5mm



Slotting precision



±1.5mm



Die cutting precision



±1mm



Weight about



35 Ton




1. Touching screen computerized control,  Rapid order changing, convenient operation and with humanity.


2. Adopting computerized control and electronic adjustments, adapting to utilizing habits of various clients and with convenient choice.


3. Adopting vaccum suction back-kick paper feed system,with stable high-speed operation and high accuracy.


4. Having printing and slotting memory, auto zero adjustment and auto reset.


5. Utilizing accurate transmission in slotting and scoring interval, with stable operation and high precision.


6. Good quality steel and rubbing process practiced in the main transmission gears, prolong the utilizing span.


7. Main electronic equipments are imported from abroad, with European quality standard.


Function of paper feed unit:


1. Vaccum suction assist paper feed to ensure stable high-speed operation and wind rate setting according to requirements.


2. Front can be adjusted by electric , with scale ruler on show, easily under stood.


3. The movement of post bar can be computerized adjusted, with digital setting and manual adjustment so the scale.


4. Side bar can be computerized adjusted, with digital setting.


5. Equipped with brush to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface to improve printing quality.


6. Widely used in variety of level 3,5and7,as well as E corrugated sheet.


7.PLC control, speed change by inverter motor, human interface and LCD display.


8. Sheet kicking aluminum board can return to zero at any time


Function of printing unit


1. Standard metal steel reticulate roll.


2. Standard rubber reticulate roll ink supply system.


3. Quick plate-changing device makes fixing or removing convenient.


4. International standard high-precision harmonic phasing device, PLC and touch-screen controlled, 360 degrees adjustment.


5. Special planet gear design enables long service life.


6. Equipped with auto braking device with braking mechanism to lock rotation of press plate roll and maintain the fixing point of original gears.  when the printing machine breaks away.


7. With auto reset system after cleaning.


8.Equipped with auto raising device on the reticulate roll, separated with the printing board when stopping ending paper.


9.All the intervals adopt computerized adjustment and digital setting.


Function of Die-cutting unit


1. Axle direction self-circulating translate.


2. Soft-cutting roller adopt super endurance rubber sleeve.


3. Adopt soft-cutting roller wear and tear self-repairing facility.


4. Own the function of reel-speed self-follow to compensate after upper and lower part rollers repaired


5. Characteristics: own thin knife grooving department, die-cutting fast changing and other function unity.


Function of stacker unit


1. Connection arm operation with manually or automatically.


2.The driving belt of connection arm can adjust the elasticity alone and choose the number of connection arm at will.


3.Height up to 1600mm.


4.Platform elevator with brake control device to keep stable position anti-slipping.


5.A pneumatic controlled-plate will be pop-up to hold the coming substrate, when a presetting height reaches.


6.Anti-slipping belt used in the transport bed.





Packaging & Shipping


paste-pic-dp_uuid_osok6-_08





Our Services


1.We need to test the machine working condition before delivery to customer country.


2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.


3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.








Company Information


Based on DONGGUANG CANGZHOU, XINYU CARTON MACHINERY was established in 1990, Mrs Li, the ceo of the company, has always helped inovercoming challenges in the industry. with the rich of experience of around 30 years, we are capable of successfully serving several clients. Quality Assurance At XinYu company, quality is our prime forte. Keeping this in mind, we havedirected all our endeavours to attaining highest level of quality in our products, We have a trained team of quality auditors who take care of quality department. Also, we manufacture our products from the finest qualty of material. Client Satisfation We provide quick solutions to clients for their feedback and queries,Morever,we facilite our client with easy payment modes.
