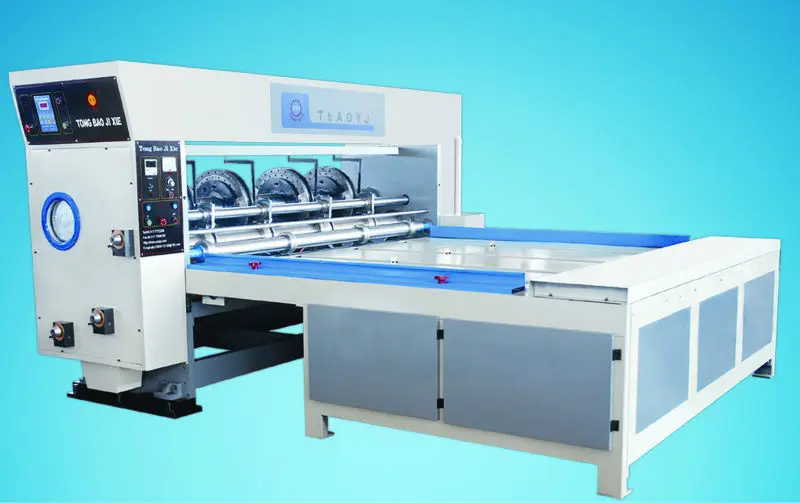

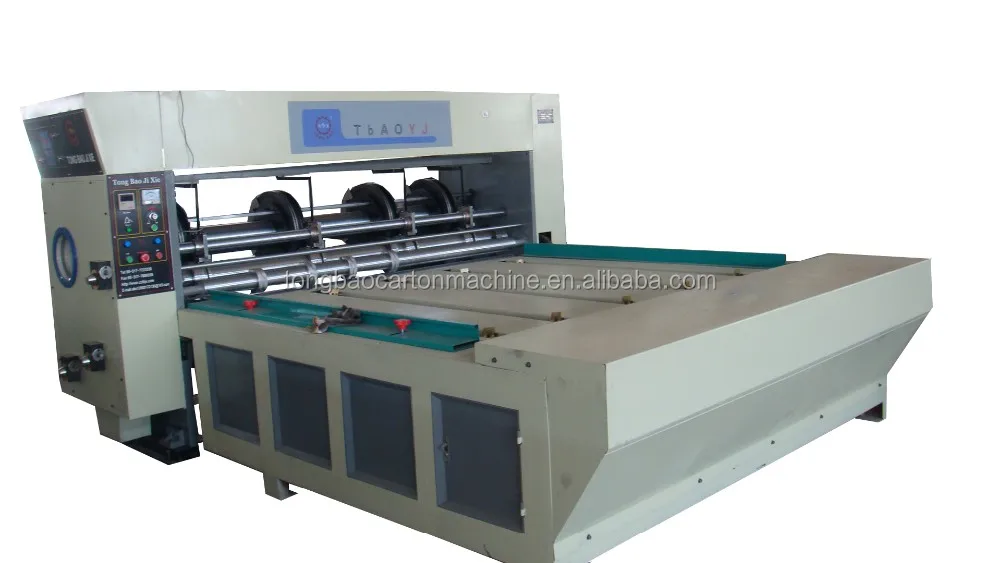

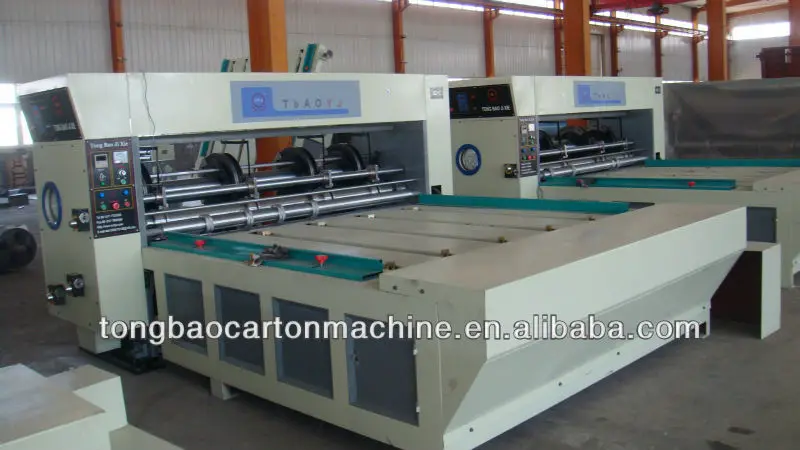

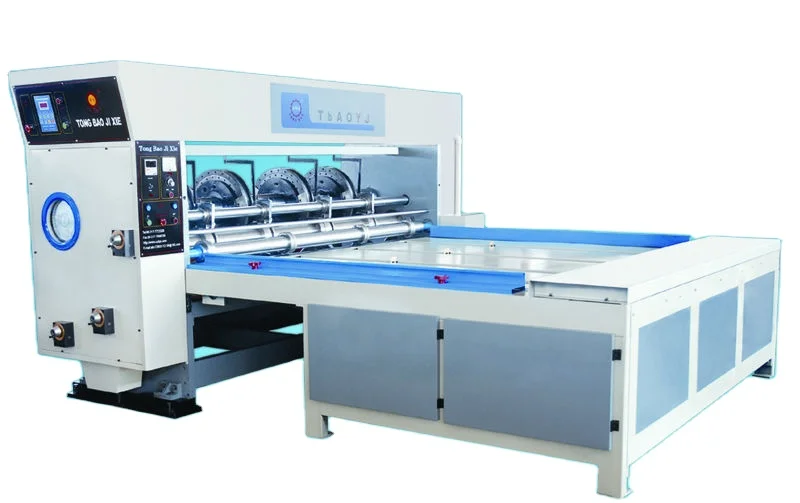

Factory price corrugated box automatic rotary slotter machine

Product Overview

Description

Function and feature:

1.    Adopt the chain paper-feeding way, stepless speed regulation control
An auto feeder can be attached.

2.    Optional control counter, to plan and design the order and the production quantities in advance

3.    Three groups for slotting, one group for angle cutting, two groups for partition paper, four groups for creasing

4.    Mechanical(Type A) or Electrical(Type B) phase regulation, the scale will say it.

5.    The height of slotting can add 4-knives linkage regulation

6.    To adjust the axles and rollers. Hard chromium plating. Polishing treatment.

7.    The worktable can regulate the clutch, convenient for checking the size.







Main technical parameter

Model	TB480-2200	TB480-2600	TB530-2200	TB530-2600
Wall diameter(mm)	2147	2547	2147	2547
Max.paper coverage area(mm)	2000x1450	2400x1450	2000x1600	2400x1600
Finish speed(pieces/min)	0-60	0-60	0-60	0-60
Power of main motor	1.5	1.5	1.5	1.5
