2 colors rotary die cutter with slotter flexo printing machine
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Dongguang Xinyu Carton Machinery Co. Ltd.
Share on (60633056004):
Product Overview
Description
| full automatic high speed flexo one/two/three/four colors printing slotting die cutting gluing bundling packaging line machine |
| A. Separation and combination of the machine |
| a. Control of separation and combination of machine units is electrically, with alarm to keep the safety of operating personnel. |
b. There is friction clutch on the transmission shaft, to avoid damage the machine when operation. |
c. Pneumatic interlock device. |
B. Lead edge feeding system |
a. Suction feeder. Fan: 11 kw. The air volume can be adjusted according to the camber of the paper board to keep feeding smoothly. |
b. There is interlock control clutch in the slotting unit to control the scram feeding. |
c. Cylinder drives sheets up and down. It acts fast and easily. |
d. Front edge idler wheel feeding system |
C. Printing roller (plate roller) |
a. Outer diameter: Φ390.6mm (it is Φ405mm including the plate). |
b. Surface of roller is grinded and hard chrome-plated. |
c. Treated with balance correction, runs steady and smoothly. |
Machine Picture: |

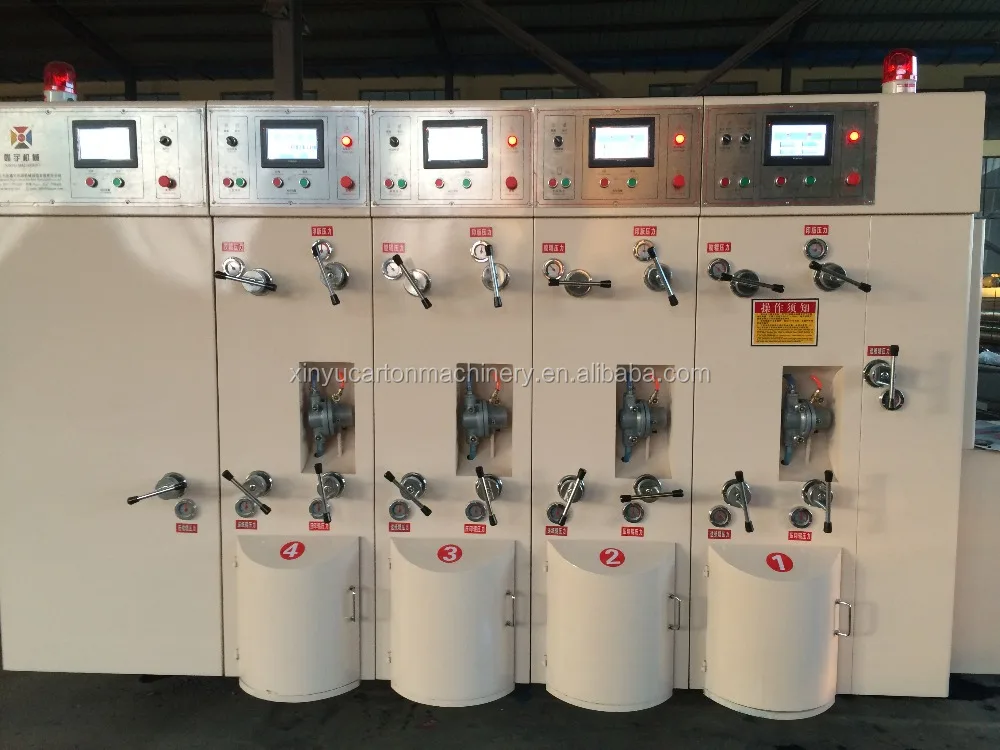

feeding unit: |
|

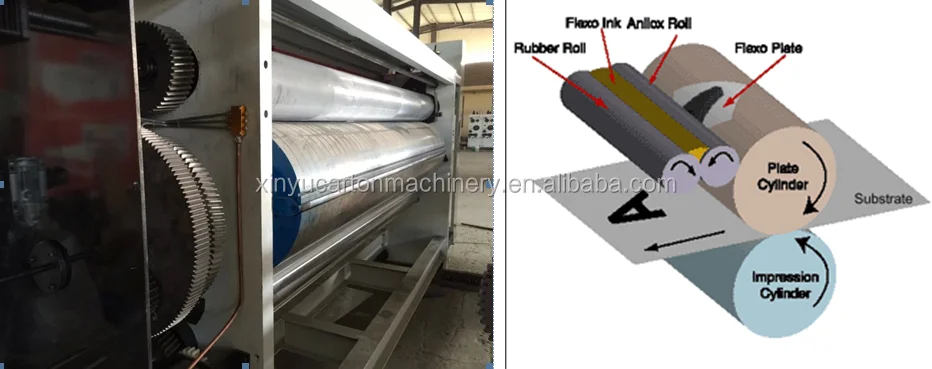

| printing unit: |
 |

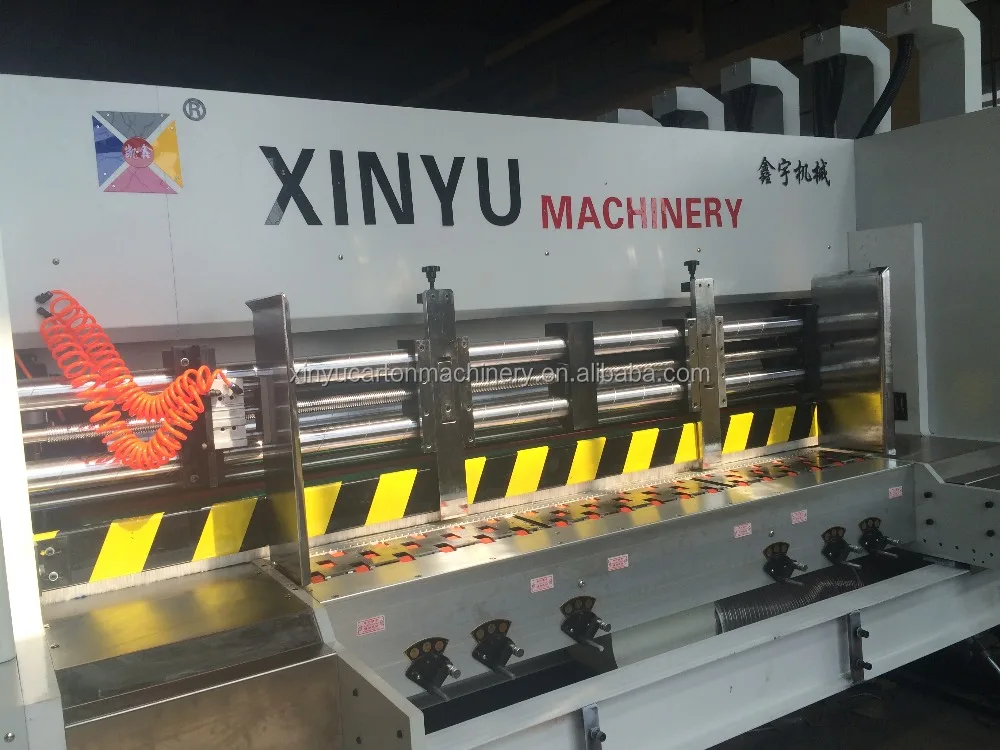

slotting unit: |
Manually Transferred knife, electric transferred knife,four blade linkage, four-knife die-cutter is optional |
|

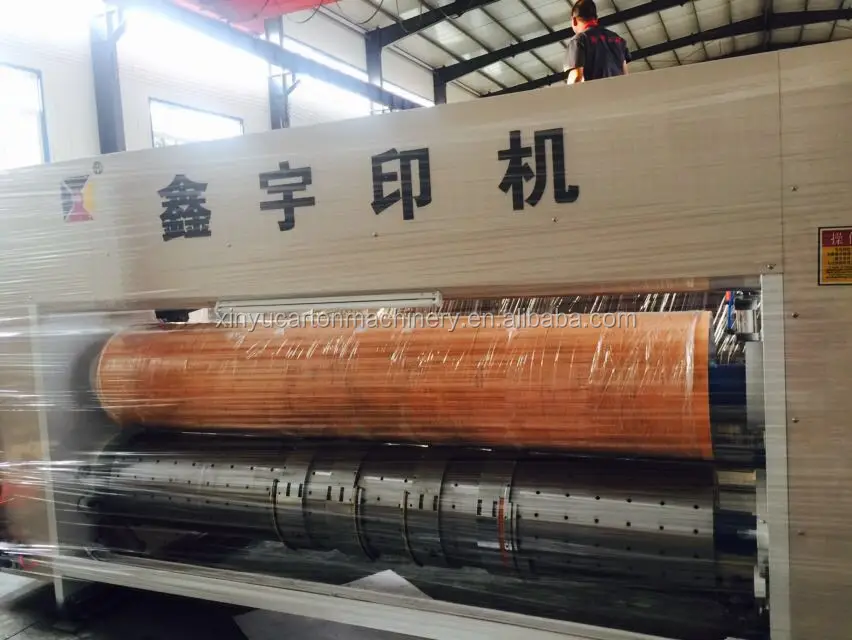

| die cutting unit: |
|
| our factory picture: |
|
| corugated carton product picture: |
|
