Full Computerized Printer Slotter Die Cutter Folder Gluer

Product Overview

Description

Full Computerized Printer Slotter Die Cutter Folder Gluer

HRB-1224 LEAD EDGE FEEDER PRINTER SLOTTER DIE CUTTER MACHINE
LEAD EDGE FEEDER	1 UNIT
PRINTER	2 UNIT
COMPUTER SLOTTER	1 UNIT
DIE CUTTER	1 UNIT
GLUER LINE	1 UNIT

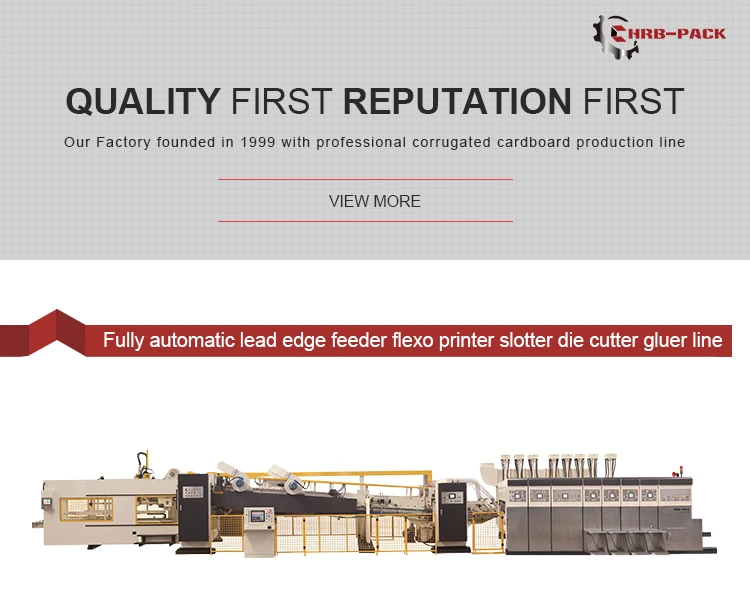

HRB1224 LEAD EDGE FEEDER PRINTER SLOTTER   DIE CUTTER MACHINE WITH GLUER LINE
Economic Working Speed (pcs/min)	200
Max. Feeding Size (mm)	1200×2400
Min. Feeding Size (mm)	350x600
Skip-feeding Size (mm)	1400×2400
Standard Plate Thickness (mm)	3.9
Min. slotter distance POSITIVE	130X130X130X130
Min. slotter distance NEGATIVE	230X65X230X65
Max slotter depth (mm)	300
Print precision (mm)	±0.3
Slot precision (mm)	±1.0
Die cut precision (mm)	±1.0



Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.



Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.



Service: Based on the industry’s first use of  PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .
