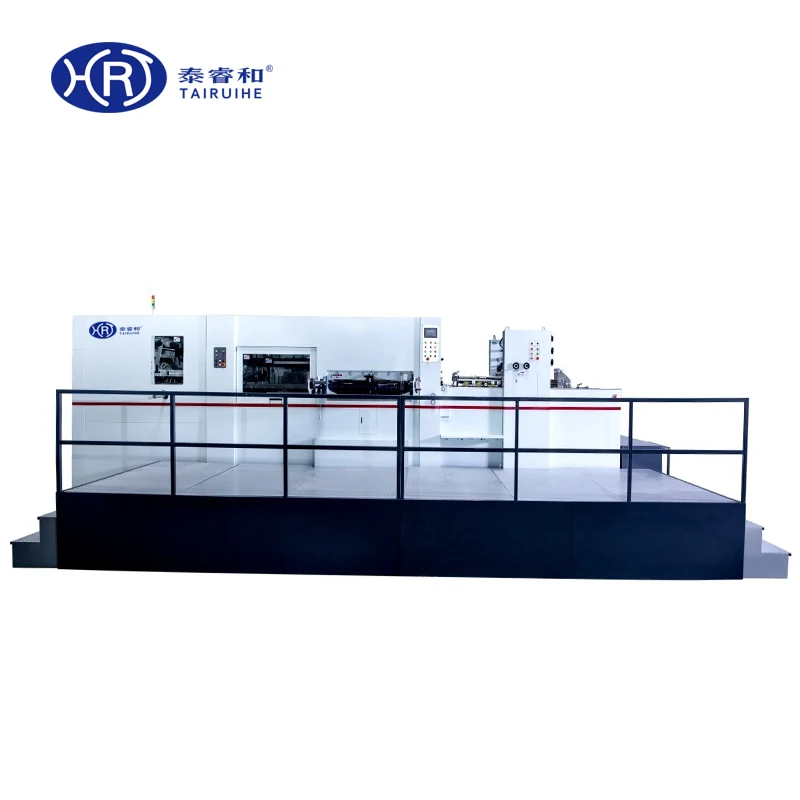

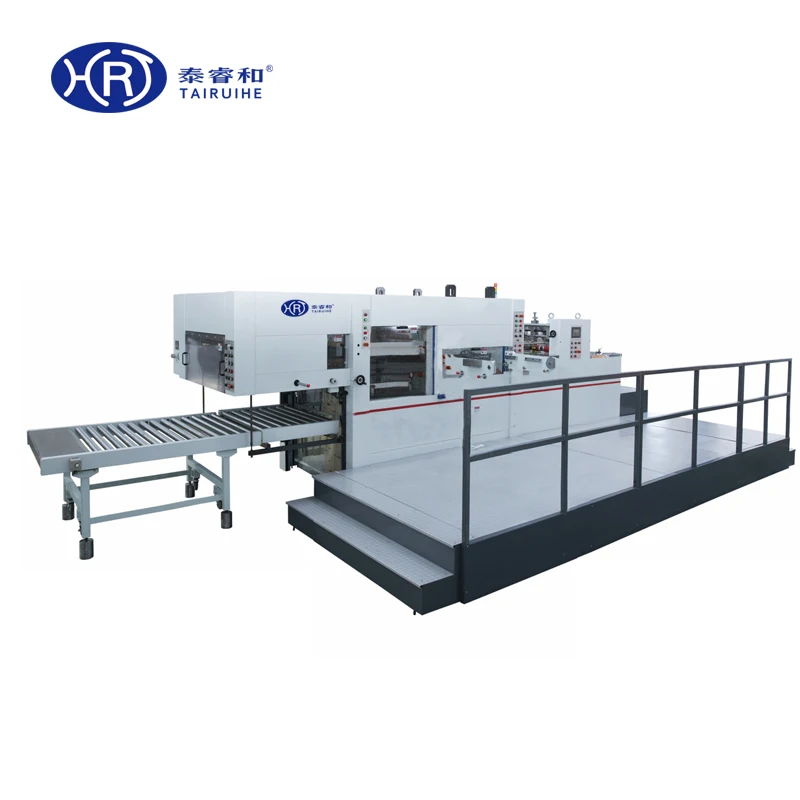

Automatic Corrugated Cardboard Box Corrugated Flute Box Making Machine Die Cutting Machine With Stripping
- Category: >>>
- Supplier: Shandong Rino International Trade Co. Ltd.
Share on (60811557205):
Product Overview
Description
Product Description
1. Equipped with pneumatic clutch and pneumatic locking plate
2. Lead form feeding paper. The high-speed and high precision paper feeding device can transmit all kinds of corrugated paper whenever how the quality of paper is. Equipped with light-adjusted device and has suitable ability.
3. Automatic adjusting paper feeding, paper collecting and paper aligning.
4. Semi-automatic gripper type equipped the tooth row, open bite adjustable, under the help of paper, cardboard can run smoothly. Automatic suction suck about using leading edge of paper, tooth row gripper-style, curved cardboard and tissue paper can also be passed no scratches.
5. Pneumatic take samples when machine working, can check the die cutting effect at any time.
6. Dusting air guns, can effectively remove the template, and dust inside the device.
7. Automatic lubricating can add lubricating oil on the chain gear according to time, extended the working life of machine.
8. Using alarm bells agencies in warning tone when the device is turned to raise safety warning.
9. Equipped with a precision of detection (Taiwan Riko) fiber optic switch, the paper is in place to detect and avoid paper waste.
Model | UD1-1060 | UD1-1080 | UD1-1100 |
Max. paper size | 1060*750mm | 1080*780mm | 1100*780mm |
Min. paper size | 400*350mm | 400*350mm | 400*350mm |
Max. die-cutting size | 1050*730mm | 1070*760mm | 1080*760mm |
The minimum size in mouth | 5mm | 5mm | 5mm |
Max.die-cutting pressure | 350N/cm2 | 350N/cm2 | 350N/cm2 |
cardboard | 200-2000g/m2 ≤6mm | 200-2000g/m2 ≤6mm | 200-2000g/m2 ≤6mm |
Corrugated paper | |||
Max. die-cutting speed | 7000sheets/h | 7000sheets/h | 7000sheets/h |
Max. feeding pile height | 1000mm(above the level) | 1100mm(above the level) | 1100mm(above the level) |
Max. collecting pile height | 1000mm(above the level) | 1100mm(above the level) | 1100mm(above the level) |
Total power | 13.5KW | 15KW | 17KW |
Weight | 15T 16T | 16T 17T | 17T 18T |
(stripping) | |||
Dimensions | 5600*2170*2245 7100*2170*2245 | 5700*2170*2245 7200*2170*2245 | 5800*2170*2245 7300*2170*2245 |
Company profile
Shan Dong RiNo International Trade Co., Ltd,established in 2006,is located in Jinan East Development Zone.The company was mainly engaged in paper packaging products,including designing, printing and post processing etc,and mainly serves domestic import & export trading companies and foreign customers in glassware, machinery accessories, food industry, auto spare parts etc. After decades of pioneering and accumulation, it has gradually become a star in the field of packaging and printing. With the expansion of business scope, the company quickly moves forward to the world and becomes an export-oriented company that integrates production and trade,includes paper packaging products, corrugated packaging machinery equipment, packaging product manufacturing equipment & consumables and many other products,providing a full range of services from product to technical support.
Detailed Images
Paper feeding unit Lead edge feeder(Under suction feeder)
1.Equipped with lead edge feeder ,it can prevent the cardboard damage by the black wheels.
2.Independent servo actuator can assure the cardboard send to right position and avoid crash on the paper
3.The big power suction fan and the adjusted wind system work for 3-9mm corrugated box.
Main body
1.Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI
2.Patented design shock absorption system can prolong the life of main body and increase the pressure
3.intermittent gearbox can assure the accurate registration and decrease the gripper attack

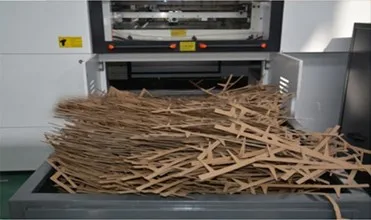

Stripping part
1.Double action movement structure with upper and lower stripping frame facilitates die change
2.Male/female die-cutter model are available for different carton
3.Match with the centerline registration system in die-cutting area, there is a same system in the stripping section. Accurate positions can increase production efficiency.
4.Gripper front edge waste removal system for higher production efficiency.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | Packaging Details: We usually packed this machine covered by plastic film. Delivery Detail: Within 30 days after we got the deposit. | |
