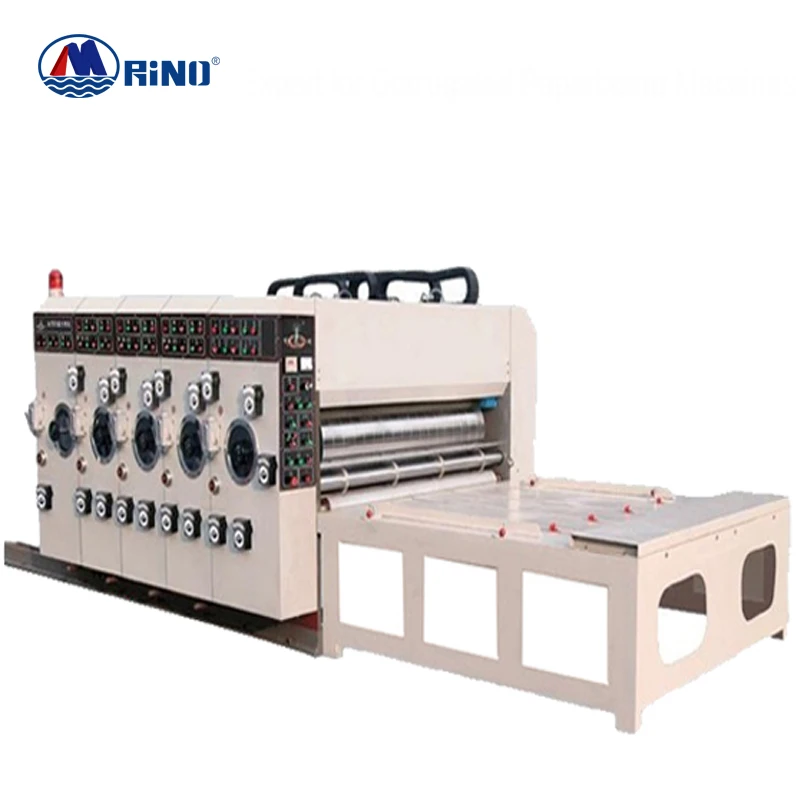

Semi Automatic flexo printing machine for box Printer carton slotting 4 knives

Product Overview

Description

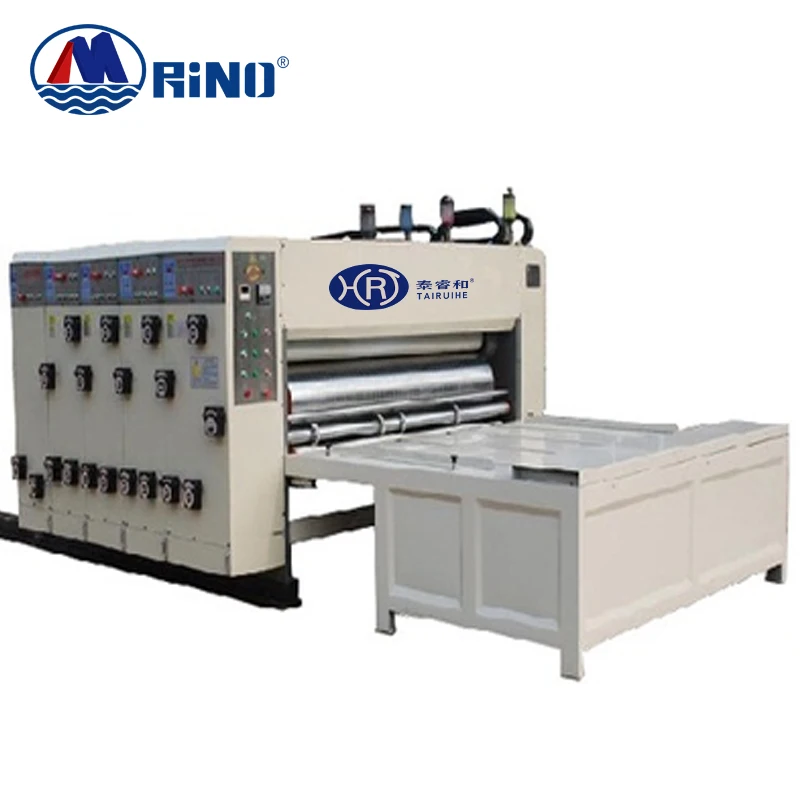

Semi Automatic Carton Box Printing Machine With Slotter

Related Products

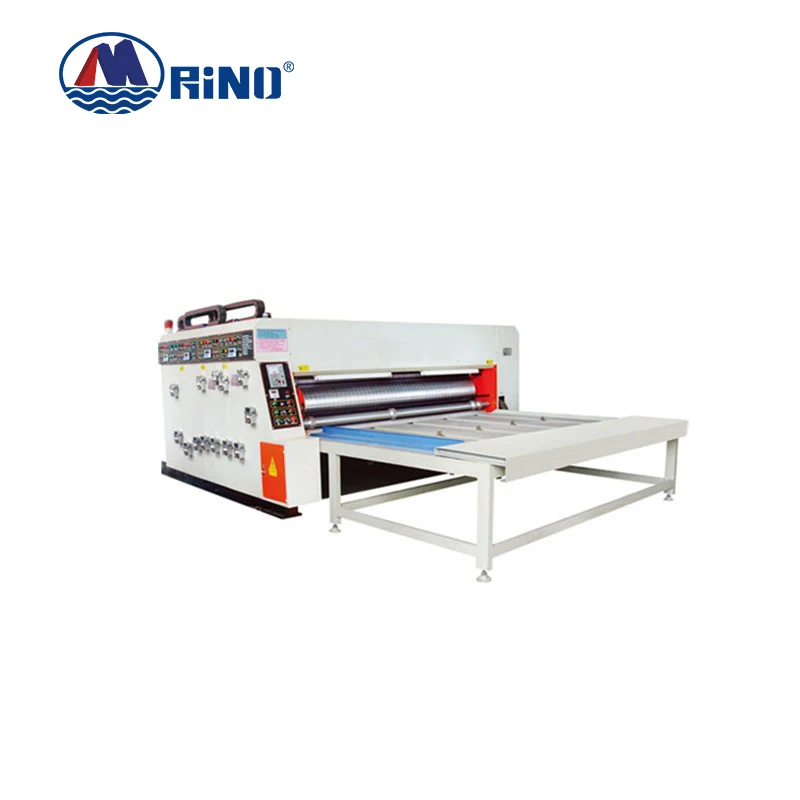

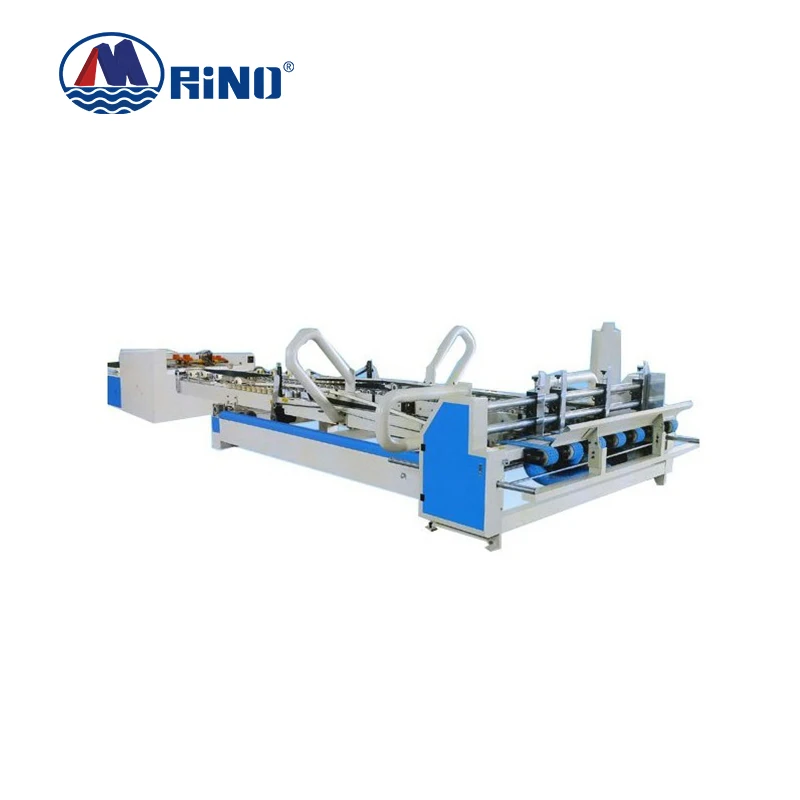

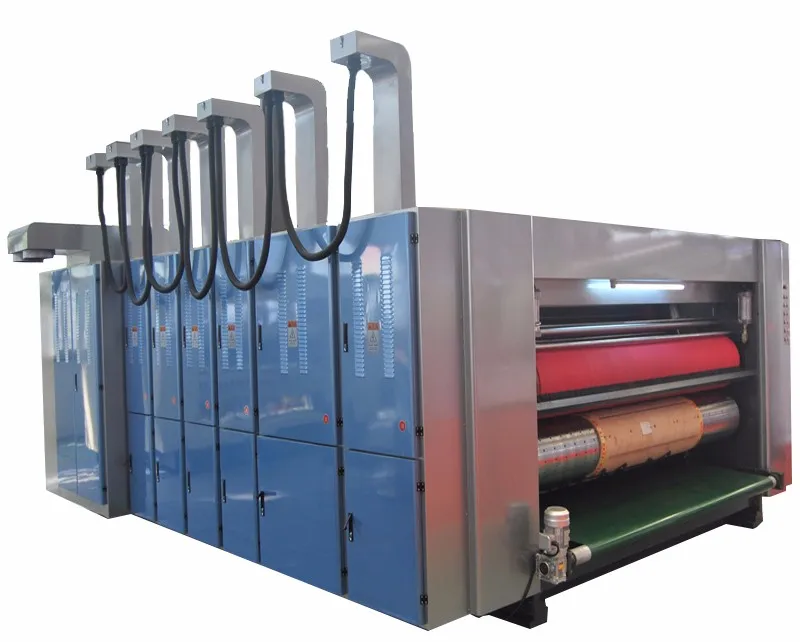

Multi-colors printing machine with slotter	Rotary creasing and die cutting machine	Carton box gluer machine

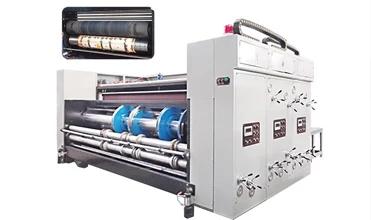

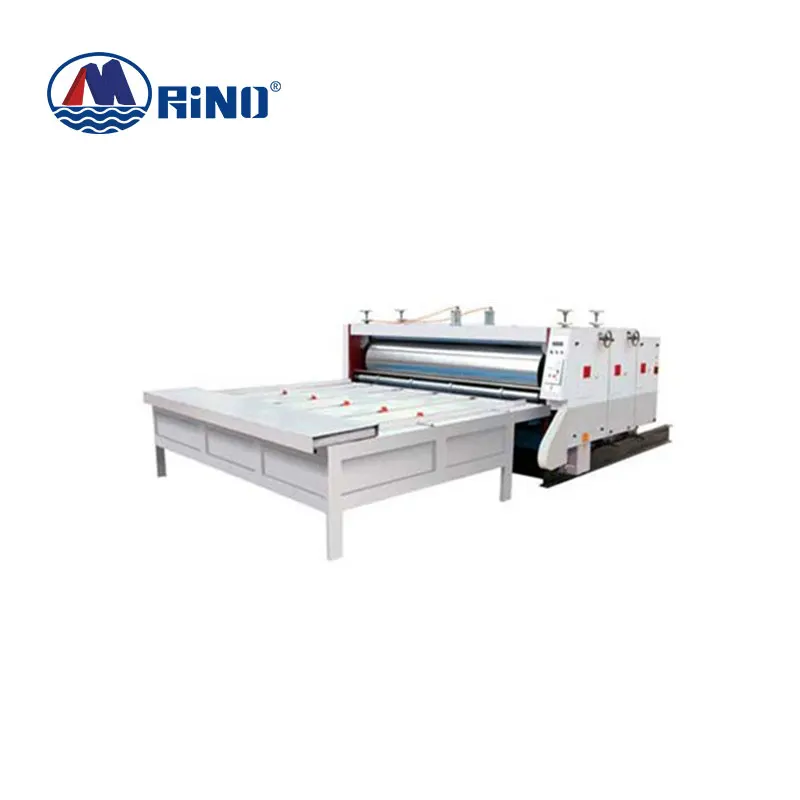

Introduction of Chain Feeding Flexo Printer Die Cutter Machine



The carton printing machine is a comprehensive carton processing equipment that combines five steps of printing, slotting, chamfering, pressing and trimming.

Its characteristics: feeding with a semi-automatic chain workbench.



Power transmission: non-tooth power transmission mode, reducing machine noise, mainly to make the machine a wider range of applications.

(1) The thickness of the board is 1mm~30mm, which is suitable for the printing of ultra-thin (such as 1mm), 3, 5, 7-layer corrugated board and ultra-thick cardboard.

(2) The plate thickness range is from 1mm to 20mm, which is suitable for plates of any thickness.

(3) The gap between the ink roller and the rubber roller is adjusted between -5mm and +5mm, and there is a scale indication to ensure the accuracy of the separation and closing gap.

(4) The ink roller and Foshan rubber roller have a heightened design of the blocking cover to prevent dust or foreign matter from falling between them, and it is convenient for observing the working condition.

(5) Auxiliary lighting design is to take into account the nighttime or poor lighting environment, so it is easy to check the cleaning of the ink and the ink roller.



Features of Chain Feeding Flexo Printer Die Cutter Machine



1.The chain send to paper to enter to anticipate.



2.The stalk,high accuracy , balance correct , plate hard chrome , surface to grind.



3.Drive gear , made use of alloy steel forging ( HRC58-62 ) , lubricating oil pump spray , extend gear life and ensure long-term printing chromatic precision.



4.The adoption doesn't need key conjunction set , cancellation walk to connect cleft, exaltation printing accuracy.



5.The whole machine spray to pour to lubricate and attach to establish engine oil balance equip.



6.The adoption virtuous dint west spirit move bearings in component Harbin.



7.Circle the mold department machine cam ±35 mm visit to move and expand gum mat service life.









Parameters of Chain Feeding Flexo Printer Die Cutter Machine



Model	Max. paper sizes	Area of valid printing	Working speed	Standard   Printing Plate Thickness	Power of main motor	Roller diameter
A2000	1800*900mm	1600*900mm	0-100(pcs/min)	6mm	5.5kw	300mm
A2200	2000*900mm	1800*900mm	0-100(pcs/min)	6mm	5.5kw	300mm
B2400	2200*1250mm	2000*1250mm	0-100(pcs/min)	6mm	7.5kw	408mm
B2600	2400*1250mm	2200*1250mm	0-100(pcs/min)	6mm	7.5kw	408mm
C2600	2400*1470mm	2200*1470mm	0-90(pcs/min)	6mm	7.5kw	480mm
C2800	2600*1470mm	2400*1470mm	0-90(pcs/min)	6mm	7.5kw	480mm
D2800	2600*1600mm	2400*1600mm	0-80(pcs/min)	6mm	11kw	536mm
D3000	2800*1600mm	2600*1600mm	0-80(pcs/min)	6mm	11kw	536mm



-------Send Inquiry



Details of Chain Feeding Flexo Printer Die Cutter Machine

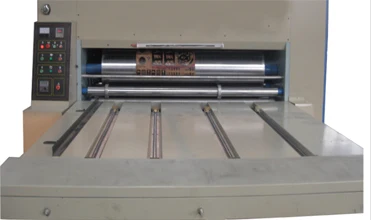

	Chain driving feeder Paper-feeding: chain-propeller-type Manual paper-feeding, maintenance-free workbench, the chain automatically tightens, no manual maintenance is required.

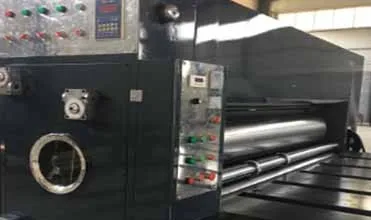

Printing unit: 1.All the axle and roller was used the high grade steal , computer dynamic balance; eliminate the centrifugal effect, plated with rigid chrome and grinded surface. 2.Printing phases was adopted the planetary gear structure, the electric digit 360 ° adjustment , show the digit(stop, running can adjustment). 3.Printing roller landscape orientation was adopted the touch screen control, and electric digit adjustment, the adjustment scope is 20mm.

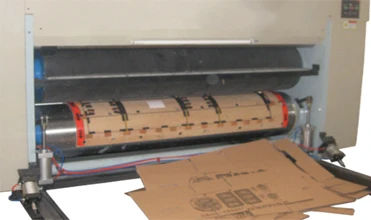

	Die cutting unit: 1.Die cutting department were driven by servo-motor independently to keep coordination with feeding, printing according to all kind of range of die cutter speed. 2.Motor control the gap between rubber roller and mould roller digit display. 3.Without phase adjustment and speed different compensate device , the machine still can keep the speed of die cutter equal.   4.With air-operated elevator device. 5.Without side breakage transmission structure and injecting gear oil to lubricate.   6.The service life of rubber cushion is longer 15%-25% than others.
Slotting unit (optional): 1.Slotting phases was adopted the planetary gear structure, the electric digit 360° adjustment, show the digit (stop, running can adjustment). 2.Slotting tool rest, pressure wheel , horizontal move by manual mechanic joint adjustment. 3.The height of box size was adjustment by synchronous.



Printed Carton Box Samples









Packaging & Shipping



Package: Covered with plastic film

Delivery time: Within 30 working days after receiving deposit. It is up to the current monthly production task.





Services



• 24h online for service;


• Professional service team;


• Installation and debugging service;


• On time delivery


• Provide the quality assurance of our product


• Offer the details of install mechanical parts and circuit diagram, it will help you to know our machine


• Train your workers in our company freely or send our engineer to your company costly


• Provide long-distance guidance with e-mail or video freely or transport the broken part
