Product Overview
Description
Product Description
SAIO-B-High-speed Economic Series Ink Printing Carton Slotting Die-cutting Machine
Die cutter roller and rubber gasket roller adopt thick seamless steel tube quality refined but become,after fine grinding and polishing progressing of dynamic and static balance correction.
Rubber gasket roller adopt mechanical lateral movement, moving around ±25mm.Rubber pad wear uniform,prolong service life ,and with the installation of repairing mold, can maximum limit prolong the service life of the rubber gasket.
Rubber gasketroller adopt servo motor automatic speed system,make the rubber gasket roller linear speed automatic compensation,ensure consistent with host linear velocity,after the rubber can still be normal after the mold to make high quality carton products.
Serreted knife is made of high quality arc,die cut surface level off is smooth,high adjusting box four knife synchronization,using the most advanced adjusting structure ,traditional tool setting angle of 90 degrees,our company adjust angle can reach 180degrees,operating simply and quickly,drive gear for alloy steel high-frequency processing.
The machine in safety operation convenient and easy disassembling do aspects such as the careful desigh, guarantee the safety of operators and reduce the labor intensity of operators and improve the production efficiency,is the best choice of producing hith quality carton.
Main specification(900*2000mm)
Item | Data | |||||
920 | 1224 | 1425 | 1628 | 1825 | ||
Max Speed pcs/min | 350 | 300 | 200 | 160 | 120 | |
Max Feeding size(mm) | 900×2000 | 1200×2500 | 1400×2600 | 1600×2900 | 1800×2600 | |
Min Feeding size(mm) | 260×600 | 320×650 | 380×700 | 450×750 | 500×850 | |
Skip Feeding(mm) | 1200×2000 | 1600×2500 | 1800×2600 | 2000×2900 | 2200×2600 | |
Max Print area(mm) | 860×1960 | 1160×2360 | 1360×2460 | 1580×2760 | 1760×2460 | |
Print Plate Thickness(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
Min slot Gap(mm) | (normal) | 150×150×150×150 | 150×150×150×150 | 160×160×160×160 | 160×160×160×160 | 160×160×160×160 |
(Reverse Knife) | 230×65×230×65 | 2300×65×230×65 | 250×70×250×70 | 250×70×250×70 | 250×70×250×70 | |
Print accuracy(mm) | ±0.4 | ±0.4 | ±0.4 | ±0.4 | ±0.4 | |
Board Thickness(mm) | 2--9 | 2--9 | 2--10 | 2--10 | 2--10 | |
RDC accuracy(mm) | ±1 | ±1 | ±1 | ±1 | ±1 | |
Max slotting Depth(mm) | 260 | 300 | 350 | 400 | 450 | |
Production Description
1.Feed Unit
feeding paper ≥280mm
It uses extended paper feed auxiliary transmission function.
adsorption & dedusting systems
2.Pringting Unit
up-print vacuum adsorption transmission
select rubber wheel/doctor blade system
select ceramic anilox roller
3.Line pressing and slotting unit (single axis, change order automatically , order no. management)
single shaft slotting
middle-knife movement style
two pieces jointly pre-press wheel and line pressing roller.
slotting interval, phase adjustment change speed automatically
pre-press, line pressing and slotting cutter base will change
4.Die-cutting Unit
use screws to fix forme
manuel setting with pull hand ring
wheel moves are 40mm(±20mm)
5.Stacker Unit
Pneumatic type clapper device (unilateral)
Full paper auto-induction system
Packaging & Shipping
Packaging Details: wood packing
Delivery Detail: 90 days after prepayment
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

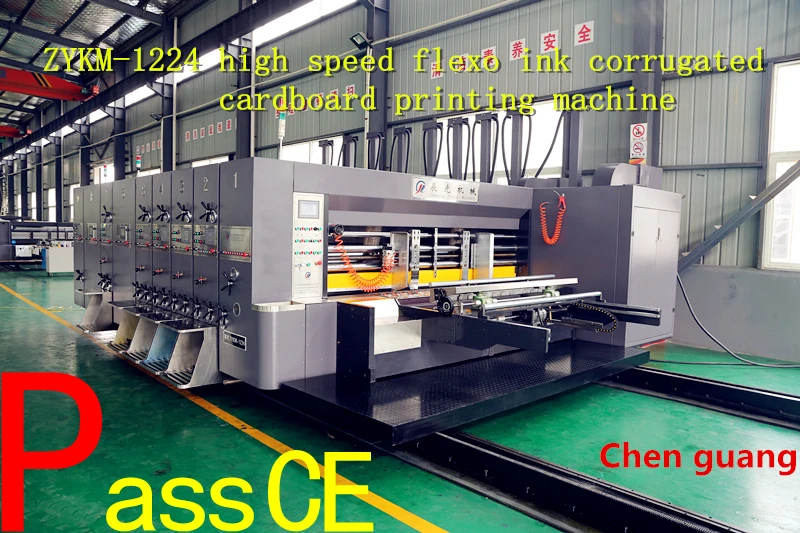

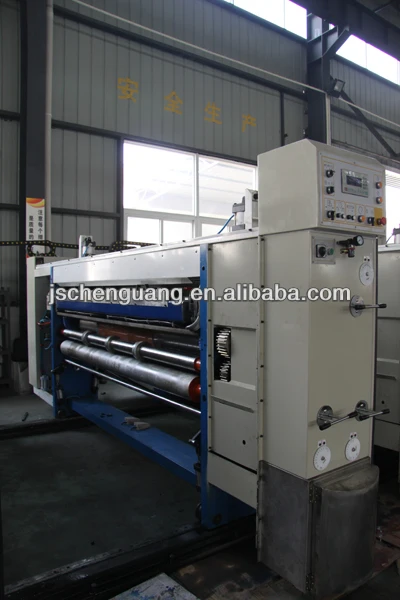

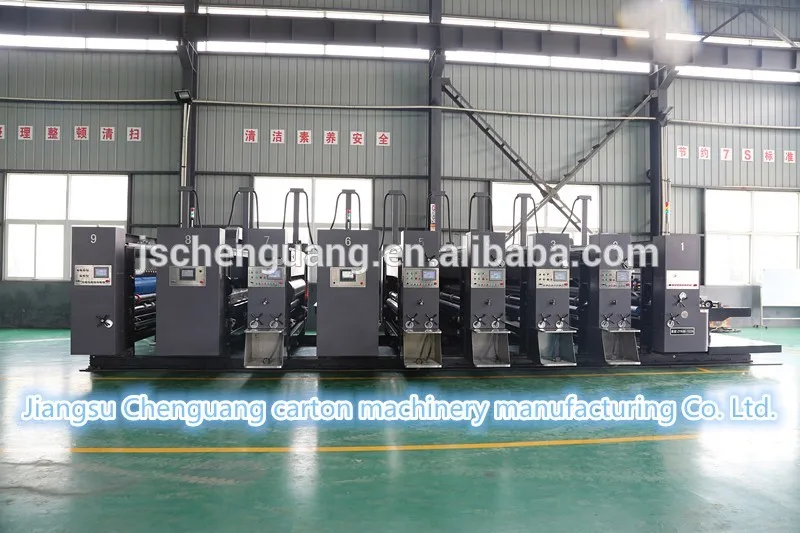

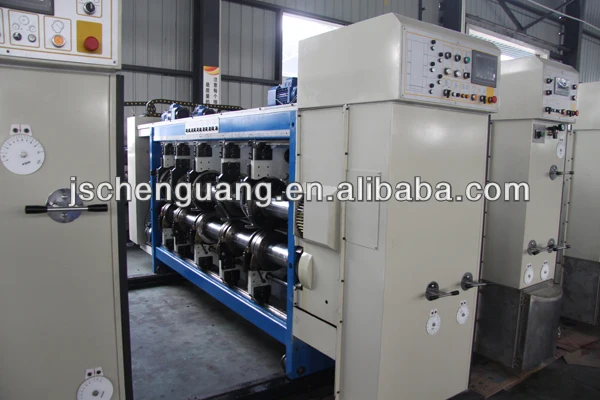

Detailed Images
Trade Shows
Certifications
Company Information

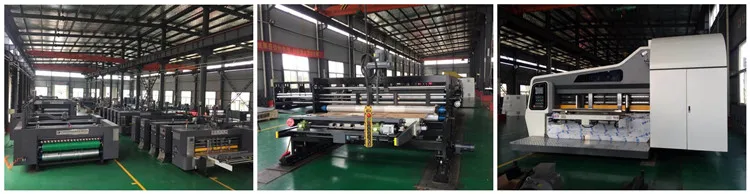

Jiangsu Chenguang Carton Machinery Manufacturing Co.,Ltd. is located in the imperial hometown, the lobster capital of Jiangsu Xuyi. Our factory covers an area of 3000 square meters and owns more than 60 professional technicians. We have our own R&B department,the production department and the sales department. From 2011 to 2013, we have got 13 national practical patents and 3 national invention patents. Our company is a national high-tech and innovative enterprise in the top 10 and our products have won the title of Huai`an famous brand products.
Transportaton
Jiangsu Chenguang Carton Machinery Manufacturing Co.,Ltd.
Tel:+86-0517-88299616
Fax:+86-0517-88294558
Add:No.18 Xinhai Avenue,Xuyi Development Zone,Jiangsu,China.
