Whole adsorption corrugated carton box flexo printing machine automatic 4 5 colors flexographic printing machinery
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Jiangsu Chenguang Precision Technology Co. Ltd.
Share on (62060141402):
Product Overview
Description
Product Description
Whole Adsorption Carton box Ink Printing Slotting Die-cutting Machine
Adopting western design concept and moveable units.Vacuum transfer and feeding accuracy.
Pringting precise registration and adjusting eletric operating.
Hot air dryer and IR dryer are allocation.
Computer controls and stores orders,it's easy to change orders.All systems adopt PLC touch screen controls and easy operate.
Central dust collecting system.
Units are equipped with machine oil automatic balance device so as to keep them in same standard.
Be applied to the screen printing on coated paper or kraft paper board.
Forme,roller ,standard parts and so on consumable materials use international standard.
Main specification:
| Item | Data | |||||
| 920 | 1224 | 1425 | 1628 | 1825 | ||
| Max Speed (pcs/min ) | 400 | 320 | 250 | 180 | 160 | |
| Max Feeding size (mm) | 900×2000 | 1200×2500 | 1400×2600 | 1600×2900 | 1800×2600 | |
| Min Feeding size(mm) | 260×600 | 320×650 | 380×700 | 450×750 | 500×850 | |
| Skip Feeding(mm) | 1200×2000 | 1600×2500 | 1800×2600 | 2000×2900 | 2200×2600 | |
| Max Print area(mm) | 860×1960 | 1160×2360 | 1360×2460 | 1580×2760 | 1760×2460 | |
| Print Plate Thickness(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
| Min slot Gap(mm) | (normal) | 130×130×130×130 | 150×150×150×150 | 160×160×160×160 | 160×160×160×160 | 160×160×160×160 |
| (Reverse Knife) | 265×65×265×65 | 260×65×260×65 | 265×70×265×70 | 250×70×250×70 | 250×70×250×70 | |
| Print accuracy(mm) | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | |
| Board Thickness(mm) | 2--9 | 2--9 | 2--10 | 2--10 | 2--10 | |
| RDC accuracy(mm) | ±1 | ±1 | ±1 | ±1 | ±1 | |
| Max slotting Depth(mm) | -260 | 300 | 350 | 400 | 450 | |
Packaging & Shipping
Delivery Details:30days after prepayment
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Detailed Images
Trade Shows
Certifications

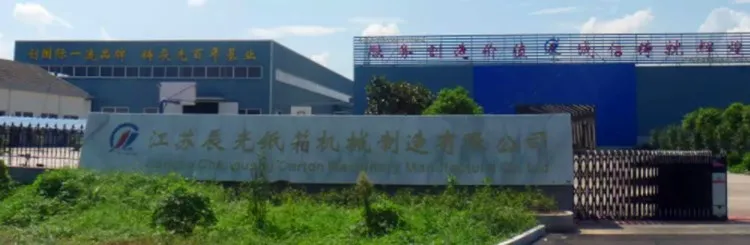

Company Information
Jiangsu Chenguang Carton Machinery Manufacturing Co.,Ltd. is located in the imperial hometown, the lobster capital of Jiangsu Xuyi. Our factory covers an area of 3000 square meters and owns more than 60 professional technicians. We have our own R&B department,the production department and the sales department. From 2011 to 2013, we have got 13 national practical patents and 3 national invention patents. Our company is a national high-tech and innovative enterprise in the top 10 and our products have won the title of Huai`an famous brand products.
Transportation
FAQ
1.Are you a factory or a trading company?
We are an experienced factory.
2.Where is you company ,can we visit you company?
Our company is located in Xuyi,Jiangsu,China.
Welcome you to visit our company.
3.What are you main products?
Carton manufacturing machinery etc.
4.What's your payment term?
The main payment term is T/T,L/C,Western Union is also accepted.
5.What's the Delivery time?
About 15-30 days.
6.Will you provide overseas installation and after-sales service?
Yes.We have professional engineers to provide overseas installation and after-sales service.
Jiangsu Chenguang Carton Machinery Manufacturing Co.,Ltd.
Tel:+86-0517-88299616
Fax:+86-0517-88294558
Add:No.18 Xinhai Avenue,Xuyi Development Zone,Jiangsu,China.
