Fully Automatic Corrugated Box Printer Slotter Diecutter Printing Slotting Machine

Product Overview

Description

1400*2400 2 COLOR PRINTING SLOTTING MACHINE

COMPANY  INTRODUCTION

We are the professional manufacturer of corrugated cardboard production line with 20 years of manufacturing experience in DongGuang.Our main products are the complete corrugated paperboard production line, flexible printing slotting & die cutting machine, carton making and converting machine. The Complete Corrugated production Line is composed of Hydraulic Mill Roll Stand, High Speed Single Facer, N.C Slitter Scorer Machine, N. C Cut-Off Machine, Stacking as well as Rotary Slotting Machine, Folder Gluer Machine etc.

Our company has advanced technology, perfect design and reliable guarantee system for machines. Based on honesty and credit, we are committed to provide our customer with high quality products and favorable prices and best service. We welcome you to visit our company and give us your valuable guidance.

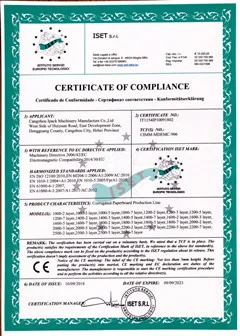

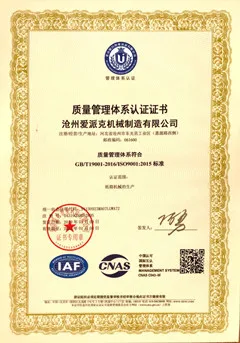

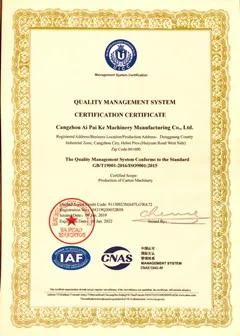

ISO&CE CERTIFICATE

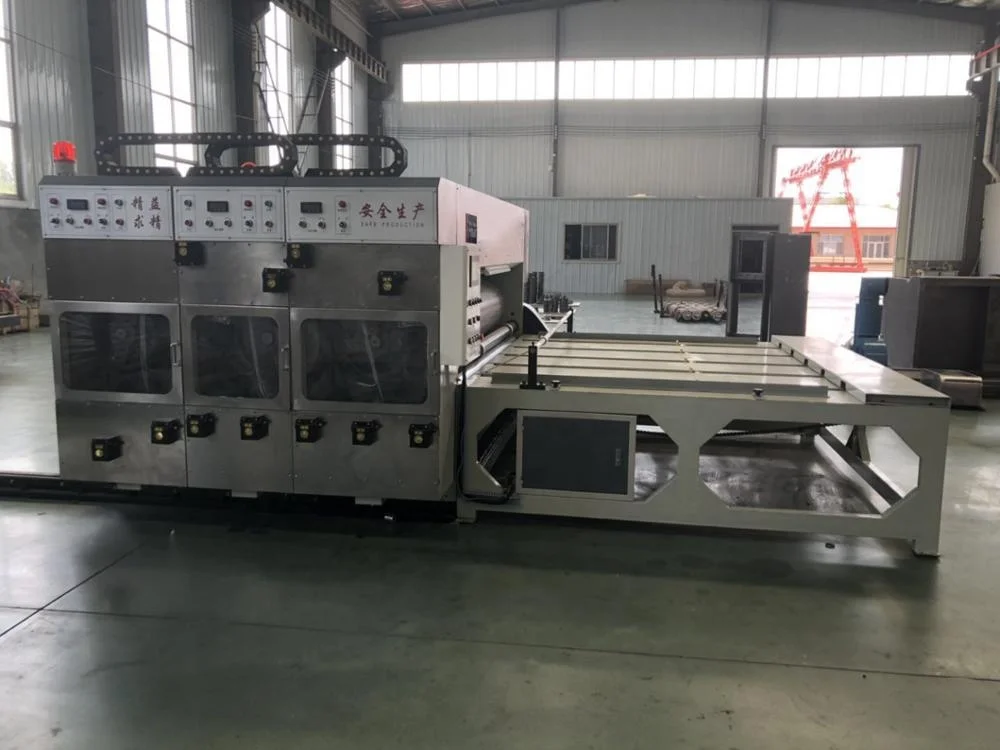

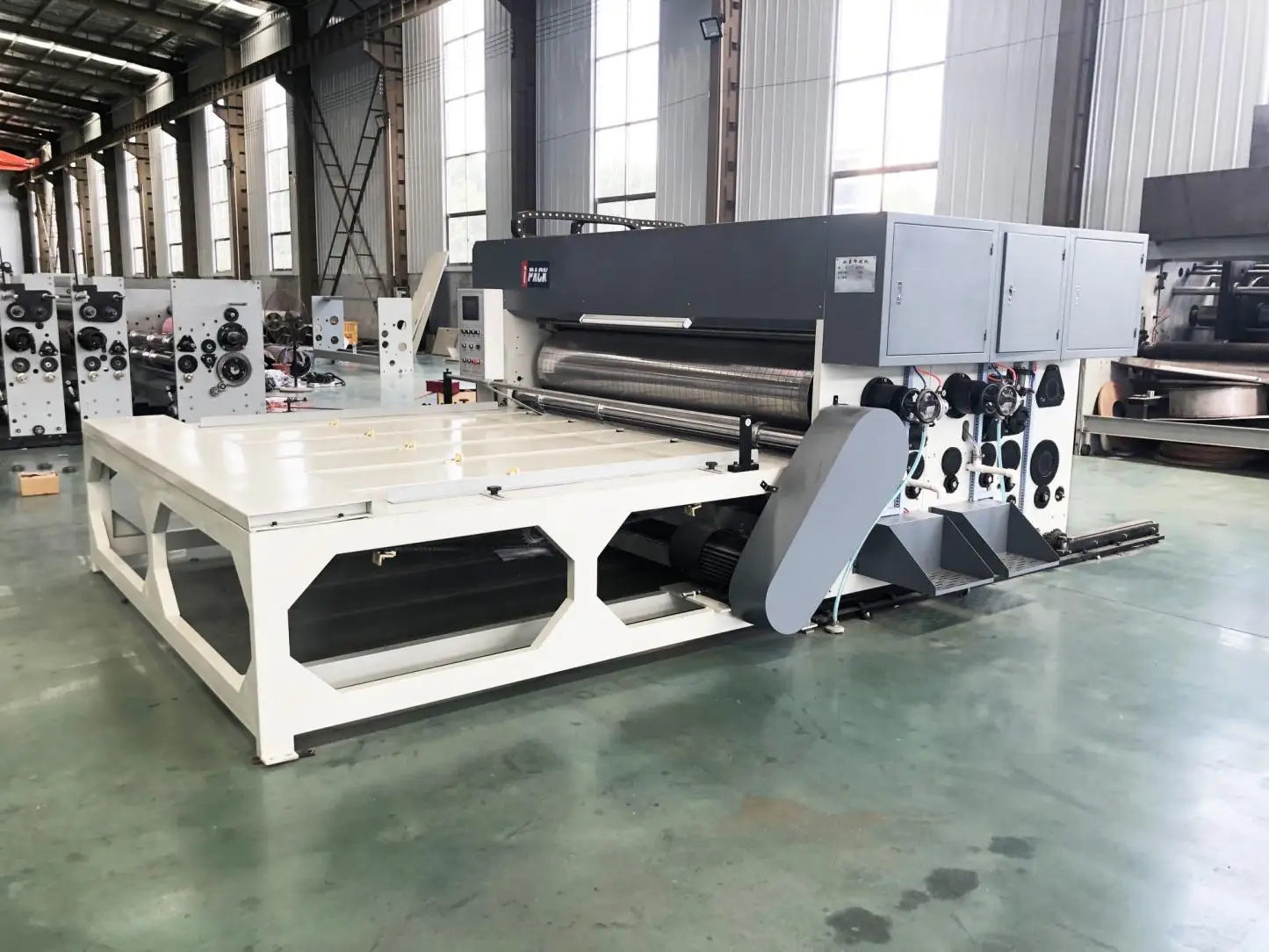

1400*2400 2 COLOR PRINTING SLOTTING MACHINE



MACHINE PERFORMANCE:

1.The governor controls the operation of the host to make the speed control more convenient and faster.

2.Displacement memory reset function, the machine in the working process, such as need to open the machine for clearing or a small number of plate change, after the machine closed it can automatically restore the original position.

3.All drive rollers are made of high-quality steel, hard-chrome plated and surface-ground.

4.The 40mm thickness of the transmission gear use 45# high quality gear steel, and the hardness is 58-62 degrees after quenching.

5. The alarm will ring continuously while machine separate or whole machine move to ensure the safety of the operator.

6.Before and after the emergency stop switch is arranged , each unit can be stopped inside to ensure the safety of the internal operating personnel .

7.The emergency stop switch is set in front of the machine and back of the machine to stop the movement of each unit internally for ensure the safety of internal operators.

8.Oil automatic balancing device to keep all units of oil at the same level.

9.The material of the wall is HT250,thickness is 40mm through aging treatment , it is formed by the large machining center so as to ensure high strength and high precision .

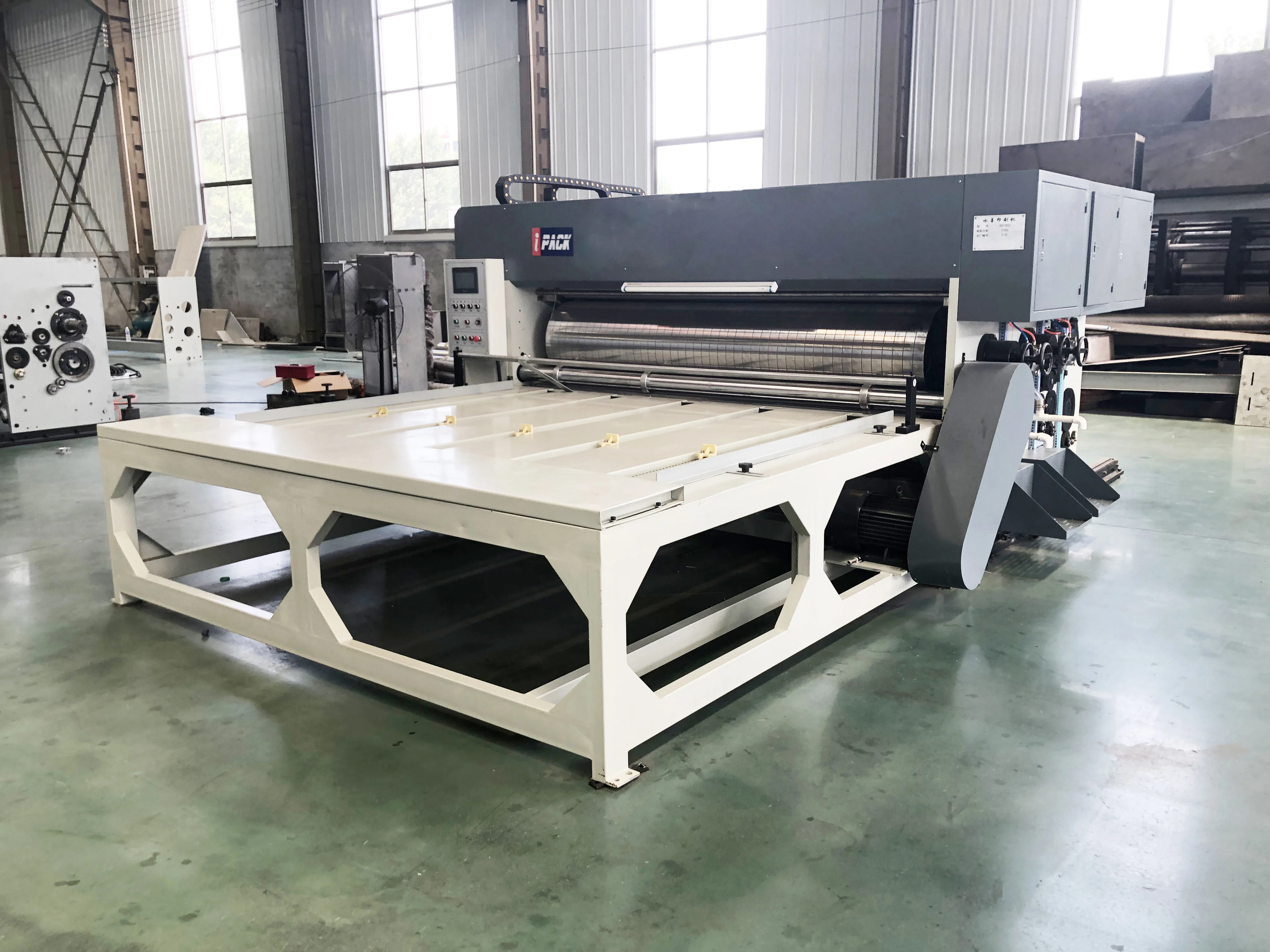

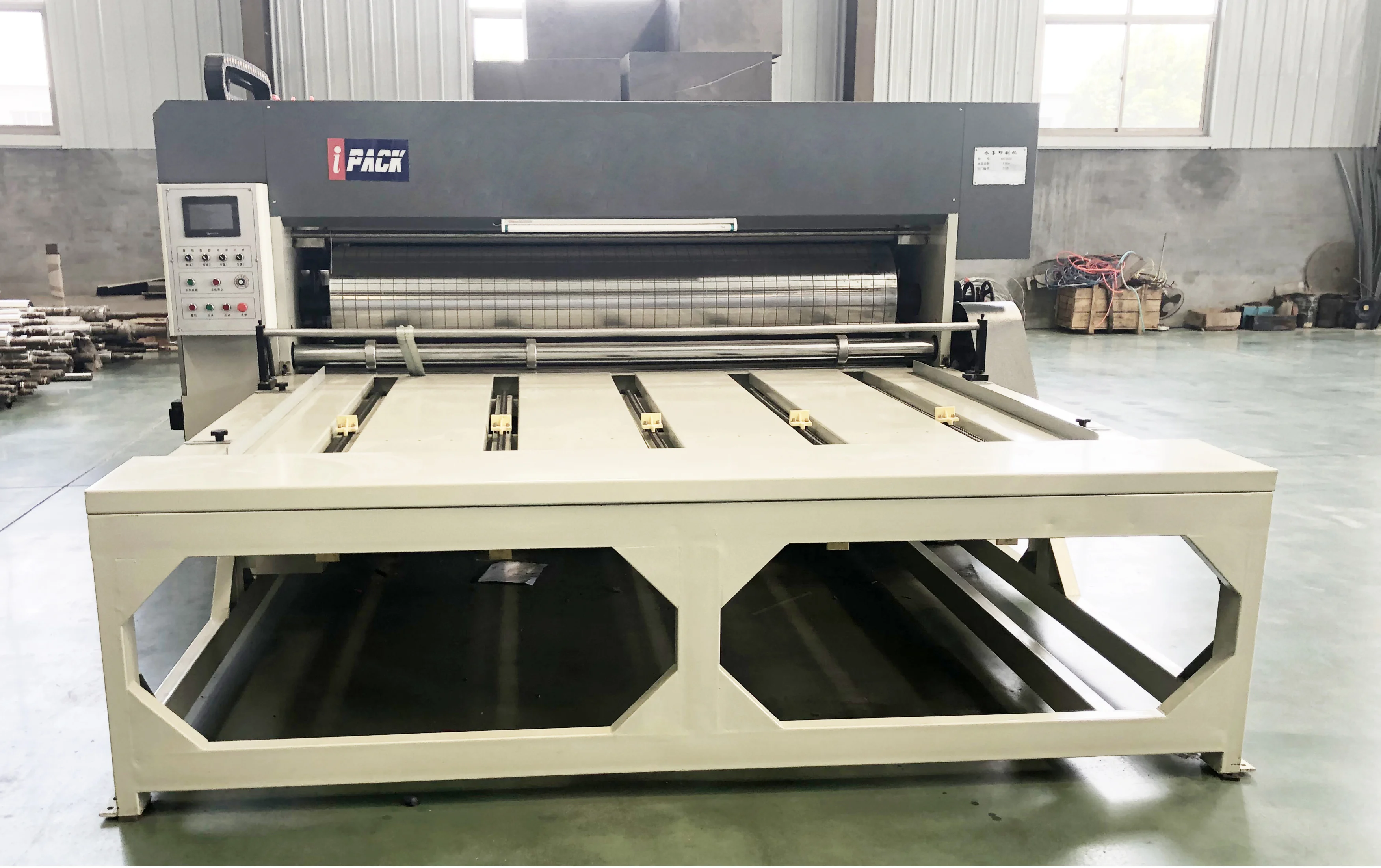

1.FEEDER (CHAIN FEEDING)

1.Chain type paper feeding, double side baffle, high paper feeding precision ,smooth operation.

2.The chain feeder and the main machine to form a line speed difference.After the cardboard is sent, the rear baffle pulls away, it  will not damage the box.

2. PRINT UNIT (TWO SETS)

1.Plate roller outer diameter is 468mm (without printing plate).

2.Print phase microcomputer phase meter digital control.

3.Horizontal phase manual control, control range ±5 mm.

4.Press printing rollers ,rubber rollers and anilox rollers adjust gap adopt self - locking structure .

5.Printing phase fixing device, pneumatic brake mechanism, when the unit is separated to adjust the phase or cleaning, the brake mechanism limits the gear rotation, maintaining the original gear fixed point position .



3.STEEL ANILOX ROLLER

1.The external diameter is 176mm: one is 200 mesh, the other is 220 mesh.

2.The surface diameter of the steel roller is treated with fine pressure forming , the mesh point is consistent , and the upper ink is uniform .

Balance correction, smooth operation.

3.Air pressure automatic lifting device match up paper feeding system (The anilox roller descends in contact with the printing plate during feed, and the anilox roller rises away from the printing plate when feeding stops).

4.The anilox roller is equipped with a one-way overrunning clutch. It is convenient and quick to evenly ink and wash ink.



4.RUBBER ROLLER ( HIGH – QUALITY RUBBER )

1.Outer diameter is 156mm, The core tube is made of high-quality seamless steel ,and have been dynamic balance correction.

2.The surface is wrapped with wear-resistant rubber roller. The middle and high rubber rollers are parabolic. After special grinding, the ink transferring effect is good.

3.Manually adjust the gap with the anilox roller.

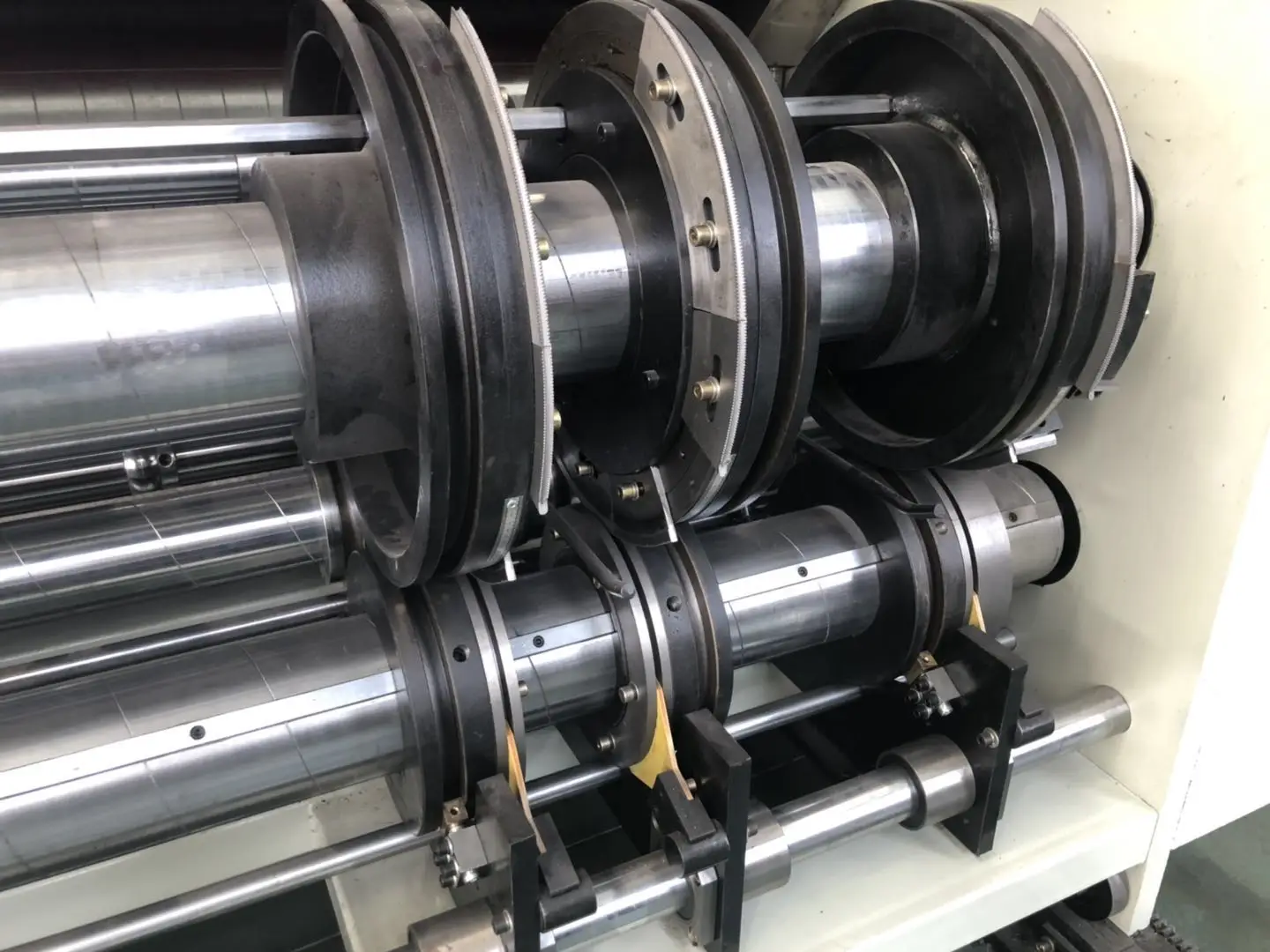

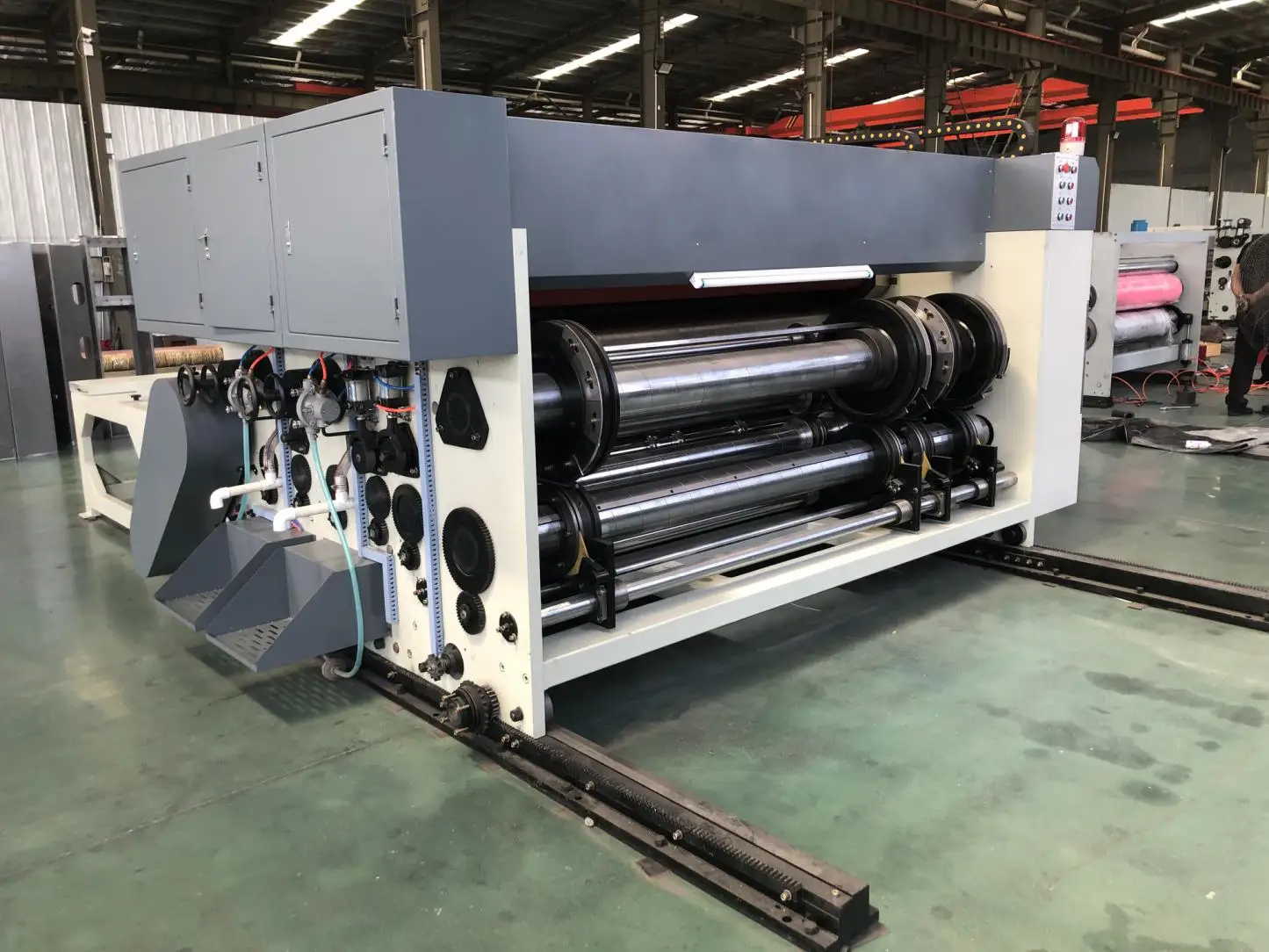

5.SLOTTED UNIT

1.The axial movement of the upper knives plate is adjusted manually.

2.The height of the box is adjusted manually or synchronously.

3.Slotted phase, microcomputer displacement digital control.

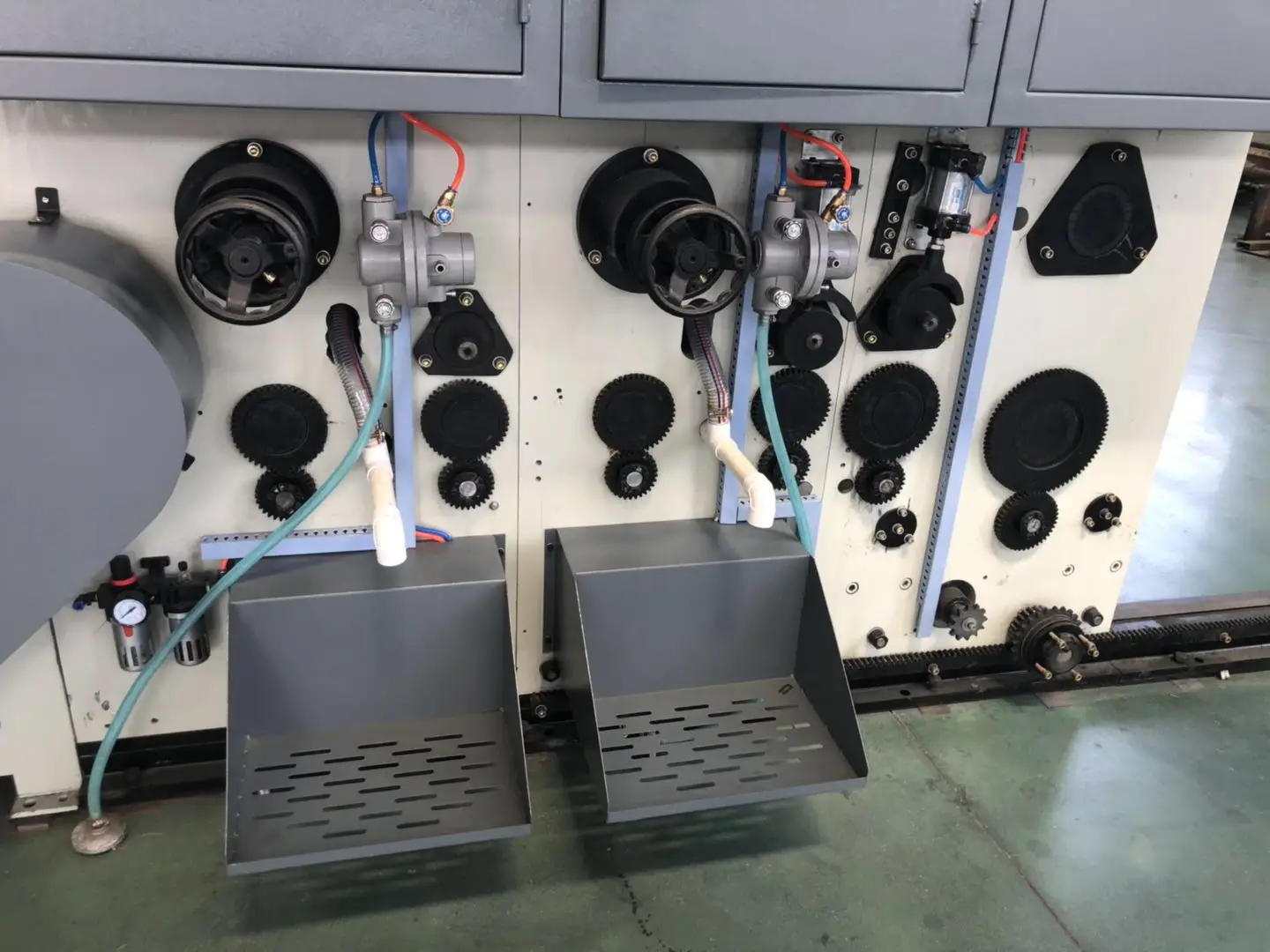

6.DRIVE GEAR

1.The transmission gear is made of 45# high quality gear steel, 40mm thick. After quenching and tempering, hardness HRC58-62. it has excellent toughness and wear resistance.

2.The drive adopts inner eccentricity and outer cross sliding head structure. When the pressure is adjusted, the change of gear clearance is 0, which can achieve long term printing registration.

3.The gear surface is lubricated by oil pump, and the life of gear is improved. Each group has a separate oil pump.
